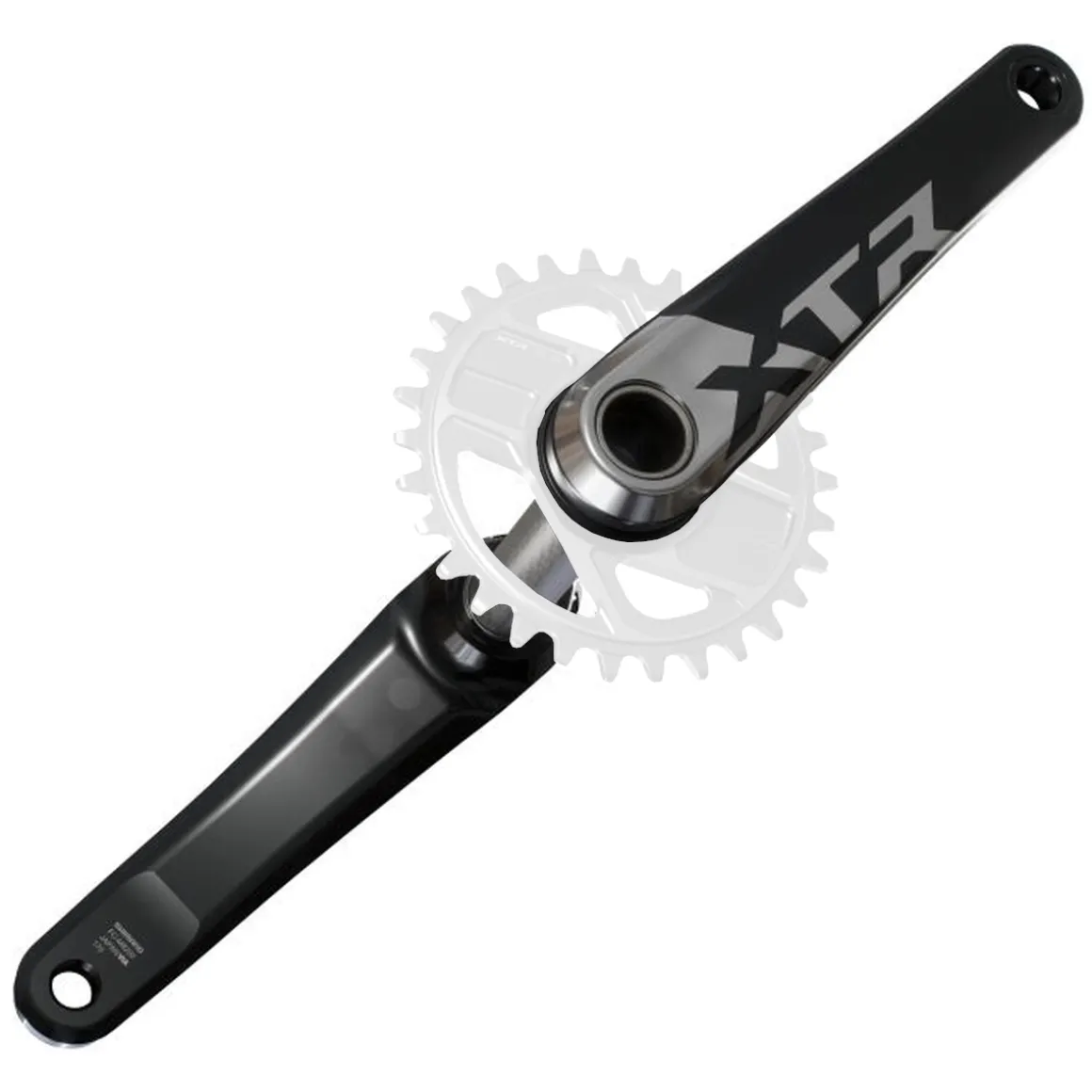

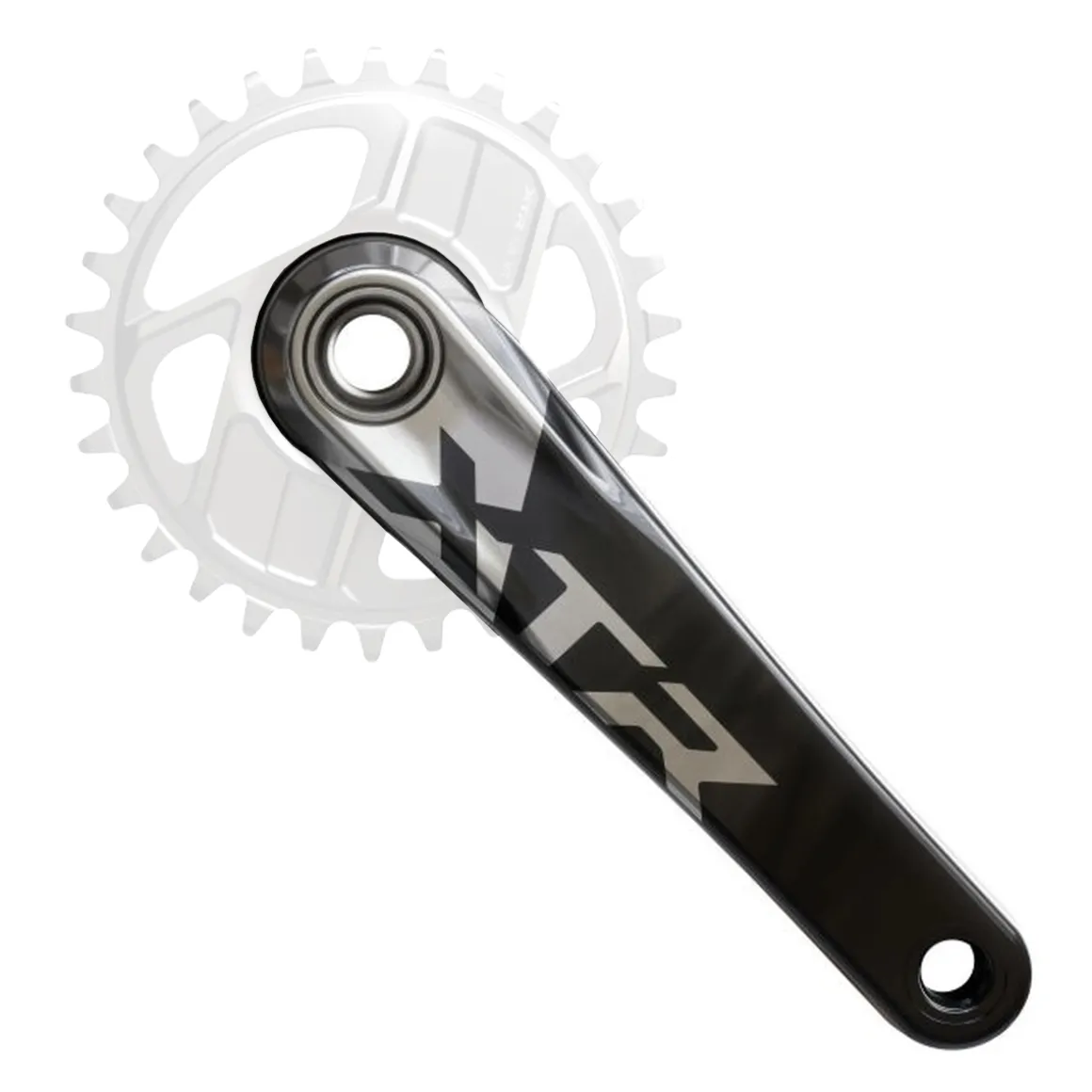

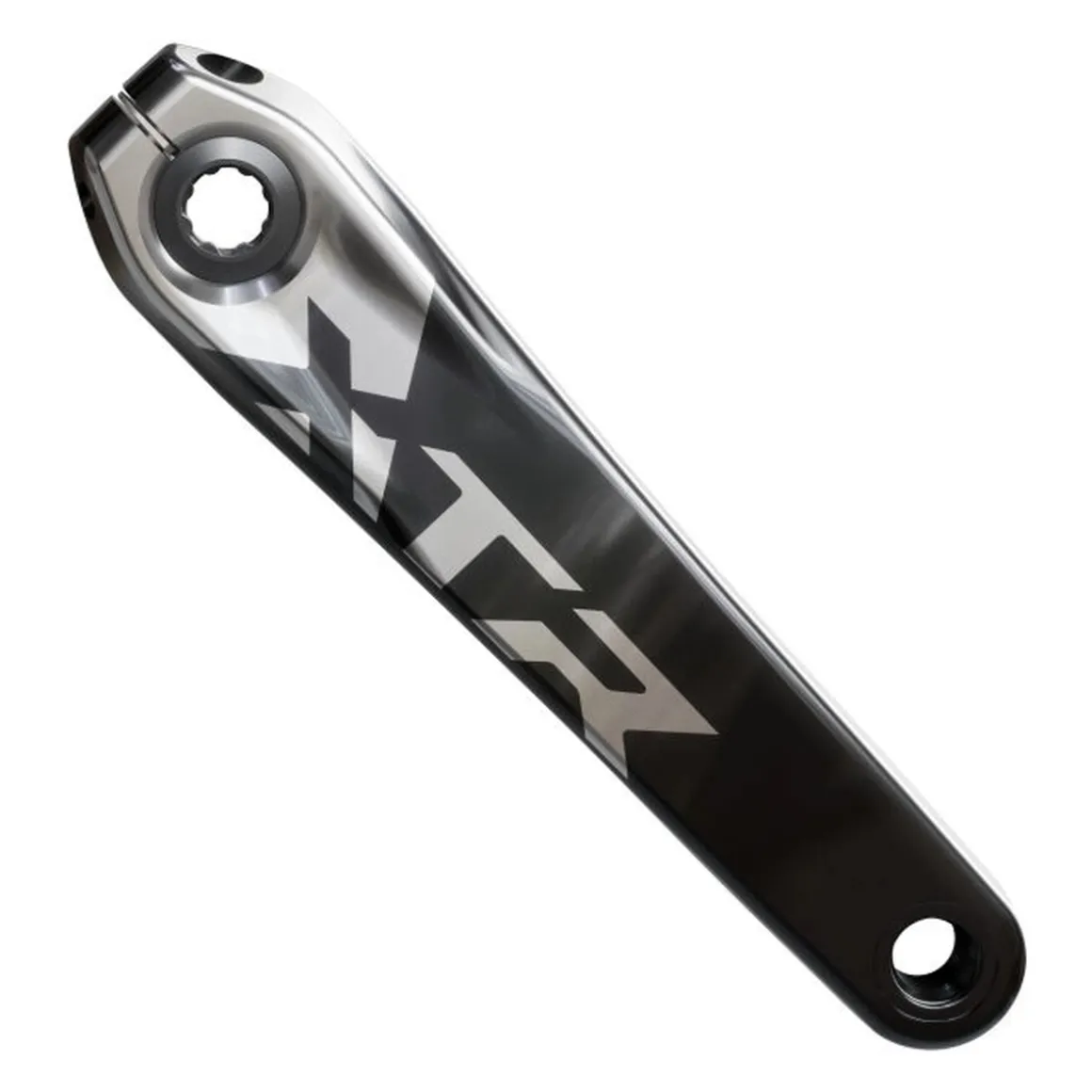

XTR FC-M9200 Hollowtech II MTB Crank 1 x 12-speed

Forged for race confidence!
With the XTR FC-M9200 crankset, SHIMANO presents the latest version of the proven Hollowtech II technology with its innovative cold forging process.
The crank, which is consistently designed for single-speed drivetrains, not only achieves outstanding stiffness values, but also remains remarkably light.
Together with the slim 170 mm Q-factor, the XTR FC-M9200 crankset is focussed on fast XC and marathon use.

SHIMANO uses its own Direct Mount standard with BB lockring to mount the chainrings and the 55 mm chain line increases drivetrain performance with BOOST installation width (148 mm).

Details:
• 1 x 12-speed crankset with integrated axle (Hollowtech II)
• Compatible with SHIMANO Hyperglide+ 12-speed
• Two-piece crankset increases the stiffness of the chainset with low weight and ensures efficient pedal force transference

Technical details:
• Intended use: MTB
• Series: XTR
• Model: FC-M9200
• Material: aluminium (crank arms), steel (axle)
• Type: Hollowtech II
• Gear steps front: singlespeed
• Gear steps rear: 12-speed
• Graduation: no (without chainring)
• Bolt circle: no (Directmount)
• Chainline: 55 mm (for 148 mm BOOST installation width)
• Q factor: 170 mm
• Compatible chains: SHIMANO 12-speed HG+
• Weight: approx. 583 g (175 mm; 30T)

Available with crank arm length:
• 170 mm
• 175 mm
Please indicate your choice.

In the box:
• 1 SHIMANO XTR FC-M9200 crankset 1×12 speed
Note: WITHOUT chainring and WITHOUT bottom bracket!

Recommended optional chainrings:
• XTR SM-CRM96 (prod. code: 2352013)

Recommended optional bearing cups:
• BSA: SM-BB93 (prod. code: 1954601)
• PressFit: SM-BB94-41A (prod. code: 1954610)
