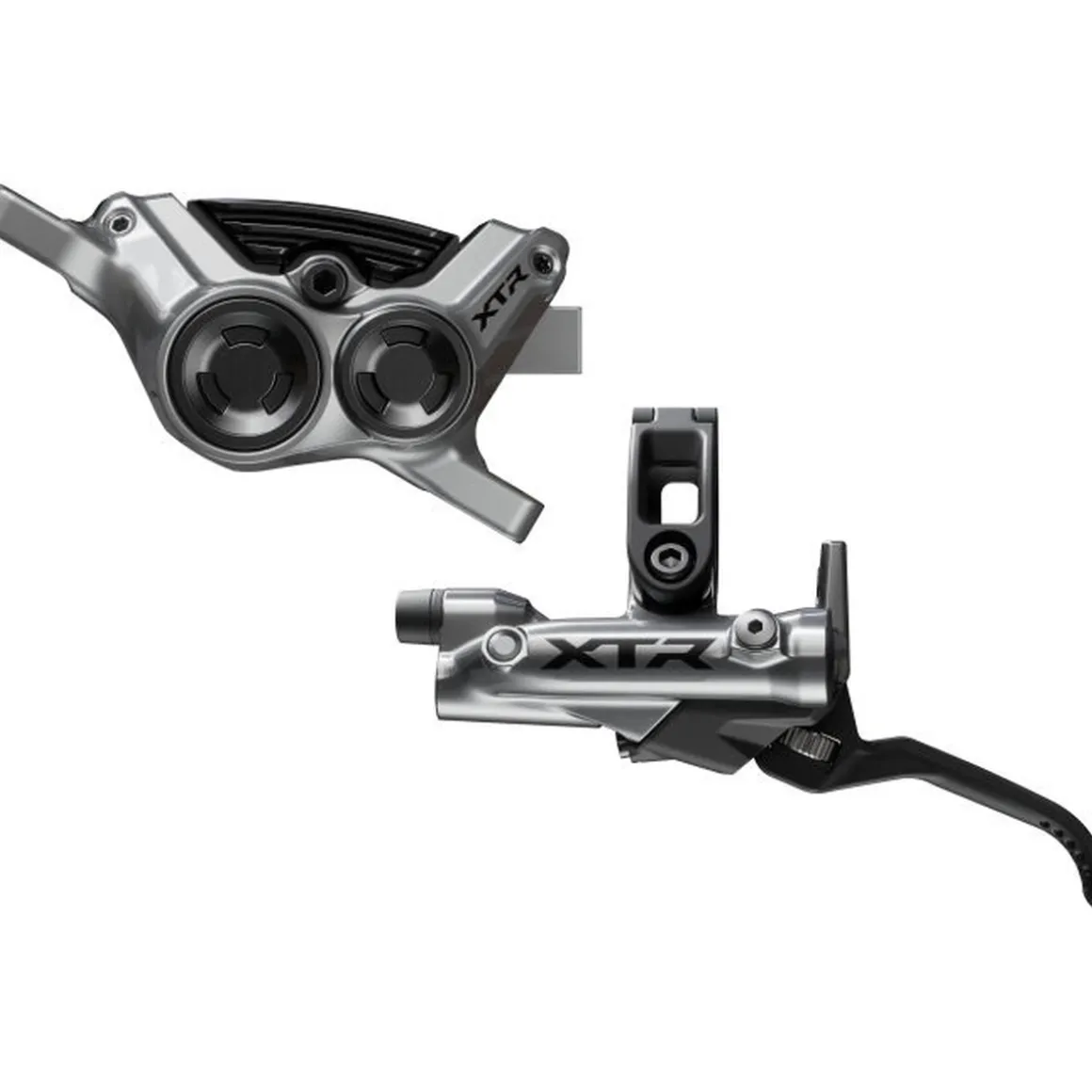

XTR BR-M9220 4-Piston Disc Brake

Enduro and trail riders can expect maximum SHIMANO performance with the XTR BR-M9220 disc brake. 4-piston technology at its best for even more speed, focus and control.
The overall system has been revised both visually and technically, with a snappy but controlled grip so that no downhill descent is too steep and no trail too challenging.

With the completely redesigned brake unit with I-SPEC EV clamp, the end of the hydraulic reservoir lies directly on the handlebar. The additional support in the direction of lever swing increases stiffness and stability when braking aggressively and thus provides improved brake feel and control on the trail. In addition, the slightly upward curved aluminium brake lever provides a more natural feel.
The hydraulic system is filled with SHIMANO LOW VISCOSITY mineral oil, which has a significantly lower viscosity compared to SHIMANO standard mineral oil. This enables faster and more precise transmission of the brake pressure as well as consistent braking behaviour in different conditions and temperatures.

The J-Kit comes pre-filled and, thanks to the pre-installed olive, allows for easy cutting of the cables as well as cable routing inside the frame, too. Additional bleeding is therefore generally unnecessary.

Details:
• Fully hydraulic 4-piston disc brake with automatic pad adjust
• 2-finger brake lever with split clamp allows for easy mounting
• One way bleeding
• Funnel bleeding
• J-KIT DIRECT version: filled ready for mounting and bled for easy cutting and routing of the hose

Technical details:
• Intended use: MTB
• Series: XTR
• Model: M9220
• Brake lever: BL-M9220, material: aluminium (master cylinder), aluminium (brake lever), stainless steel (mounting bolt)
• Brake calliper: BR-M9200, post mount; material: aluminium, steel (mounting bolts)
• Brake hose: SM-BH90-SBM
• Lever size: 2-finger
• SERVO-WAVE: yes
• I-SPEC standard: I-SPEC EV
• Adjustable free stroke: yes
• Lever reach adjustment: Yes (tool-free)
• Open clamp: yes (for handlebar Ø: 22.2 mm)
• Brake fluid: SHIMANO LOW VISCOSITY mineral oil
• Compatible pads: Type P / Type D
• Installed brake pads: P03A resin (organic / aluminium backing plate / with cooling fins)
• Recommended disc rotor: SHIMANO RT-MT905, RT-CL900

Available in the following versions:
• Front wheel (left lever, 1000 mm hose length, weight: approx. 351 g)
• Rear wheel (right lever, 1700 mm hose length, weight: approx. 371 g)
Please indicate your choice.

In the box:
• 1 SHIMANO XTR BL-M9220 brake lever
• 1 SHIMANO XTR BL-M9220 brake calliper
• 1 SHIMANO SM-BH90 brake hose
• 1 additional insert pin (if the hose needs to be shortened)
