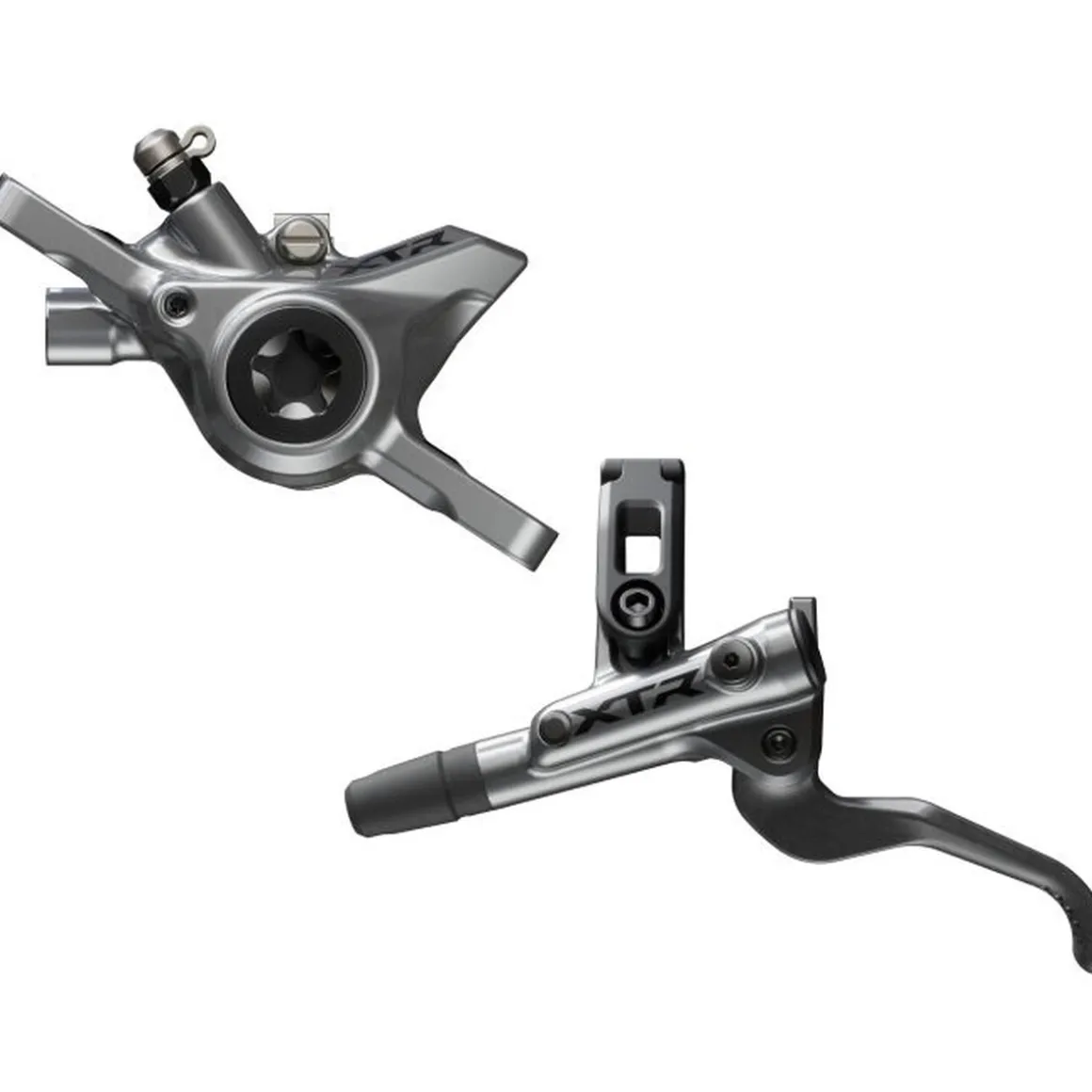

XTR BR-M9200 2-piston Disc Brake

A low weight, combined with the best materials and high braking performance make the uncompromising XTR BR-M9200 disc brake from SHIMANO an excellent choice for cross-country races.

In this version, the Japanese premium brake comes with a 2-piston brake calliper and a reduced brake unit on the handlebar. No unnecessary frills… but an ergonomic carbon brake lever for maximum weight reduction.
The lever width can be easily adjusted using a hex wrench.

Thanks to the angled I-SPEC EV clamp, the end of the hydraulic reservoir rests directly on the handlebar. The additional support in the direction of lever swing increases stiffness and stability when braking aggressively and thus provides improved brake feel and control on the trail. The hydraulic system is filled with SHIMANO LOW VISCOSITY mineral oil, which has a significantly lower viscosity compared to SHIMANO standard mineral oil. This enables faster and more precise transmission of the brake pressure as well as consistent braking behaviour in different conditions and temperatures.

The J-Kit comes pre-filled and, thanks to the pre-installed olive, allows for easy cutting of the cables as well as cable routing inside the frame, too. Additional bleeding is therefore generally unnecessary.

Details:
• Fully hydraulic 2-piston disc brake with automatic pad adjust
• 2-finger brake lever with split clamp allows for easy assembly
• One way bleeding
• Funnel bleeding
• J-KIT DIRECT version: filled ready for mounting and bled for easy cutting and routing of the hose

Technical details:
• Intended use: MTB
• Series: XTR
• Model: M9200
• Brake lever: BL-M9200, material: magnesium (master cylinder), carbon (brake lever), aluminium (mounting bolt)
• Brake calliper: BR-M9200, post mount; material: aluminium, titanium (mounting bolts)
• Brake hose: SM-BH90-SS
• Lever size: 2-finger
• SERVO-WAVE: No
• I-SPEC standard: I-SPEC EV
• Adjustable free stroke: no
• Lever reach adjustment: Yes (with tool)
• Open clamp: yes (for handlebar Ø: 22.2 mm)
• Brake fluid: SHIMANO LOW VISCOSITY mineral oil
• Compatible pads: Type K
• Installed brake pads: K05Ti resin (organic / titanium backing plate)
• Recommended disc rotor: SHIMANO RT-MT905, RT-CL900

Available in the following versions:
• Front wheel (left lever, 1000 mm hose length, weight: approx. 257 g)
• Rear wheel (right lever, 1700 mm hose length, weight: approx. 277 g)
Please indicate your choice.

In the box:
• 1 SHIMANO XTR BL-M9200 brake lever
• 1 SHIMANO XTR BL-M9200 brake calliper
• 1 SHIMANO SM-BH90 brake hose
• 1 additional insert pin (if the hose needs to be shortened)
