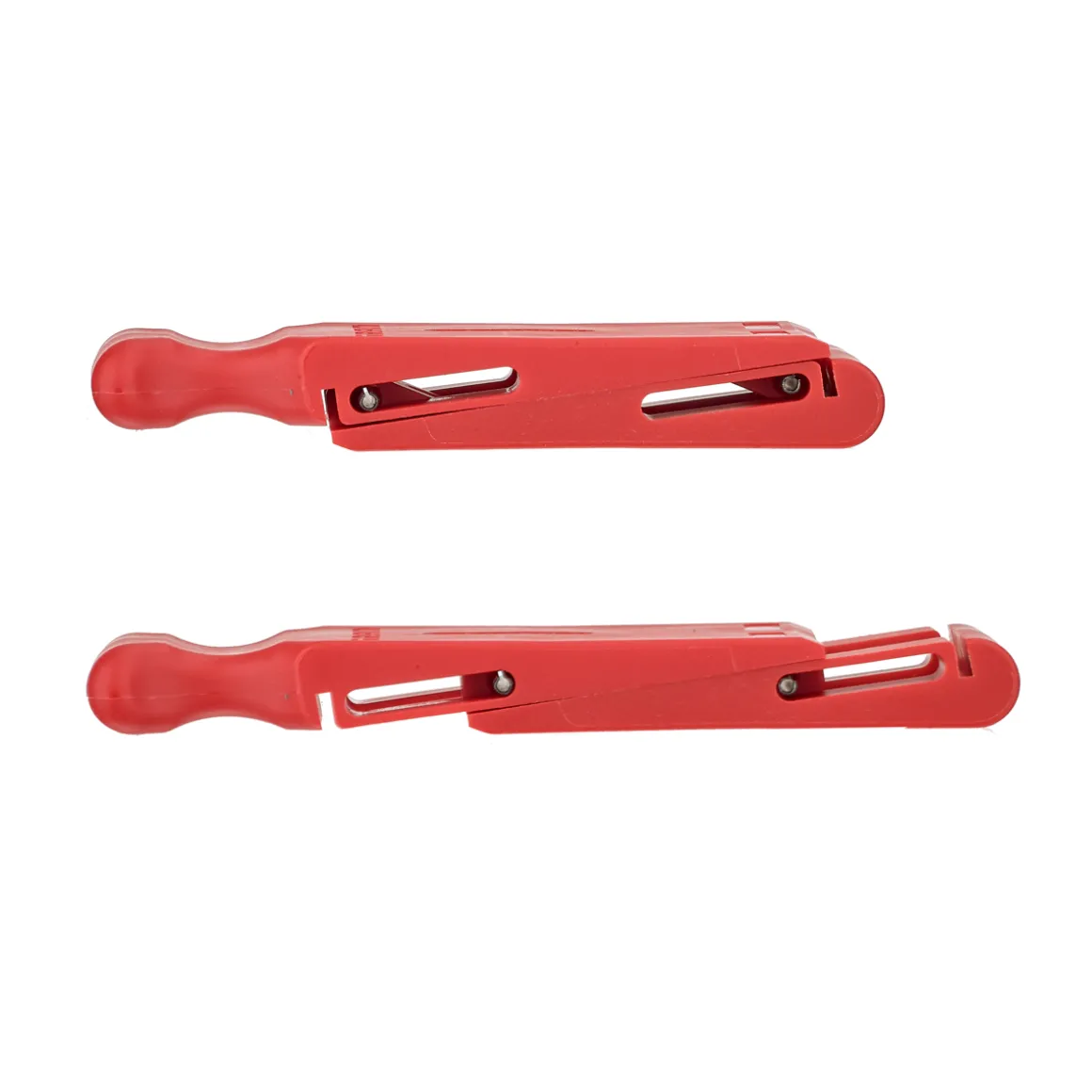

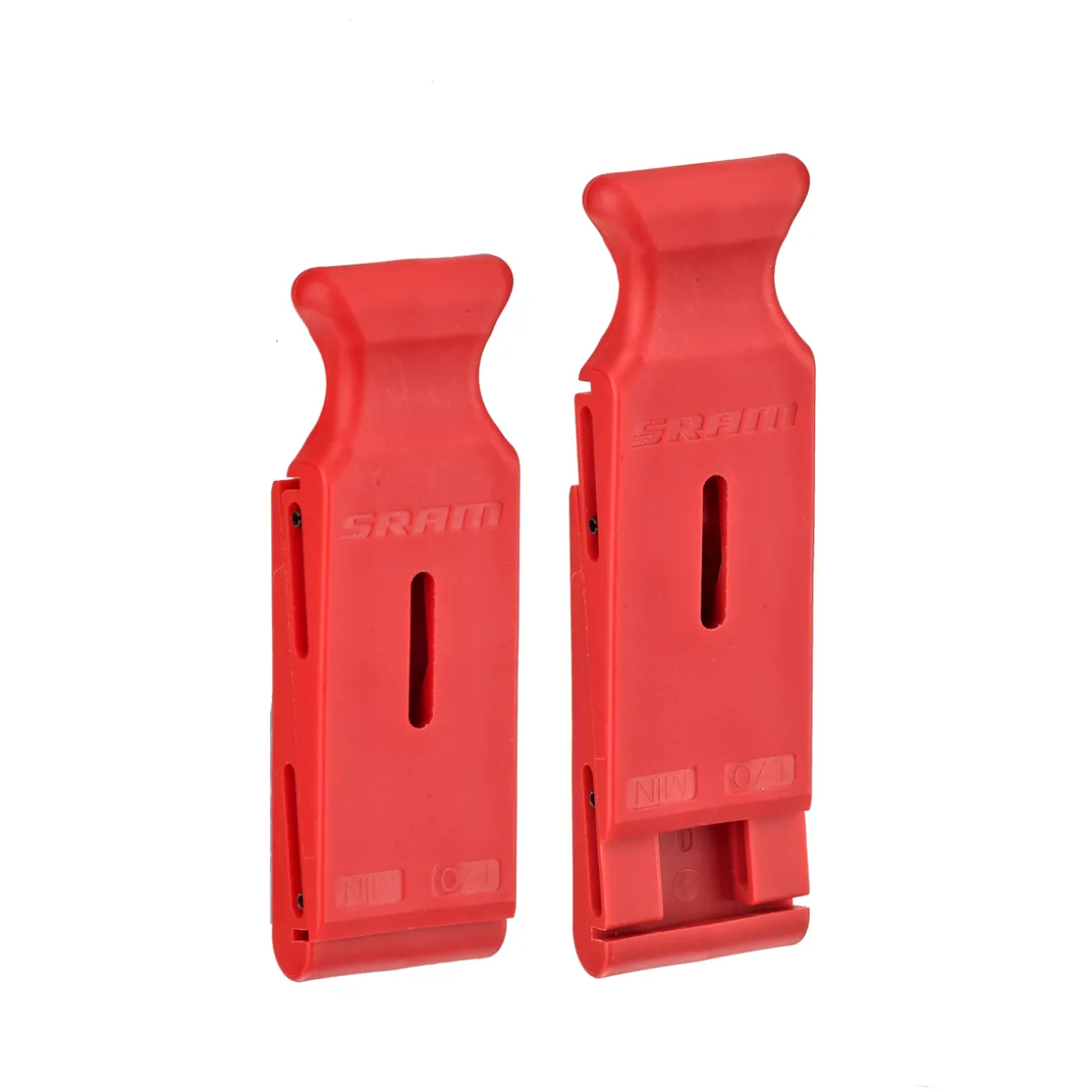

Universal Disc Brake Bleed Block 2-/4-Piston

The Universal Disc Brake Bleed Block by SRAM can be used for working on hydraulic disc brakes or on the brake calliper, for example for bleeding. After removing the brake pads, it is inserted between the pistons of the brake calliper and secured with the fastening screw.

The wedge-shaped sliding mechanism of the bleed block can be adjusted to the piston spacing by pushing it together. Therefore, it is suitable for universal use with two-piece SRAM 2 and 4-piston brake callipers. The ergonomically shaped finger grip facilitates handling.

Details:
SRAM part: 115018059002
Spreading distance: approx. 10 mm to 13 mm
2-sided: 1.55 / 1.70 min.
Material: plastic
Dimensions: approx. 85 x 28 x 12 mm
Weight: approx. 25 g

In the box:
1 SRAM universal disc brake bleed block

Note:
With these SRAM monobloc brake callipers, the bleed block may only be used to a limited extent and possibly cannot be secured: RED 22 B1, FORCE 22, FORCE 1, CX1, RIVAL 22 RIVAL 1, 700 B1 HRD, APEX 1.
