Turntec Direction Indicator

The indicator for the e-bike: With the Busch + Müller Turntec you can visually indicate your direction of travel when turning without having to take a hand off the handlebar.

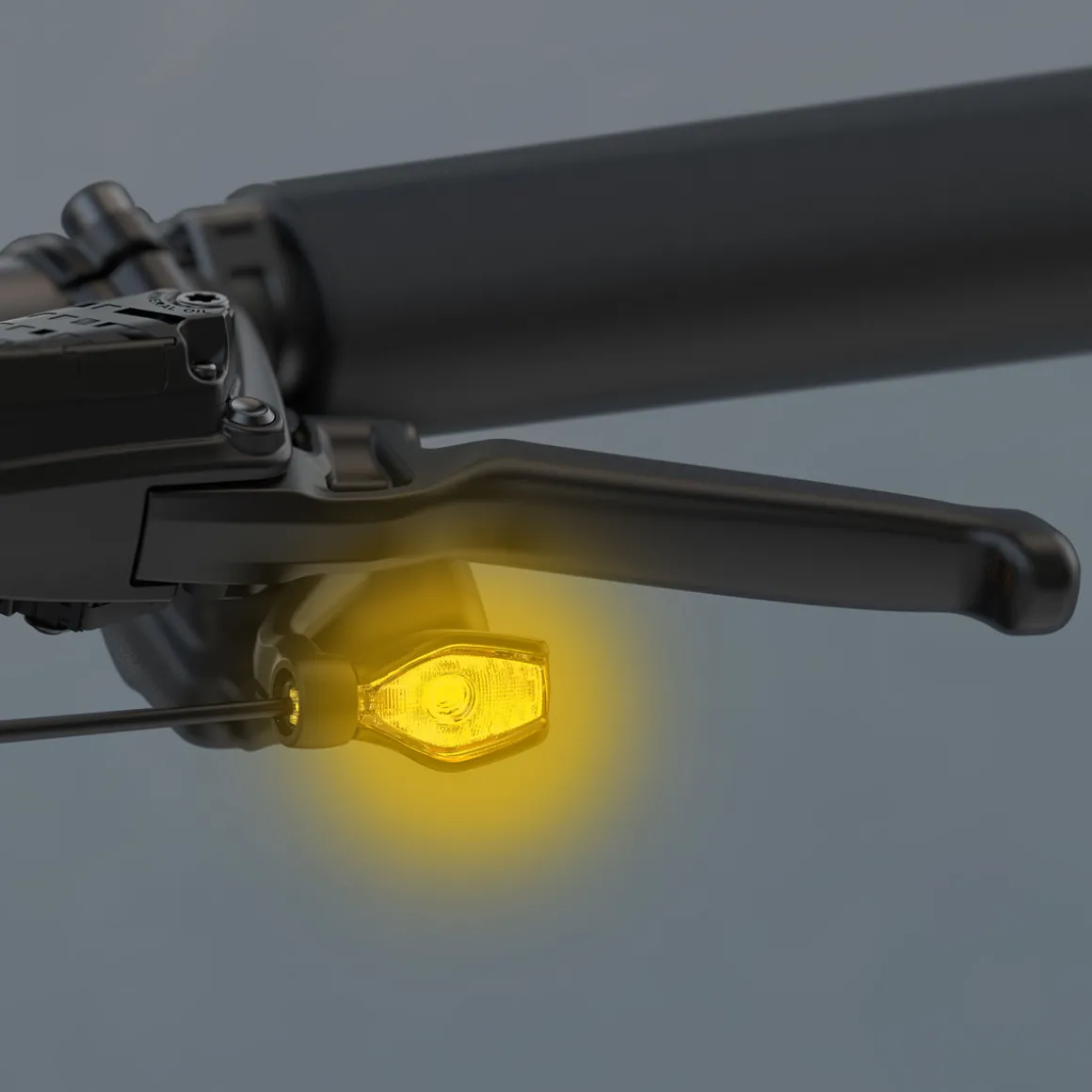

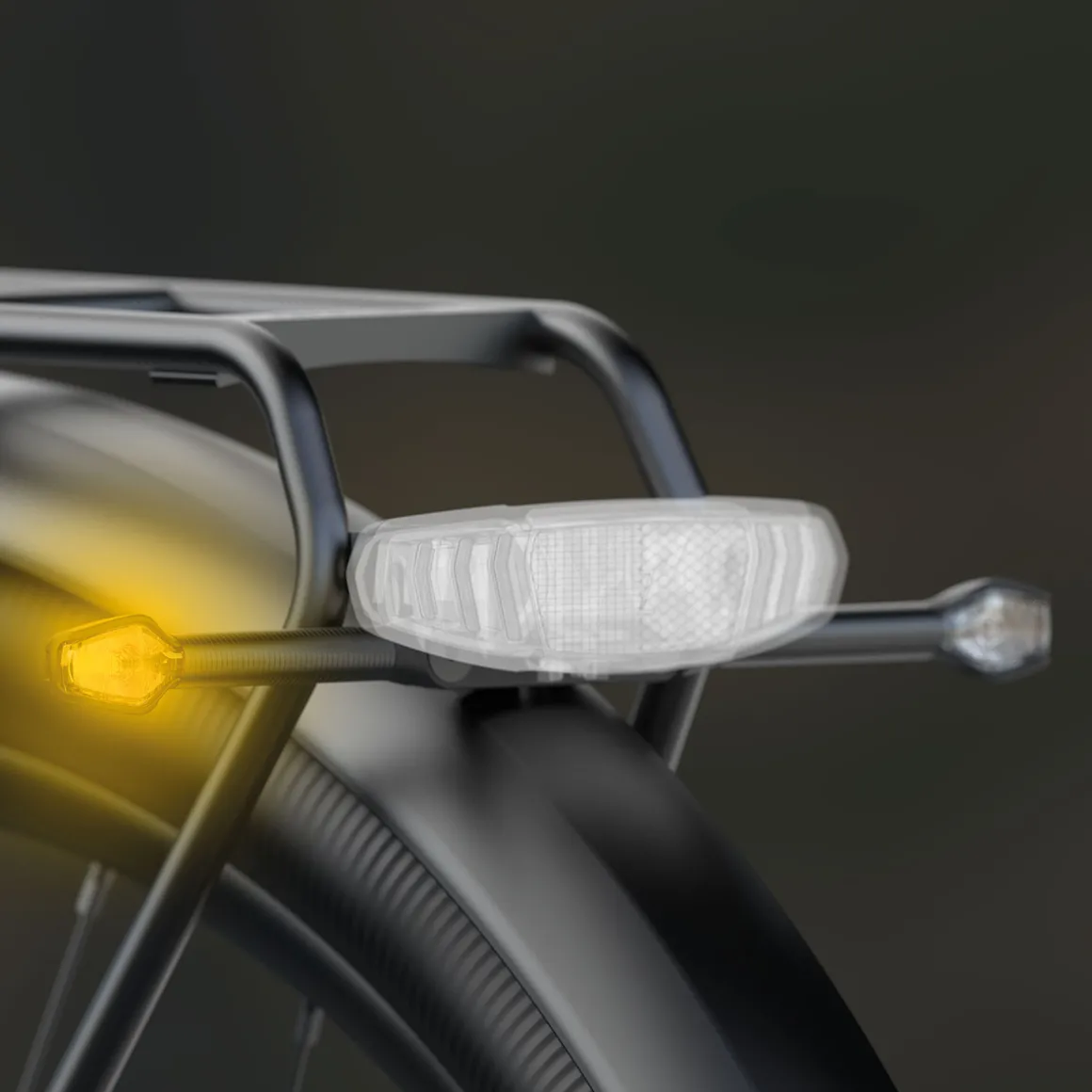

The electronic direction indicator really comes into its own in the darker months of the year, when it is sometimes difficult to recognise an outstretched arm or when it is safer for the individual riding situation to hold the handlebar with both hands. The Turntec has two indicators for the front on the handlebar and two for attaching to the rear light mount on the luggage rack. Clever: Thanks to integrated springs, the rear indicators can be moved to prevent accidental breakage.

The indicators are operated via a handlebar control unit with two buttons. In addition to the flashing function to indicate a turning manoeuvre, you can also activate a hazard warning mode using the handlebar buttons.

Details:
Electronic direction indicator for e-bikes / pedelecs with pedal assistance up to 25 km/h
Can replace the turn hand signal
Both hands can remain on the handlebar

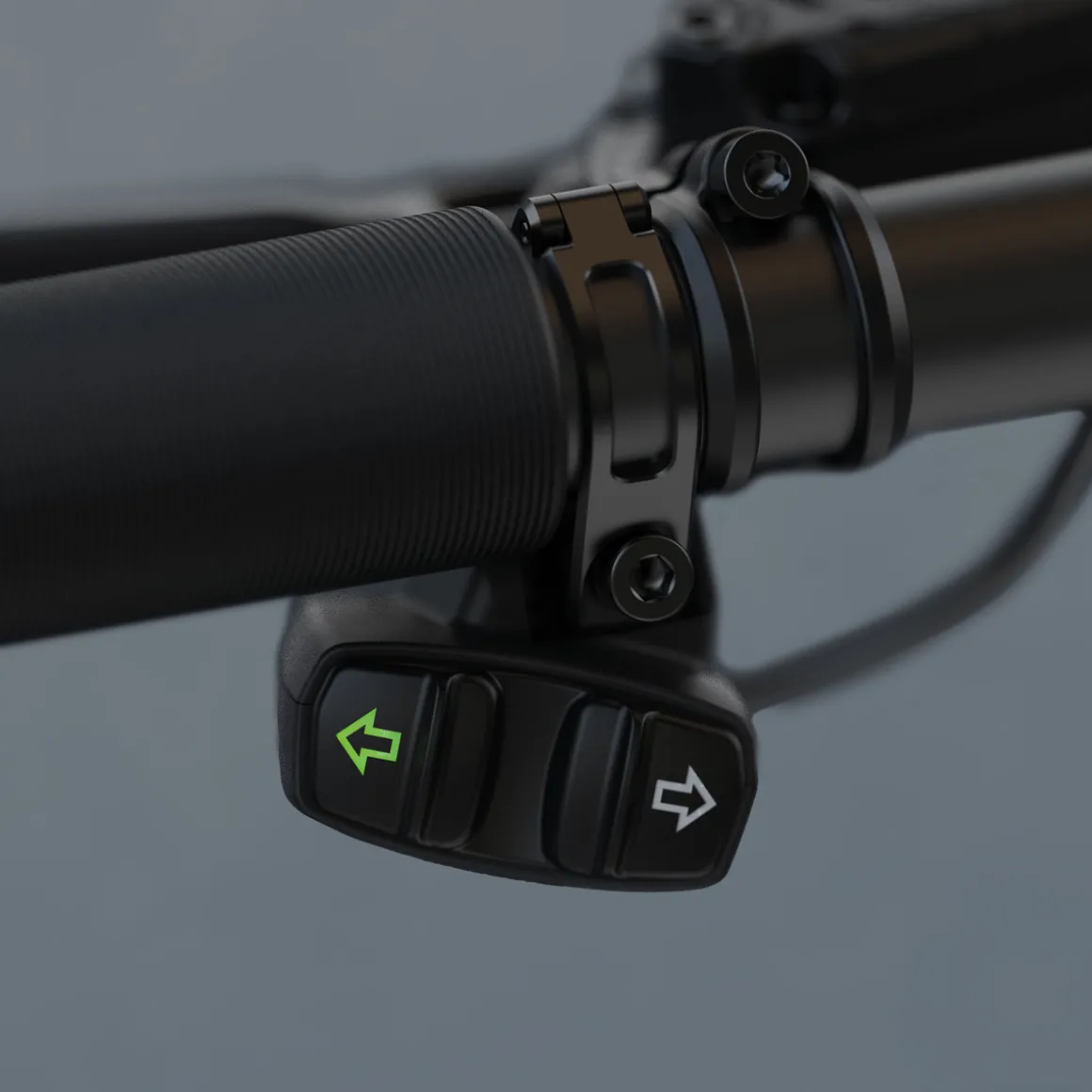

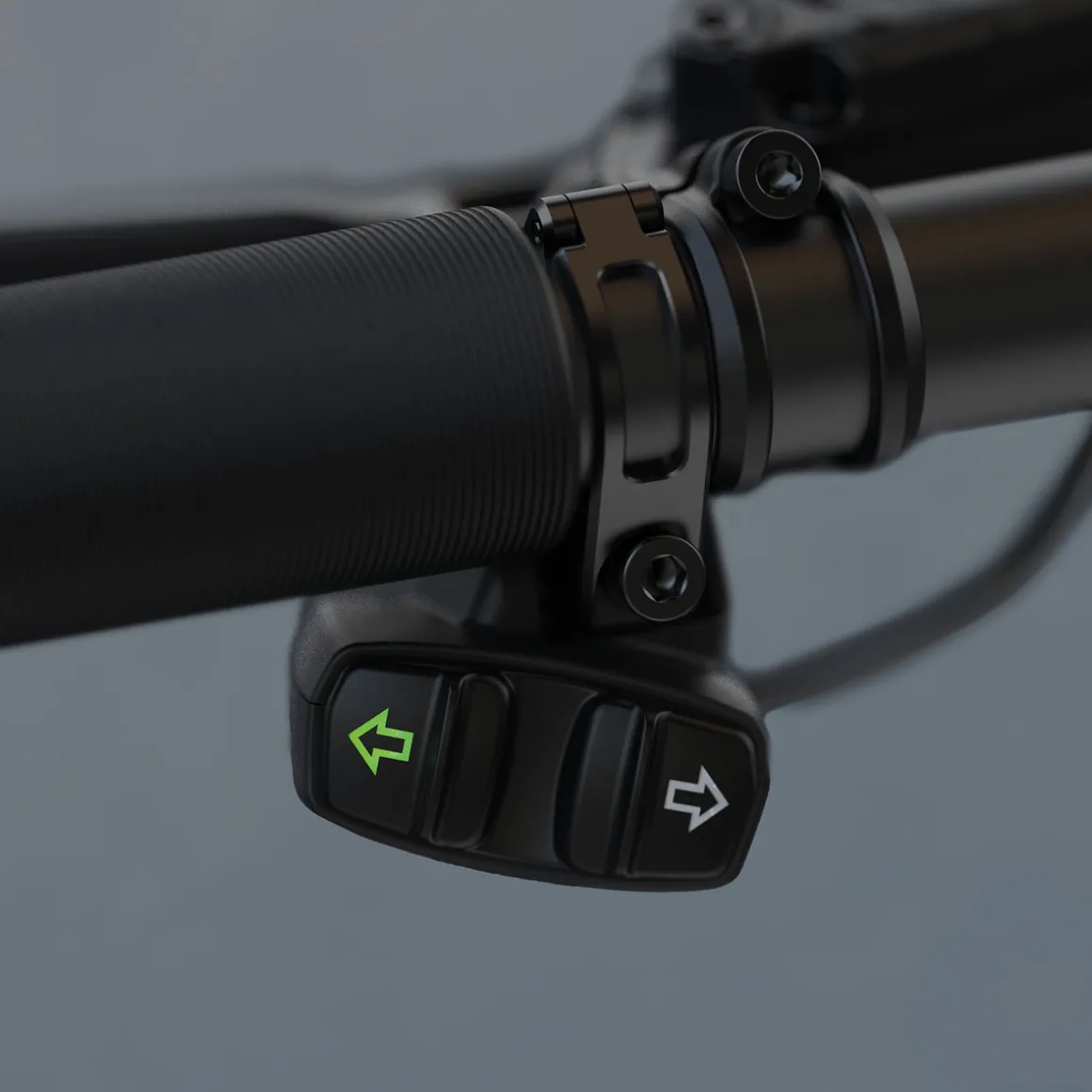

Handlebar control unit with two buttons
Two indicators for both front and rear
Comfort flashing function (short press of the button) and continuous flashing function (long press of the button)
Additional hazard warning mode
Visual display of defective indicators
Is connected to the light output of the e-bike (10 V-48 V DC, 2 W)
Incl. mounting clamps for handlebar mounting
According to German road traffic regulations (StVZO) approved for electric bikes limited to 25 km/h

Technical details:
Material: plastic, aluminium
Required operating voltage: 10 V–48 V DC
Power consumption: approx. 2 watts

Note:
The connection cable of the direction indicator has open cable ends. Depending on the e-bike drive, these can be connected to the motor of your e-bike either directly or using a separately available plug.

Compatible accessories at ROSE:
B+M cable for Bosch BES3 system for connection to low or high power port (prod. code: 2353251)
B+M extension cable set for Turntec mounting on cargo bikes (prod. code: 2353253)
