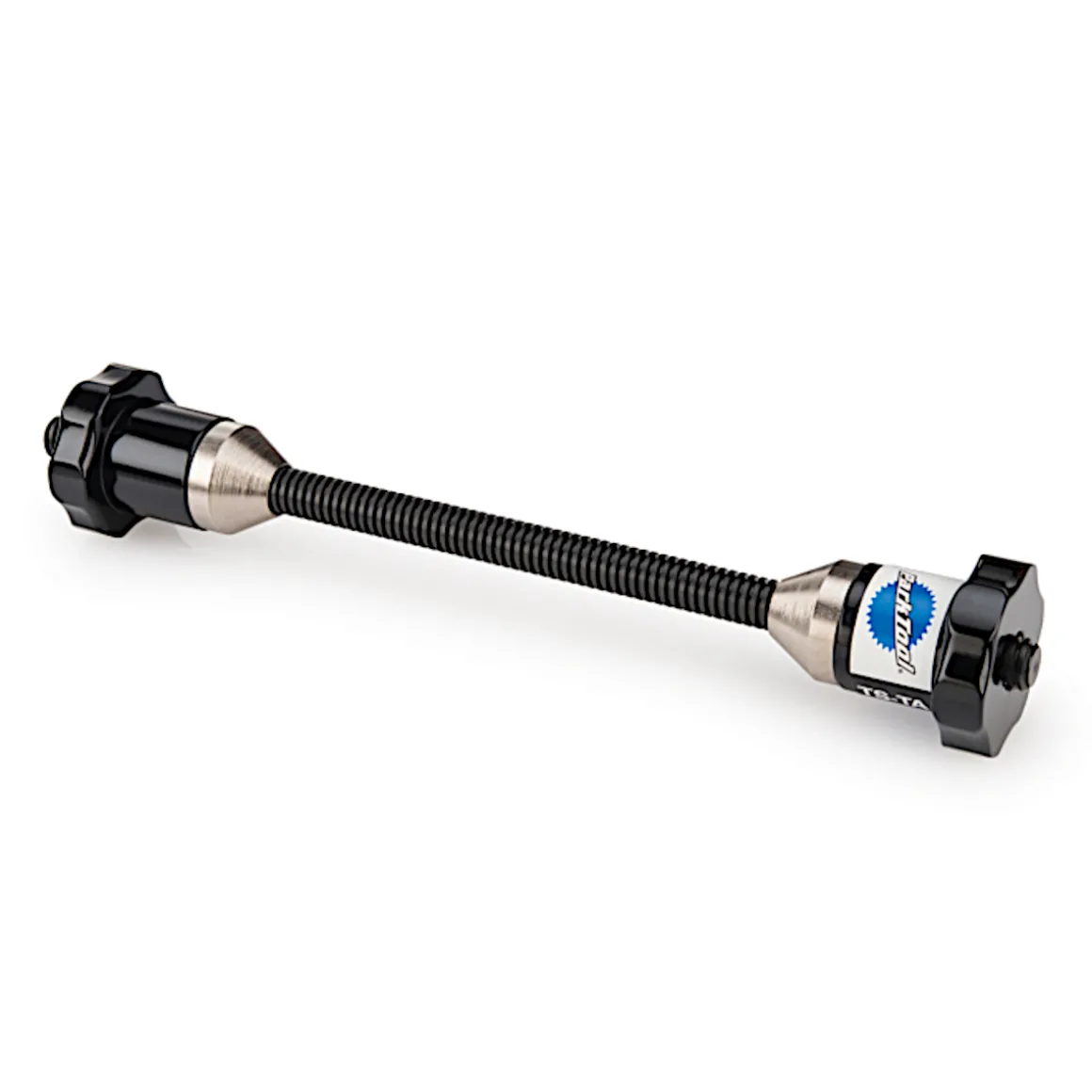

TS-TA Thru Axle Adapter for Truing Stands

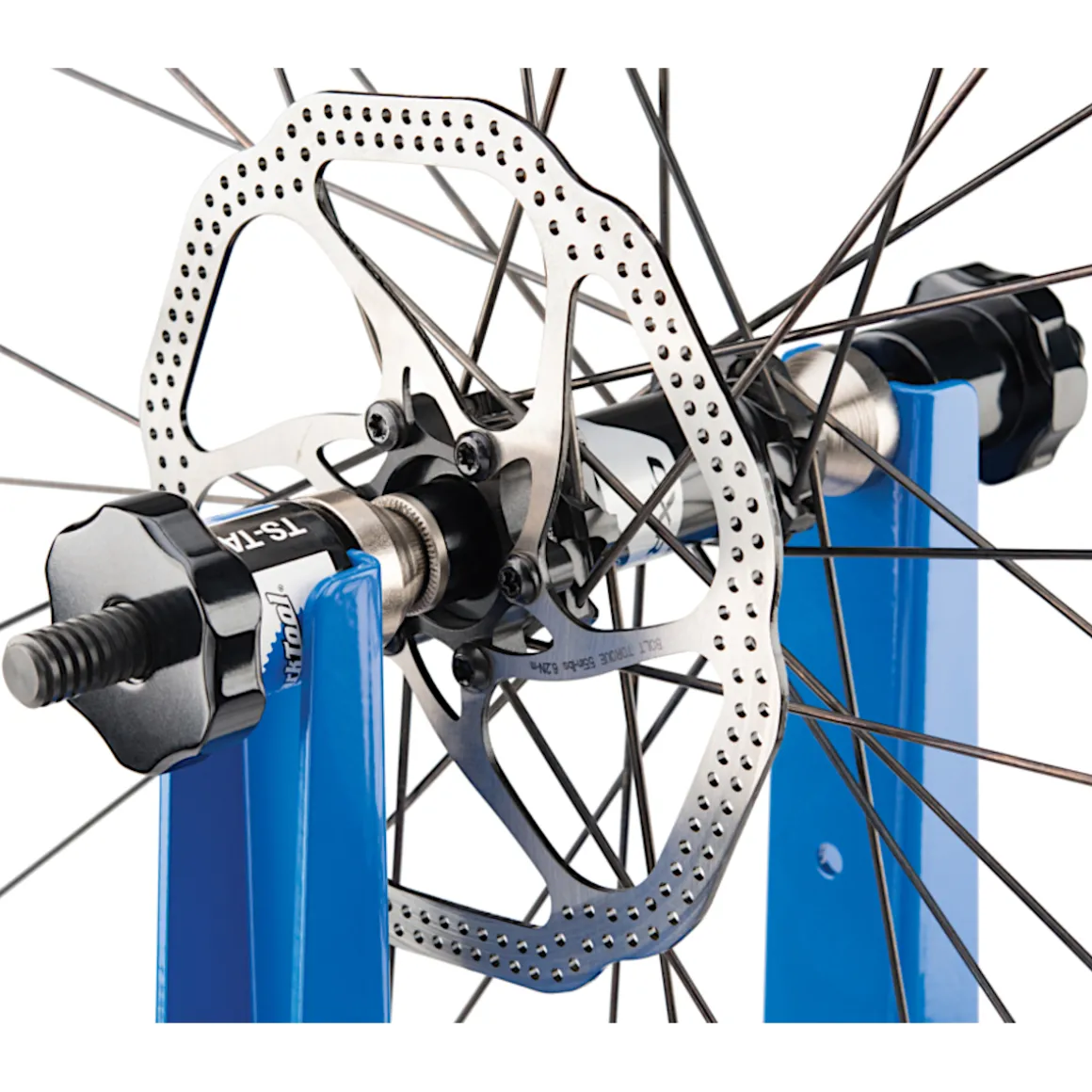

By using the TS-TA thru-axle adapter, you can clamp wheels with 12 mm, 15 mm and 20 mm hollow axles into all compatible Park Tool truing stands. It is pushed through the hub, which, depending on the axle diameter, is fixed to the axle mount with a cone or clamp bolt.

Details:
Threaded axle with cones and screw nuts
Used for fixing wheels with 12 / 15 / 20 mm hollow axle into centring stands
Depends on the axle Ø for hub widths up to 170 mm
Material: steel
Compatibility: TS-2.2 / TS-2.2P / TS-3 / TS-5 / TS-7 / TS-8 / TS-15 / TS-25
Made in the USA

In the box:
1 Park Tool TS-TA thru axle adapter

Attention:
For a 12 mm thru axle, the alignment cones do not have to be inserted, so that the maximum clampable hub width is not reduced. When using the TS-TA on 15 mm or 20 mm hubs, the maximum compatible hub width is reduced by approx. 35 mm due to the dimensions of the centring cones, i.e. the max. hub width is 140 mm. For 15/20 mm thru-axle hubs over 135 mm wide (142, 148, 150, 157, 170, etc.) use the TS-2TA thru-axle adapter from Park Tool or use the Park Tool TS-4.2 truing stand (prod. code: 2288978).
