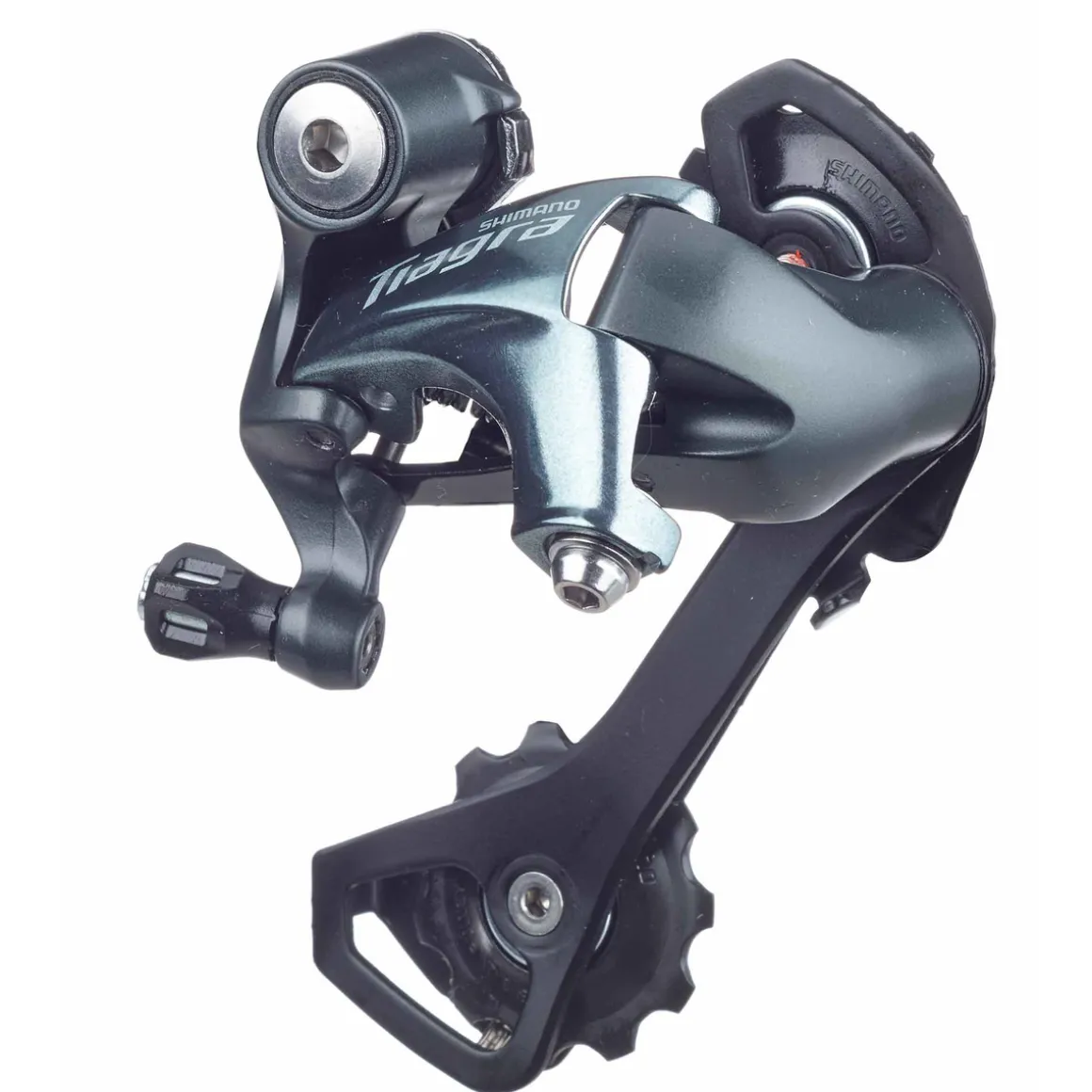

Tiagra RD-4700 GS Rear Derailleur -2016-

The SHIMANO Tiagra RD-4700 rear derailleur offers crisp shifting performance for 2/3 x 10-speed drivetrains.

Technical details:
Intended use: Road
Series: Tiagra
Model: RD-4700-GS
Material: aluminium/steel/plastic
Compatibility: 10-speed
Largest sprocket max.: 34 teeth (with double crank); 32 teeth (with triple crank)
Largest sprocket min.: 28 teeth (with double crank); 25 teeth (with triple crank)
Smallest sprocket max.: 12 teeth
Smallest sprocket min.: 11 teeth
Max. difference at the front: 16 teeth (with double crank); 20 teeth (with triple crank)
Total capacity: 39 teeth (with double crank); 41 teeth (with triple crank)
Weight: approx. 275 g

In the box:
1 SHIMANO Tiagra RD-4700-GS rear derailleur -2016-

Note:
Due to a specific cable pull ratio, this derailleur is only compatible with Tiagra components of model year 2016 (4700/4703)!
