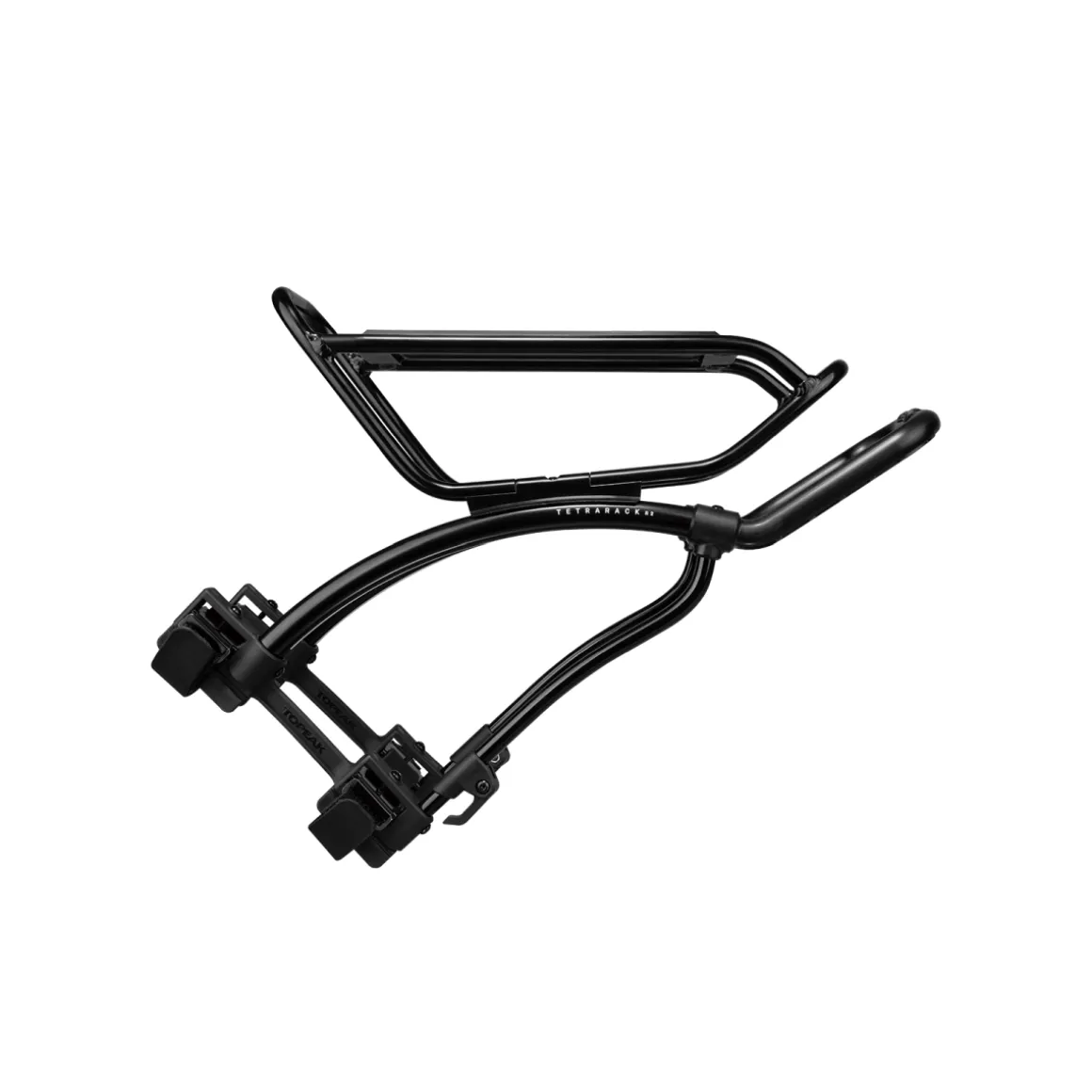

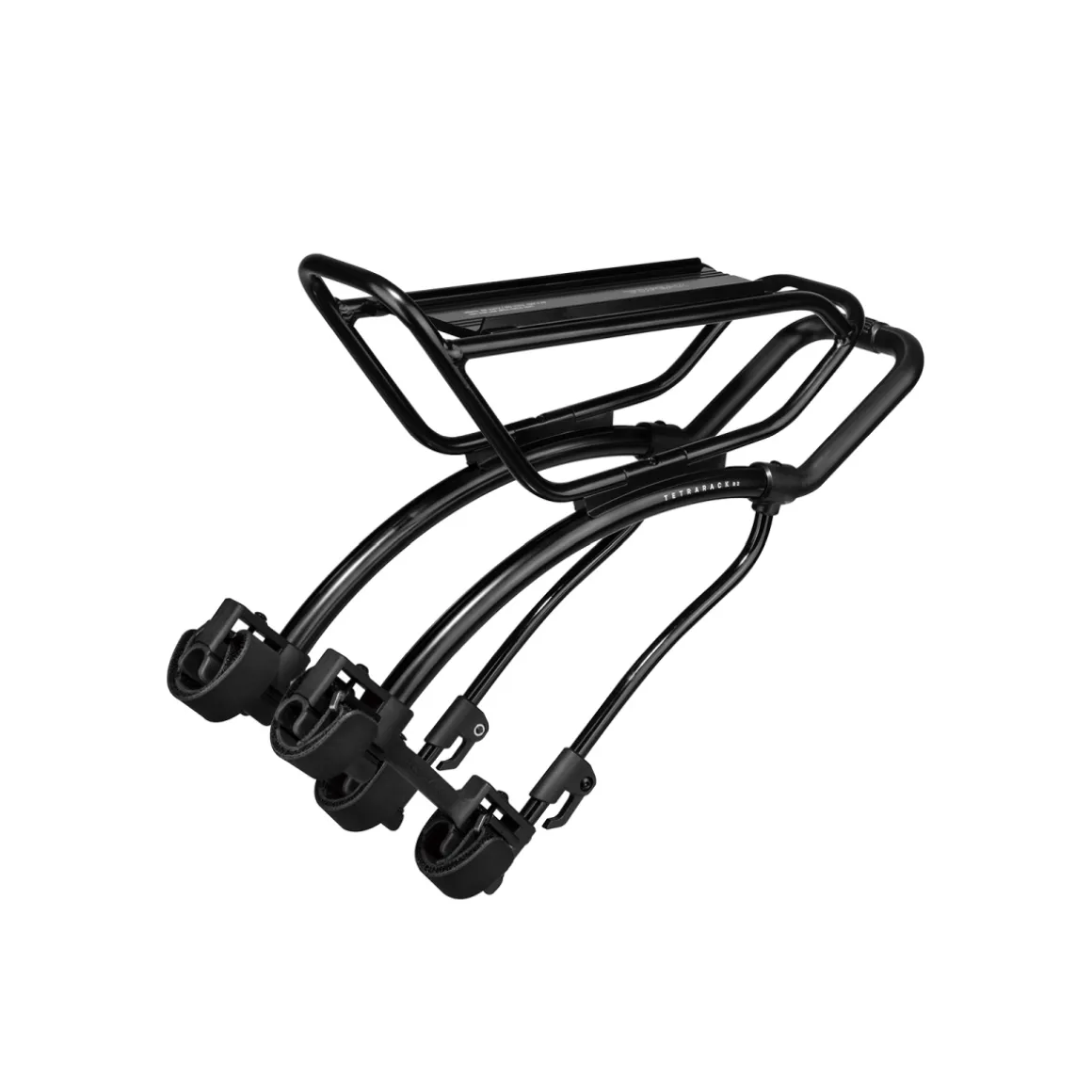

TetraRack R2 Road Rear Rack System

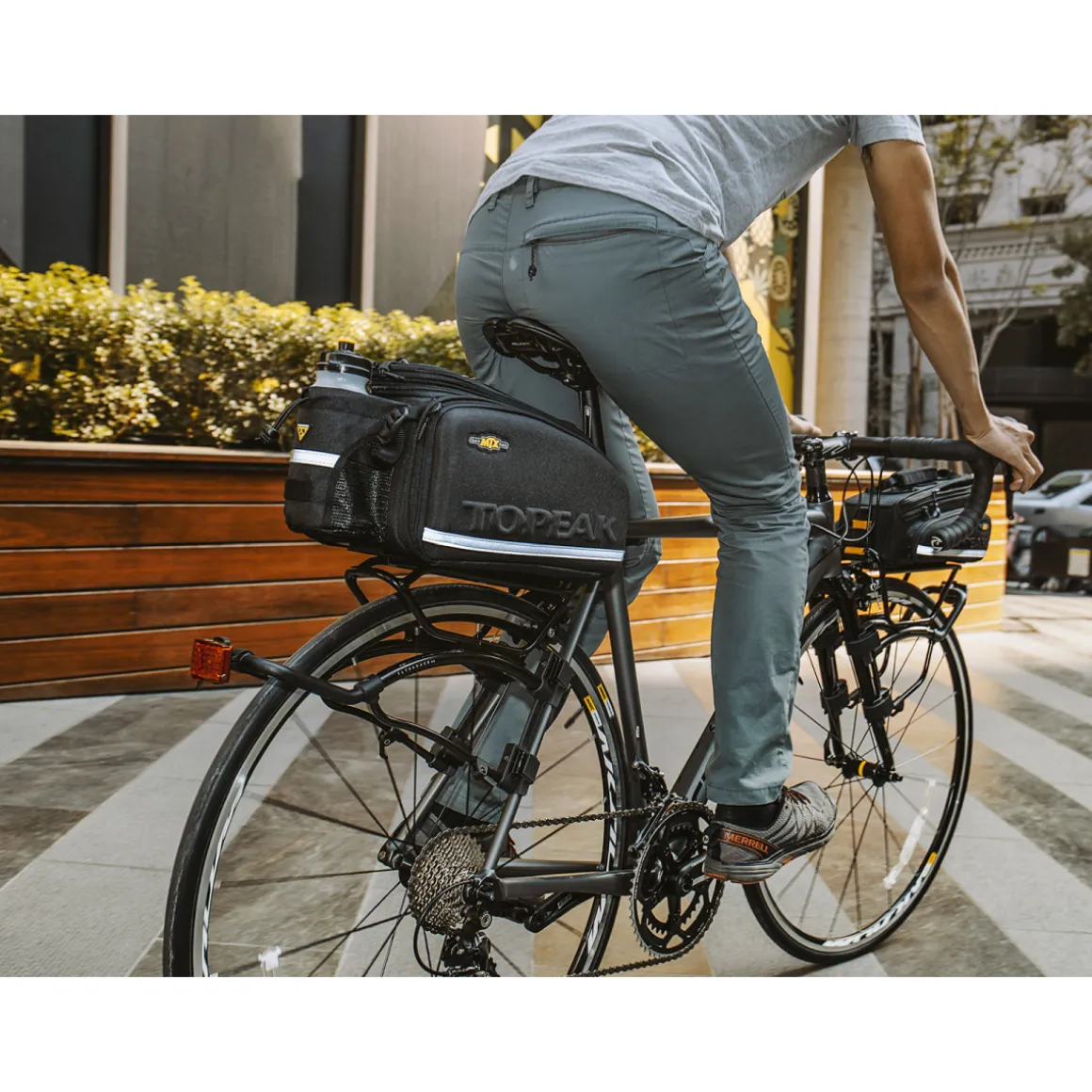

The TetraRack R2 rear rack system by Topeak quickly makes your road bike capable of carrying loads. It can be easily attached to the rear stay without requiring rack eyelets. Its quick mounting system with velcro straps is compatible with a wide range of road bikes, gravel bikes and commuting bikes with different frame geometries. With a simple sliding mechanism, the top plate can be adjusted perfectly – independent of the fork angle.

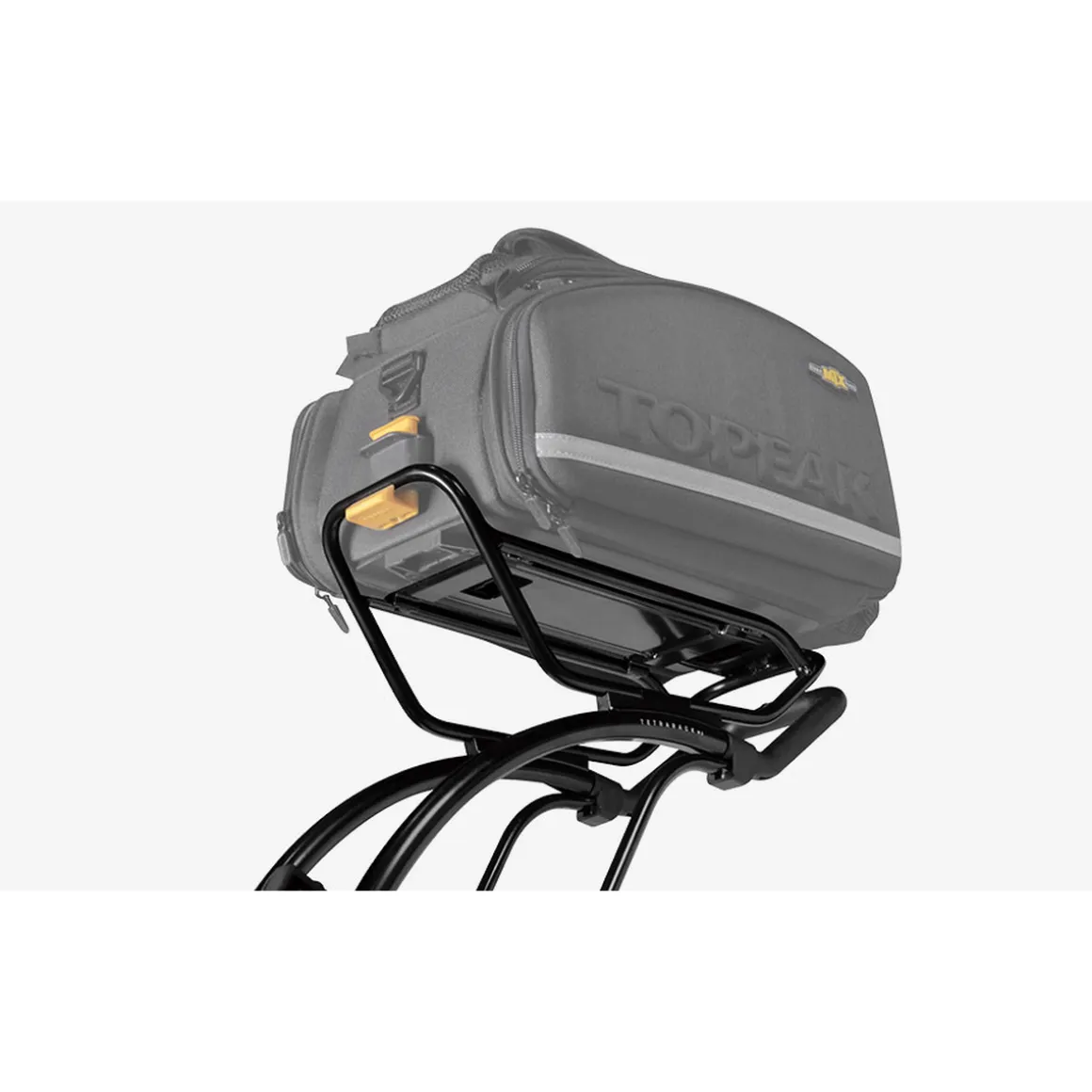

The integrated QuickTrack™ system allows Topeak TrunkBags to slide and lock into place and be released again at the push of a button.

Tip:
The TetraRack R1 (prod. code 2296726) is a matching front rack system that attaches to the fork.

Details:
Rack attaches to the rear stay of road bikes

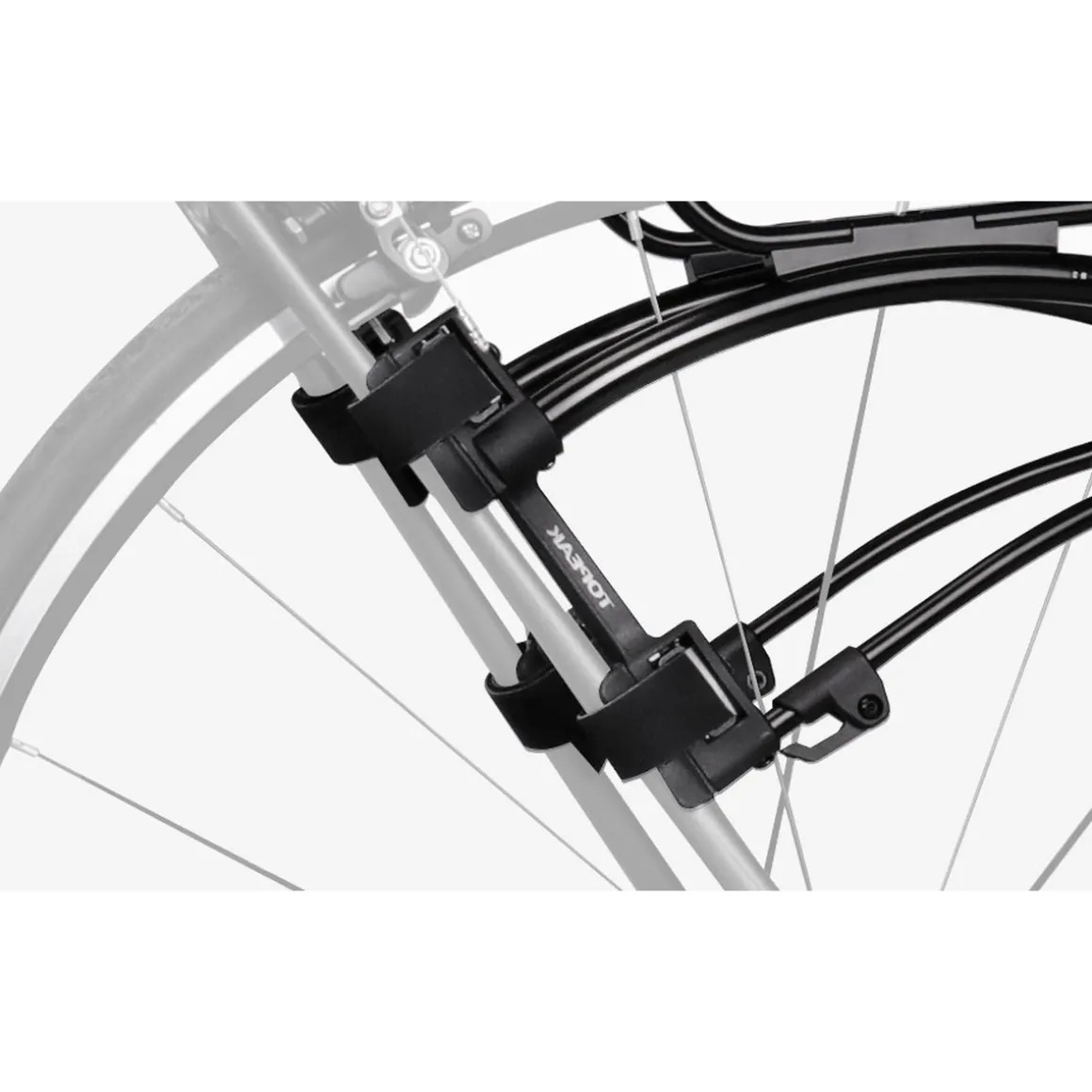

Quick mounting with velcro straps (requires no rack eyelets)
Universal size, fits most frame geometries

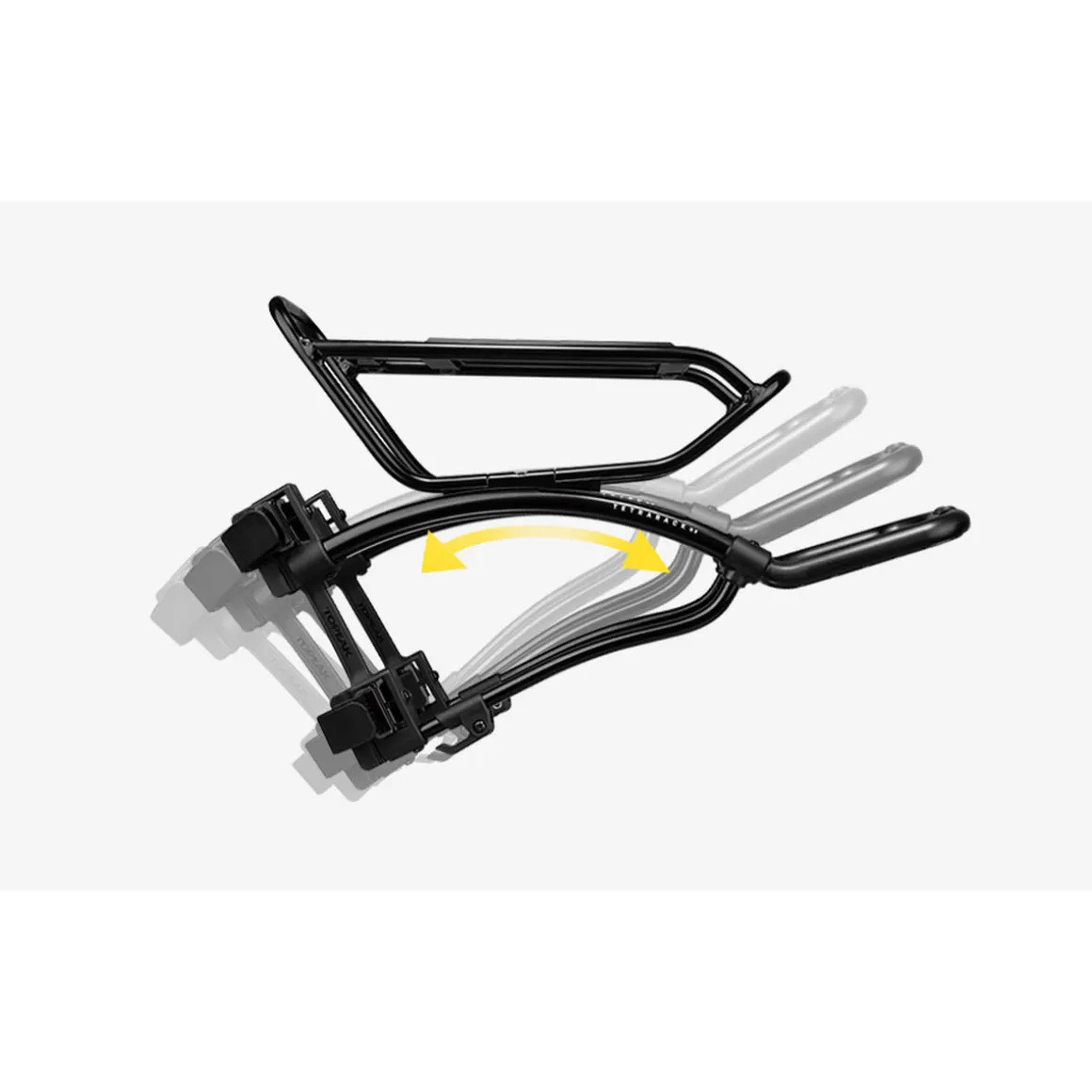

Sliding mechanism for easy levelling of top plate
Topeak QuickTrack™ system for compatible Topeak TrunkBags and rear baskets
Including bracket to attach reflectors or lamps
Allows for optional upgrade with side frames for panniers (prod. code 2338590)

Technical details:
Intended use: Road / Race / Gravel (incl. e-bike)
Material: aluminium, fibreglass composite, polyamide
Attachment: attaches to rear stay with velcro straps
Compatibility: Topeak MTX/RX TrunkBags, Topeak MTX bike baskets
Maximum load: 9 kg
Compatible wheel sizes: 26″ – 29″
Compatible tyre width: up to 1.5 mm (38 mm)
Dimensions: approx. 39.5 x 30 x 12 cm
Weight: approx. 870 g

Mounting requirements:
Minimum seat stay angle: 40°
Minimum tube diameter:  15 mm
Required free mounting space: approx. 200 mm
Seat stay spacing: approx. 75 – 105 mm

Compatible Topeak TrunkBags and bike baskets available at ROSE:
Topeak MTX TrunkBag DX (product code: 2183352)
Topeak MTX TrunkBag EX (product code: 2183370)
Topeak MTX Basket Rear (product code: 762113)

Tip:
With the Topeak TetraRack Side Frame Set (prod. code 2338590) you can also use the TetraRack system with panniers!

In the box:
1 Topeak TetraRack R2 rear rack system
1 bracket for reflectors or lamps
1 hex wrench, 2.5 mm

Note:
Mounting the rack on carbon frames is NOT recommended. Compatibility cannot be guaranteed for extraordinary frame geometries (e.g. seat stays run at an angle to the wheel axle).

ATTENTION:
NOT compatible with V-brakes and cantilever brakes!
