TetraRack M2 HD Luggage Rack up to 22 kg MTB Rear

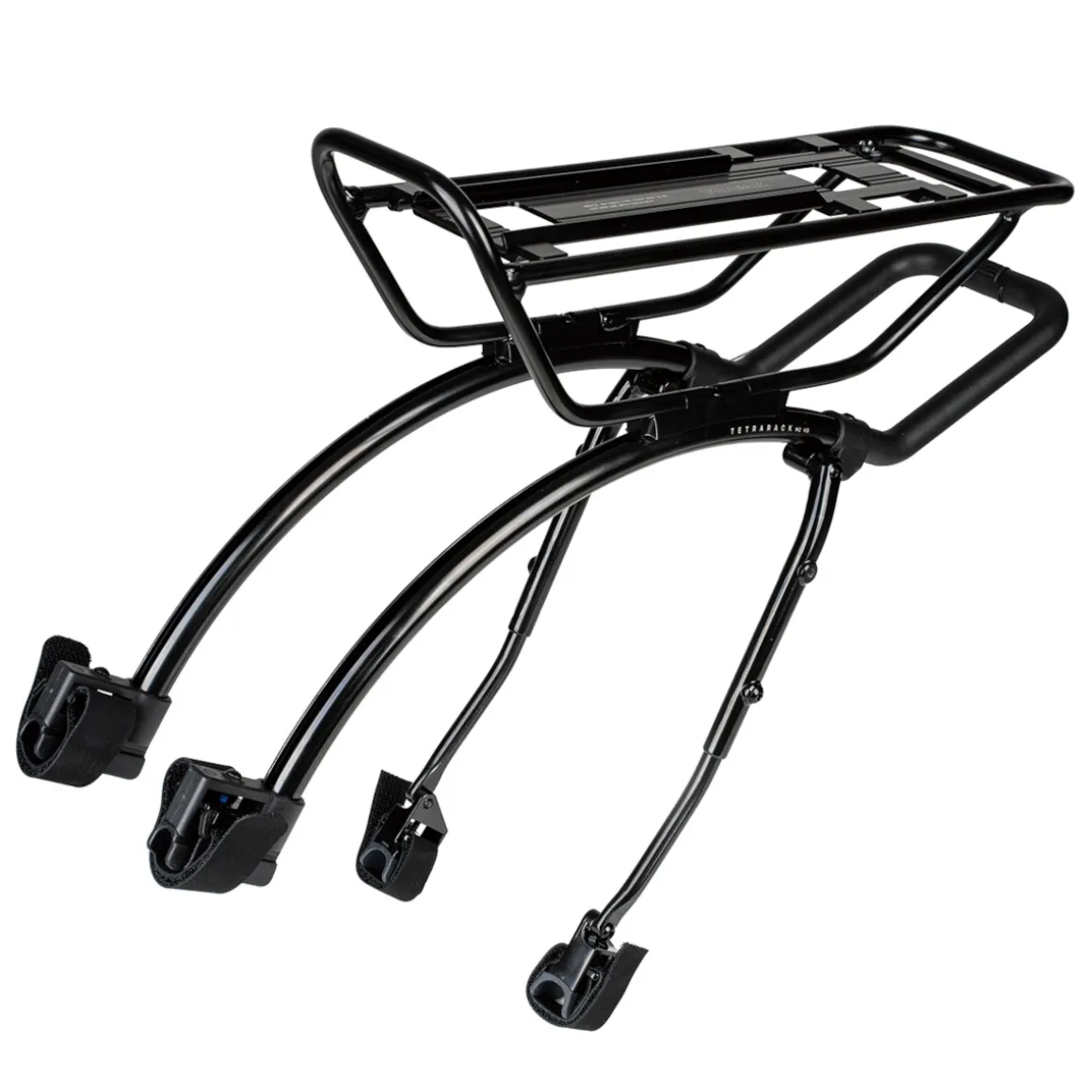

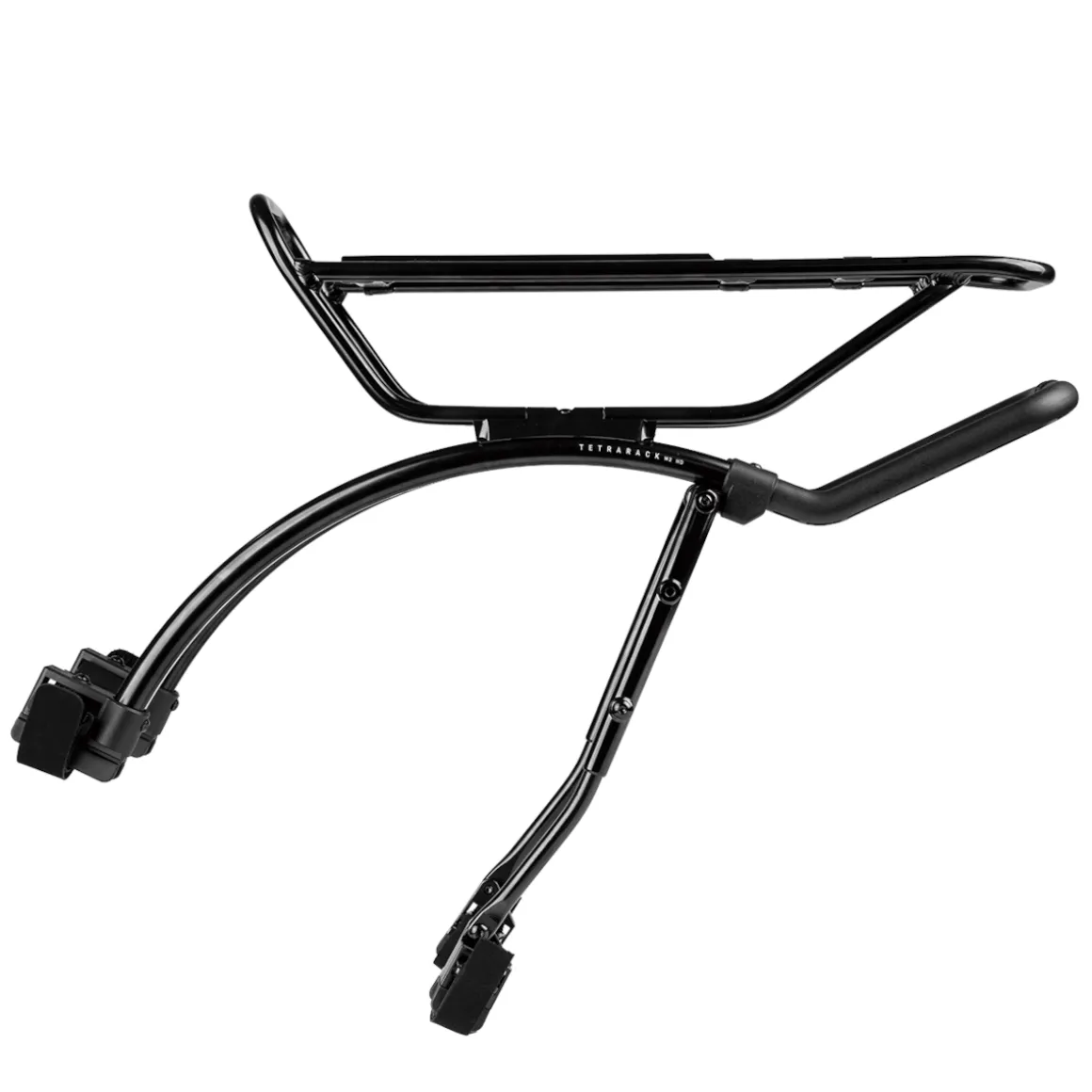

Need a bit more? Topeak’s TetraRack M2 luggage rack in the HD version can carry up to 22 kg of weight for larger purchases or longer tours. The variably adjustable rear rack fits almost universally on suspended or unsprung MTB rear triangles, even without corresponding mounting eyelets. The quick-mounting system for tool-free attachment to the seat stays is compatible with a wide range of full-suspension and hardtail MTBs with different frame geometries.

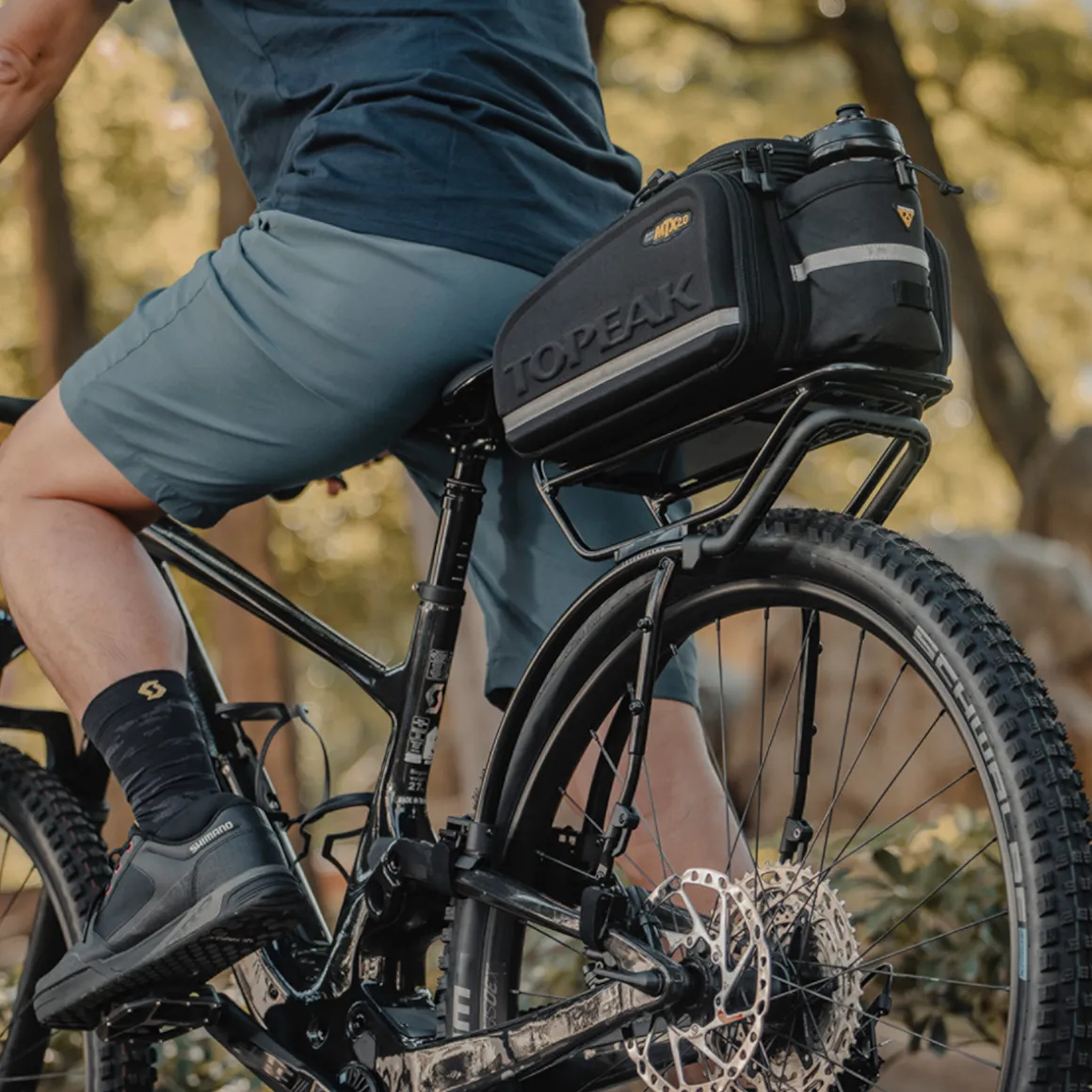

The integrated QuickTrack™ system allows Topeak TrunkBags to slide and lock into place and be released again at the push of a button. The Topeak TetraRack M2 HD leaves you plenty of room for expansion to meet the demand for more load capacity and luggage attachment when bikepacking for short trips and cycle tours. For example, two side mounts on the pannier rack allow you to fit bottle cages or Topeak VersaCages.
Details:
• Rack attaches to rear stays of full-suspension or hardtail MTBs
• Quick mounting with velcro straps (requires no rack eyelets)
• Universal size, fits most frame geometries
• Sliding mechanism for easy levelling of top plate
• Topeak QuickTrack™ fastening system for compatible Topeak TrunkBags and rear baskets, also KLICKfix® / RackTime® Snapit or Vario system
• Allows for optional upgrade with side frames for panniers
• Two bottle cage holders on the side for mounting bottle cages or VersaCages

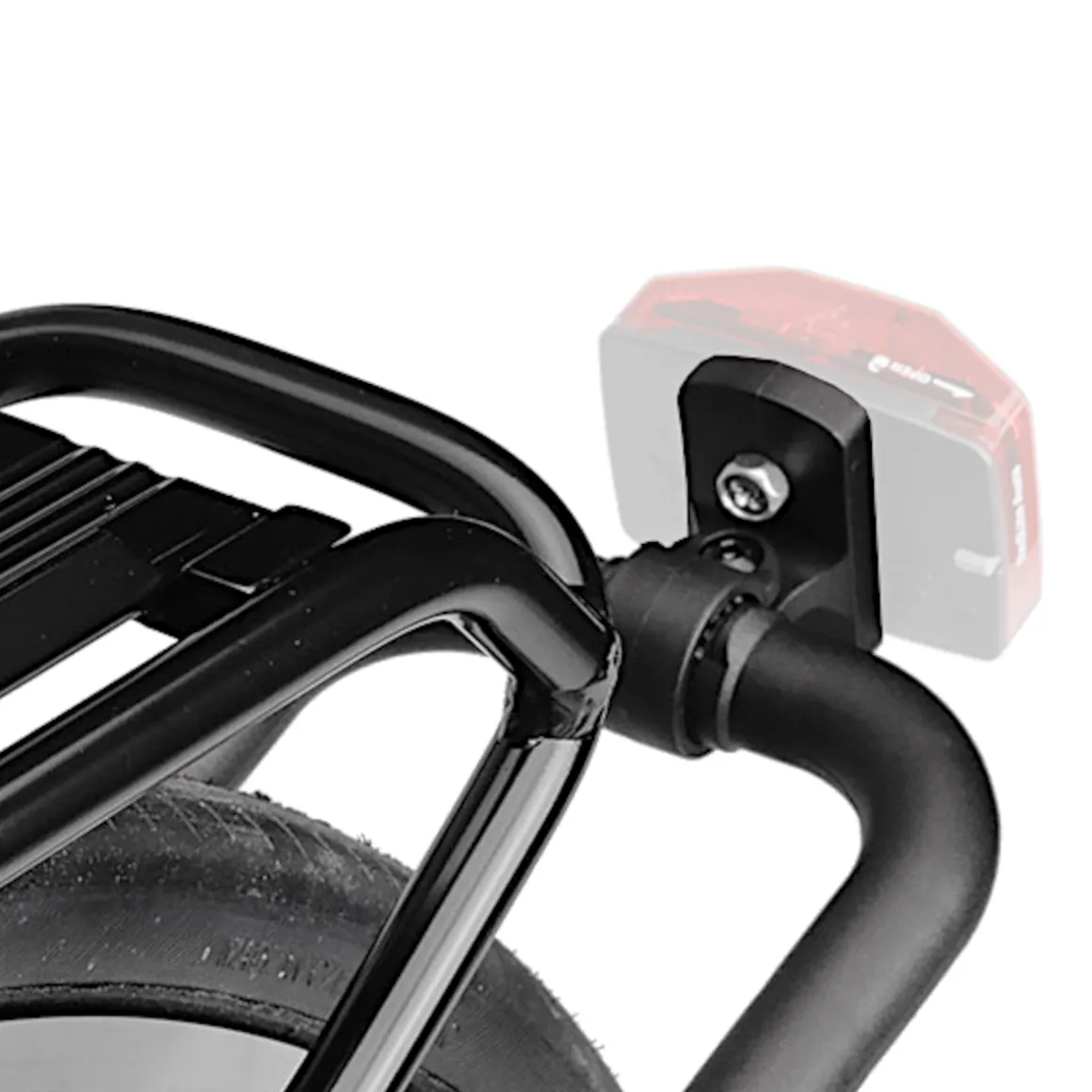

• Rear bracket for attaching optional lighting such as compatible Topeak TailLux and Redlite® rear lights
• Incl. mounting clamp for attaching optional reflectors or rear lights
Technical details:
• Intended use: MTB / Trekking (also e-bike)
• Material: aluminium, fibreglass composite, polyamide
• Attachment: Mounting to rear stay via Velcro straps or with Velcro straps and double bolting to threaded eyelets on the dropouts
• Compatibility: Topeak MTX 1.0 and 2.0 TrunkBags, Topeak RX TrunkBags, Topeak MTX bike baskets, KLICKfix® / RackTime® Snapit 1.0 or Vario System bags/Vario adapter plates

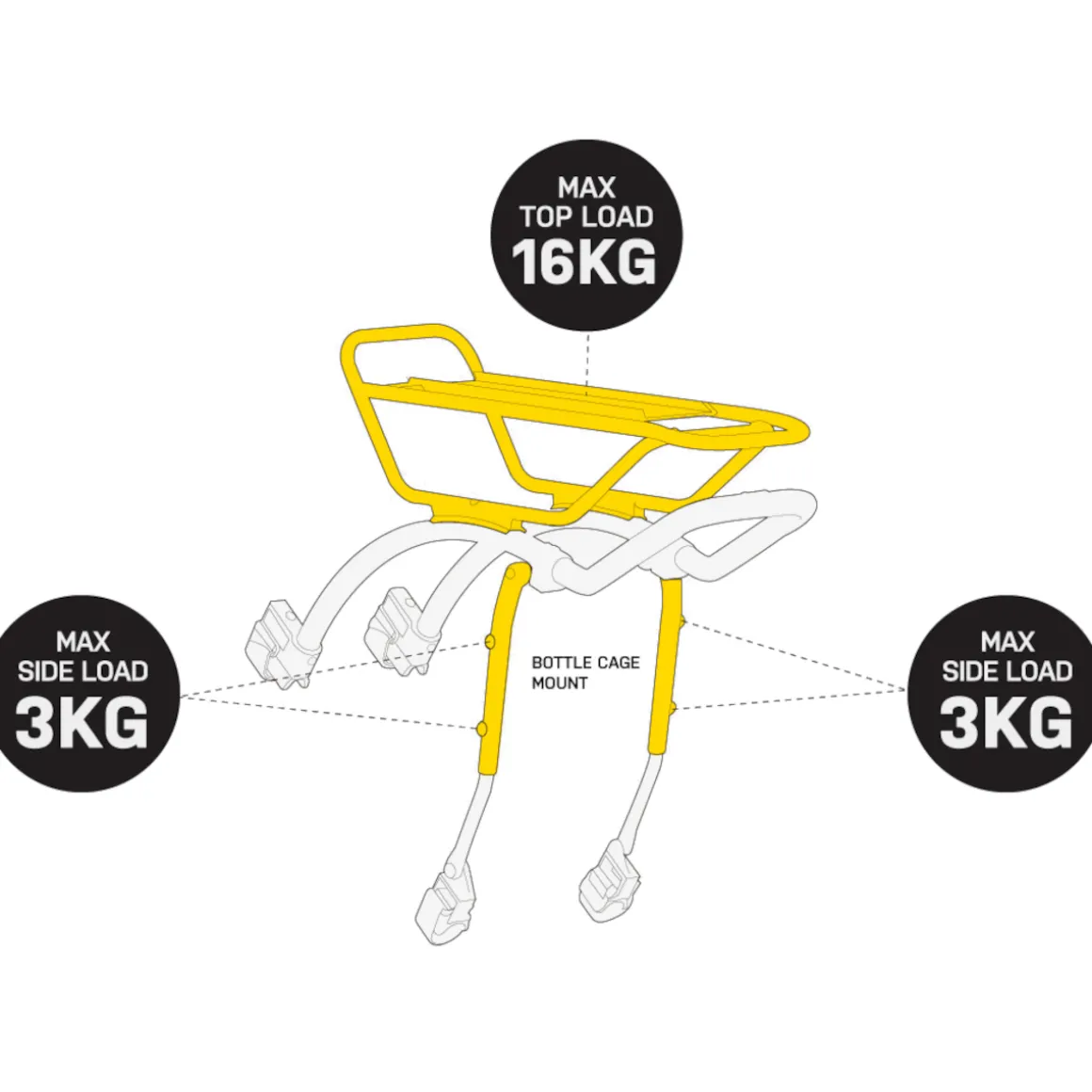

• Maximum load: 22 kg (16 kg on top frame, 3 kg on each support strut)
• Compatible wheel sizes: 27.5“ to 29“
• Compatible tyre width: up to 2.8“ (71 mm)
• Dimensions: approx. 47.5 x 38.5 x 13.5 cm
• Weight: approx. 1250 g
Mounting requirements:
• Minimum seat stay angle: 25°
• Minimum tube Ø seat stays: 15 mm
• Seat stay spacing: approx. 95 – 125 mm
• Mounting dimension on the seat stay: approx. 300 mm
ATTENTION:
NOT compatible with V-brakes and cantilever brakes!
Compatible Topeak TrunkBags and bike baskets available at ROSE:
• Topeak MTX TrunkBag DX (product code: 218335201)
• Topeak MTX TrunkBag DX 2.0 pannier (product code: 234947001)
• Topeak MTX TrunkBag EX (product code: 218337001)
• Topeak MTX TrunkBag EX 2.0 pannier (product code: 235026701)

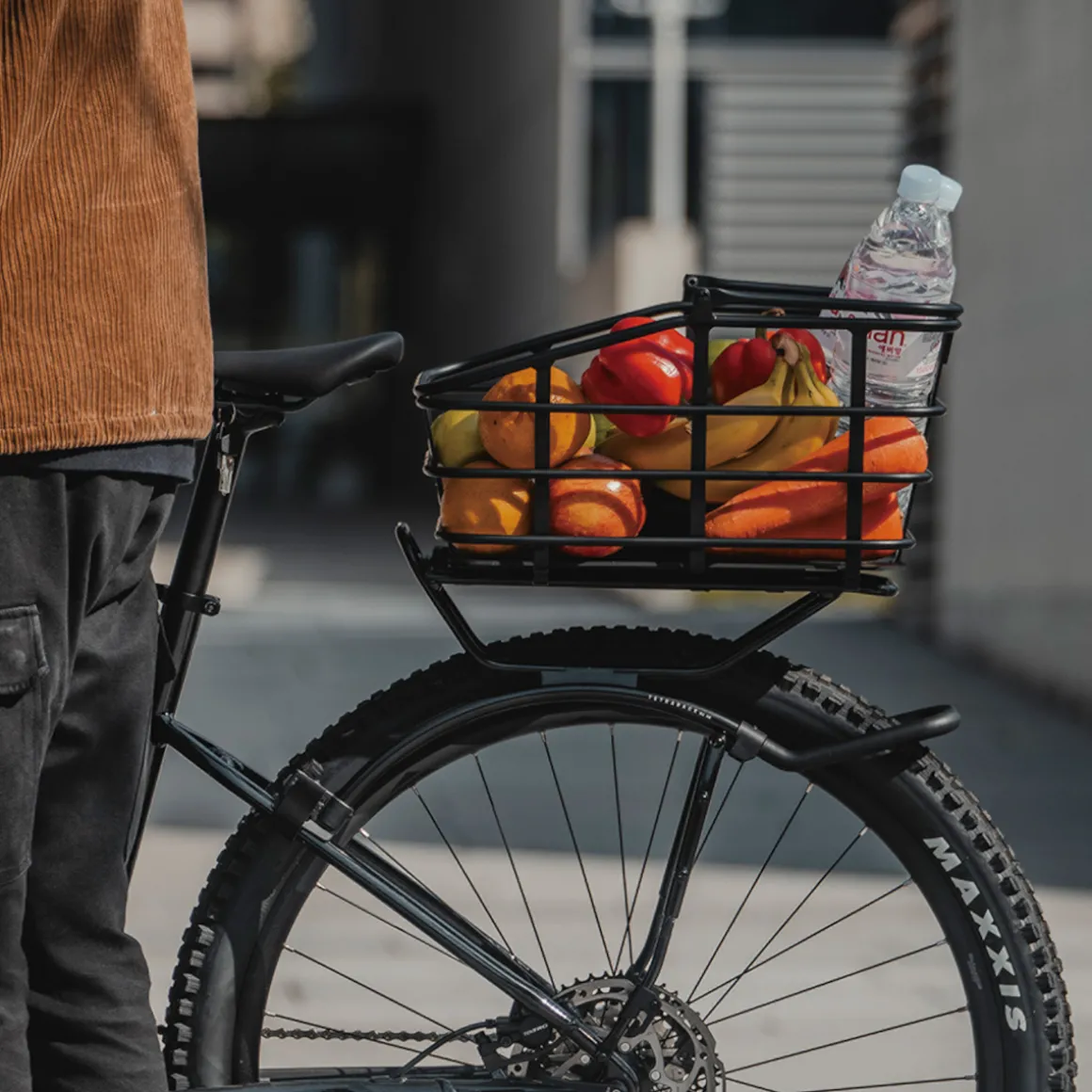

• Topeak MTX Basket Rear (product code: 762113)
• Topeak Urban Basket DX 22L (product code: 234547601)
In the box:
• 1 Topeak TetraRack M2 HD rear rack
• 1 bracket for reflector or rear light (80 mm mounting distance)
• 1 hex wrench, 2.5 mm

Tip:
With the Topeak TetraRack Side Frame Set (prod. code 2338590) you can also use the TetraRack luggage rack with side panniers!
The TetraRack M1 (prod. code 2296723) is a matching front rack, that can be mounted on rigid forks or MTB suspension forks.
The matching VersaCage luggage holder for mounting on the luggage carrier support strut can be found under prod. code 228843801.
You can find a matching spring clamp for the rack under prod. code: 2352550.
If you want to protect yourself and your luggage from dirt and water, we recommend the Topeak TetraRack Full Fender M2 mudguard (prod. code: 2352548), which is mounted underneath the TetraRack M2 HD luggage rack.
Note:
Mounting the rack on carbon frames is NOT recommended. Compatibility cannot be guaranteed for extraordinary frame geometries (e.g. seat stays run at an angle to the wheel axle).
