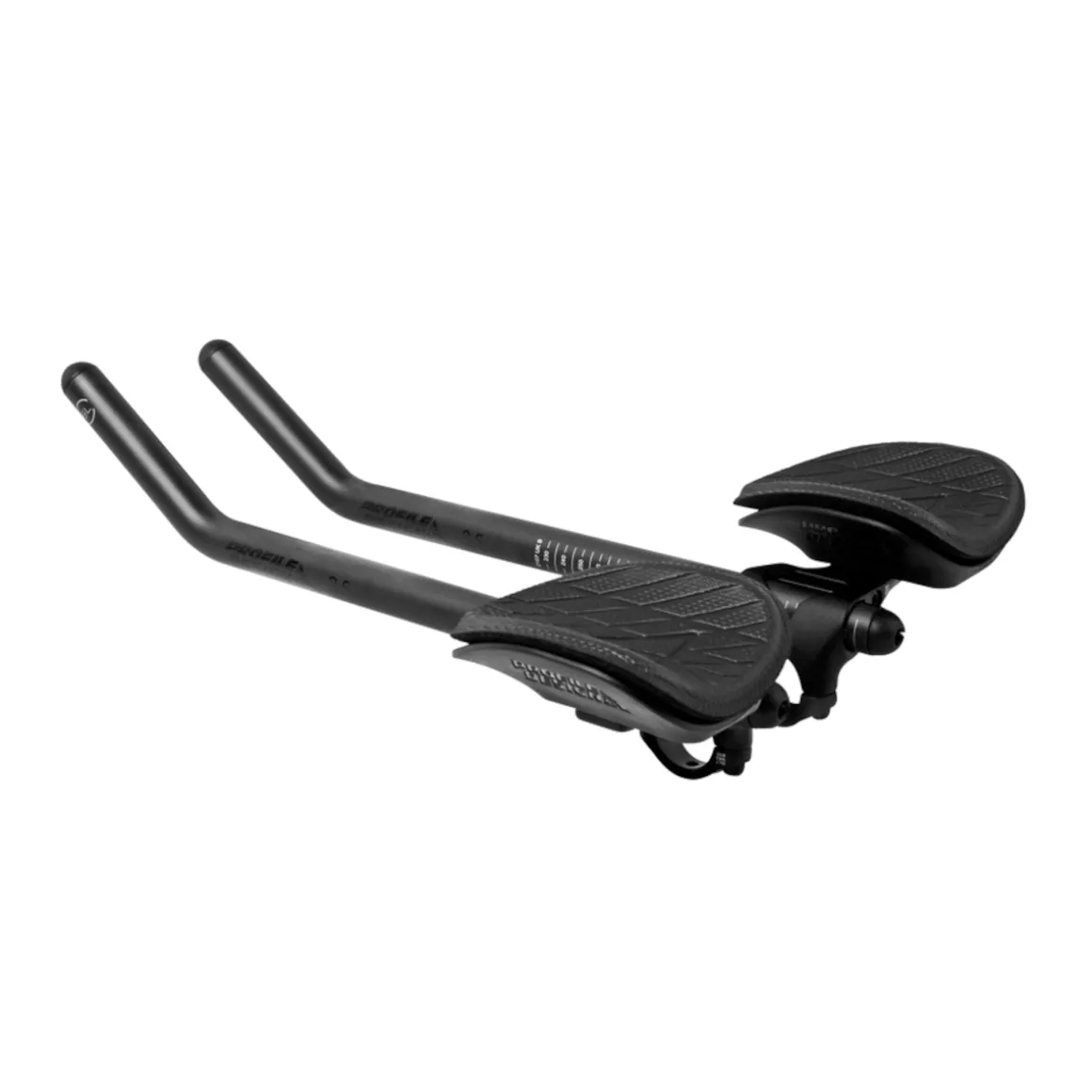

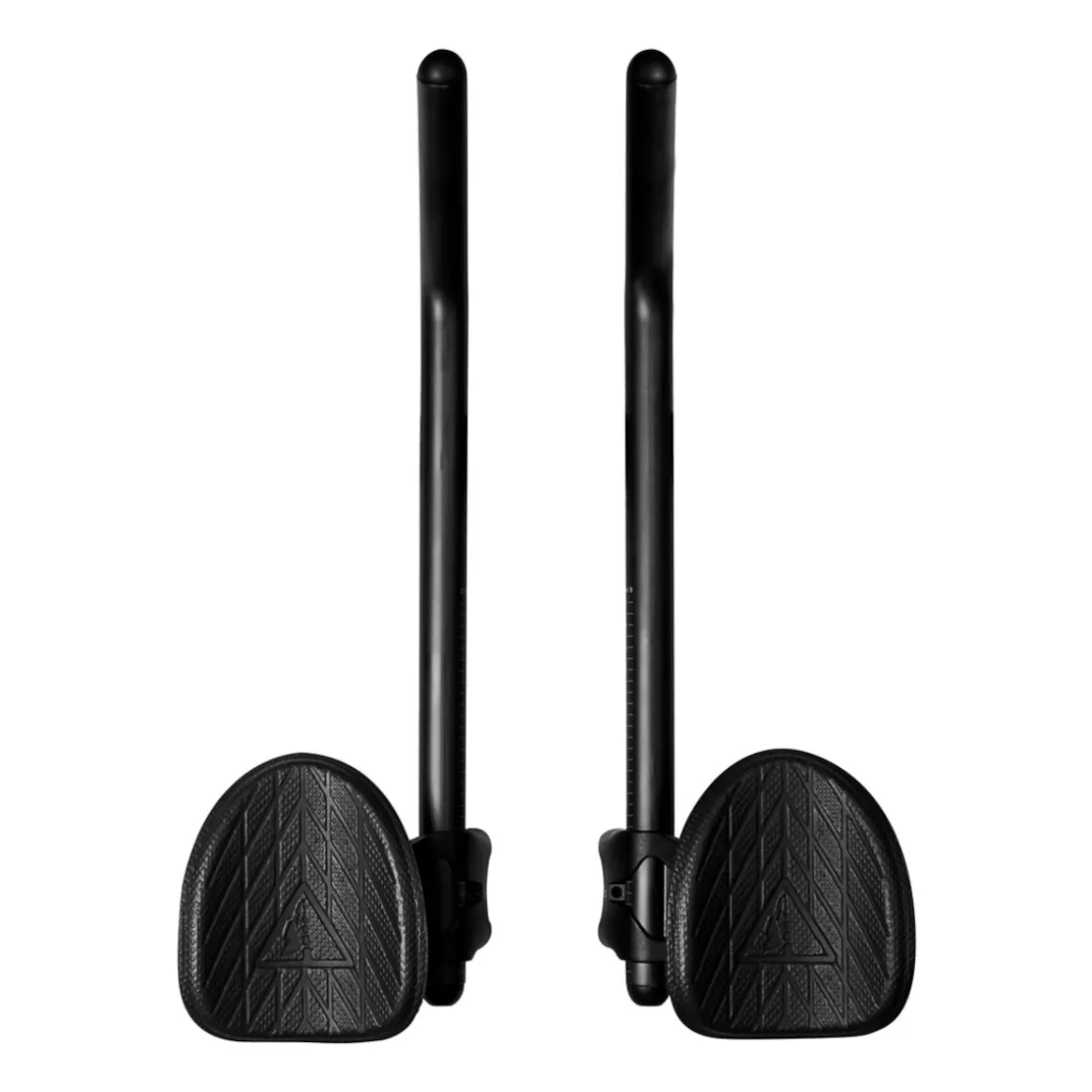

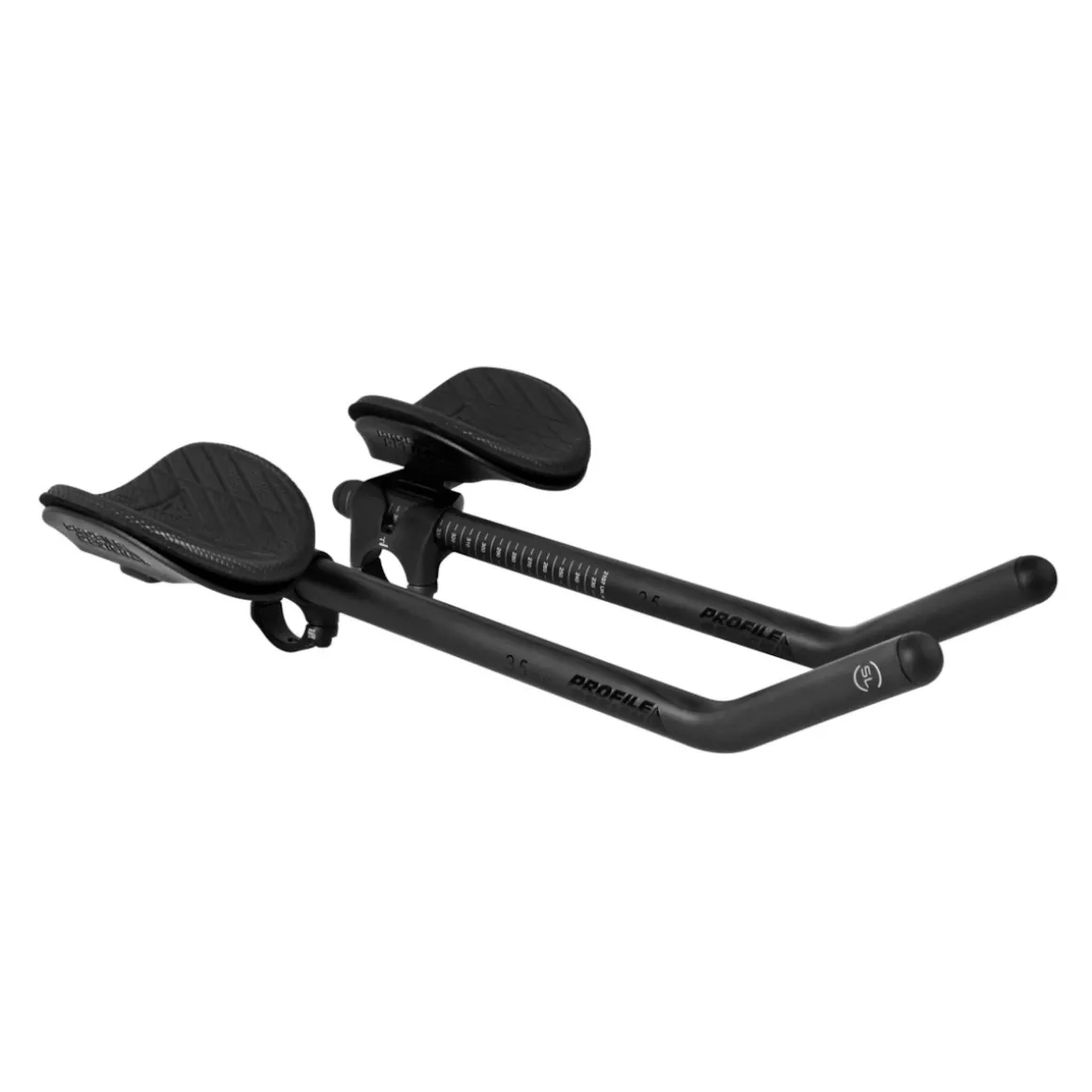

Supersonic/Ergo+/35 SLC Aerobar Carbon Handlebar Extension

Ride into the horizon and beyond! The Profile Design aero handlebars of the Supersonic/Ergo+/SLC series impress with exceptional ergonomics, adjustability and low weight. The Aerobar with carbon extensions is a top model in the FLYT series – for maximum comfort and high speeds on sweaty road kilometres.

Profile Design’s carbon aerobar gives you easier adjustments and a wider range of fit than ever before to create a more aerodynamic posture.  As a clip-on bar, the extension length, width and inclination can also be easily adjusted. The 1-bolt ICC wedge clamp always holds the handlebar attachment securely in position.

Your forearms will be well supported on the 4 cm longer Ergo+ armrests. The concave EVA foam pads compensate for contact pressure and, in conjunction with the flexing carbon outriggers, absorb tiring vibrations.

The armrests can be adjusted to 80 different positions, so you can find your optimal posture. Combined with optional risers, the handlebar attachment offers approx. 1440 possible configurations. The Supersonic/Ergo+ platform gives you the freedom to find the ideal individual riding position on your bike.

Details:
FLYT system aero bar
Ideal for long distances on road bikes and triathlon bikes
Combination of: T-Carbon extension, Supersonic brackets, Ergo+ armrests
For a more aerodynamic riding posture
Optimally adjustable for an ergonomic sitting posture
Comfortable Ergo+ armrests with 10 mm textured pads

Technical details:
Handlebar clamp diameter: 31.8 mm
Aero extension clamp diameter: 22.2 mm
Handlebar bend: 35°
Adjustment range length: approx. 100 mm
Extension length: 400 mm
Extension width: 124 mm
Stack (extension height): 58.5 mm (with optional risers up to 128.5 mm)
Armrest offset: -85 to -17.5 mm in steps of 7.5 mm
Armrest width: approx. 124 to 290 mm in steps of 18.5 mm
Material: carbon fibre (extensions), aluminium 6061-T6 (brackets), fibre-glass reinforced polymer with Velcro (arm rests), EVA foam with Lycra® coating (arm rest pads)
Weight: approx. 570 g

In the box:
1 Profile Design Supersonic/Ergo+/35 SLC Aerobar Carbon Handlebar Extension

Attention:
The aero bar is designed for internal cable routing and is compatible with Shimano Di2 bar end shifters (prod. code1873883) or brake/shift lever combinations for the bar end.

Tip:
With the optionally available Profile Design Aerobar Bracket Riser Kit (prod. code: 1904721), you can adjust the height of the Profile Design handlebar riser in 5 mm steps by up to 70 mm to suit your needs.

Other components of the FLYT system:

Brackets:
Profile Sonic Bracket Kit (prod. code: 2281513)
Profile Supersonic Bracket Kit (prod. code: 2254079)
Profile Subsonic Bracket Kit (prod. code: 2281512)

Armrests:
Profile Ergo Injected Armrest Kit (prod. code: 2281521)
Profile Race Injected Armrest Kit (prod. code: 2281520)
Profile F40 Armrest Kit (prod. code: 2254086)
Profile Race / Ergo Ultra replacement pad set (prod. code: 2308406)

Aerobar extensions:
Profile Aluminium Extensions 35A (prod. code: 2281504)
Profile Aluminium Extensions 50A (prod. code: 2281506)
Profile Aluminium Extensions 45/25A (prod. code: 2281505)
Profile Carbon Extensions 35C+ (prod. code: 2281508)
Profile Carbon Extensions 50C (prod. code: 2281509)
Profile Carbon Extensions 45/25C (prod. code: 2281510)
