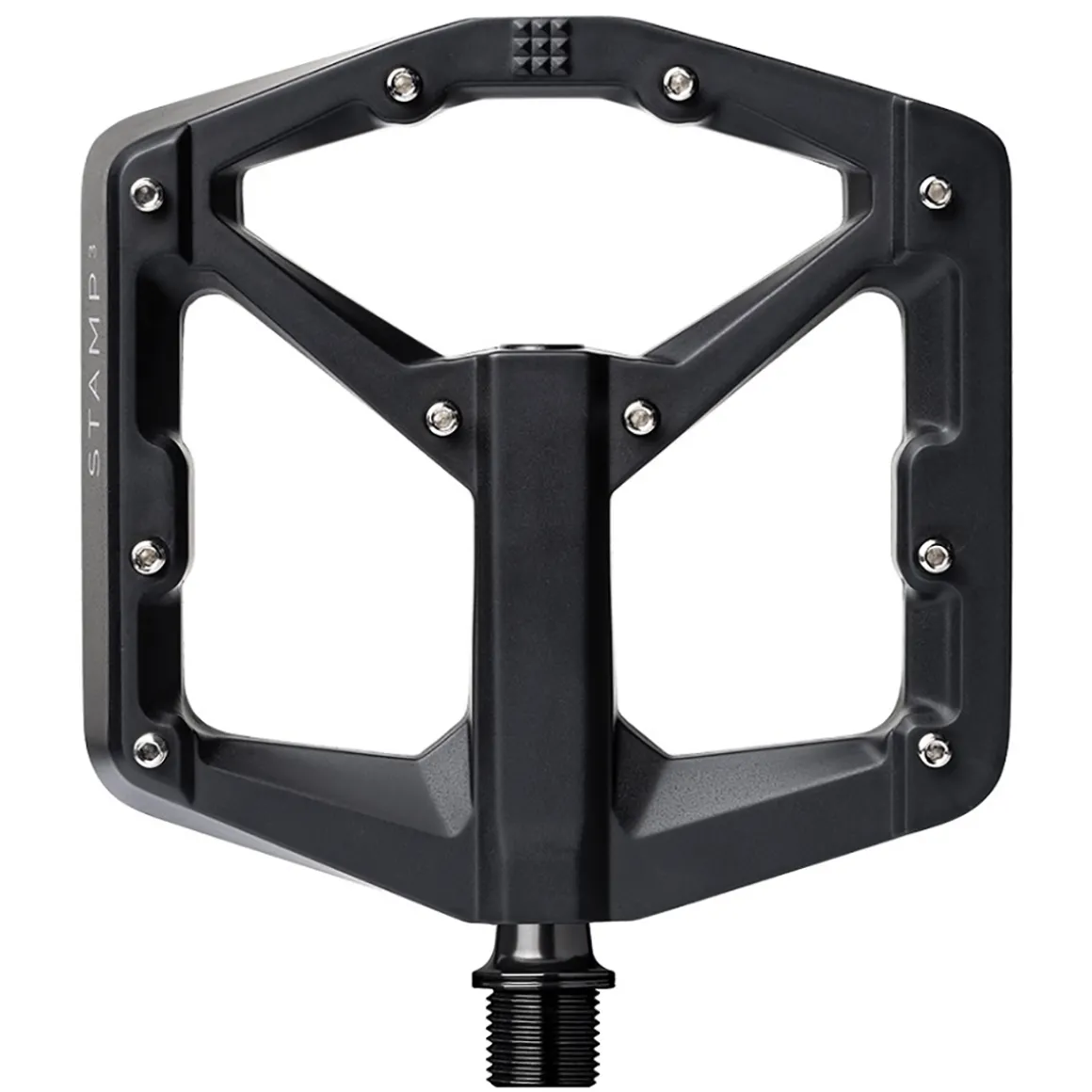

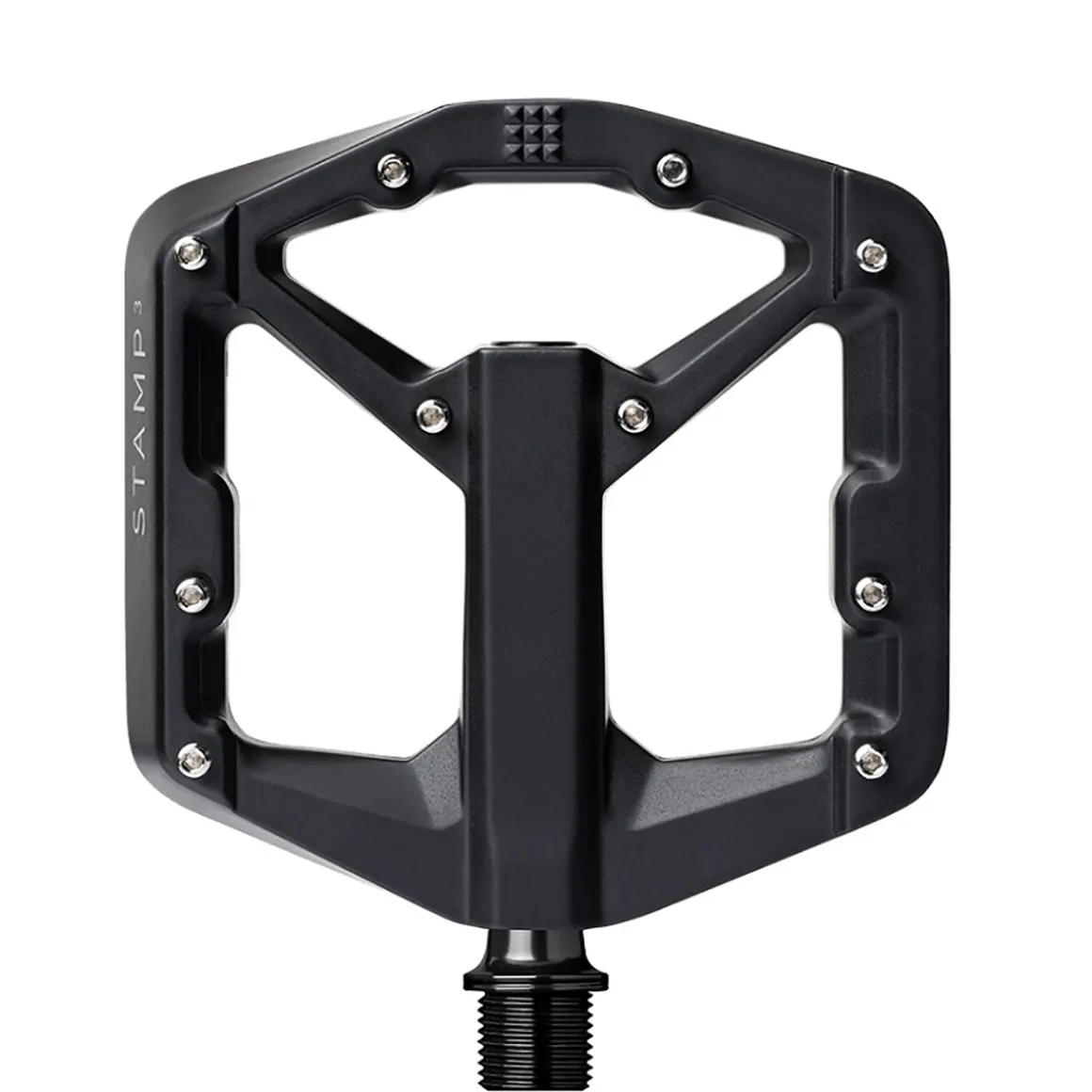

Stamp 3 Pedals

Experienced mountain bike enthusiasts with an appetite for downhill trail fun and those who want to become one, can now choose CrankBrothers’ revised Stamp 3 platform pedal for the best combination of durability and outstanding grip. What’s more, the high-quality pedal body made from hard-wearing magnesium ensures a very low weight.
The high-quality outer cartridge bearings of the flats were specially developed for slow speeds and, moreover, they are reliably protected from dirt and moisture, thanks to internal sealings. 10 adjustable pins on ever pedal side and the optimised platform surface of the flats guarantee safe pedal contact, even when things are getting tough.

Details:
Intended use: Enduro / All-Mountain / Downhill
Pedal body made from AM60B magnesium alloy
Forged SCM 415 Cro-Mo spindle
Cartridge bearings with double sealing (outside), IGUS sleeve bearings (inside)
External and internal sealing
Adjustable / replaceable pins (optional with prod. code 2275899 in 8 mm or 10 mm height)

Small version:
Platform dimensions (LxW): approx. 100 x 100 mm
Recommended shoe size: 37-43
20 pins (per pedal), 8 mm height
16 mm thin
Weight: approx. 351 g (pair)

Large version:
Platform dimensions (LxW): approx. 114 x 111 mm
Recommended shoe size: 43-49
20 pins (per pedal), 8 mm height
16 mm thin
Weight: approx. 386 g (pair)

In the box:
1 x CrankBrothers Stamp 3 pedals (1 pair)

Note:
Shoes with improper soles (e.g. leather soles, running shoes) may get damaged by the pedal pins.
