Stamp 1 MTB Pedals 2nd Generation

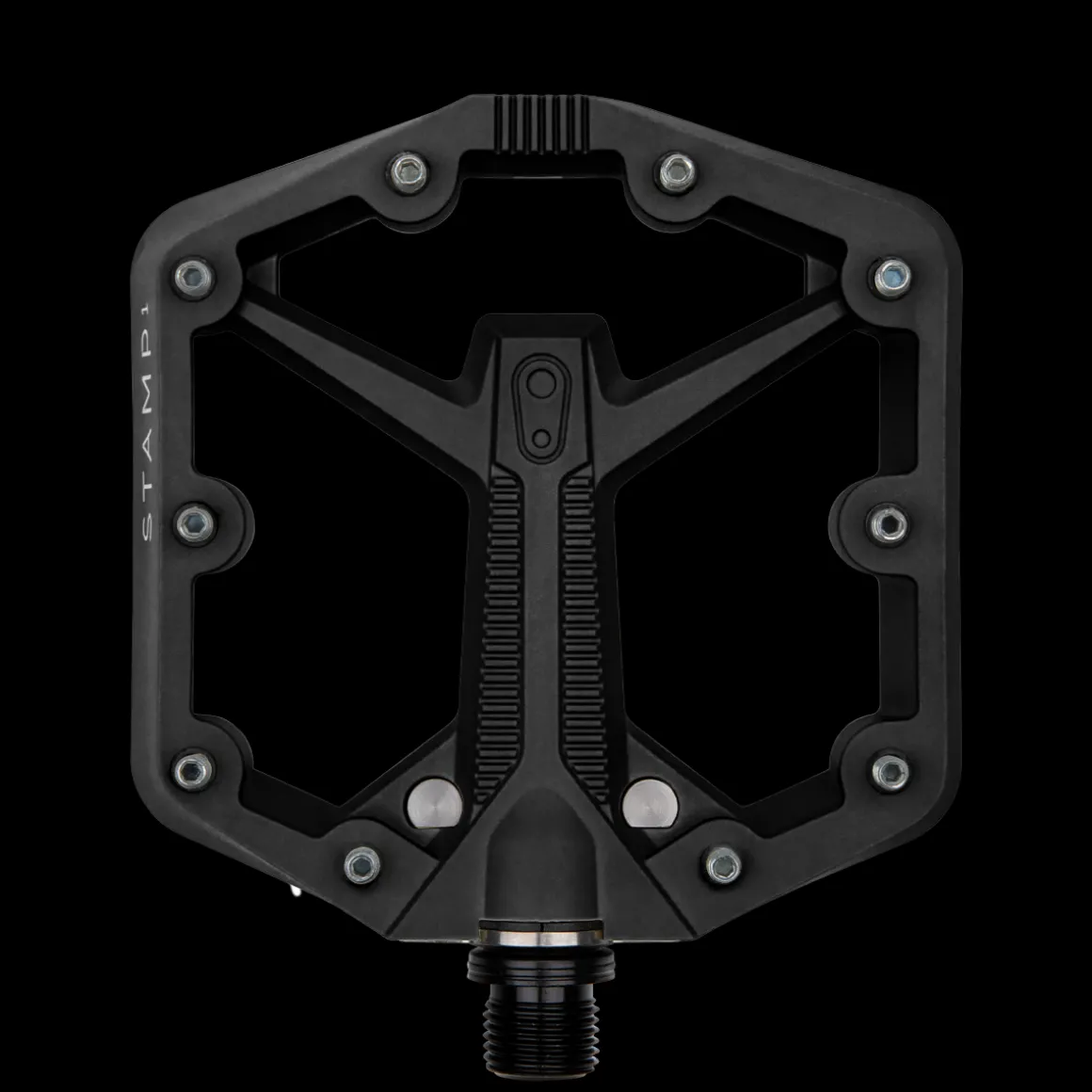

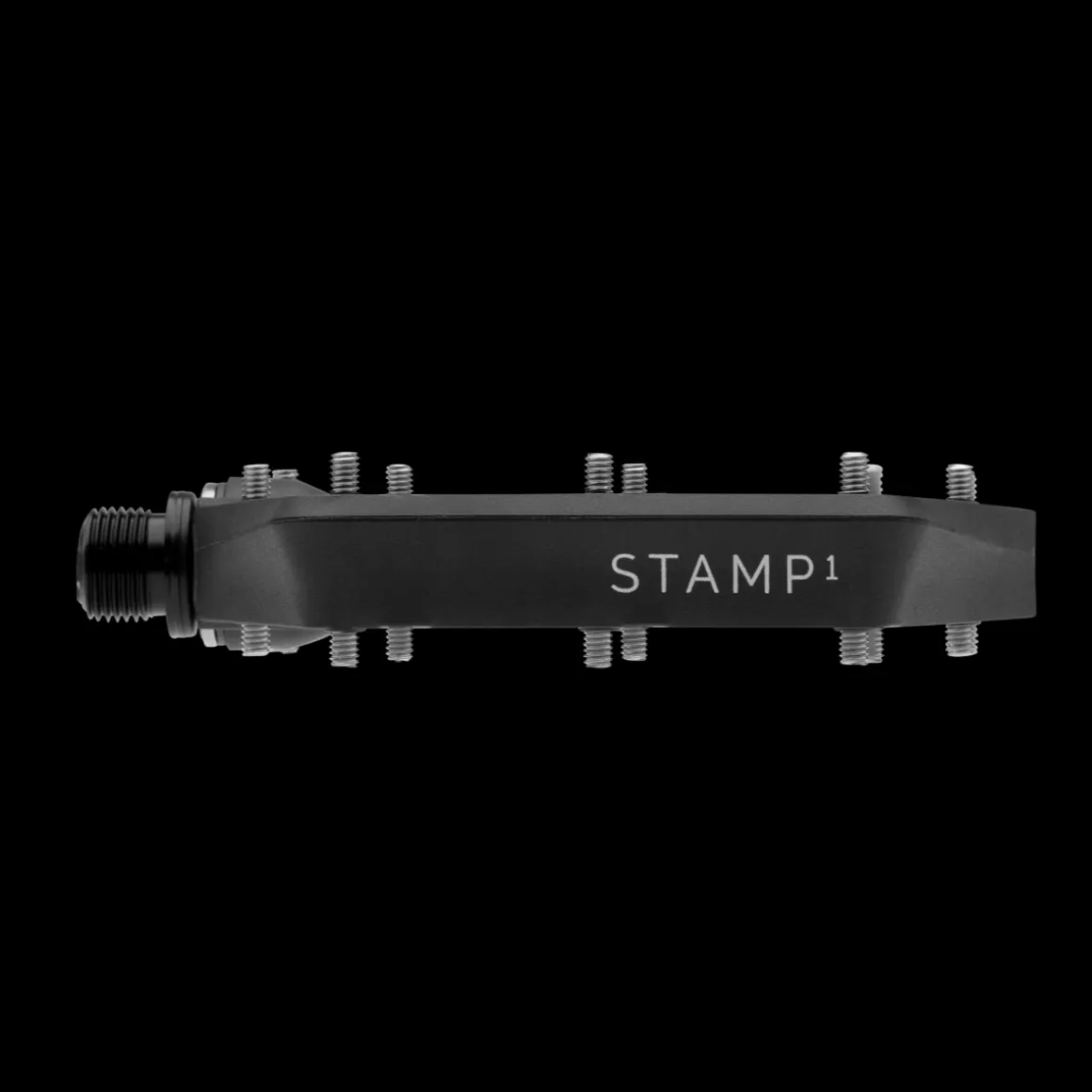

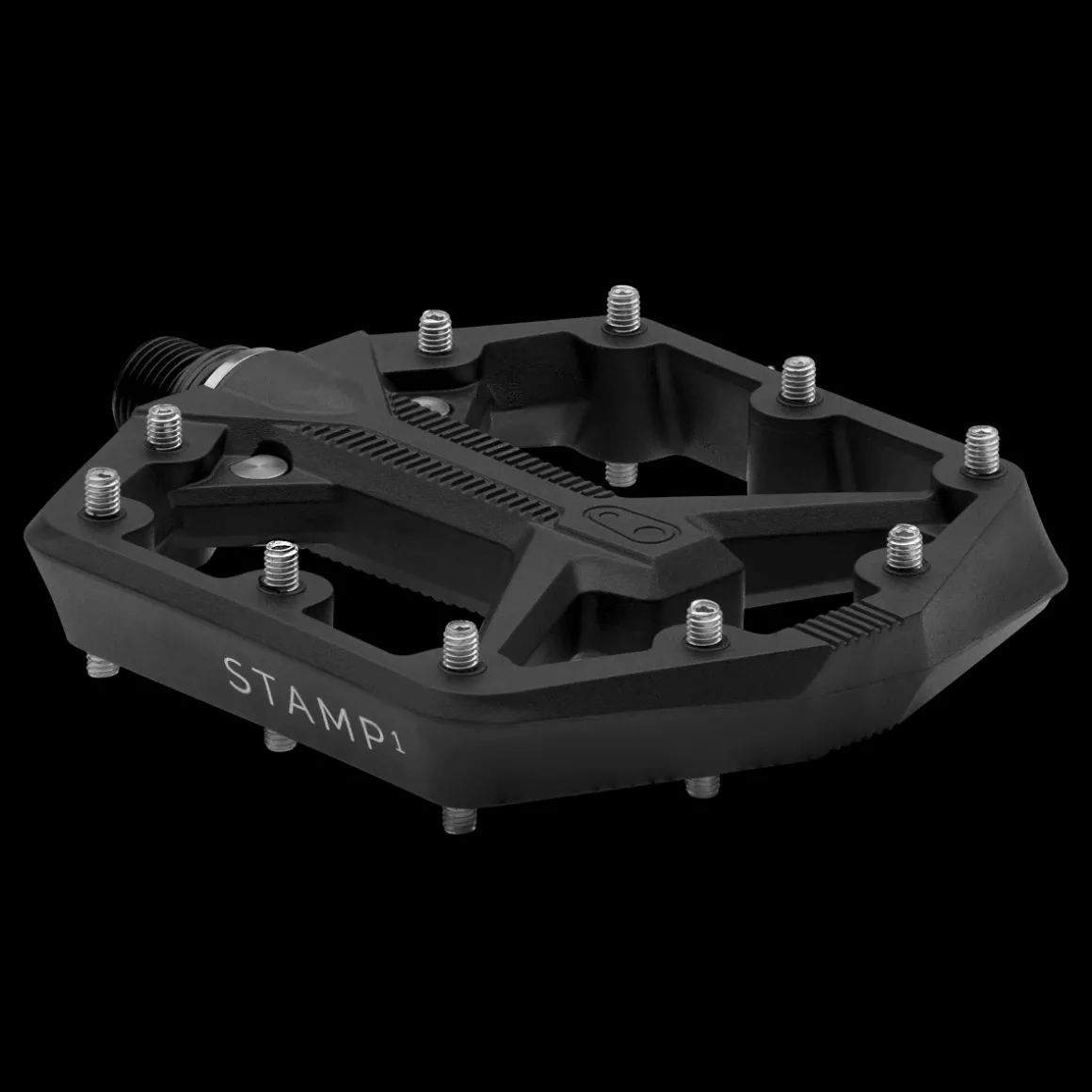

More grip, more pins, more concavity.  The 2nd generation of the proven Stamp 1 MTB pedals from CrankBrothers features fundamental changes in pedal structure and profile. The pedal shape is now concave for even better grip, optimal power transfer and a secure stand in every situation. 10 pins per side of the lightweight composite flat pedal drill into the shoe sole. The Y-shaped axle connection to the flat pedal body saves material and thus weight. This can also be found in a similar design on the other CrankBrothers Stamp light alloy models.

It is made possible by the reinforced composite material, which scores points not only for its resistance but also for its low weight and low stack height above the axle. A selection of modern colours allows you to add stylish accents to your bike.   When it comes to its bearings, the 2nd generation of the Stamp 1 is also in no way inferior to its high-quality siblings in the CrankBrothers pedal product range.High-quality DU IGUS LL sleeve bearings are reliably protected from dirt and rain by a combination of external and double internal seals. 10 adjustable pins on each pedal side and two pedal sizes with a platform that is adapted to different shoe sizes ensure maximum grip on rough trails.

Details:
Intended use: Enduro / All-Mountain / Downhill
Flat, concave pedal profile
Bevelled pedal edges
Each side with 10 adjustable / exchangeable pins
Lightweight pedal body made of composite material
Forged scm 435 Cro-Mo spindle
DU IGUS LL sleeve bearings (inside / outside)
External and double internal seal protects against dirt and moisture

Small version:
Platform dimensions (LxW): approx. 100 x 100 mm
Recommended shoe size: 35-43
20 pins (per pedal)

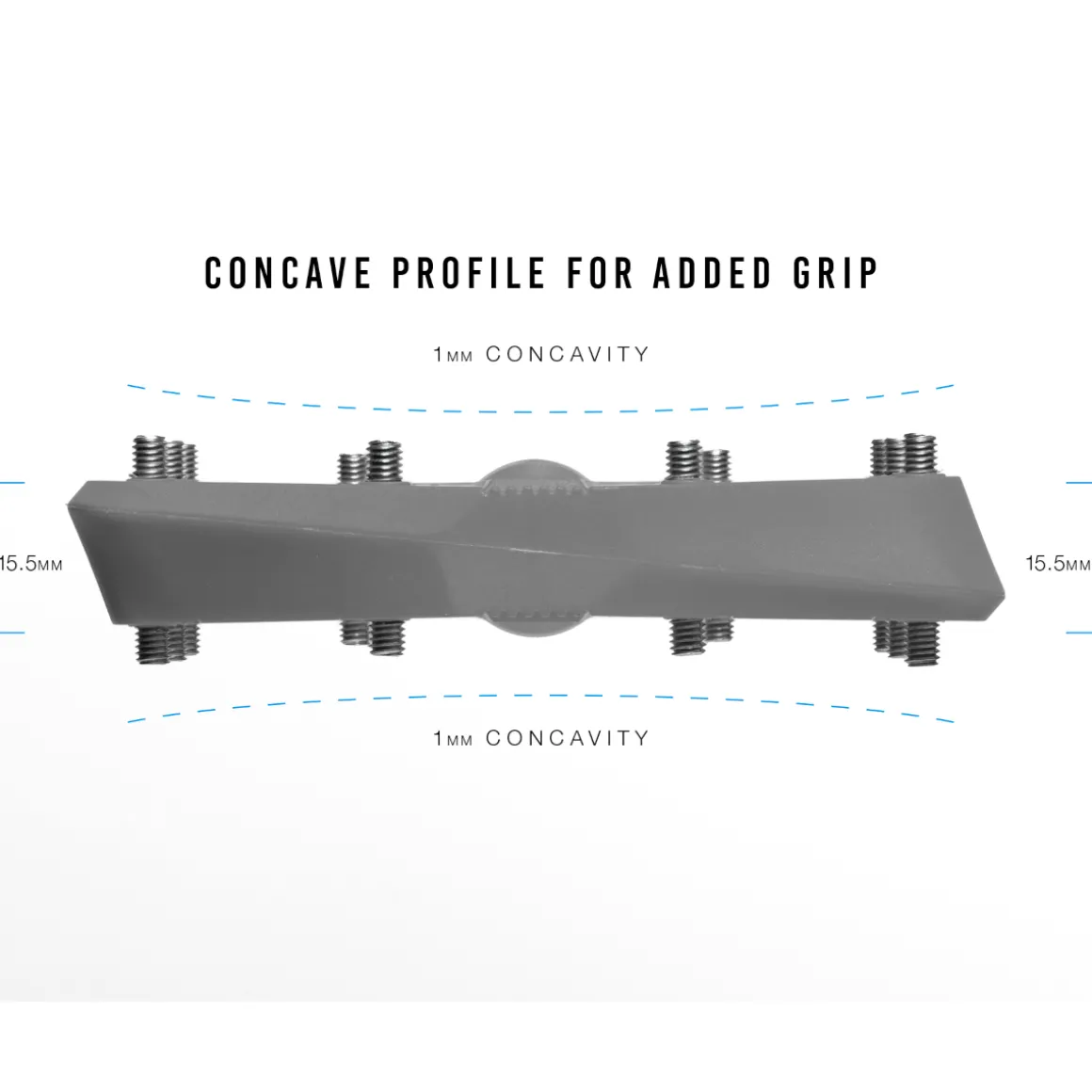

15.5 / 13.5 mm flat (1 mm concavity on both sides)
Weight: approx. 321 g (pair)

Large version:
Platform dimensions (LxW): approx. 114 x 111 mm
Recommended shoe size: 43-49
20 pins (per pedal)
15.5 / 13.5 mm flat
Weight: approx. 348 g (pair)

In the box:
1 pair of CrankBrothers Stamp 1 MTB pedals,  2nd generation

Note:
Shoes with unsuitable soles (e.g. leather soles, running shoes) may get damaged by the pedal pins.
