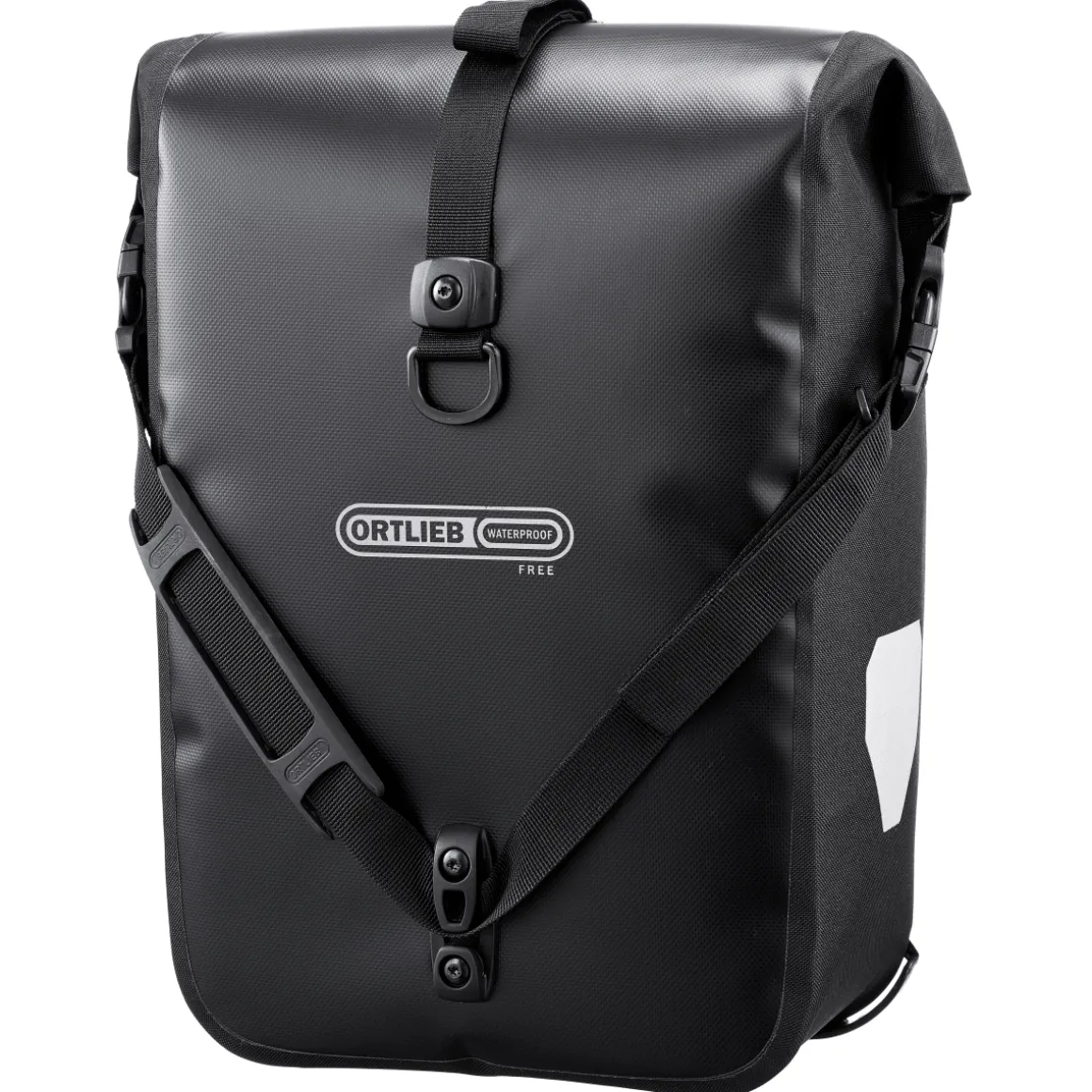

SPORT-ROLLER FREE QL3.1 Pannier

With the SPORT-ROLLER FREE QL3.1 pannier from ORTLIEB, you get a practical and waterproof bike bag for touring and everyday use. Thanks to its symmetrical shape, it can be used on both the left and right side of your rack. Even attaching it to the low rider is no problem. If your luggage rack already has a holder for the QL3.1, you can attach the bike bag in no time at all. If not, you will also need the corresponding mounting set (optionally available under prod. code: 2256975).

The highlight: The special thing about the ORTLIEB “FREE” collection is that it is a great alternative to products containing PVC without changing the familiar look. All “FREE” bags are made of a fabric that is coated with polyurethane on both sides – no PVC needed.

Details:
Durable and compact single bag with QL3.1 holder for left or right

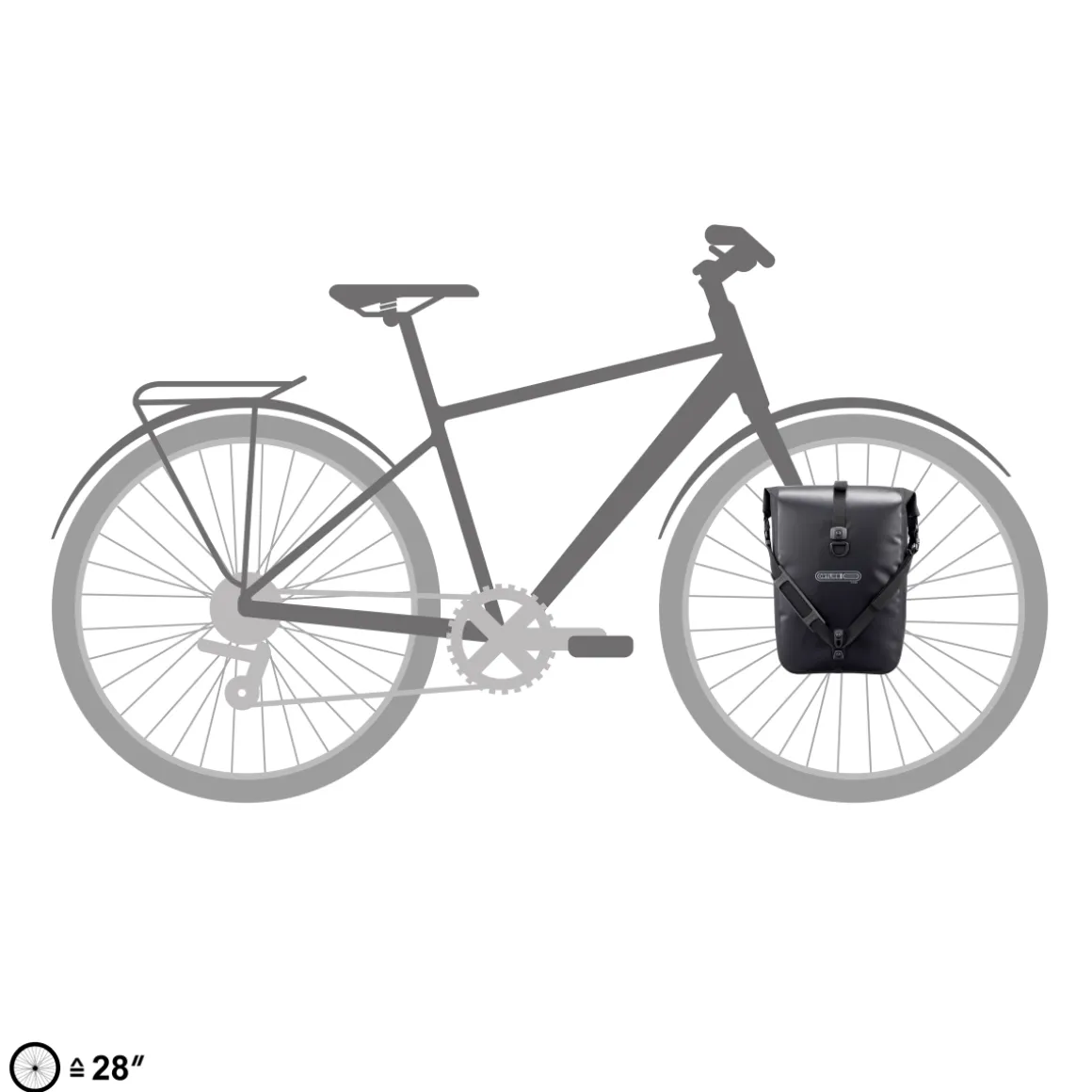

Universal bike bag for the lowrider rack at the front or the rear rack
With QUICK-LOCK3.1 attachment
PU-coated polyester fabric
Waterproof in accordance with IP64
Practical roll-top closure

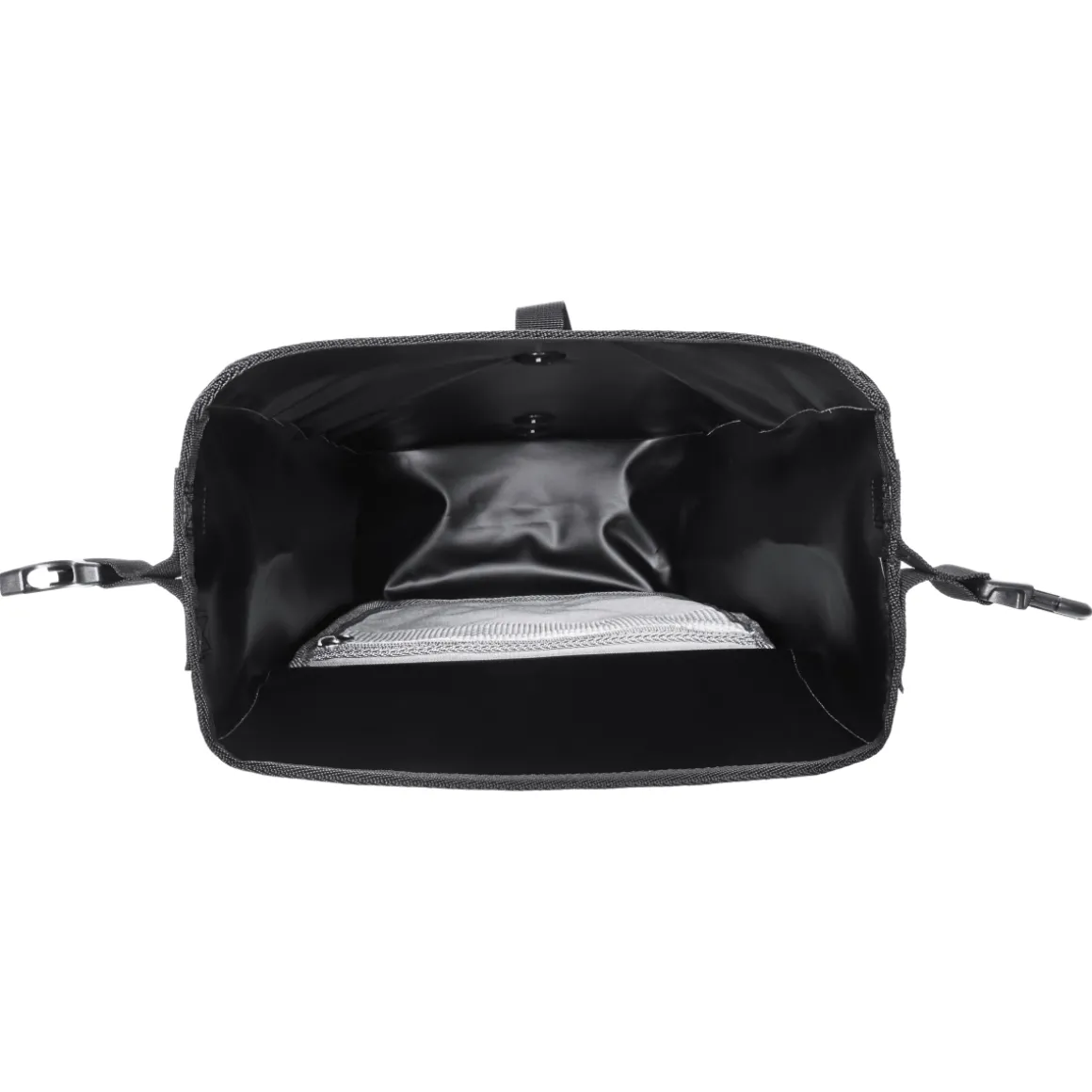

Integrated inner pocket
Removable carrying strap
Symmetric shape allows for use on the right or left side
Robust edge protection on the back
Very suitable as a “small” rear pannier or pannier for children’s or youth bikes

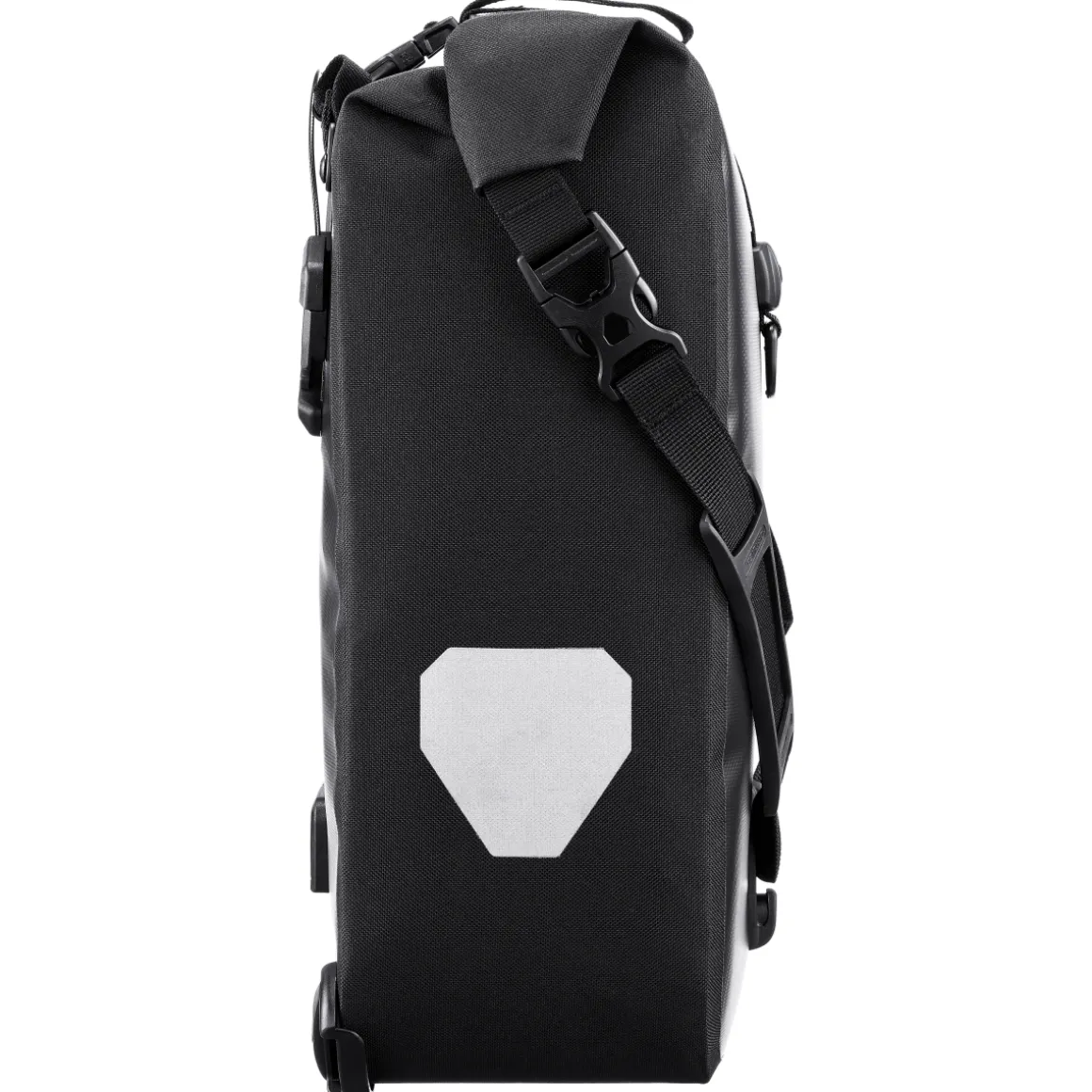

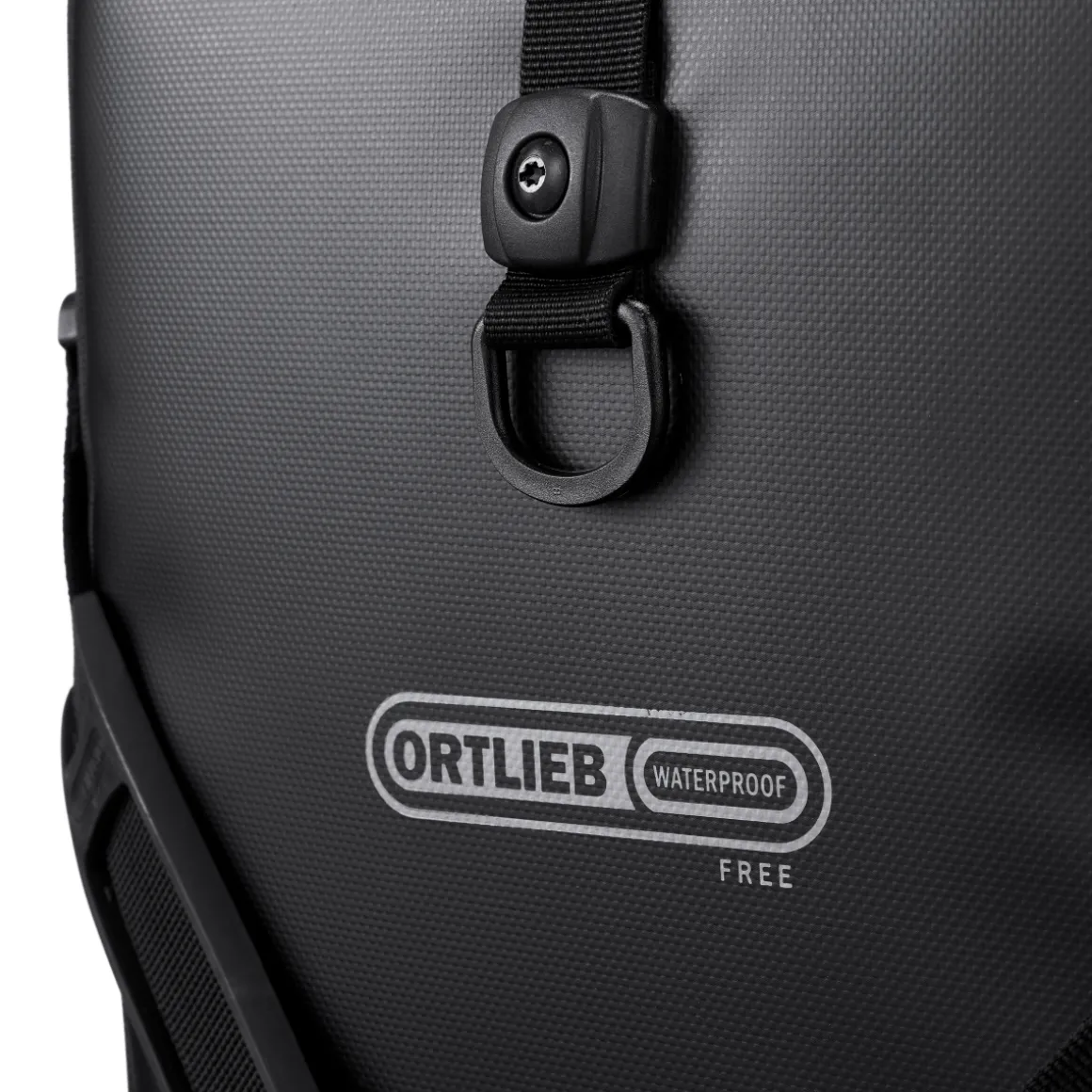

Reflective design elements
PVC-free

Technical details:
Dimensions: approx. 37 x 26 x 12 cm (H x W x D)
Volume: approx. 14.5 l
Protection category: IP64
Load capacity: max. 9kg
Weight: approx. 740 g

Note:
Just one pannier included in the scope of delivery.
In order to reach protection standard IP64 (6=dustproof, 4=resistant to wheel spray coming from all directions), the roll-top closure must be folded down 3-4 times and fixed at the bottom.
This bag is supplied without the QL3.1 mounting set, instead QL3.1 locking buttons are included. If your luggage carrier is not equipped for QL3.1, you can order the mounting set under prod. code: 2256975 as an option.

In the box:
1 ORTLIEB SPORT-ROLLER FREE SINGLE QL3.1 pannier
1 ORTLIEB carrying strap
1 ORTLIEB QL3.1 locking buttons set

Optional accessories (subject to availability):
ORTLIEB outer bag S 2.1 l (prod. code: 49832300)
ORTLIEB QL3.1 mounting kit for panniers (prod. code: 2256975)

Highlights & Technologies:

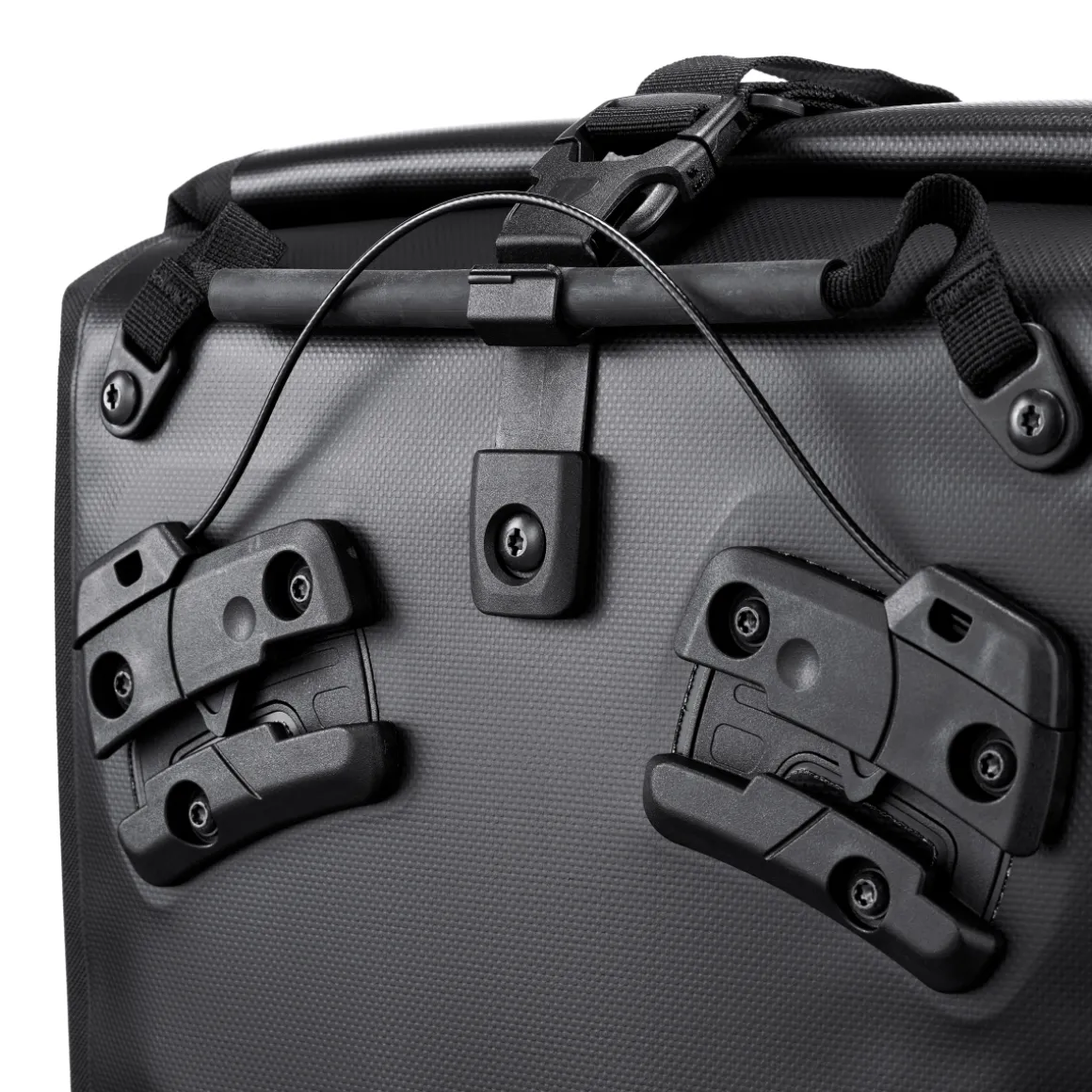

QUICK-LOCK3.1:

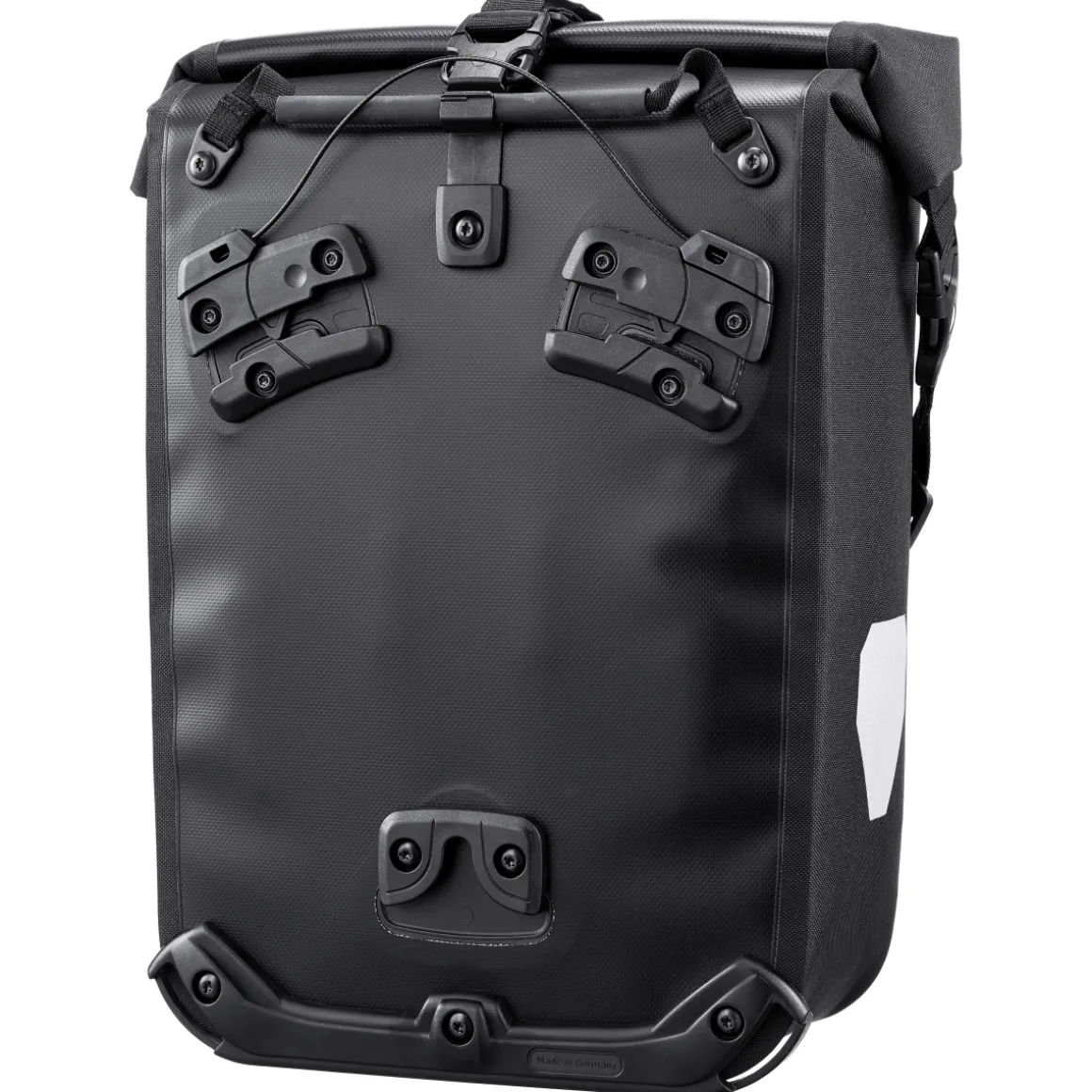

With this mounting system, the main supporting elements are permanently fixed to the luggage rack. Thus, there are no large, protruding hooks on the back of the bag, which improves comfort.
The QL3.1 mounting system allows for quick and easy attachment of the pannier. Simply position the bag on the lower mounting point, move it towards the rack, swivel it in from the left or right and securely attach it to both mounts on top. Removing the bag is just as quick and easy: Simply lift the bag by the handle and simultaneously swing it either to the left or to the right, done!
Comfortable single-handed operation
Automatic locking and release of the hooks when lifting the bag by the carrying handle
Direct mounting possible on luggage racks with integrated QL3/QL3.1 attachment

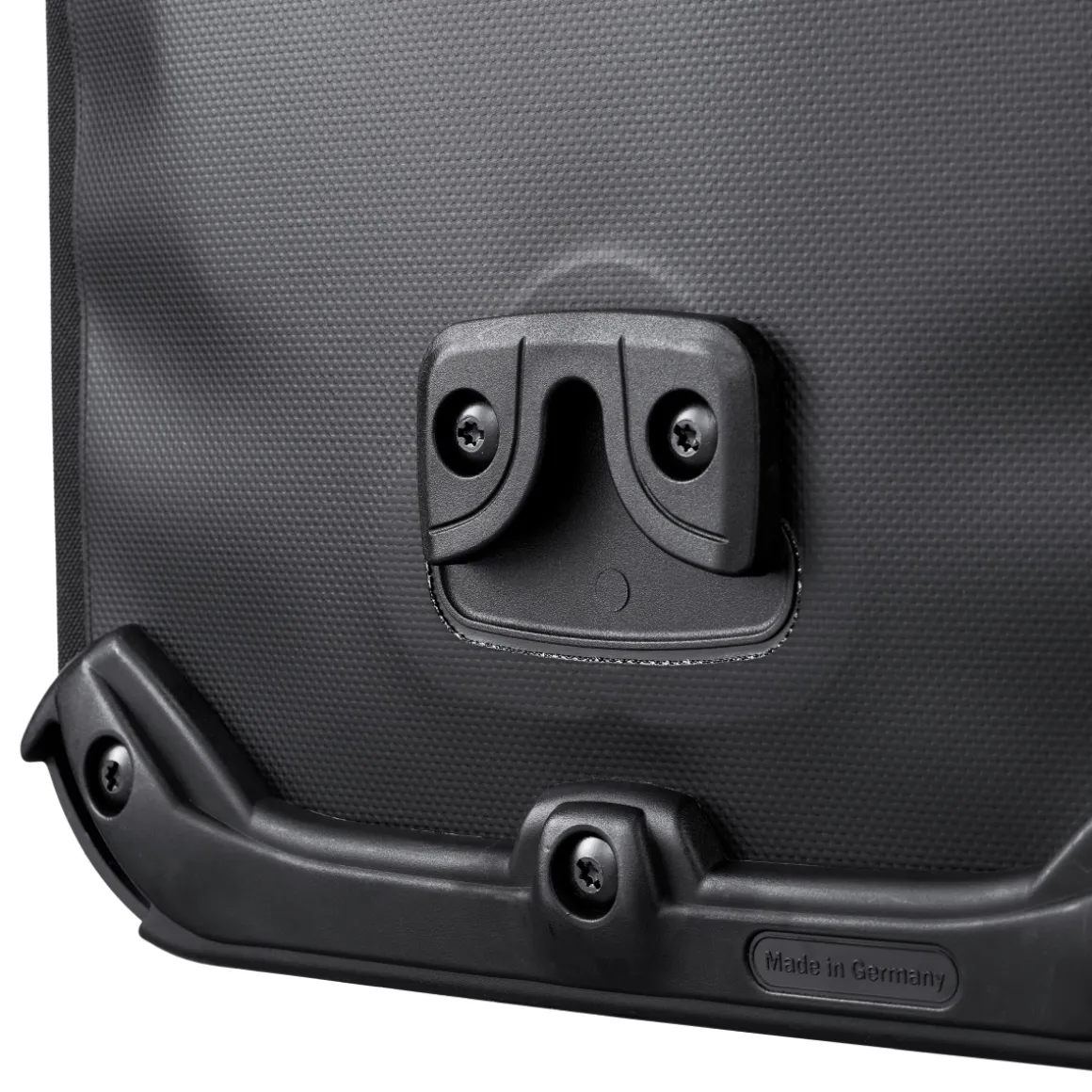

Lower hook can be rotated 360 degrees (in 24 steps of 15 degrees each) for individual adaptation to a wide variety of luggage racks with tube diameters of up to 14 mm
Horizontal rack top remains free for baskets, trunk bags etc.
A separate mounting rail is required for luggage racks without an integrated QL3.1 device (optionally available under prod. code: 2256975, subject to availability).

Note:
The reflective design elements attached as decorative elements do not represent a personal protective equipment as mentioned in EU regulation 2016/425. Thus, they are also not covered by the provisions of the regulation.
