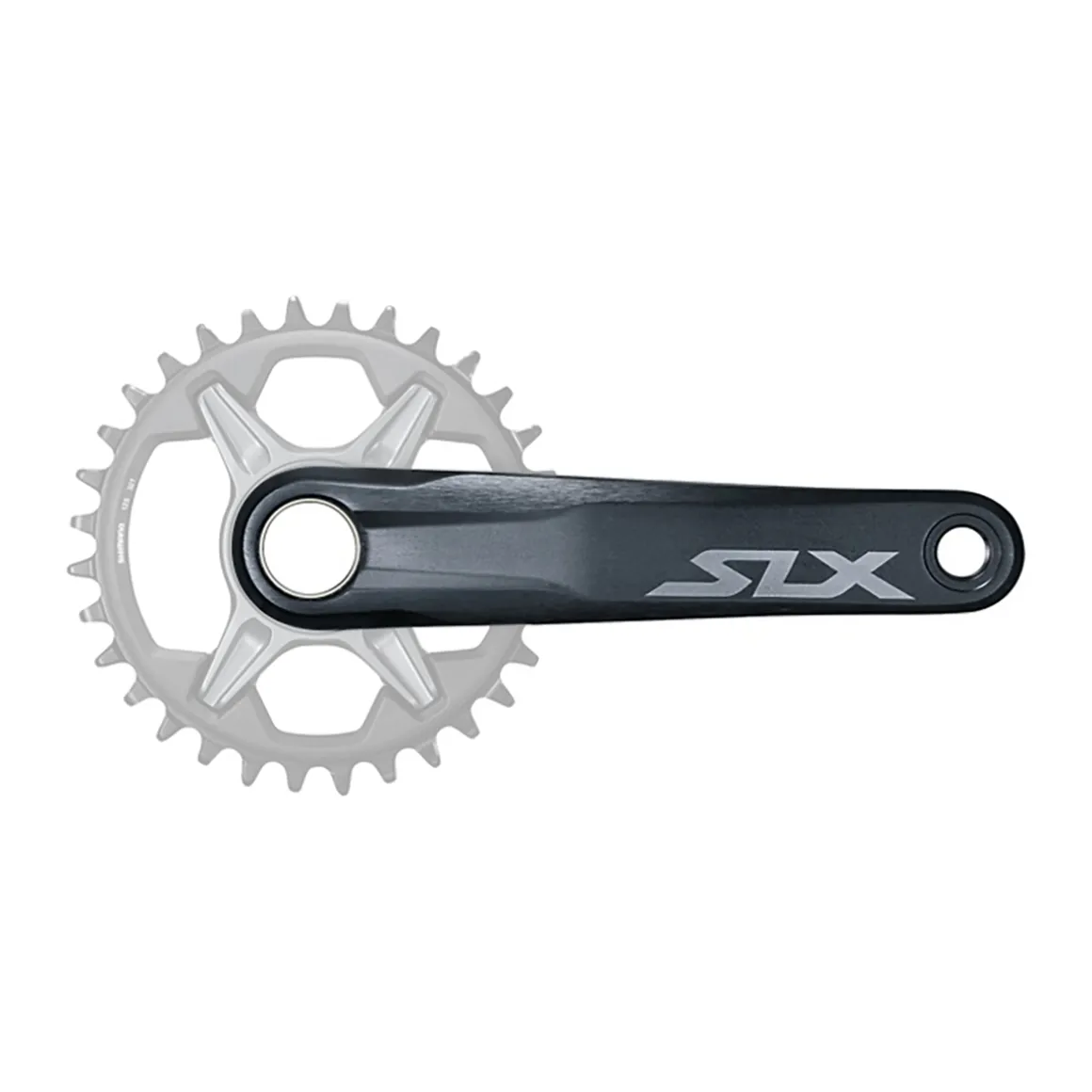

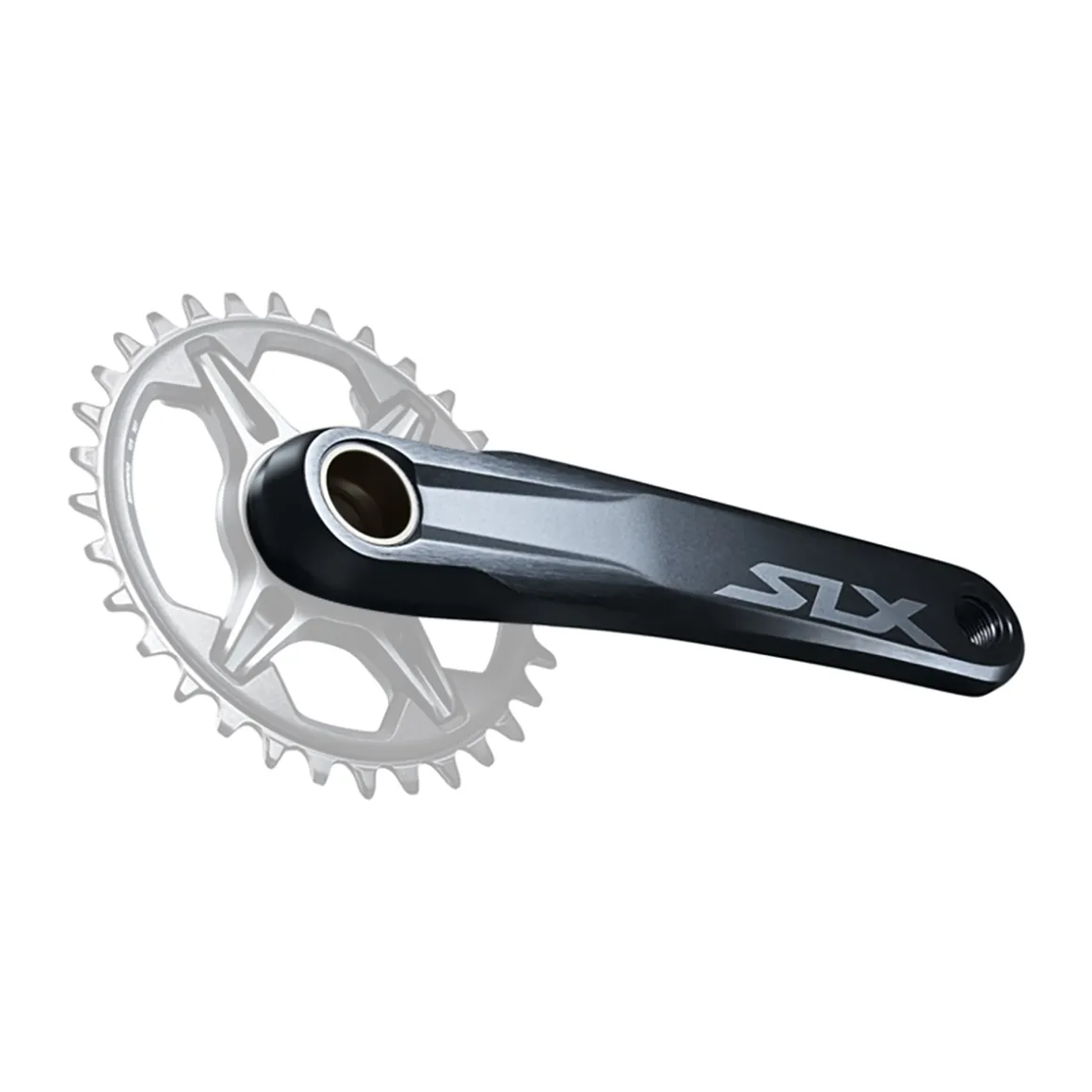

SLX FC-M7100 Hollowtech II Crankset Single / 52 mm Chainline

Simultaneously with the launch of the Deore XT, SHIMANO brings 12 speed compatibility to SLX level and introduces the SLX FC-M7100 Hollowtech II single speed crankset: a typical crankset by SHIMANO with crank arms made of hollow forged aluminium. Besides, the SLX crank comes – like the XTR and Deore XT – without a spider, which promises high stiffness values and a low weight. Thus, it is suitable for a wide range of uses – ranging from fast XC rides through to enduro riding at breakneck speed.
To secure the chainrings to the 12-speed SLX crankset, SHIMANO uses their own Direct Mount standard with BB lockring. A 52 mm chain line increases drivetrain performance for the BOOST standard (148 mm) as well as for 135/142 mm standards, thanks to the chamfered inner plates of SHIMANO’s Hyperglide+ 12-speed chains. Thanks to DYNAMIC CHAIN ENGAGEMENT+ (DCE+), the chain even stays on the chainring during jumps and on rough terrain. XC and enduro racers who prefer singlespeed systems can choose between chainrings of 30 to 34 teeth.

Details:
Hollowtech II 1 x 12 crankset
Hollow forged aluminium crank arms
Crankset with integrated 24mm axle

Specs:
Compatible with SHIMANO Hyperglide+ 12-speed
Chainline: 52 mm
Q factor: 172 mm
Available SLX chainrings: 30-32-34 teeth (product code: 2286487)
Recommended chain: SLX CN-M7100 (product code: 2286423)
For a shell width of 68/73 mm
For rear axle: 135/142 mm and 148 mm (BOOST)
Weight: approx. 631 g (175 mm / 32T)

Available with crank arm length:
170 mm
175 mm
Please make your choice.

Bottom bracket cups (optional):
BSA BB-MT800 (product code: 2138176)
Pressfit BB-MT800-PA (product code: 2234221)

In the box:
1x SHIMANO SLX FC-M7100 crankset
WITHOUT chainring and WITHOUT bottom bracket cups!

For compatible chainrings see product code: 2286487.

ATTENTION:
NOT compatible with SLX M7000 components and other SHIMANO 11-speed groupsets.
