Set 18B for 15mm BOOST Fox MTB Thru Axle

The Pitlock Set 18B for Fox MTB forks with BOOST thru axle protect the wheels of your beloved bicycle from unauthorised disassembly.

All you need to do is replace the front wheel axle with the Pitlock version. The specially milled, coded nut of the axle can only be loosened with the matching Pit key. There are over 1000 different key combinations available. Besides, the handy Pit adapter is small enough for your key ring, so that you can remove your front wheel whenever you want.

You can even individually order coded Pitlocks for additional thru axles, tensions axles, brakes and saddle clamps that match your code system (e.g. product code: 1507032).  Thus, high-quality components are perfectly protected from theft. When will you pitlock your bike?

Details:

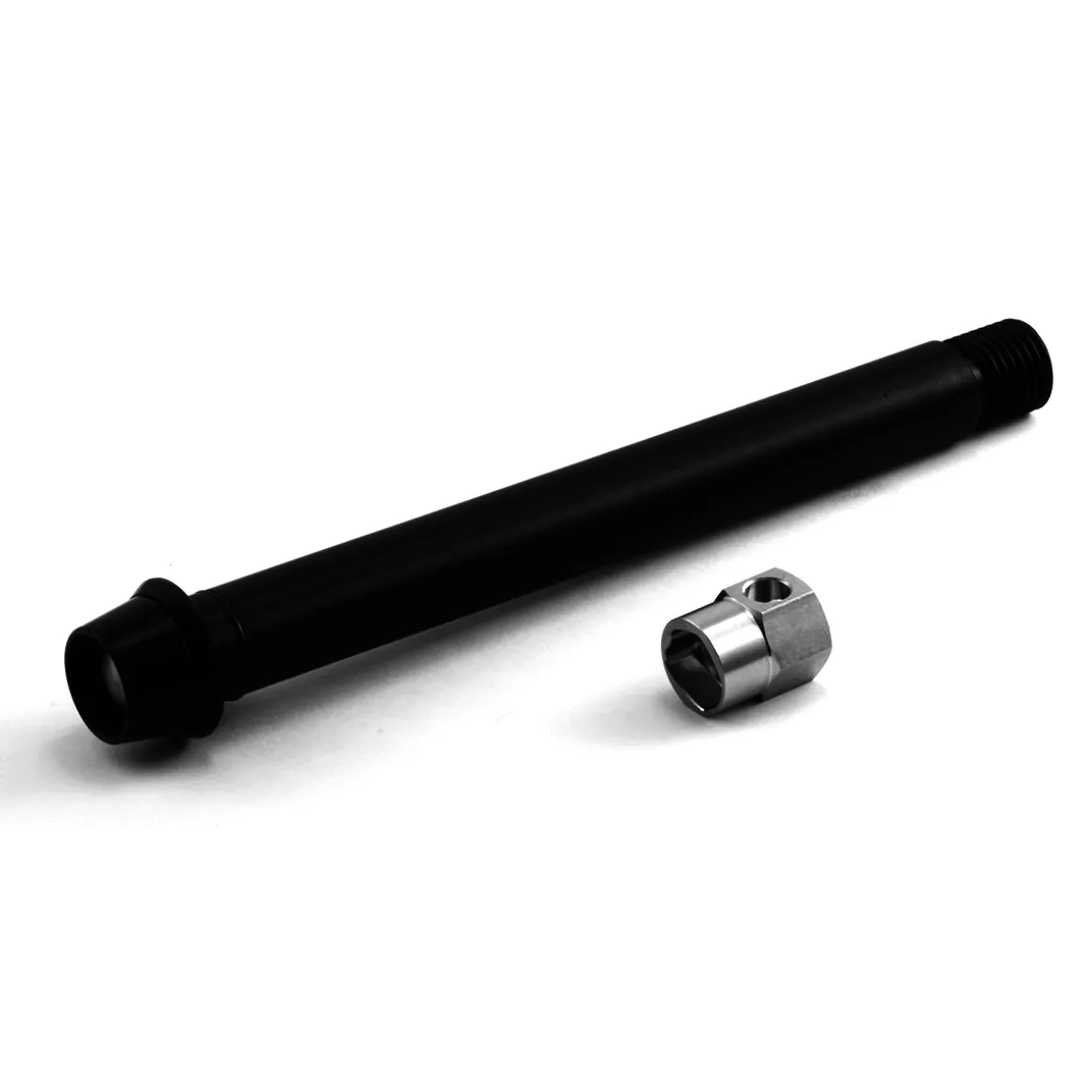

Pitlock front wheel axle
Compatible with Fox QR BOOST thru axle
Coded nut with key
Supplementary order after registration
Easy to fit within seconds
Made in Germany

Specs:
Front wheel: 15 x 110 mm (Boost)
Total length: approx. 156 mm
Thread length: 15 mm
Thread pitch: M14 x 1.5 mm
Material: aluminium / stainless steel
Weight: approx. 88 g (without Pit key)

In the box:
Pitlock security axle with M5/M6 closure
M5/M6 Pit key
Code card

Note:
Replaces 15 mm Fox Racing Shox QR BOOST thru axle. Not compatible with other thru axle systems! To make sure the Pitlock security system fits your bike you can simply compare the dimensions with those of the original axle. For more information see the comparative scale for thru axles (simply click on the button).

Tip:
To ensure a uniform look and for protection, the coded bolt heads can be covered with a matching Pitlock aluminium cap (prod. code:  2288618). Alternatively, you can fit the conical end cap (prod. code: 2288664).
