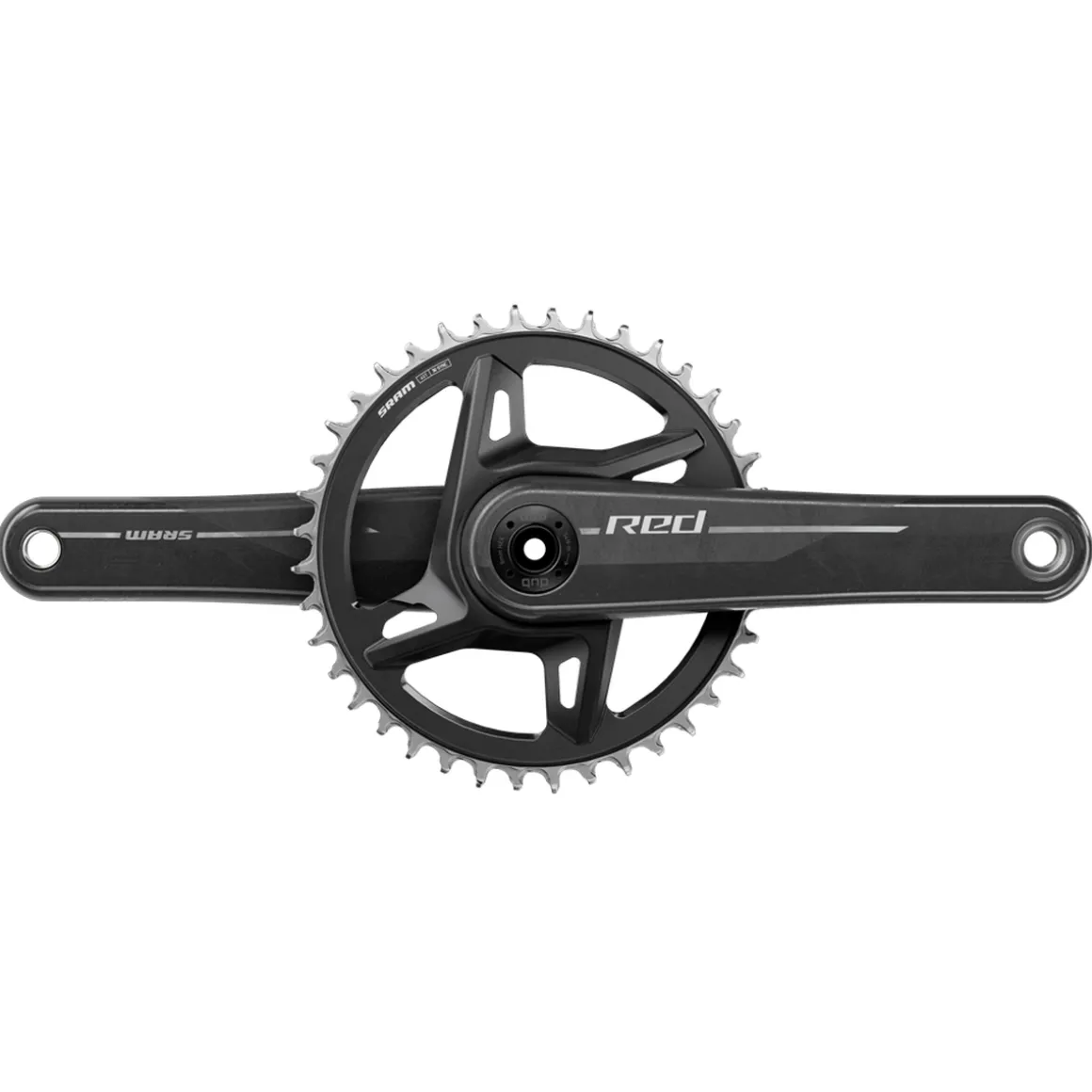

RED XPLR Crankset 1 x 13-Speed, 42 Teeth

Modern gravel bikes are virtually predestined for singlespeed drivetrains. The RED XPLR 13-speed crankset is the lightest and stiffest crank currently available for gravel riding from SRAM.

The DUB™ Road-Wide crank axle maximises tyre clearance to get even more comfort and speed out of your bike through wider tyres. Hollow crankarms made from noble carbon fibres and a 42-tooth chainring create a lightweight, robust and intuitive drivetrain that, together with a SRAM XPLR 13-speed cassette, offers the ideal gear range for rides on varied terrain.

Specially developed for electronic shifting of SRAM’s AXS™ groupsets, the RED XPLR crankset not only impresses with noble materials, but also with the possibility to upgrade it with a strong power meter whenever you want.

Details:

• Singlespeed drive system simplifies functionality and reduces weight
• Hollow carbon crank arms for high stiffness and low weight
• Proven X-SYNC™ Narrow-Wide tooth profile for maximum chain control
• DUB™ Road-Wide crank axle for 47.5 mm chainline (requires DUB™ Road-Wide bottom bracket!)
• DUB™ technology: 28.99 mm axle Ø for improved protection against dirt and full compatibility with all common BB standards
• Allows for subsequent upgrade with power meter


Technical details:

• Intended use: Gravel / Cross / Road
• Series: RED XPLR
• Model: FC-RED-1W-E1
• Type: Flattop™ (Road)
• Axle standard: DUB™ Road-Wide (requires DUB™ Road-Wide bottom bracket!)
• Material crank arms: carbon (hollow)
• Q-Factor: 150 mm
• Material chainring: Aluminium
• Chainring: 42 teeth
• Bolt circle Ø: – (Direct Mount)
• Direct Mount Standard: SRAM 8-bolt interface
• Chainline: 47.5 mm
• Compatible chains: SRAM Flattop™ 12/13-speed


Available with crank arm length:

• 165 mm
• 167.5 mm
• 170 mm
• 172.5 mm
• 175 mm

Please indicate your choice.

In the box:

• SRAM RED XPLR DUB™ Road-Wide crankset 1×13-speed incl. chainring (WITHOUT bottom bracket)
