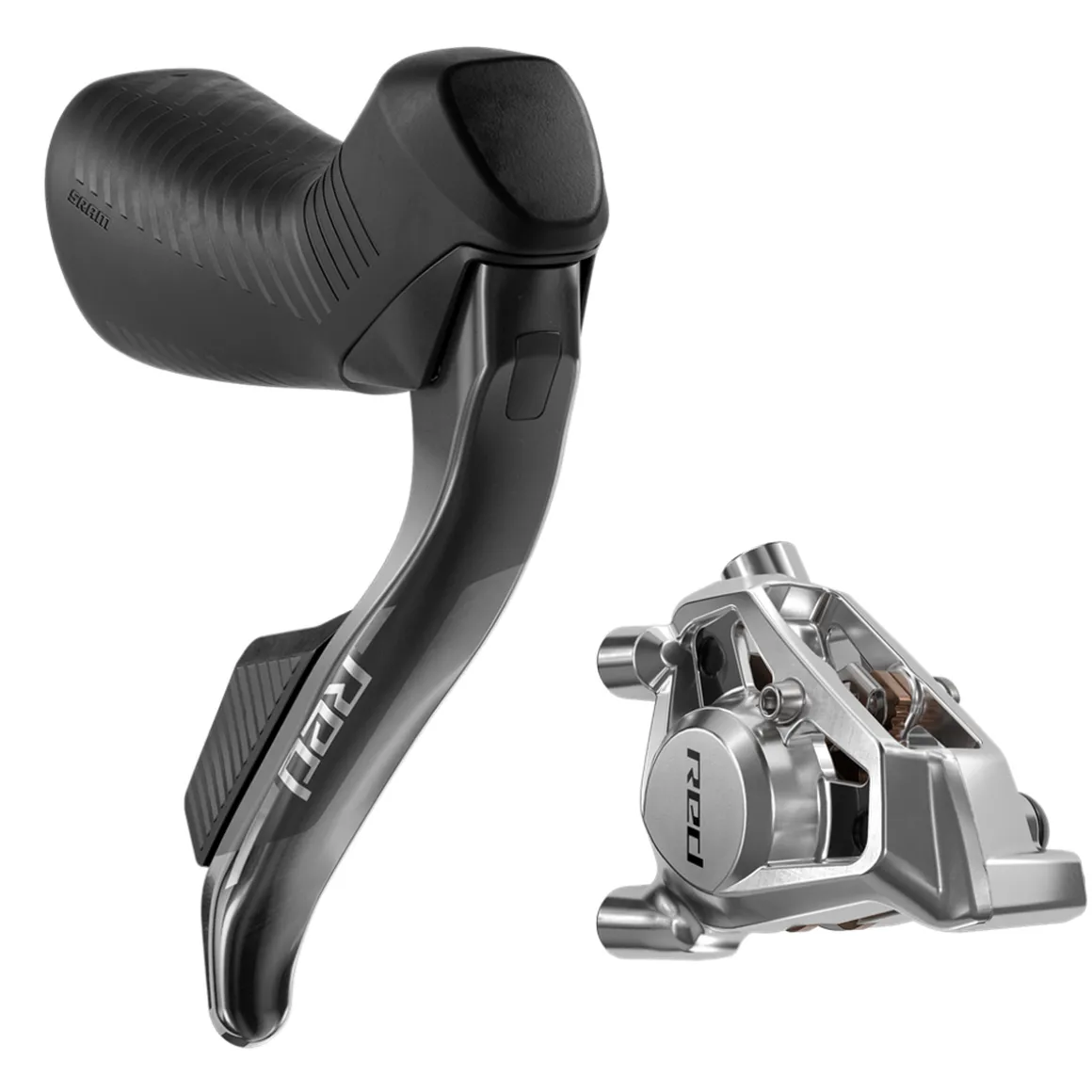

RED AXS™ HRD Brake/Shift Lever incl. Disc Brake, Rear Wheel, Right

For true one-finger braking, SRAM has fundamentally revised the ergonomics of the RED AXS™ HRD brake/shift levers to deliver maximum performance on the high-end road bike with RED AXS™ shifting and gravel race bike with the RED XPLR AXS™!

The result is a fit that means a significant improvement in brake operation for every hand size and intended use. The new grip geometry allows for easy and, above all, powerful hydraulic disc brake operation from anywhere on the handlebar, so that one finger is really more than enough for fast and safe stopping.
In addition, SRAM has given the RED brake/shift levers practical bonus buttons with which you can control compatible ANT+ devices or simply enjoy extra shifting options.

Apart from that, the electronic shifting has remained the same. Wireless and with maximum precision!
In the basic setting, both shift levers operate the rear derailleur. The right lever shifts up at the back, the left lever shifts down. By actuating both shift levers simultaneously, an existing front derailleur can be controlled. Of course, you can change the shifting behaviour and controls to suit your personal preferences by using the AXS™ app.

Details:

• Version for the rear wheel (right lever, hose length approx. 1800 mm)
• For hydraulic road and gravel bike disc brakes
• Can be used for SRAM AXS™ 1 x 12/13-speed und 2 x 12-speed systems
• Compatible with SRAM AXS™ for easy customisation
• Optimised grip ergonomics for significantly improved brake operation
• Large and ergonomic controllers
• Up to 83 g lighter than the previous version (based on a pair of grips, depending on the hose length as well as the brake pads and bolts used)
• Individual lever reach adjustment with Reach Adjust™
• Free stroke adjustable with Contact Point Adjust™


Technical details:

• Intended use: Road / Gravel / Cross
• Series: RED
• Model: ED-RED-E1
• Assembly point: right
• Control: radio (wireless)
• Gear steps front: double, single
• Gear steps rear: 12-speed, 13-speed
• Material brake levers: Carbon LFRT (long fibre reinforced carbon composite)
• Material shift levers: plastic
• Material brake callipers: Aluminium
• Hose length: approx. 1800 mm
• Lever reach adjustment: Ja (Reach Adjust)
• Contact point / free stroke adjustment: yes (Contact Point Adjust)
• Brake calliper standard: Flatmount
• Number of pistons: 2
• Brake fluid: DOT 5.1
• Brake pads: organic
• Brake pad shape: SRAM Small
• Fitted brake pad: Quiet/Organic, steel backing plate
• Connectivity: ANT+ (for optional bike computer control)
• Power supply: round cell battery
• Button cell type: CR2032
• Cell chemistry (battery / button cell): lithium (Li)
• Weight: approx. 360 g (shift/brake lever including brake calliper, filled brake hose and mounting bolts)


In the box:

• 1 SRAM RED AXS™ HRD brake/shift lever incl. disc brake (rear wheel, right)


Note:
The front wheel version with the left lever and a hose length of approx. 950 mm can be found under prod. code: 2354314.
