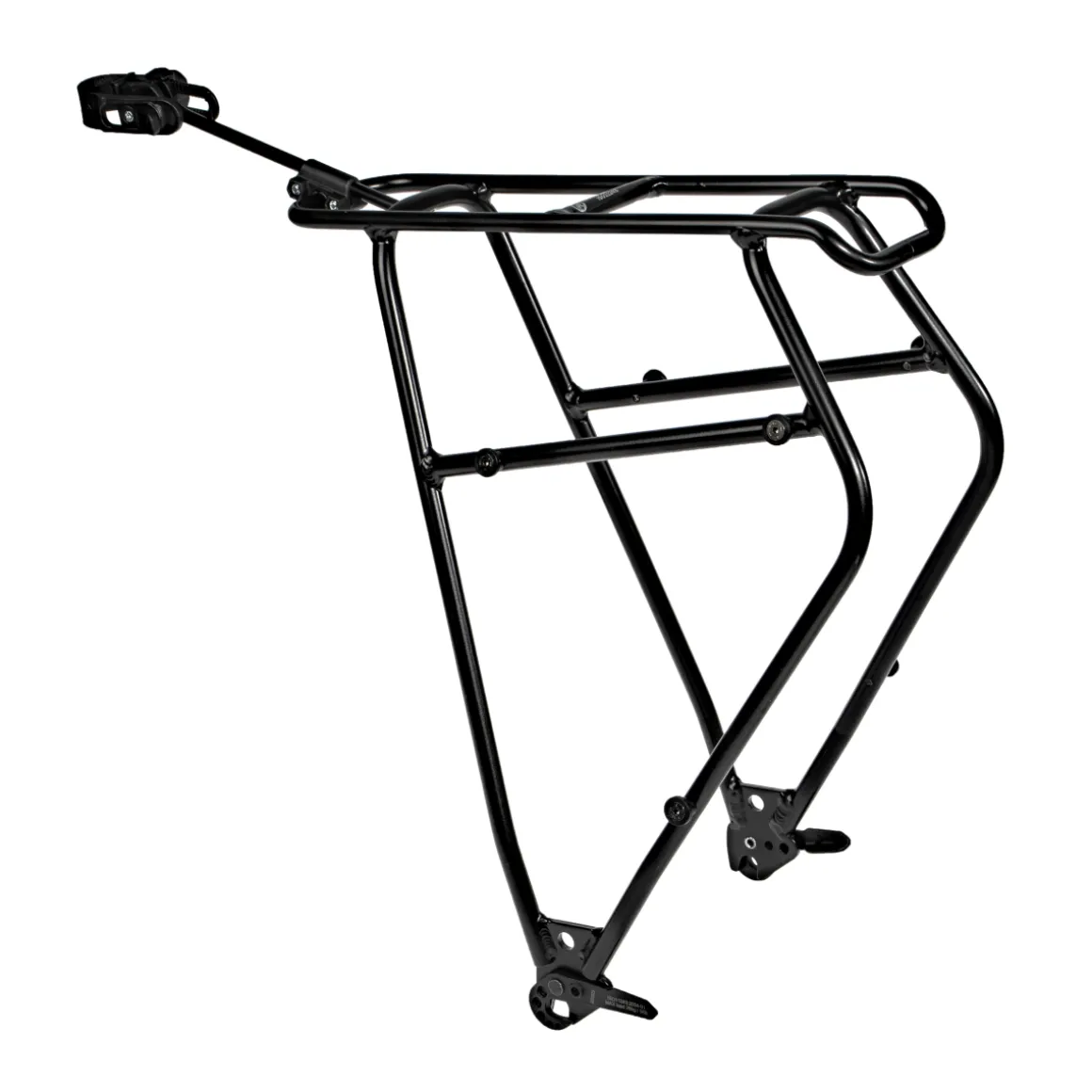

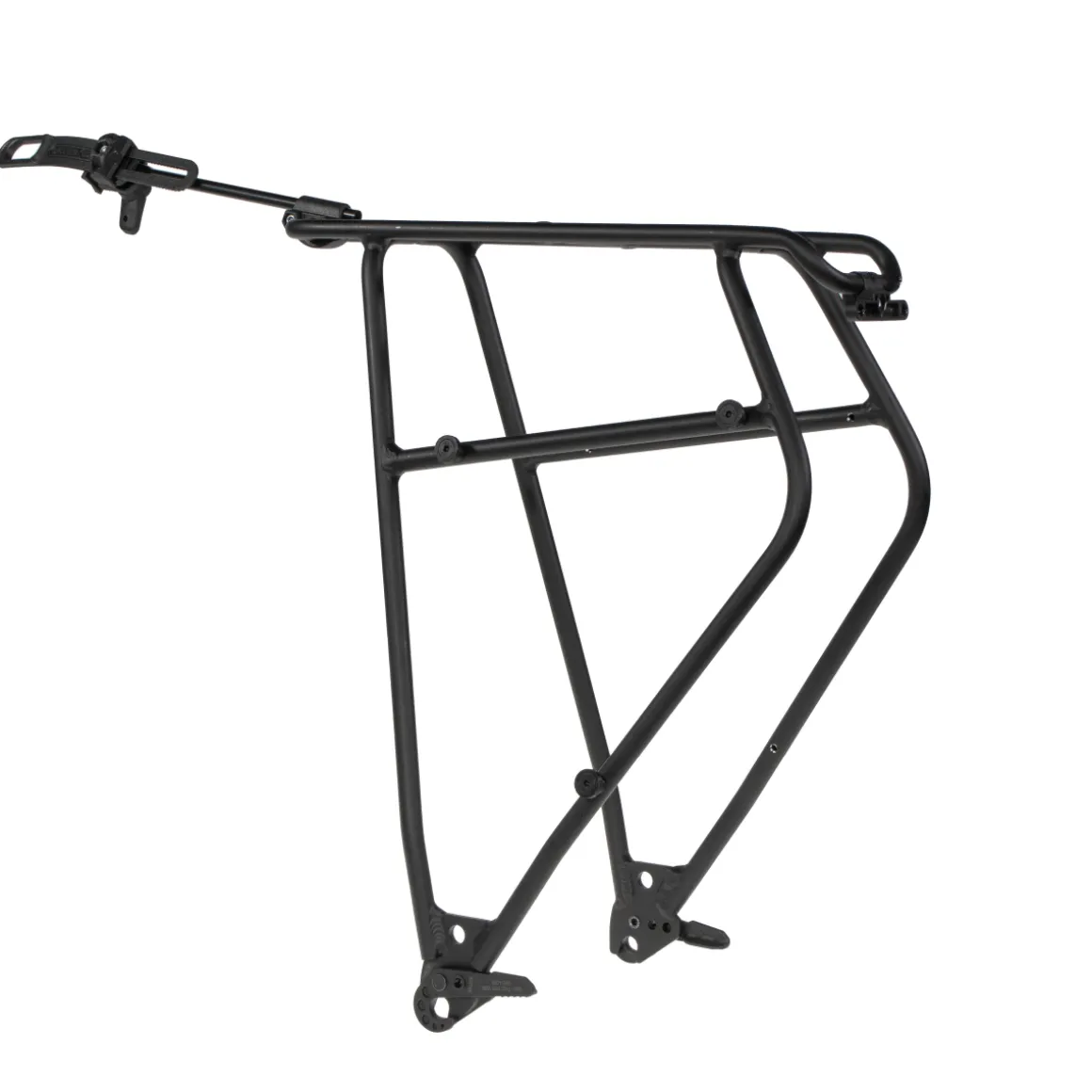

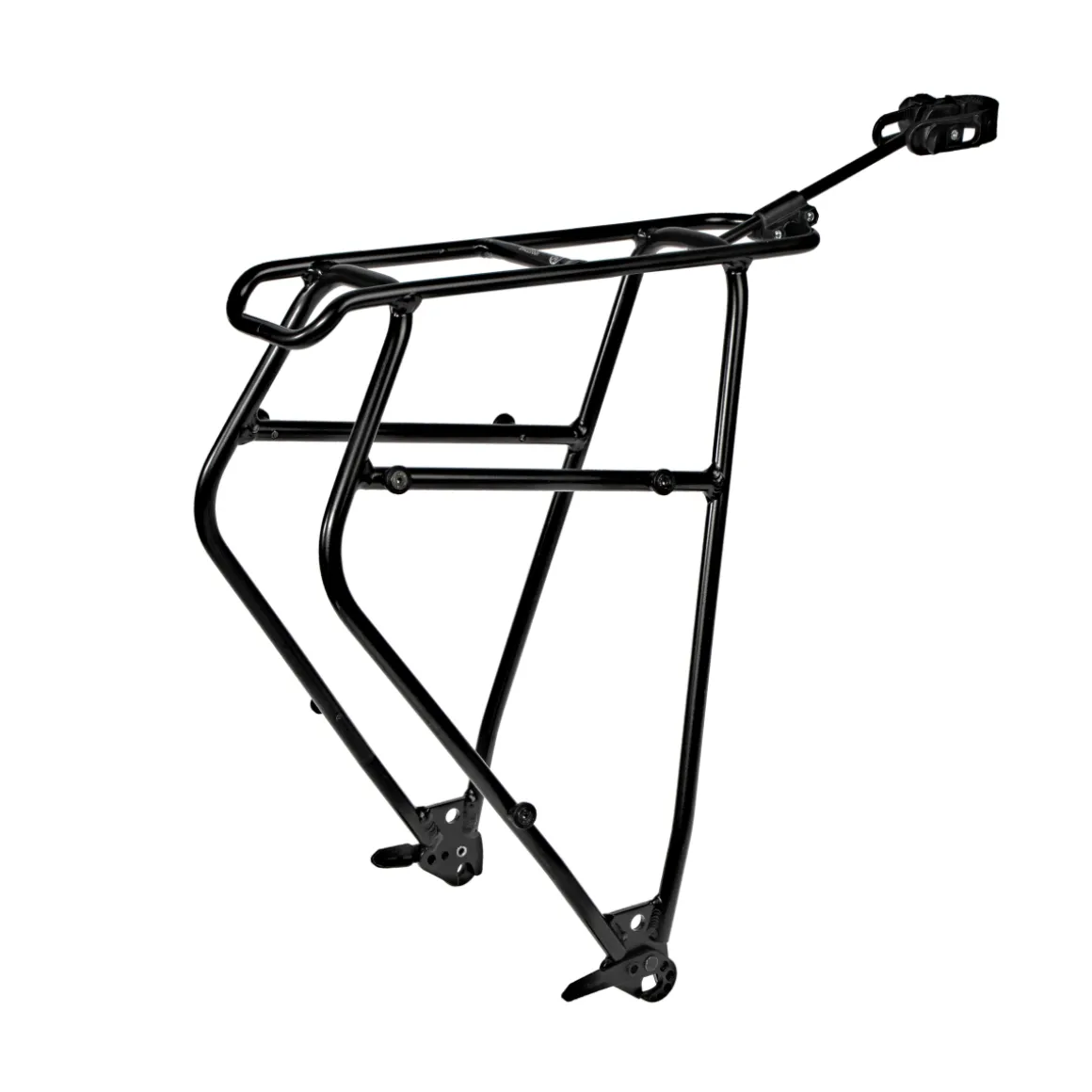

QUICK-RACK XL Luggage Rack

Installed quickly and removed even quicker!
The ORTLIEB QUICK-RACK bicycle rear rack can be installed and removed from your bike in a flash. In size XL, it is compatible with a tyre width of up to 2,6 inches (when mounted with the optionally available adapter thru axle) or even 3 inches (when mounted directly using the M5/M6 thread) and can carry loads of up to 26 kg. The quick release function allows you to attach and remove the clever luggage rack in seconds.

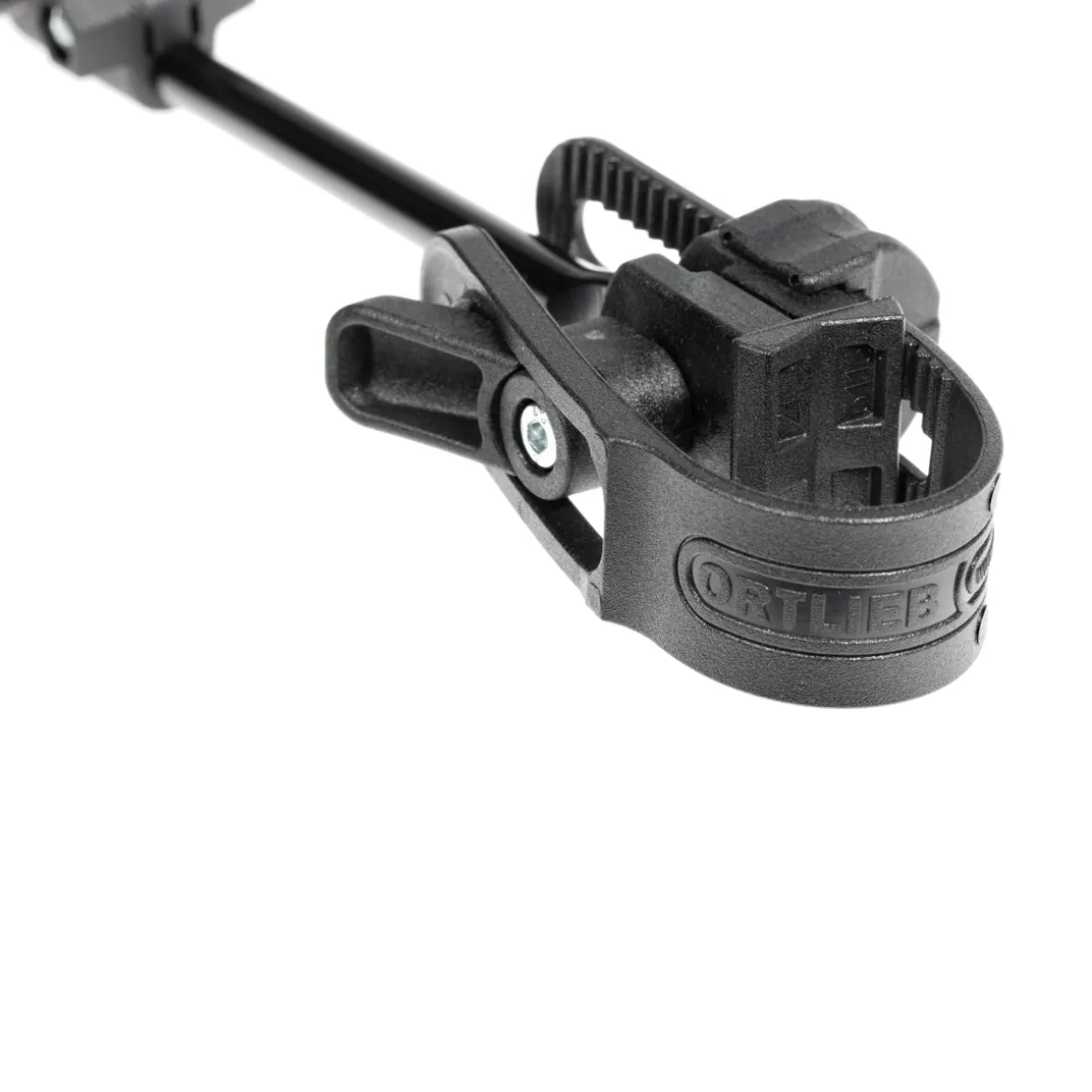

You have two options for mounting on the bike in the first step: You can either attach the Quick Rack with the THRU AXLE M6-CONNECTOR plug-in adapter axle (optionally available under prod. code: prod. code: 2351000) in the axle, or you can mount it directly on the frame in the luggage carrier thread (M5/M6). In a second step, the carrier is secured to the seat tube or seat post via the upper fixation strut with a sturdy mounting rubber. The Ortlieb QUICK-RACK luggage rack is ready for use! It is compatible with all Quick Lock system bags from ORTLIEB (QL1/2.1/3/3.1/Top-Lock) and can carry loads of up to 26 kg.

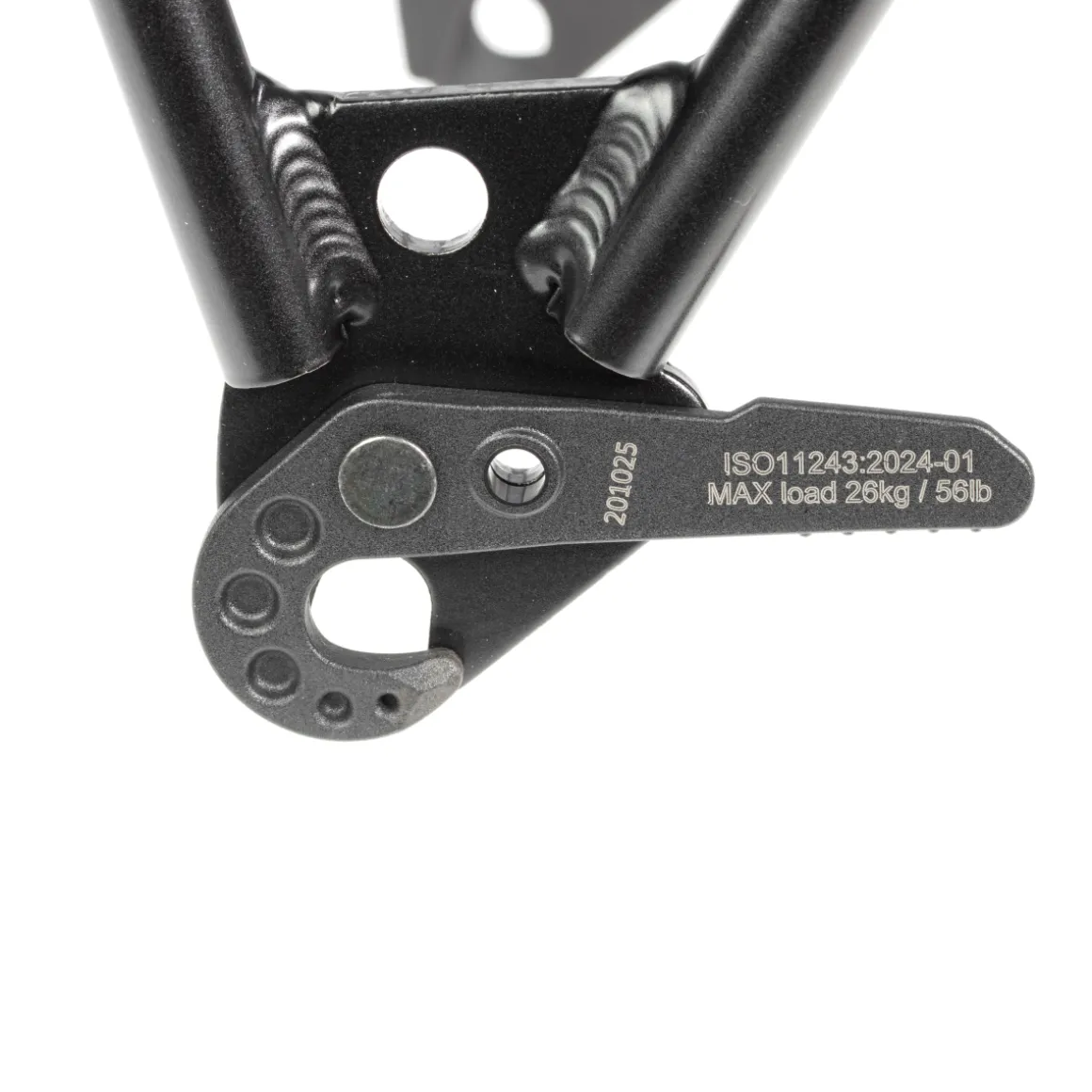

To remove the rear rack, simply loosen the fixation on the seat tube and undo the two locking levers on the contact points. That’s it! The two support points on the eyelets remain on your bicycle.

Details:
Luggage rack with Quick Release system for quick mounting and demounting
Quick change from a sporty bike to a city or touring bike and back again
Allows for the attachment of compatible bicycle bags with ORTLIEB QL1, QL2.1, QL3.1 and TOP-LOCK system
Enclosed QL3/3.1 mounting elements can be screwed on
With two platforms, e.g. for simultaneous use of a basket and side panniers
When mounted via an adapter axle, suitable for tyres up to 29”/2.6” in size (optionally available adapter thru axle required, prod. code: 2351000)
For direct mounting on luggage rack threads or via QUICK RACK SEAT STAY ADAPTER suitable for tyres up to 29″/3″ in size (adapter optionally available, prod. code: 2321534, SEAT STAY ADAPTER not suitable for carbon frames!)

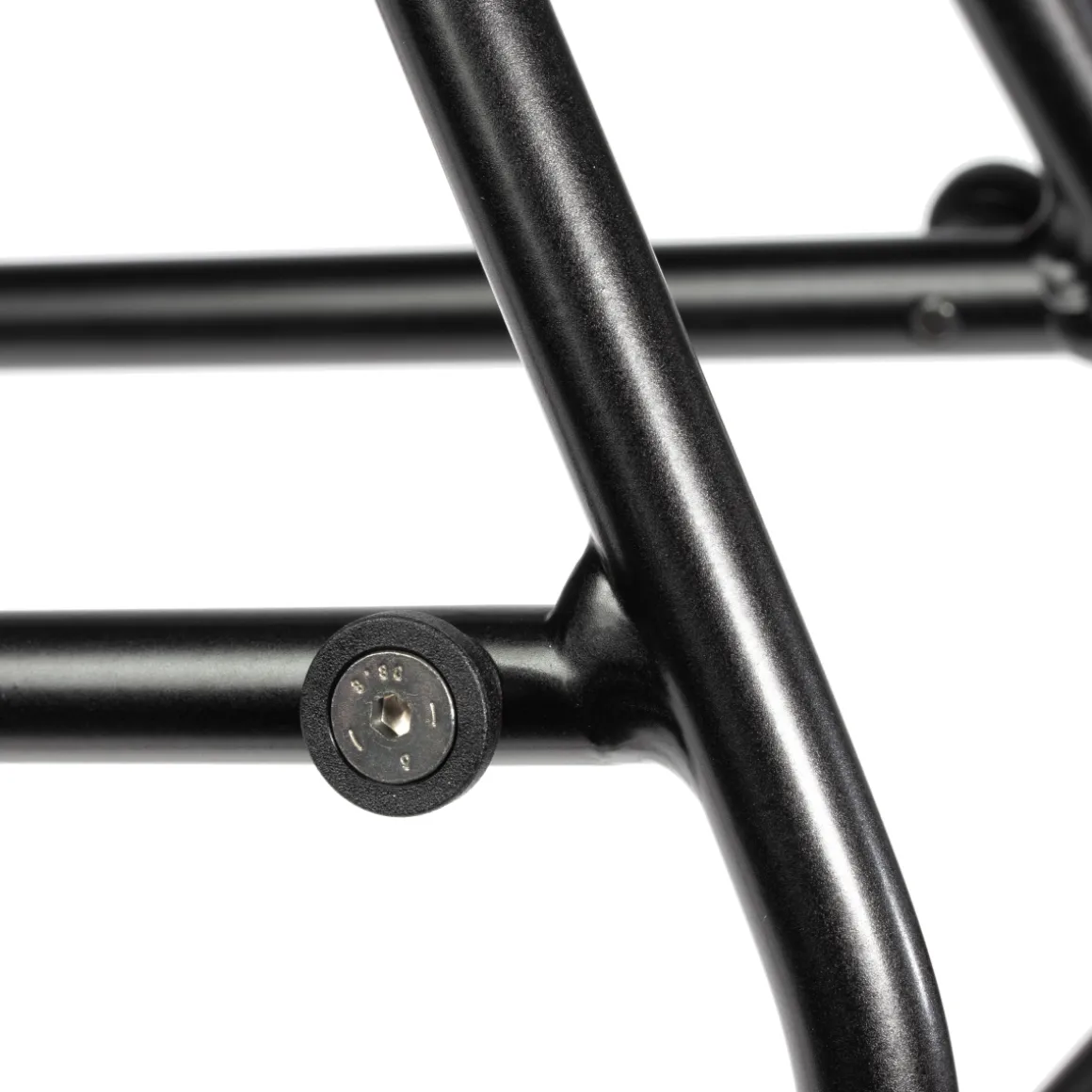

Horizontal and vertical struts with 12mm diameter
Luggage carrier platform with 10 mm tube diameter
Adjustable seat tube mounting strut (300 mm) for optimum support
Prepared for mounting a rear light (50mm bolt spacing, LED e. g. prod. code: 2308864)
Incl. mounting set for bicycle frames with M5 or M6 threaded eyelets

Technical details:
Material: Aluminium
Compatible wheel sizes: max. 29″/2.6″ (when mounted via adapter axle) or max. 29“/3“ (for direct mounting)
Tube diameter: 10/12 mm
External width platform area: 100 mm
Max. installation width: 195 mm
Load capacity: max. approx. 27 kg
Weight: approx. 700 g
Compatible mounting systems: ORTLIEB TOP LOCK, QUICK-LOCK1, QUICK-LOCK2.1, QUICK-LOCK3.1

ATTENTION:
The luggage rack is NOT suitable for mounting and using child bike seats and for attaching bicycle trailers!

Note:
For direct installation, it is essential that there are two mounting points with a metric 5mm or 6mm thread on the frame!
If your frame does not have these mounting points, you can install the rack using the optional ORTLIEB QUICK RACK SEAT STAY ADAPTER set (prod. code: 2321534, NOT suitable for carbon frames!).
The THRU-AXLE M6-CONNECTOR adapter thru axle (prod. code: 2351000), is required when mounting via the thru axle.

In the box:
1 ORTLIEB QUICK-RACK XL luggage rack
Incl. fastening material for mounting on luggage carrier threads (M5, M6)
Long mounting strut for the seat tube (300 mm)
Preparation for separately available rear light

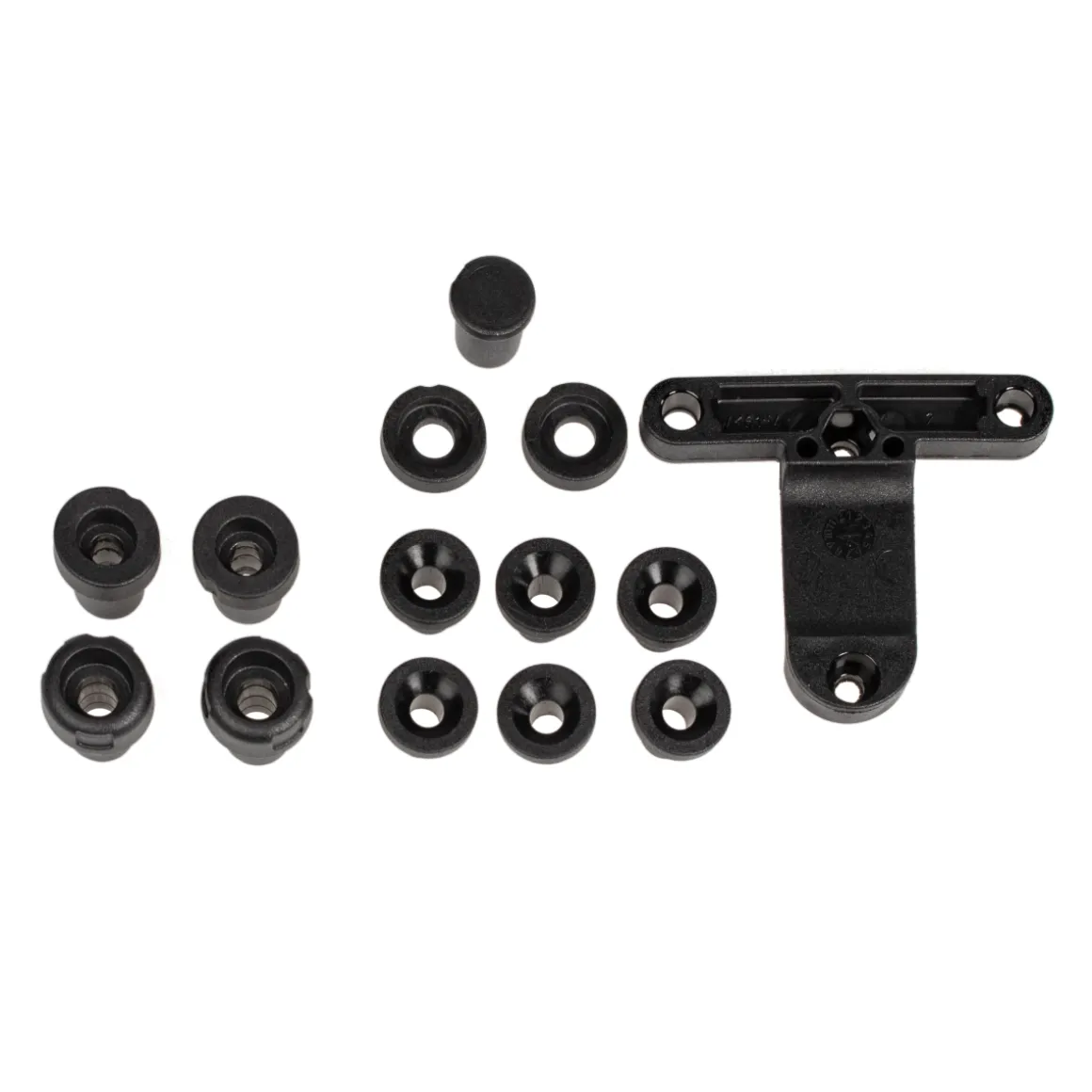

ORTLIEB QL3/QL3.1 mounting elements

Optional accessories (subject to availability):
ORTLIEB QUICK RACK SEAT STAY ADAPTER Set (prod. code: 2321534)
ORTLIEB THRU-AXLE M6-CONNECTOR adapter thru axle (prod. code: 2351000)
ORTLIEB QUICK RACK MUDGUARD (prod. code: 2321535)

Tip:
The manufacturer recommends using frame protection film at the contact points to prevent scratches and damage to the paintwork.
