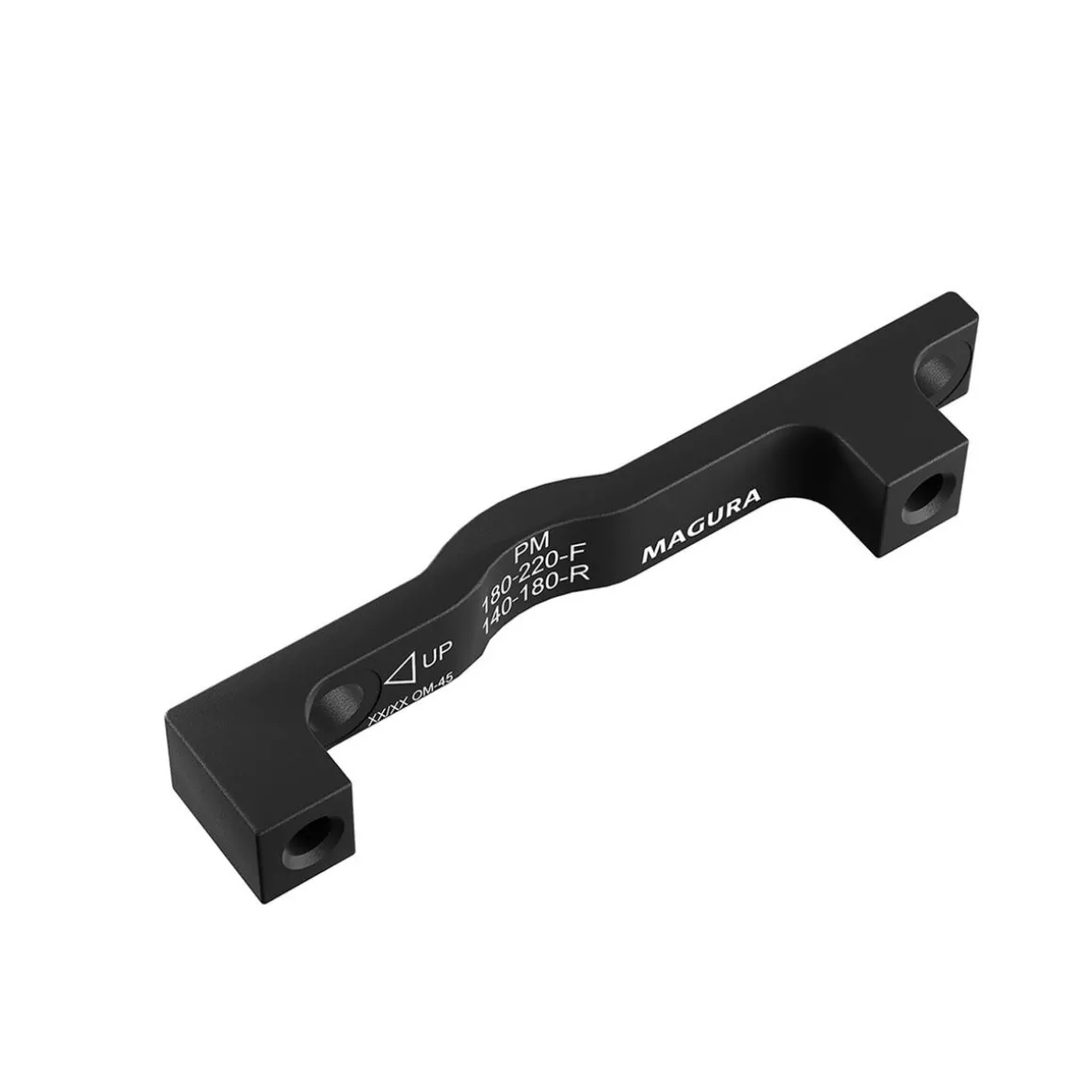

QM45 Postmount Disc Brake Adapter PM +40 mm

Original MAGURA post mount adapter that adapts the brake calliper mount to a 220 mm disc rotor on forks or frames with PM7 mount (180 mm direct mount) or to a 180mm disc rotor on frames with PM5 mount (140 mm direct mount).

Technical details:
Material: aluminium
Model: QM45
Adapts from Post Mount brake calliper to Post Mount frame/fork (bolt spacing 74 mm)
Can be mounted at the front and rear
Calliper mount: Post Mount 7″ (180 mm Direct Mount), max. Post Mount 5“ (140 mm Direct Mount)
For rotor size: 220 mm (for PM7), 180 mm (for PM5)
Weight: approx. 34 g

In the box:
1 MAGURA QM 45 brake disc adapter incl. mounting kit
