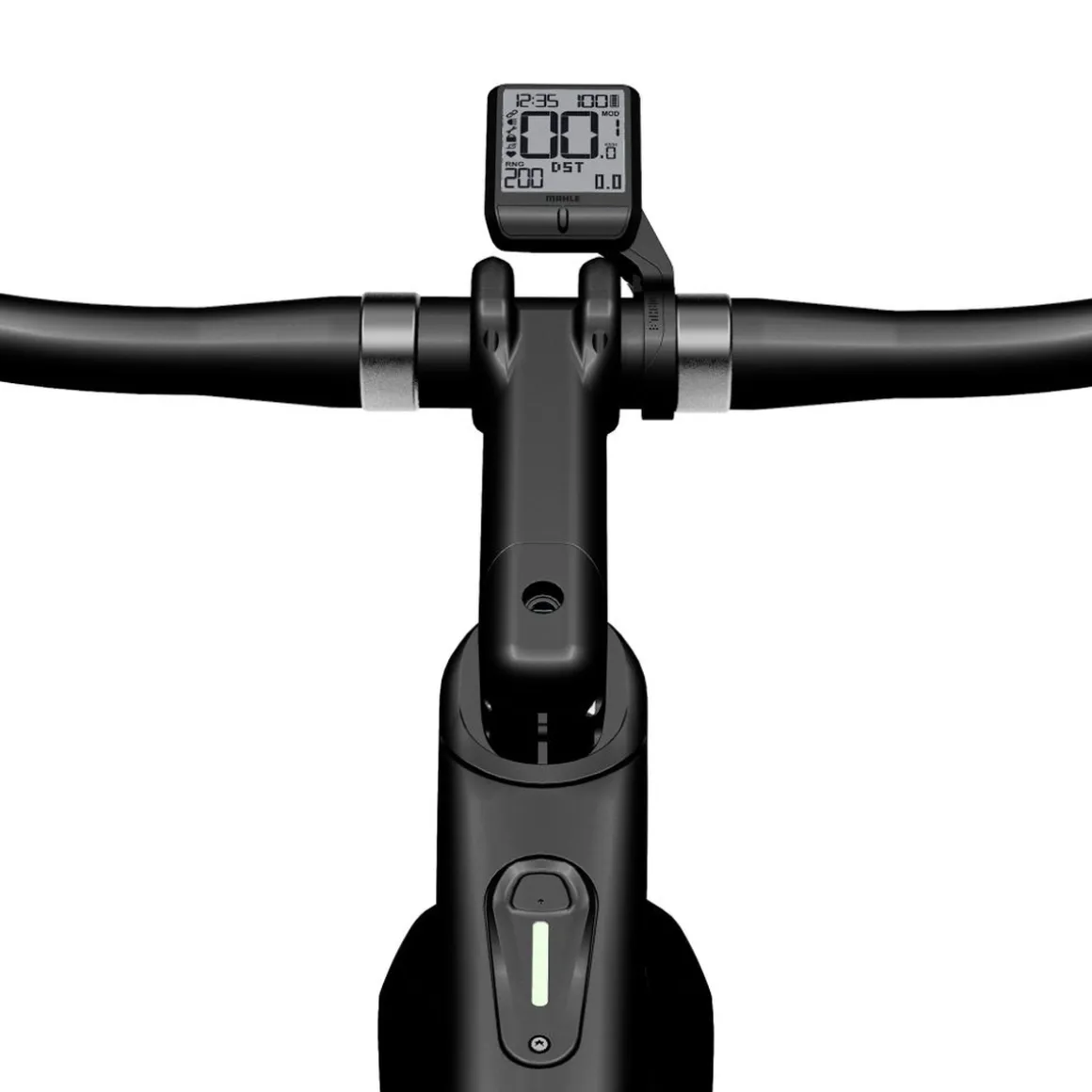

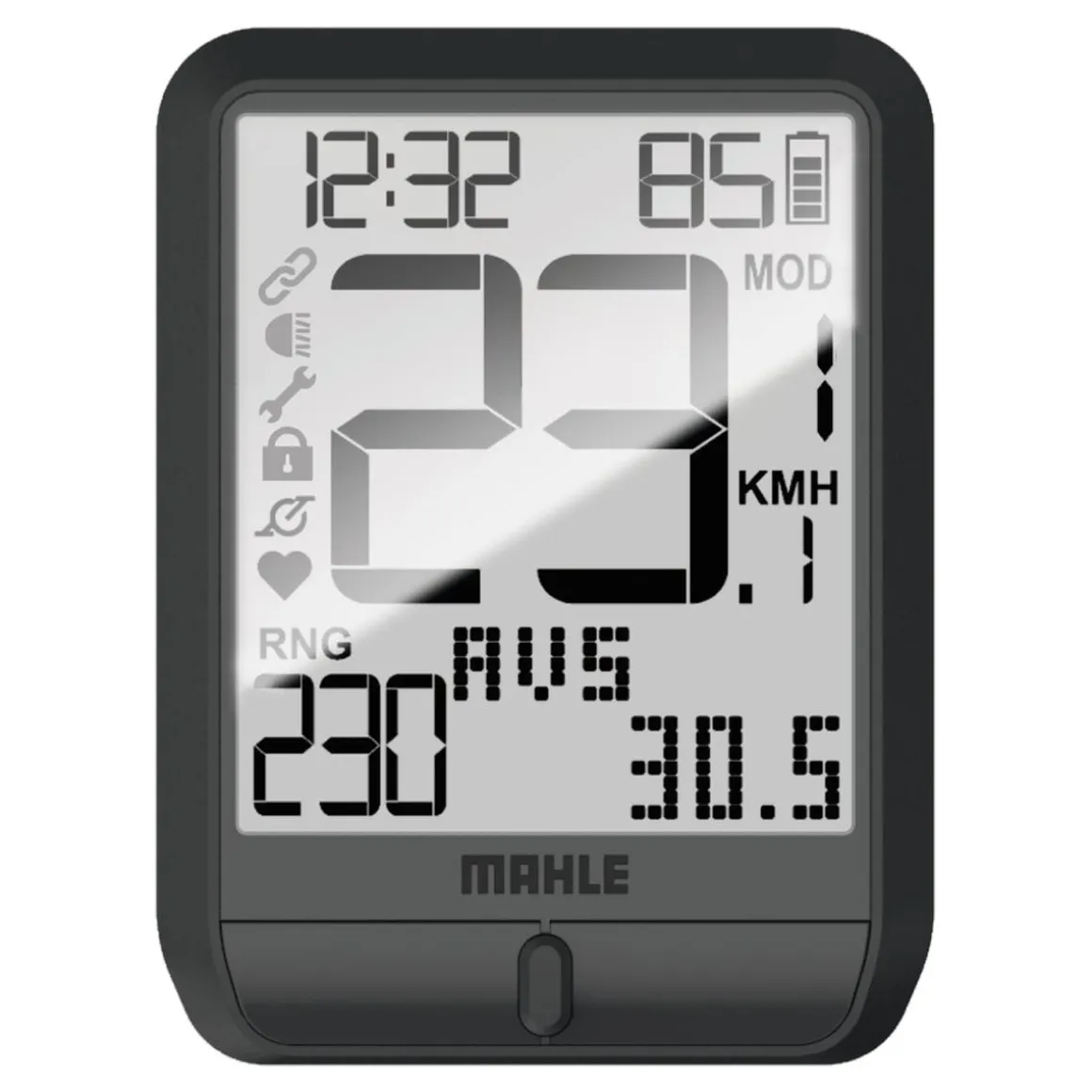

PulsarONE E-Bike Display

The PulsarONE display by Mahle has been specially designed for use with e-bikes and accessories that are compatible with ANT+.

It connects wirelessly to the drive system of your compatible e-bike via the open ANT+ standard LEV and provides you with all the important information, such as charge status, range or current speed. What’s more, the PulsarONE allows you to control your e-bike functions.

When using optional ANT+ sensors, you can also display your cadence, power and heart rate. This means you have all the important training parameters at hand on the e-bike.

Details
E-bike display for e-bike drive systems compatible with ANT+
Compatible with the Mahle X20 and X35 systems (e.g. ROSE SNEAK PLUS, REVEAL PLUS, BACKROAD AL PLUS)
Wireless data transfer via ANT+ LEV (open standard)
Provides you with all the important e-bike and travel information
Enables control of the assistance level, riding mode and headlight
Possibility of coupling optional ANT+ sensors

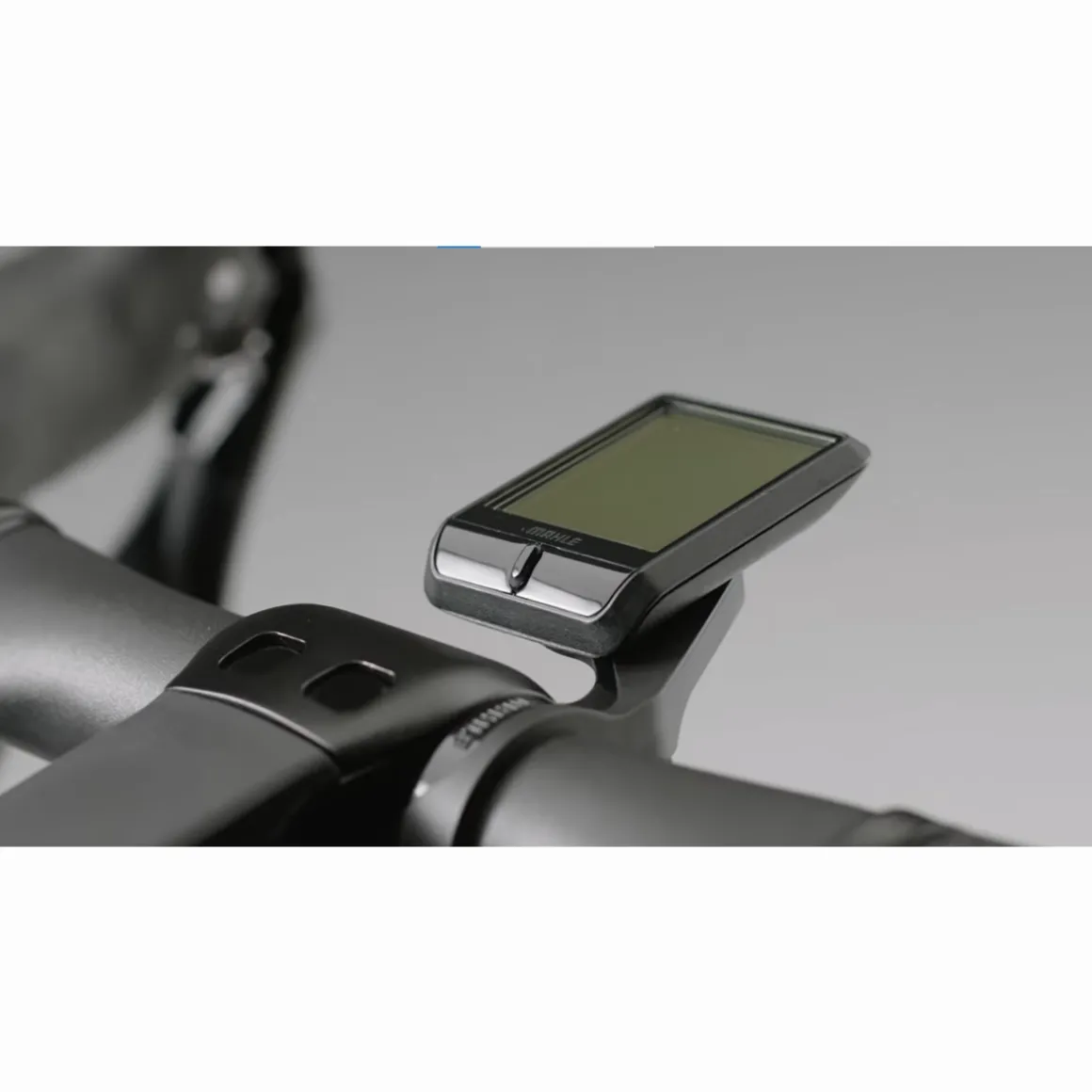

Compatible with Garmin handlebar mounts (see below)

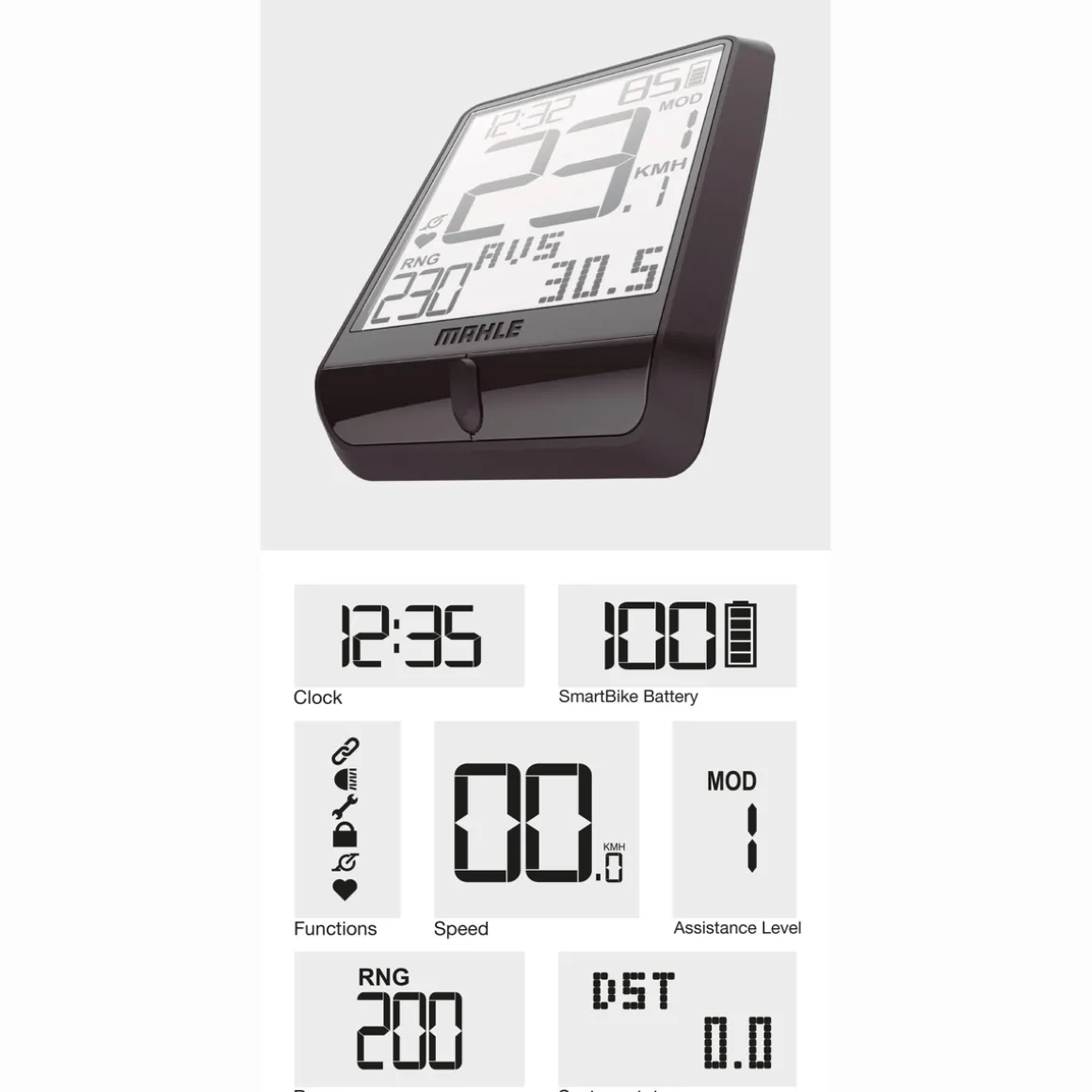

E-bike information
Charge status of the main battery
Charge status of the optional range extender
Assistance level / walking mode
Lighting status
Range (distance that can be ridden depending on the current charge status and assistance level)
Assistance level
Odometer
System status

E-bike functions
Increase or reduce assistance level
Select riding mode
Control of the headlight

Technical details:
Display: 2.1″ black and white LCD
Connectivity: ANT+
Compatibility: E-bike drive systems which support the ANT+ LEV standard (e.g. Mahle X20 and X35 systems), ANT+ sensors (HR, CAD, PWR, CTF)
Control: 3 mechanical buttons
Battery type: CR2032 (included)
Protection category: IP67 (water- and dustproof)
Dimensions: approx. 57.7 mm x 41.1 mm
Weight: approx. 29 g

In the box:
1 PulsarONE e-bike display
1 CR2032 round cell battery

Compatible Mahle handlebar mounts sold at ROSE:
Mahle Urban computer mount for Mahle PulsarONE e-bike display (prod. code: 2349292)
Mahle Sport computer mount for Mahle PulsarONE e-bike display (prod. code: 2349293)

Compatible e-bikes sold at ROSE:
SNEAK PLUS
REVEAL PLUS
BACKROAD AL PLUS

Manufacturer: Mahle Smartbike Systems, C. Orfebres 10, 34004 Palencia, Espana, mahle-smartbike.com/de/
