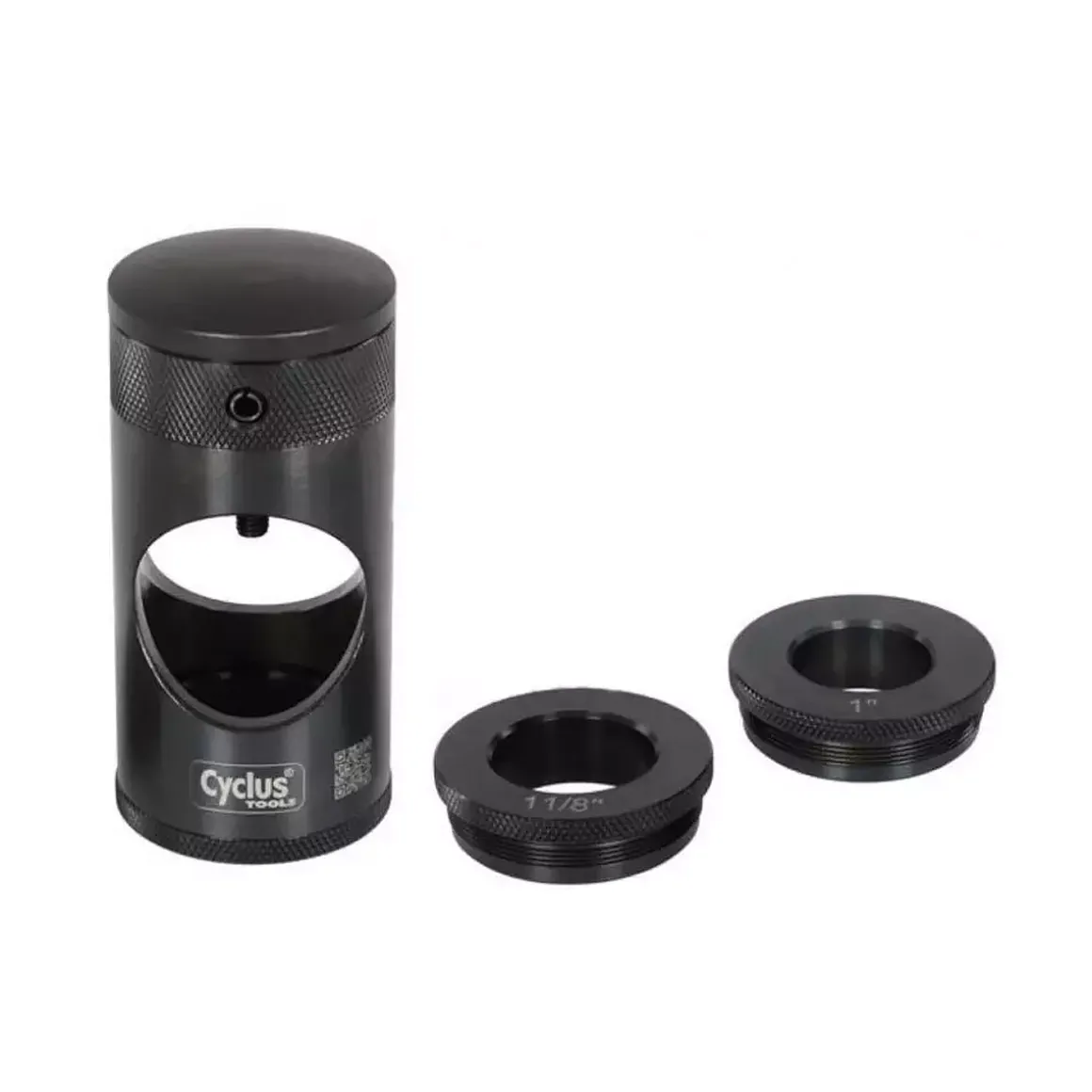

Nut Setting Tool for Ahead Claw

The nut setting tool from Cyclus Tools enables you to insert the Ahead claw precisely and straight into the steerer tube with a previously defined insertion depth.

Details:
Nut setting tool for Ahead claws
Suitable for 1″, 1 1/8″ and 1.5″ steerer tubes thanks to adapter
Enables precise and straight insertion
Defined insertion depth
Durable workshop quality

Technical details:
Material: steel
Compatible steerer tube diameter: 1”, 1 1/8”, 1.5“

In the box:
1 Cyclus Tools nut setting tool
1 adapter for 1” steerer tubes
1 adapter for 1 1/8” steerer tubes
1 adapter for 1.5” steerer tubes

Directions for use:
Screw the required adapter (1“, 1 1/8“ or 1.5“) hand-tight into the tool from below. Now insert the claw to be fitted into the tool through the opening on the side and screw it onto the threaded pin as far as it will go. Then place the prepared tool onto the steerer tube and hammer it in as far as it will go. After that, you can remove the nut setting tool from the steerer tube by turning the knurled screw anti-clockwise.

Manufacturer: RA-CO GmbH, Fichtenweg 37, 99098 Erfurt, Germany , cyclus.ra-co.de/
