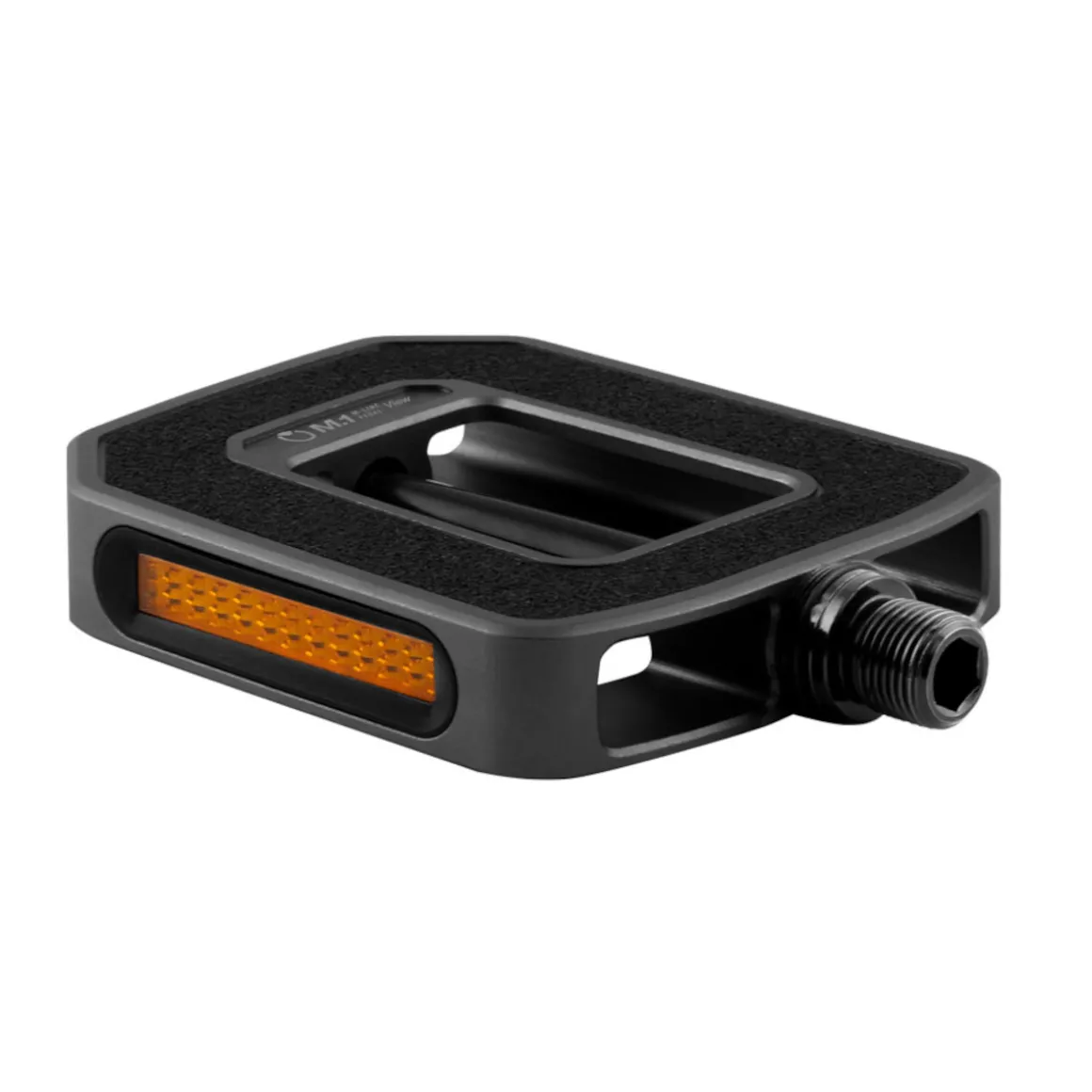

M.1 View Platform Pedal

With the M.1 View, by,schulz is expanding its M-Line series for hybrid bikes, e-bikes and cargo bikes with a platform pedal in a slim design. At less than two centimetres high, the puristically styled flat pedal gives your bike a clean, straightforward look. The M.1 View platform pedal promises secure pedalling and therefore good power transfer to the drivetrain without any major frills in the design. The large contact surface of the simple aluminium pedals has a non-slip coating on both sides that reliably keeps your feet in position.
Robust design, reduced weight. – Compared to its closed counterpart M.1, the lightweight View version with its open pedal body appears more delicate. Yet, it still meets the high demands that frequent riders place on a robust pedal. There are high-quality axle and bearing units from the MTB sector in the pedal body, which are very smooth-running and can withstand a lot. The M.1 from by,schulz thus offers even heavy riders enduring riding pleasure.

Details:
Intended use: city/hybrid, cargo and e-bike (pedelecs and S-pedelecs up to 45 km/h)
Approved rider’s weight: max. 150 kg (tested according to DIN EN ISO 4210, 15194 and 79010)
Compact design with 19 mm height
Aluminium body with large central bearing
Conically designed axle and bearing units

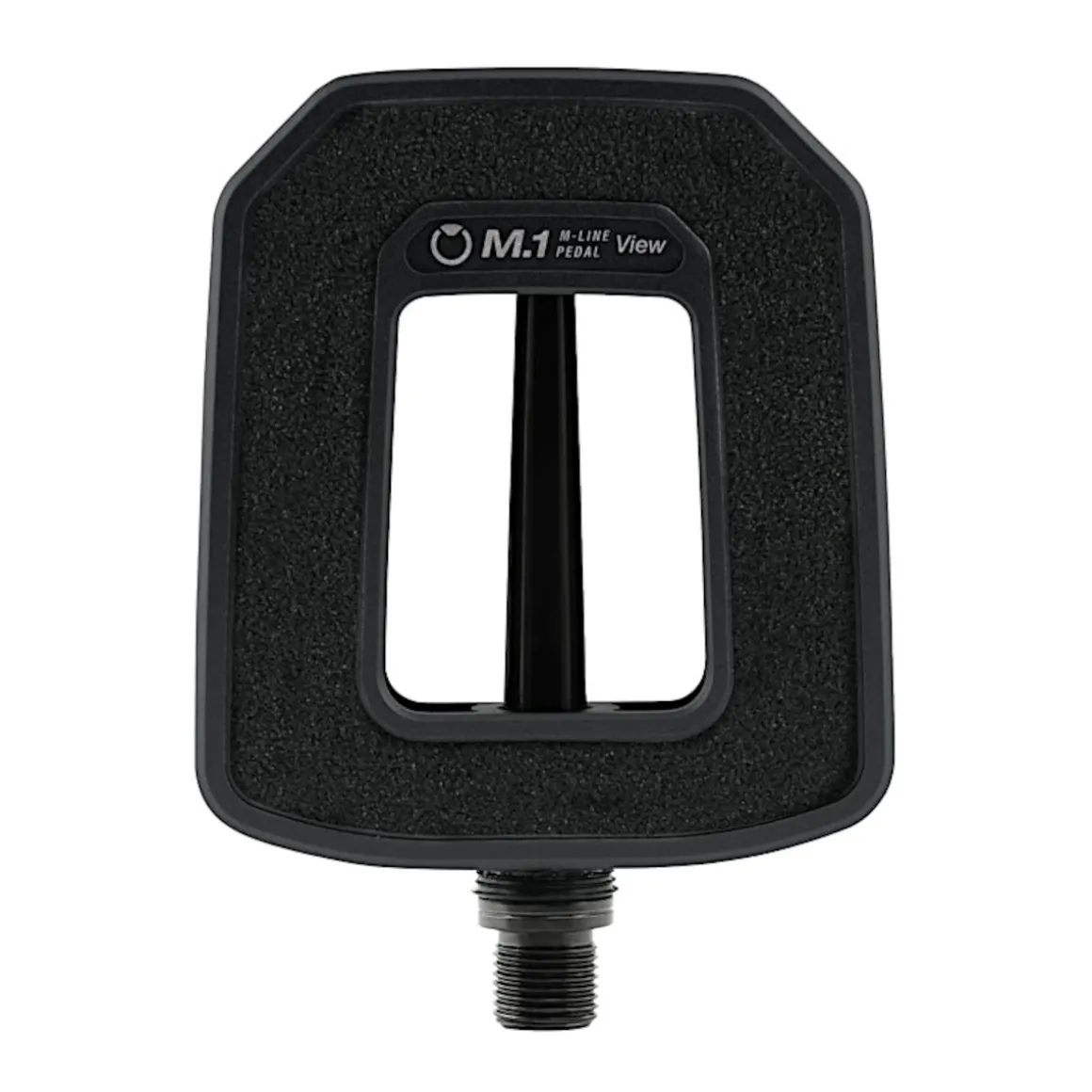

Large tread surface on both sides with non-slip 3M grip tape

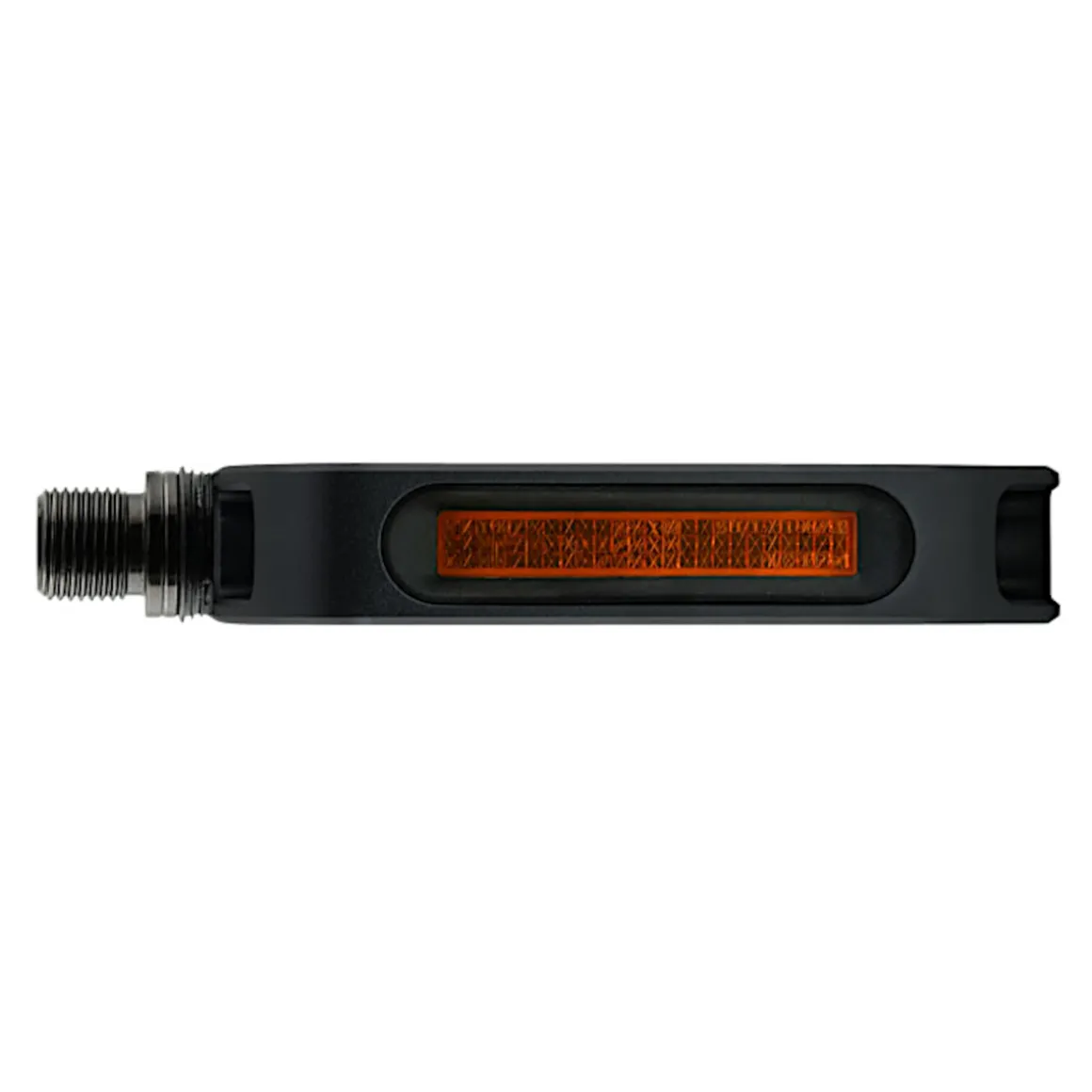

Reflectors embedded in rubber mount
StVZO compliant for all bicycles

Technical details:
Pedal type: double-sided platform/flat pedal

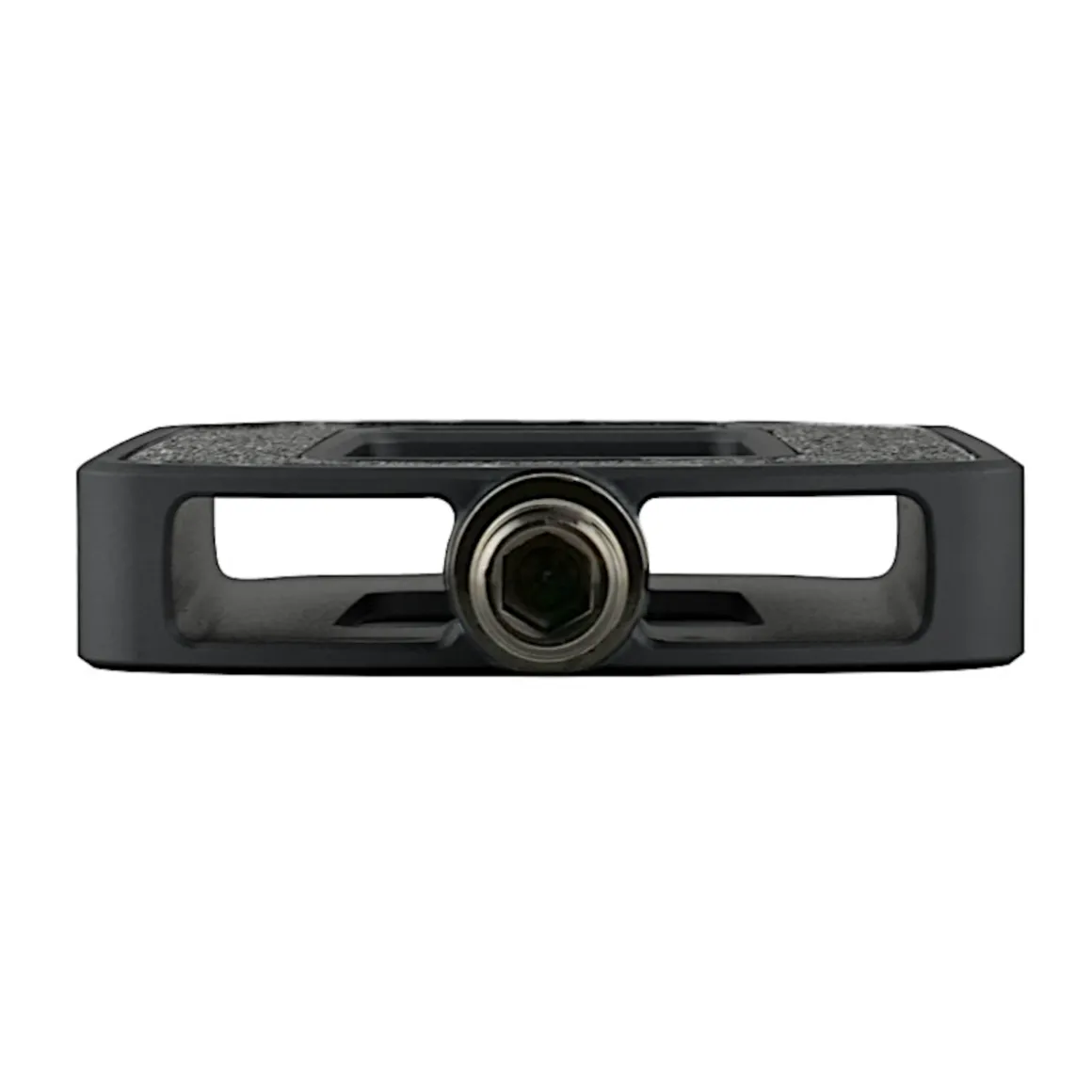

Pedal axle: 9/16 inch x 20 TPI external thread with 8 mm hexagon socket
Pedal bearing: Industrial ball bearings, sleeve bearings
Material: Anodised aluminium (pedal body AL-6061-T6), chromoly steel (axle)
Dimensions: approx. 102 x 90 x 19 mm
Weight: approx. 440 g (pair)

In the box:
1 pair of by,schulz M.1 View platform pedals

Note:
The by,schulz M.1 pedal is NOT suitable for extreme loads and for riding profiles with jumps (downhill, freeriding, etc.)
