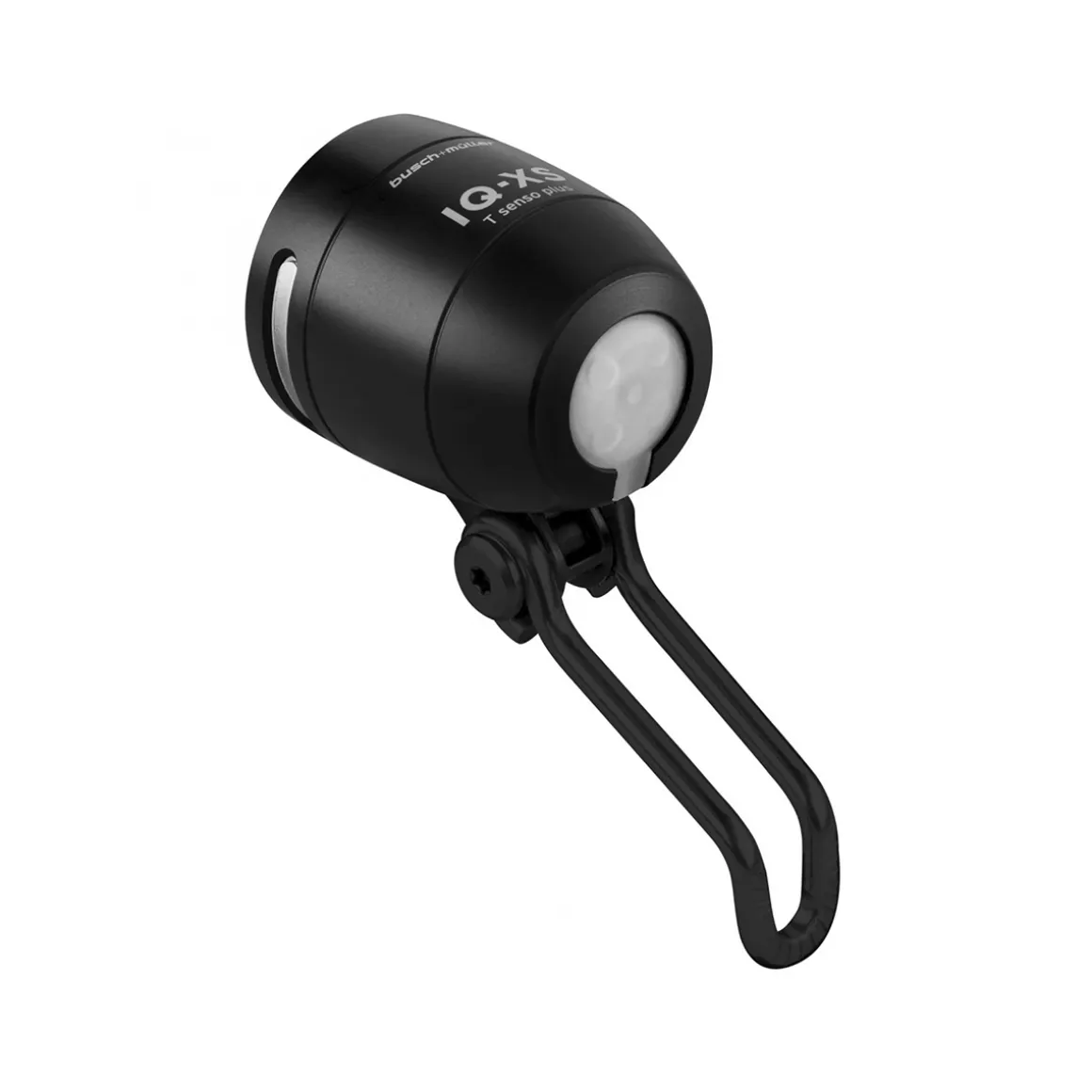

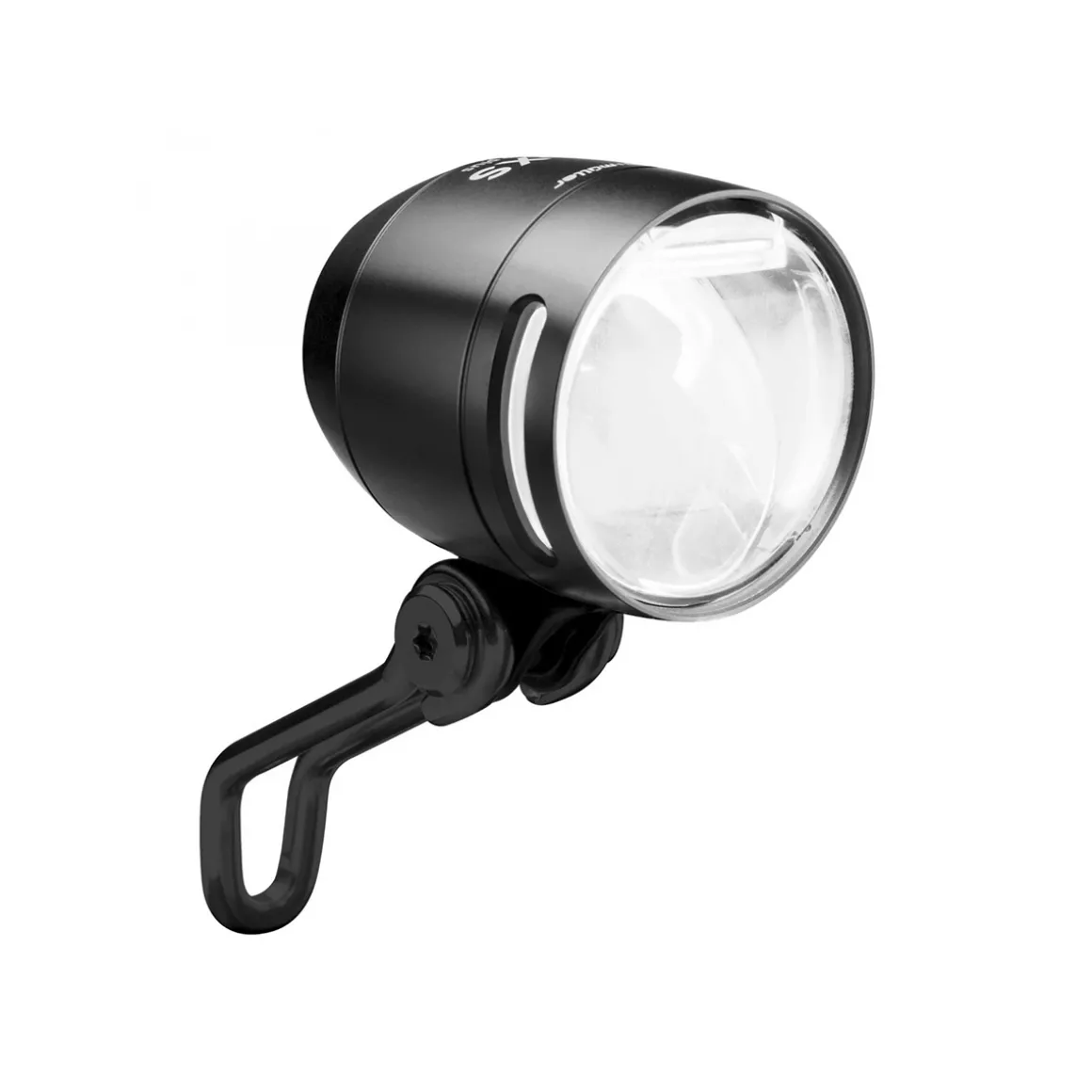

Lumotec IQ-XS E Headlight Daytime Running Light E-Bike

The outstanding luminosity of the compact LUMOTEC IQ-XS front light for e-bikes unmistakably shows its relationship to the powerful Busch+Müller IQ-X E headlight, which has more in common with its smaller sibling than the modern aluminium design. The light on the front of the bike shines almost inconspicuously for added safety, with the sensor control automatically switching between daytime running light and night-time operation.

Because in terms of light intensity and technical equipment, this tiny light can impress even the most demanding frequent cyclists. As electric cyclists are usually riding a little faster, two particularly bright areas have been created in the illumination. The wide field of light shows you the route and even minor obstacles on your way are not hidden in the close-up field. This makes the extra small headlight your bright and reliable companion on the road and off-road. Also, the illuminated side light strips ensure eye-catching visibility from the side.

The LUMOTEC IQ-XS E headlight by Busch+Müller is available in various versions with compatible plug-in connections for the motor to ensure correct connection to the on-board network (as of 2024):
– Standard version for universal connection (e.g. to 6 or 12 volt Bosch, Shimano Steps, Brose)
– Bosch eBike System 2 from 2013
– Bosch Smart System BES3 from 2021 (recognisable by System Controller, LED Remote or Purion 200 control unit)

Details:
Compact e-bike front light
With high power LED
Optimised LED cooling system
Overvoltage protection
IQ light technology for extremely large and even field of vision
Light/dark sensor for daytime running light and night mode
Robust aluminium housing
Good lateral visibility thanks to two light strips
Protected against wheel spray and rain
Lamp holder for fork mounting made of coated stainless steel (can be rotated 180°)
Screw-on front reflector
According to German road traffic regulations (StVZO) approved for electric bikes limited to 25 km/h

Technical details:
Material: aluminium (housing), stainless steel (bracket), plastic
For e-bikes with light connection 6-42 volts direct voltage (DC)*

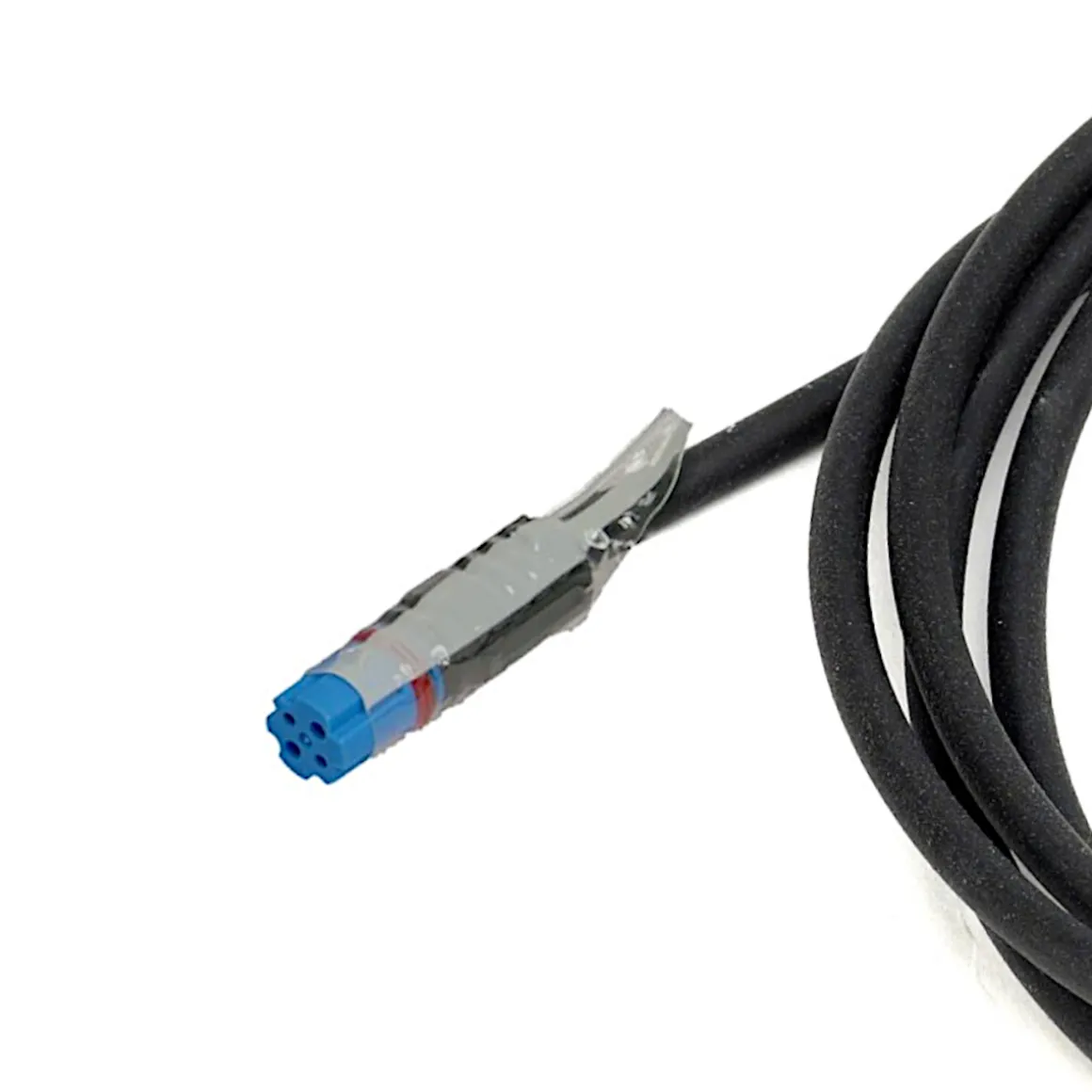

Connection: double cable, approx. 75 cm
Power consumption: approx. 3.5 watts
Light modes: daytime running lights, low beam
Brightness: 80 lux
Dimensions: approx. Ø 40 x 50 mm
Height with holder: approx. 90 mm
Weight: approx. 120 g (incl. holder)

*Attention:
The front light is compatible with a direct current power source (DC) of 6 to 42 volts. Some e-bikes can provide this, but NOT all do!
For the exact voltage supply of your e-bike lighting system, please check beforehand with the respective manufacturer.
NOT suitable for dynamo!
NOT approved for e-bikes with a speed above 25 km/h or speed pedelecs!

In the box:
1 B+M LUMOTEC IQ-XS E headlight (in selected version)
1 front reflector
