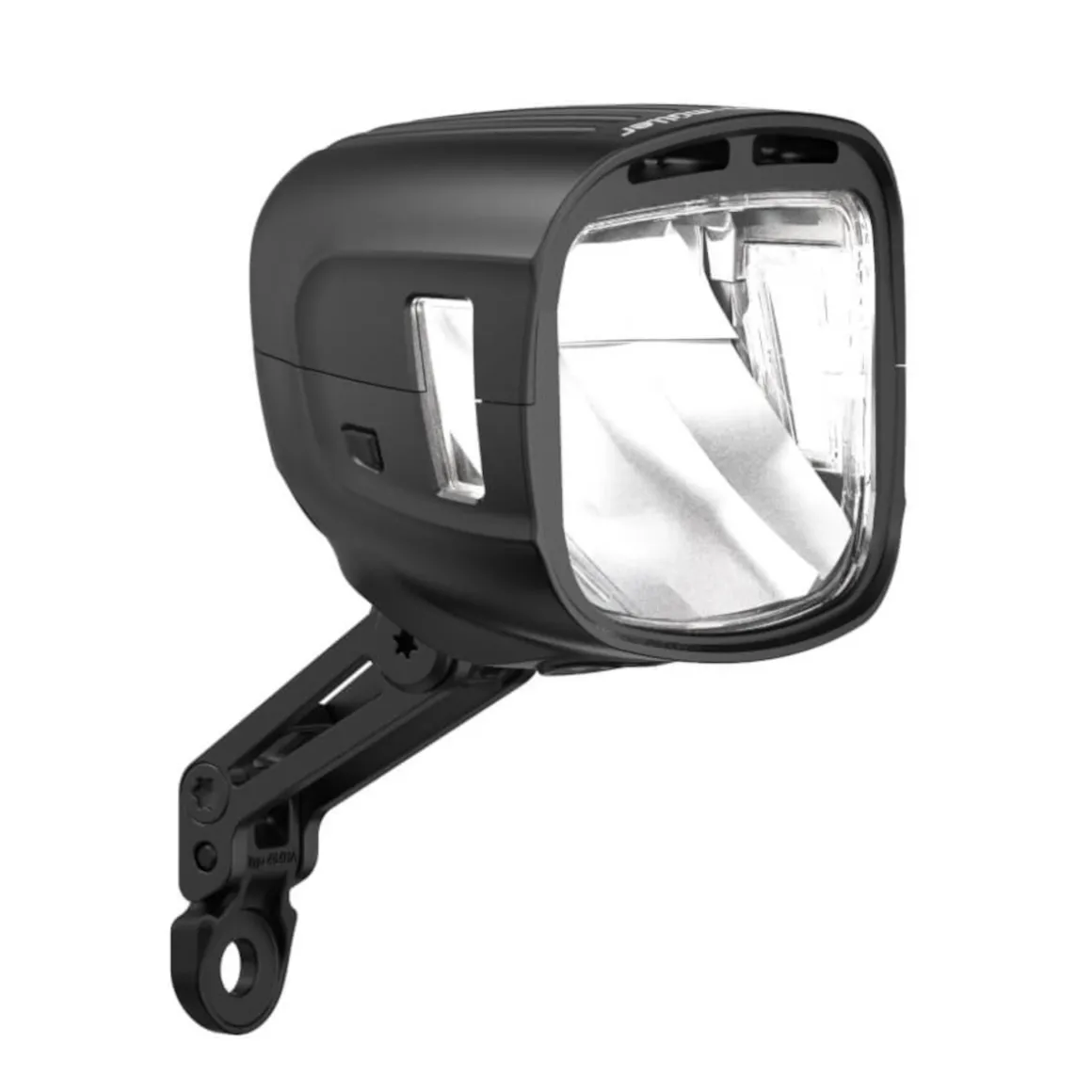

Lumotec IQ-XL Highbeam Dynamo Headlight with Daytime Running Light and High Beam

Super-bright dynamo-powered headlight. Busch+Müller’s IQ-XL headlight from the LUMOTEC series provides more lighting power than ever. The powerful front light with daytime running light and high beam offers two different lighting settings for optimal vision in the dark.

The dipped beam ensures extremely bright and even road illumination. Just like any road-legal headlight, the IQ-XL has a distinct cut-off line when used in standard mode. By pushing the ergonomic handlebar button, the cut-off line is disrupted and a high beam is added for excellent long-range vision.

Please note that the dynamo must have a rated power of at least 3 watts. No other consumer may be connected.

The sensor-controlled daytime running light ensures that you are also easily recognised during the day in shady areas or at dusk. The high-quality, black powder-coated aluminium housing and a newly designed bracket turn the IQ-XL into a real designer headlight. With its compact size, the dynamo headlight from Busch + Müller also fits well on the cockpit.

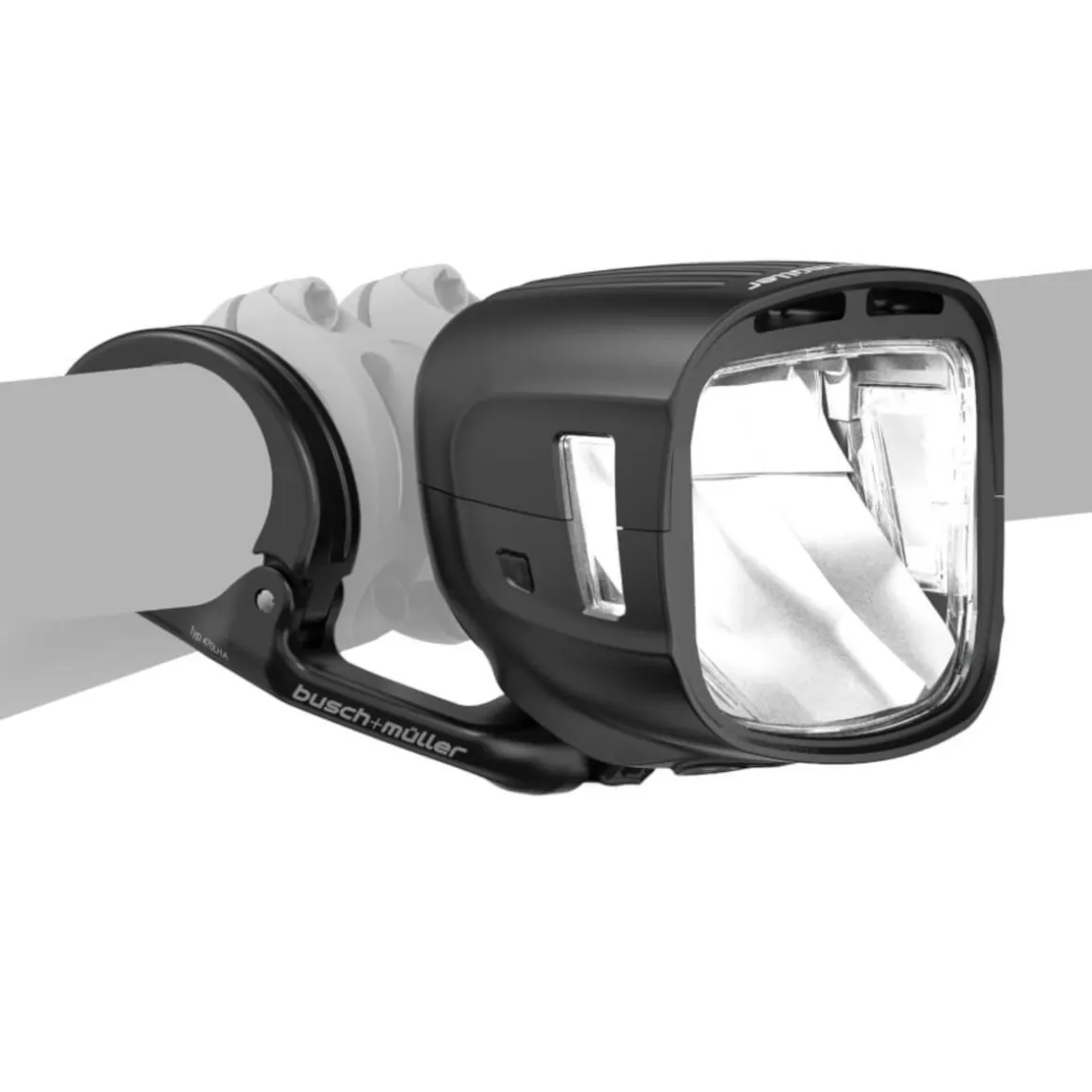

The optionally available Busch+Müller aluminium handlebar bracket with prod. code 230755401 is suitable for handlebar installation.

Details:
Extremely powerful, compact dynamo front light
With high power LEDs
Handlebar button to activate high beam (can be activated from approx. 15 km/h)
Control diode for dipped beam mode (green) and high beam mode (blue)
Extremely large and even field of vision
IQ light technology for extremely large and even field of vision
Good lateral visibility thanks to cutout in the housing
With rear light outlet
Excellent close-range illumination
Sensor-controlled daytime running light
Light/dark sensor for daytime running light and night mode
Switch On/Off with automatic sensor
Steady light feature
Robust aluminium housing
Lightweight aluminium holder for fork mounting (also rotated 180°)
With integrated front reflector
According to German road traffic regulations (StVZO) approved for electric bikes limited to 25 km/h

Technical details:
Installation: lamp holder for fork mounting hole
Lamp: 12x LED
Light output: low beam up to 300 lux / high beam + 250 lux
Push-button cable length (pluggable): approx. 55 cm
Power supply: dynamo (6 V), at least 3 watts
Lateral visibility: yes
Daytime lighting: yes
Stand light: yes (capacitor technology)
Light modes: ON / OFF (daytime running light, light/dark sensor), dipped beam, high beam
Splashproof and rainproof in accordance with IPX3
Material: aluminium (housing, bracket), plastic
Dimensions (LxWxH): approx. 71 x 571 x 62 mm (without holder)
Weight: approx. 225 g (with holder)

In the box:
1 Busch+Müller LUMOTEC IQ-XL Highbeam dynamo headlight

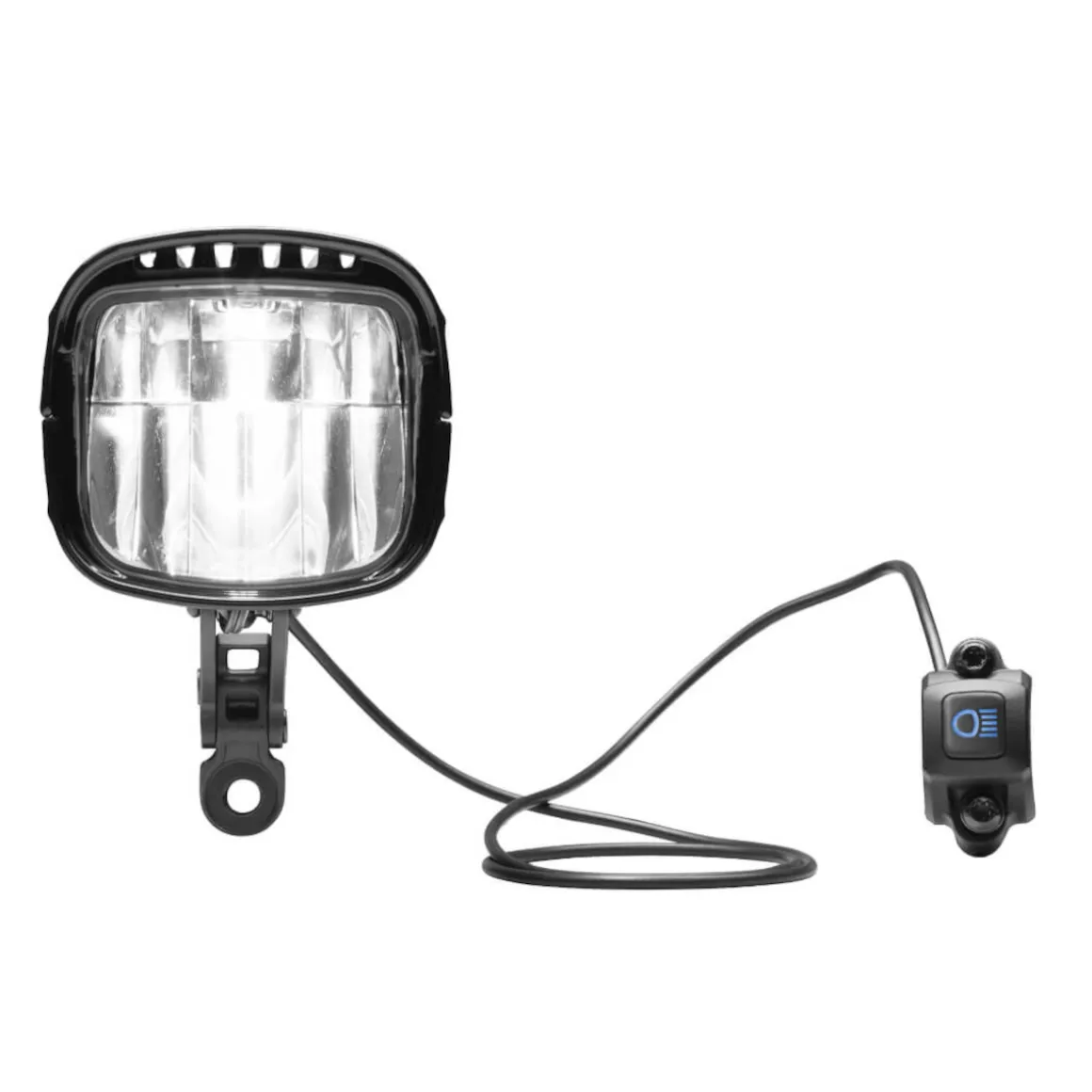

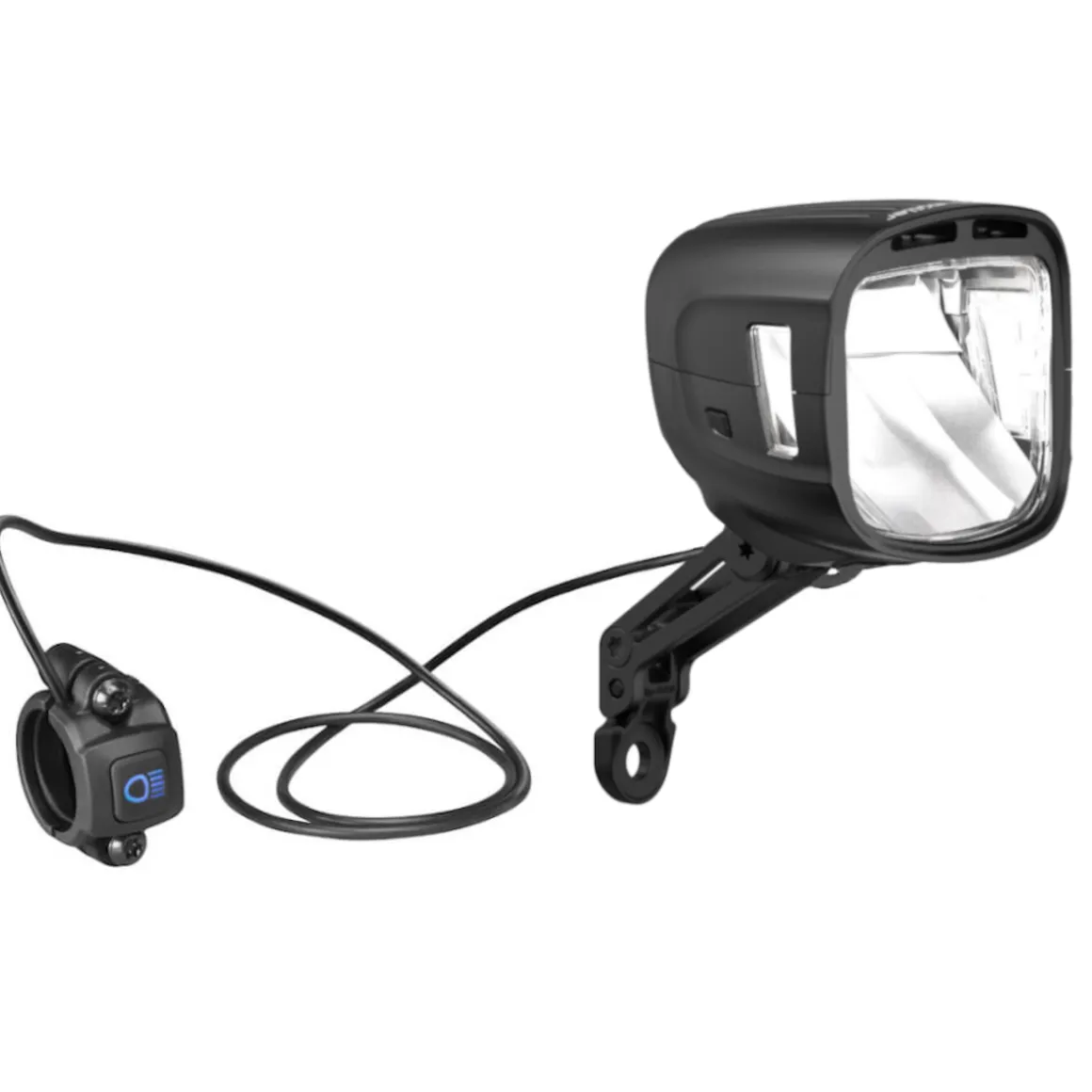

1 push-button incl. cable

Note:
As the full beam shines straight ahead, they can cause glare for other drivers or cyclists. That’s why you should always dip your lights with oncoming traffic.
