IXON Core Garmin/GoPro Adapter for Suspended Mounting

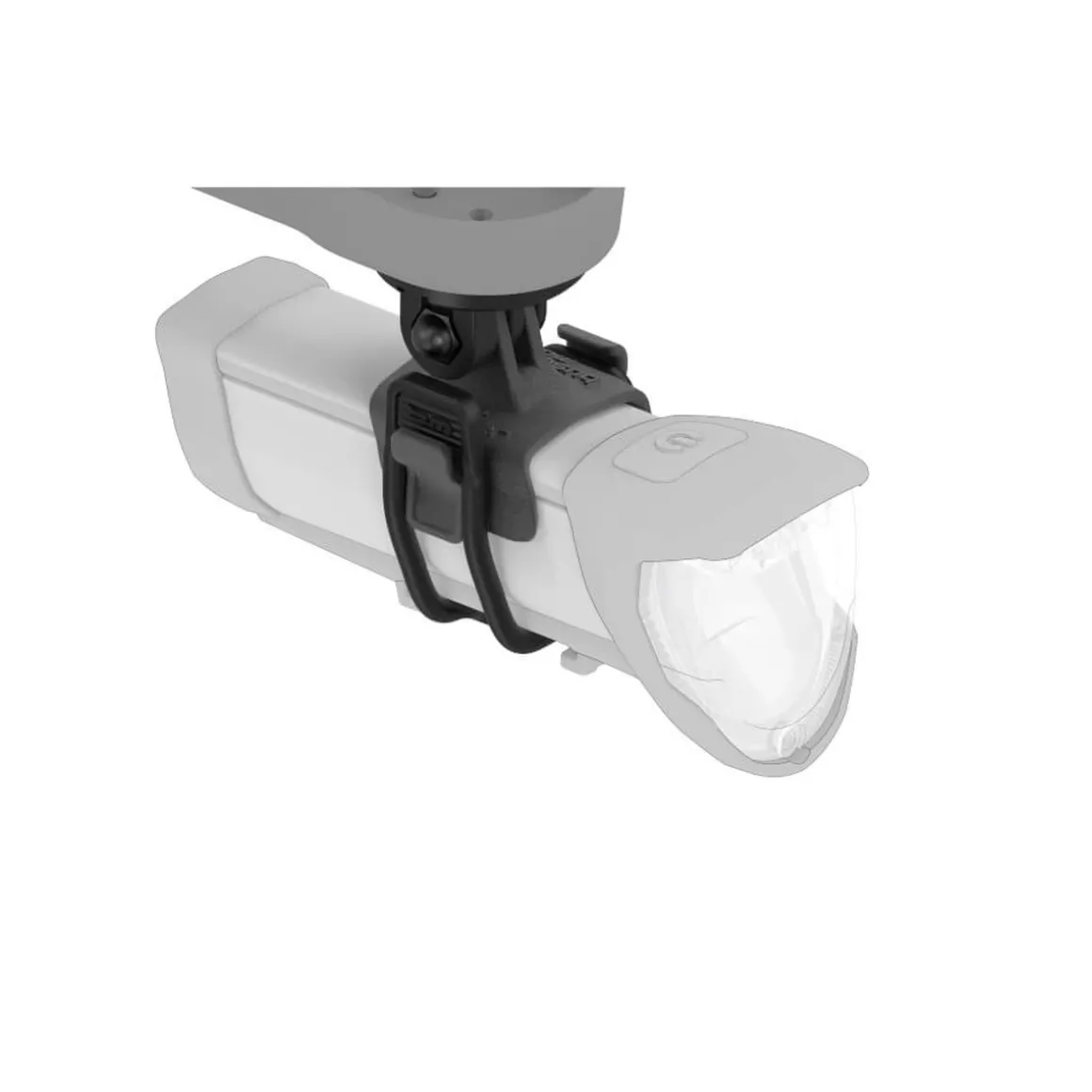

With the IXON Core adapter by B+M, you can mount your battery headlight of the same name by hanging it on the holder mounts for Garmin or GoPro. This is useful if there is not enough space on the handlebar. Thanks to the special adapter, you can also mount the hanging bracket for headlights on aero handlebars.

The sturdy retaining bridge is docked or screwed to the corresponding fastening system with the connection adapter and secures your front reflector with the elastic tensioning rubber. The IXON Core adapter by Busch+Müller optimally integrates your light on the handlebar mount of your sporty bike.

Details:
Flexible adapter for the Busch & Müller IXON Core front light
For hanged mounting on compatible existing/optional brackets
Compatible with GoPro, Garmin, Wahoo mounts (or those identical in construction)
Easy adjustment of the inclination setting via screw connection
Perfectly tailored shape for optimal fit
Retaining rubber for secure lighting attachment (O-ring)
Quick and easy removal of the headlight
No restriction of lamp operation

Technical details:
Material: plastic (3D printing), rubber, metal
Dimensions (LxWxH): approx. 30 x 40 x 38 mm
Weight: approx. 18 g

In the box:

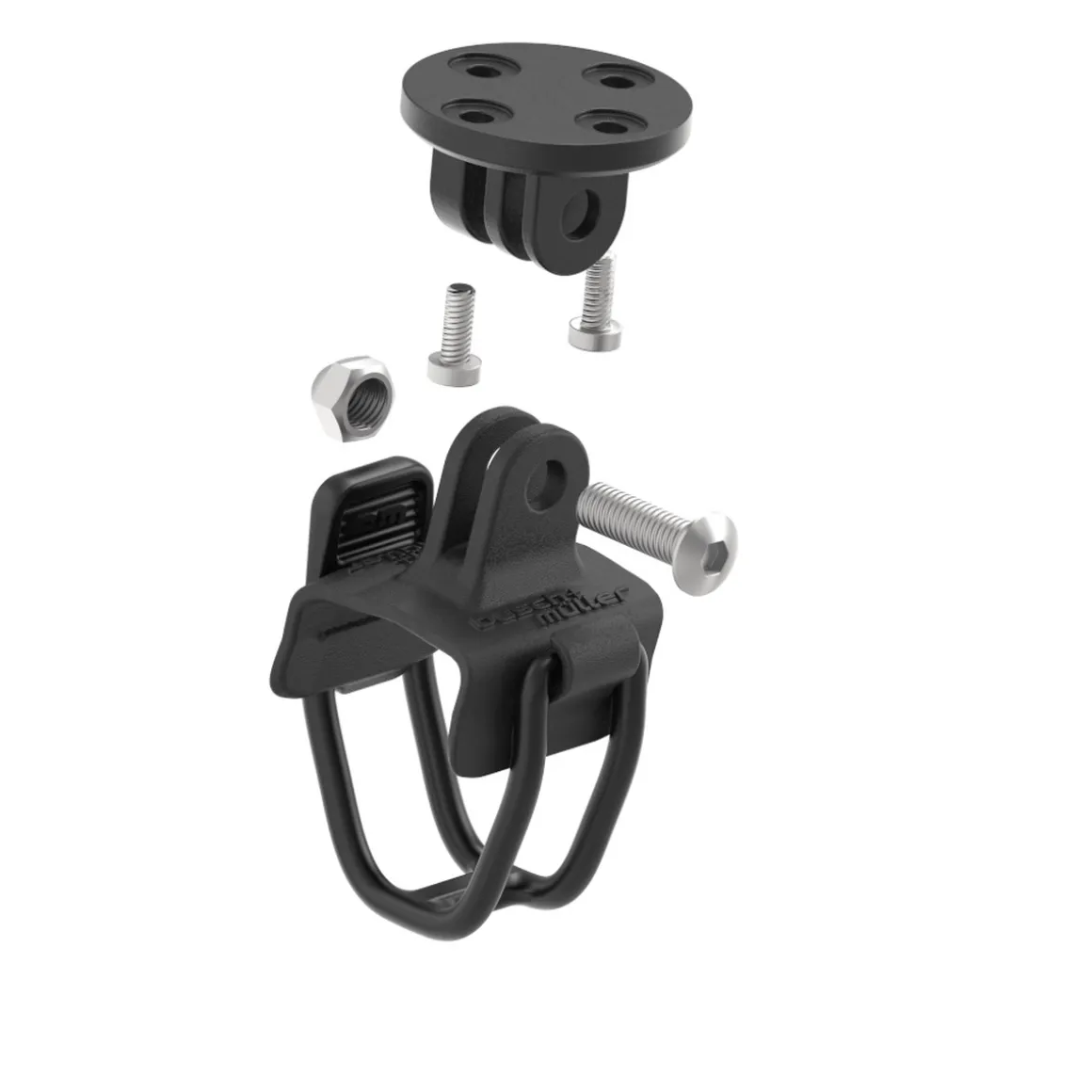

Busch und Müller IXON Core Garmin/GoPro adapter for suspended mounting consisting of:
1 IXON adapter incl. fastening screw
1 Garmin/Wahoo – GoPro adapter incl. 2 x M3 x 10 mm screw for attachment to Garmin/Wahoo mount (hole spacing 20 mm)
1 O-ring for securing the headlamp
1 rubber cut-out (for gluing in to avoid chafing)
