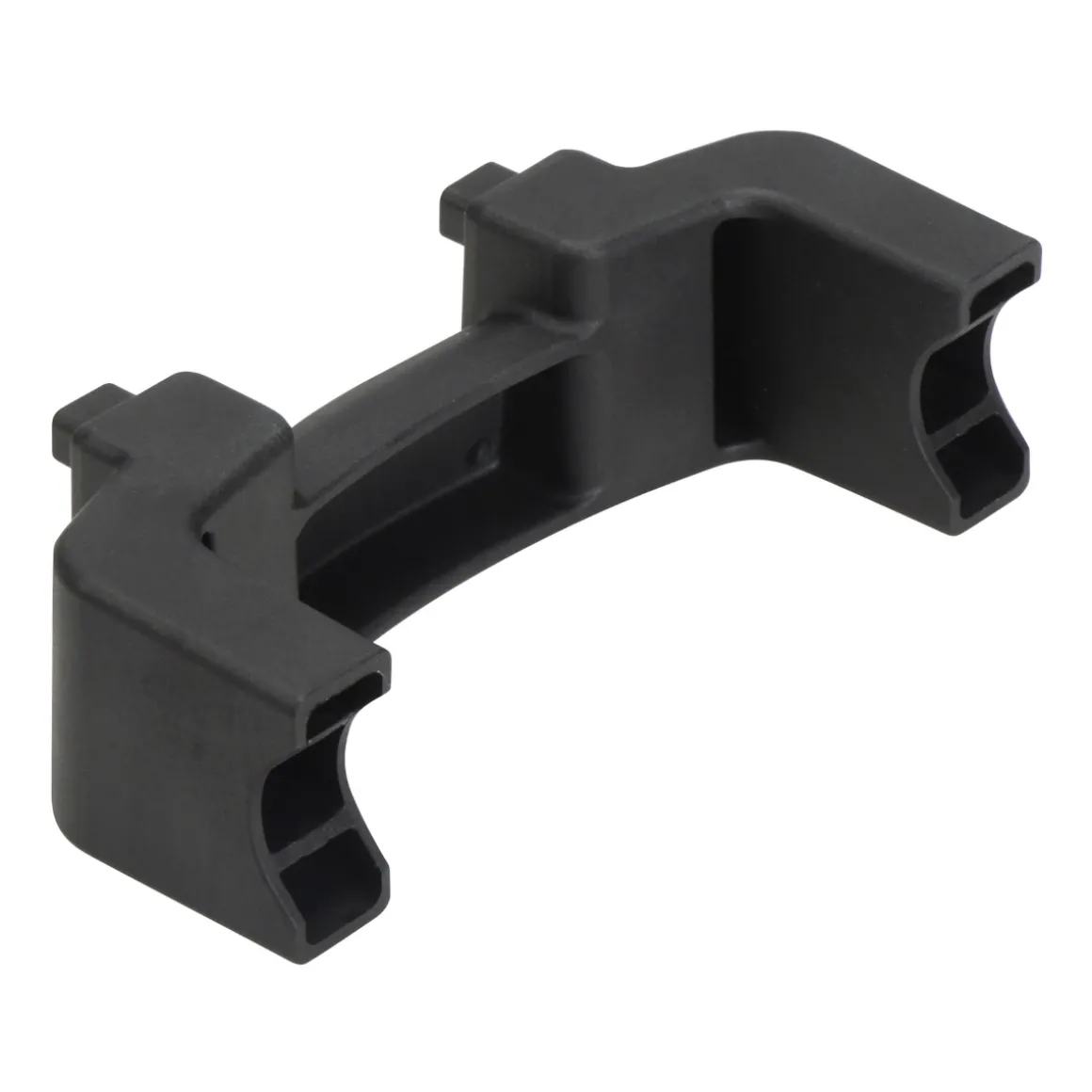

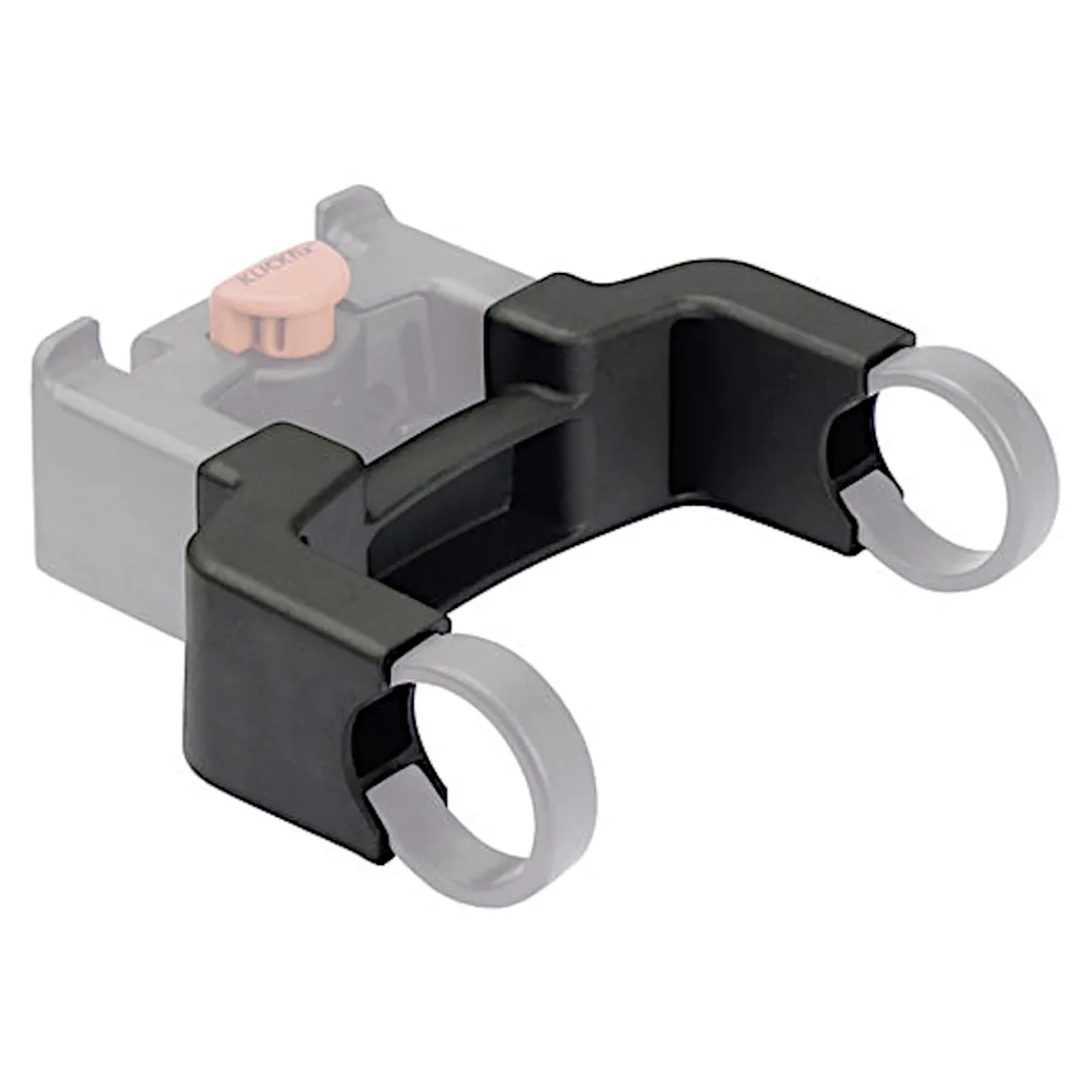

Handlebar Adapter E-bike 100 mm Clamp Width

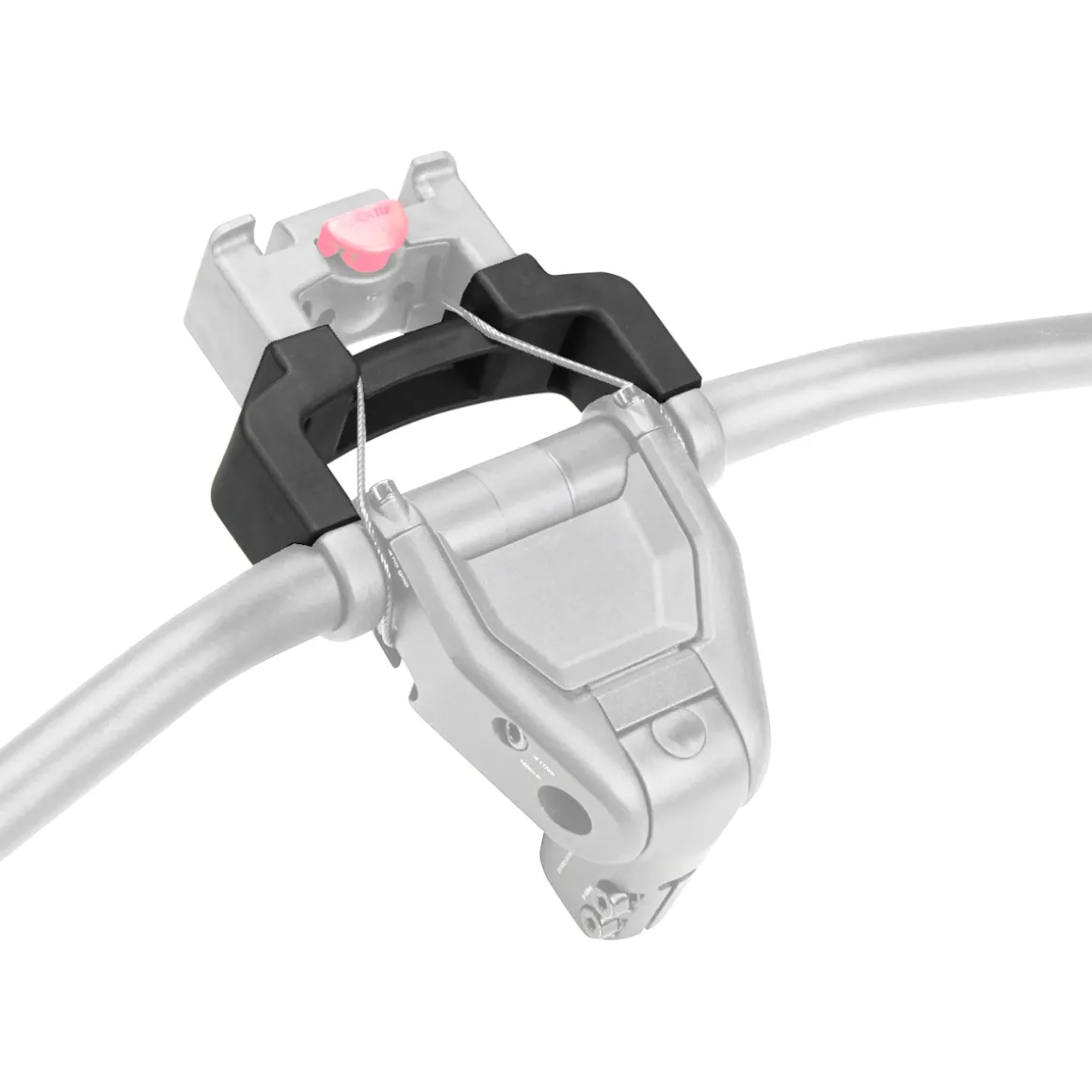

On e-bikes with wide stems, a large display or an integrated control unit, the standard adapter with KLICKfix mount often cannot be fitted to the handlebar. The handlebar adapter has a clamping width of 100 mm that solves space problems by mounting it between the standard bracket and the handlebar. This widens the inner dimension of the handlebar clamp to 10 cm, and the adapter is also placed further in front of the handlebar. This means that a bag, basket or map holder from the KLICKfix system can be optimally integrated on the handlebars, even with wide cockpits. The distance set can be mounted with the clamp of the KLICKfix handlebar adapter and can also be combined with all clamp sizes for handlebar mounting.

Details:
Extension holder for the 55 mm KLICKfix handlebar adapter
Extends the inner dimension of the handlebar clamp to 100 mm
Increases the distance to the handlebar by 41 mm

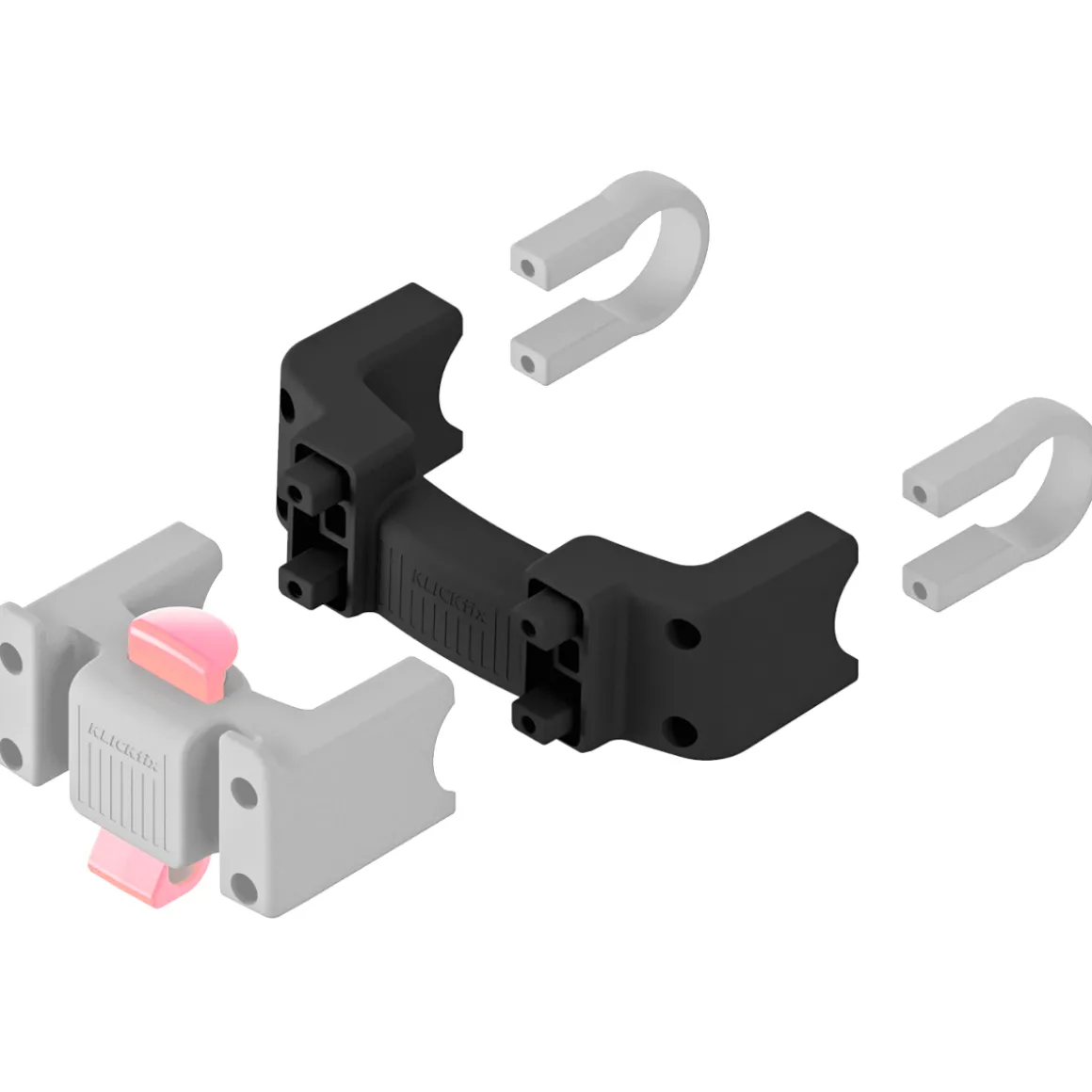

Can be adapted to different handlebar diameters by means of different clamps (optional)

Technical details:
Max. load: 7 kg
Material: fibreglass reinforced plastic
Dimensions: approx. 134 x 66 x 40 mm
Weight: 100 g

In the box:
1 KLICKfix handlebar adapter (without mounting clamps)

Tip:
Suitable clamps from KLICKfix for mounting the standard adapter with a 22 to 35 mm handlebar diameter can be found, for example, under prod. code: 1082199.
