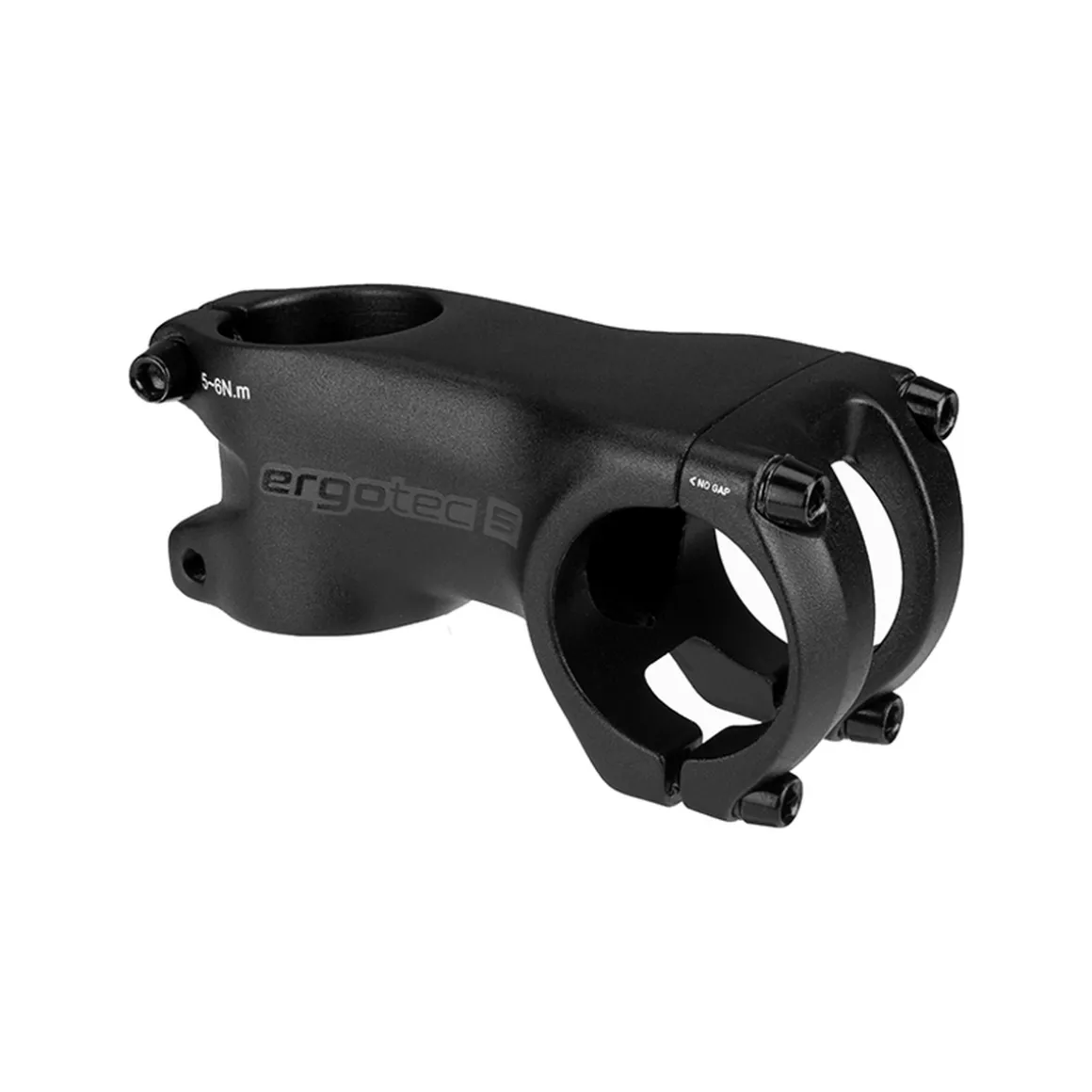

Hake Stem

A sporty all-rounder: With its slightly angular design and a negative angle of -8°, the HAKE stem fits modern road as well as gravel and travel bikes. Matching its modern design and sporty geometry, the HAKE also comes with an ascetic weight: With just 148 grams (at a length of 60 mm), it truly belongs to the lightweights. What’s more, it also impresses with its matt black sandblasted finish.

Details:
Lightweight Ahead stem for sporty, stretched riding positions
Intended use: Road Bike, Gravel, Cyclocross etc.
Modern design with angular shape
Sandblasted surface finish
Safety level 5*

Technical details:
Material: aluminium 6061 T6
Fork Steerer Ø: for threadless forks with steerer outer diameter of 28.6 mm (1 1/8”)
Handlebar clamp: Ø 31.8 mm
Clamping height on steerer tube: approx. 38 mm
Angle (rise): – 8°
Max. system weight (cyclist, bike and luggage): Road/Gravel/Travel (also for e-bikes up to 25 km/h) 100 kg**

Available versions:
Length: 60 mm / effective height gain: -10 mm / effective length gain: 55 mm / weight: approx. 148 g
Length: 80 mm / effective height gain: -15 mm / effective length gain: 75 mm / weight: approx. 150 g
Length: 100 mm / effective height gain: -20 mm / effective length gain: 95 mm / weight: approx. 164 g
Please indicate your choice.

In the box:
1 ergotec HAKE stem

*The product classification of the ergotec Safety Level complies with the DIN EN ISO 4210 standard for bikes and DIN EN 15194 for e-bikes. The ergotec Safety Level is always valid for the entire steering system. If stem and bars have a different safety level, the lower value will apply to the entire system.
** For other types of bicycles other permissible total weights apply. You can find these when clicking the button below or in the assembly and safety instructions included with the stem.

ATTENTION:
Due to safety concerns, the manufacturer does NOT approve the use of the stem with carbon handlebars and/or carbon steerer tubes.
