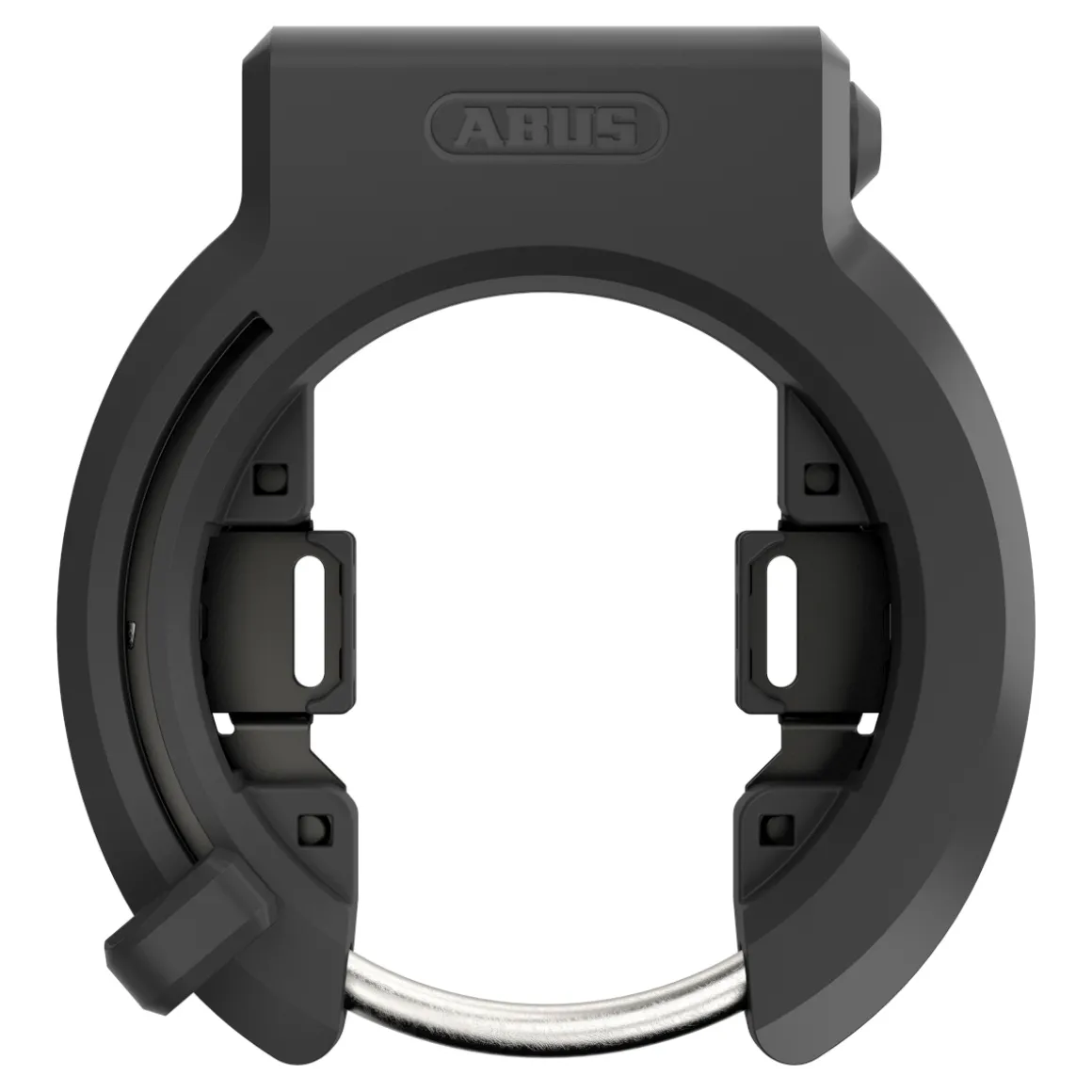

Granit XPlus 6950M NR Bike Frame Lock

The XPlus 6950M frame lock gives bike thieves a hard time. Under the name Granit, ABUS folding locks, U-locks and chain locks have already proven for many years that they meet particularly high requirements for theft protection. With a focus on security and convenience, the Granit XPlus complements the ABUS bike lock portfolio with increased security standards.

While the crucial components are made of specially hardened steel and offer enduring mechanical resistance, the special XPlus locking mechanism provides excellent protection against lock picking. Just like the other ABUS Granit models, the cylinder of the 6950M is particularly resistant to manipulation attempts.

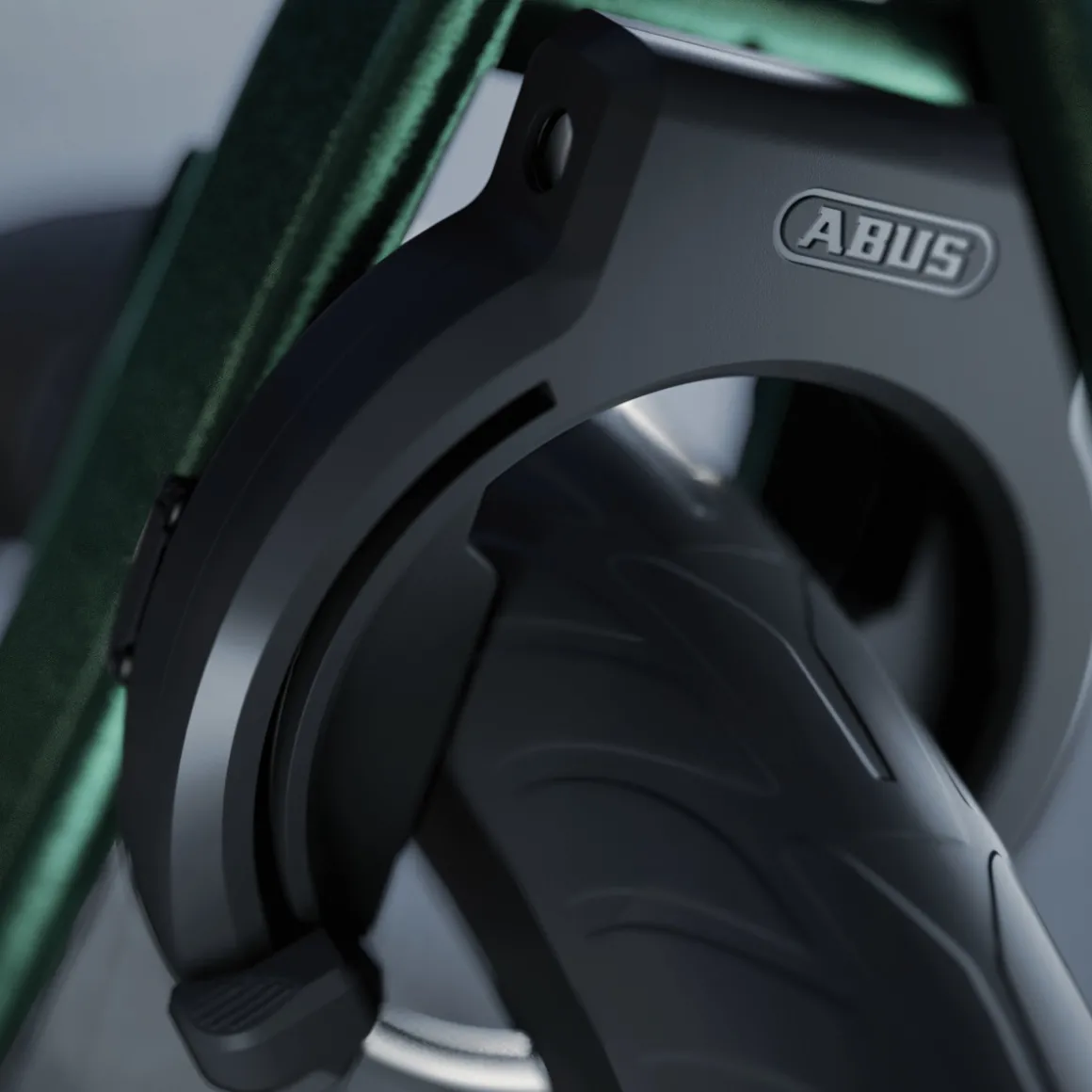

Being permanently mounted on the bike frame, the ABUS frame lock accompanies you on your tours as a quick and easy-to-activate security device. Thanks to the adjustable bolt spacing of the mounting plates, the 6950M can be fitted to all standard bike frames. In case your bike does not have any suitable mounting points: With the separately available LH adapter strap, you can easily mount the frame lock even without suitable holes.

Classic frame locks are part of the standard equipment of city and touring bikes because of their practical handling. However, if the bike is parked unattended for a longer period of time, the rear wheel lock should be supplemented by an additional security device so that the bike cannot be easily carried away. Despite the high resistance of the Granit version, an ABUS plug-in chain or other additional locks are recommended for securing the bike to a fixed object in case of increased risk of theft.

Details:
Robust frame lock with connection option for plug-in chains
ABUS security level 10 out of 15 (high protection for low theft risk)
8.5 mm thick locking bracket
Shackle, housing, and key elements of the locking mechanism made from specially hardened steel
ABUS XPlus disc cylinder for maximum protection against manipulation attempts (e.g. picking)
Practical, reversible key for easy operation
Integrated insertion opening with locking mechanism for optional connecting chains and cables
NR version: key can be removed from the lock when open
Also suitable for wider tyres thanks to large wheel clearance
High frame compatibility thanks to adjustable bolt spacing

Technical details:
Material: steel, partially hardened
Material thickness of shackle: approx. 8.5 mm
Type of lock: key, symmetric
Maximum mudguard width: 75 mm

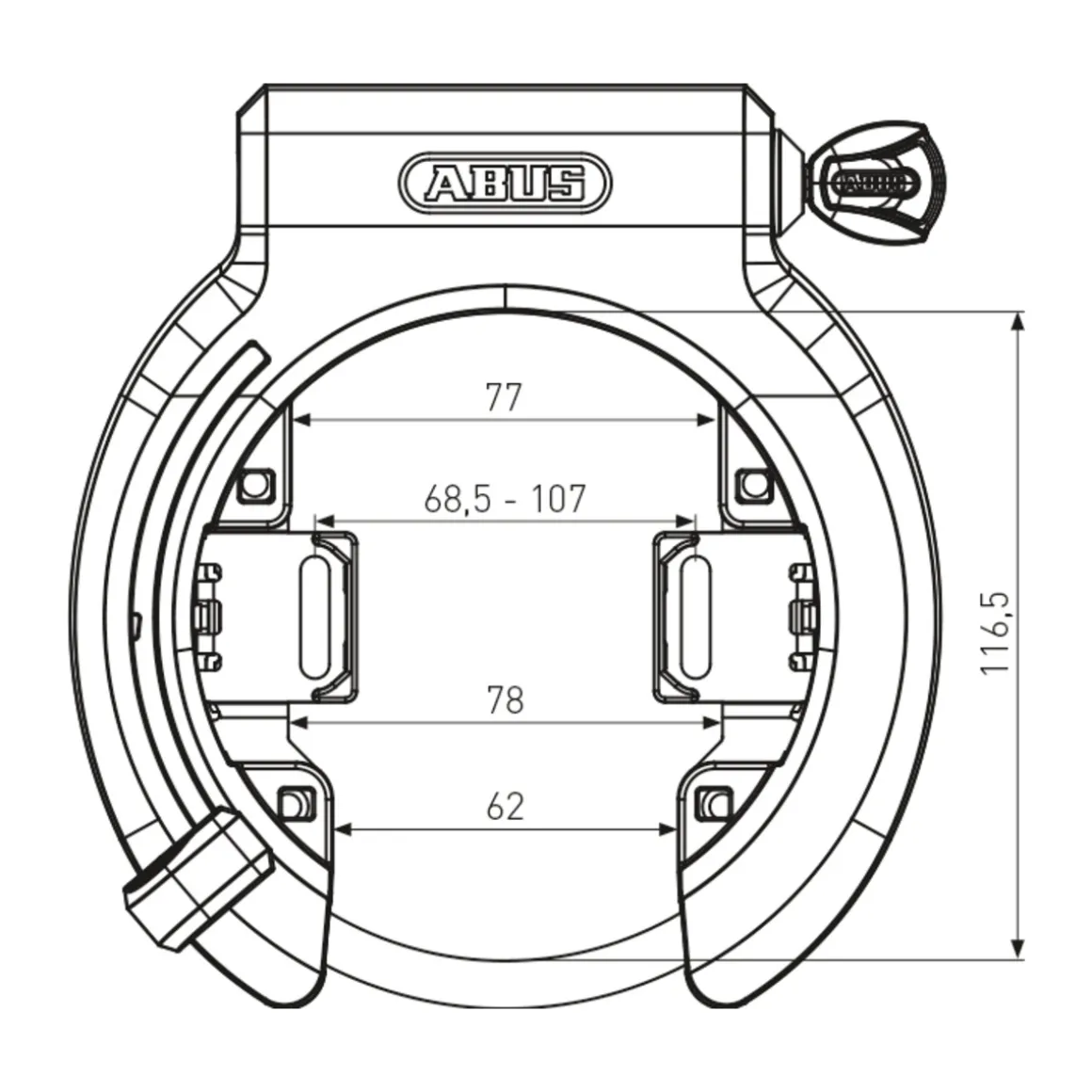

Bolt spacing rear stay mounting points: approx. 69 – 107 mm
Maximum tyre width: 57 mm
Maximum run through height: 116.5 mm (top edge of mudguard to bottom edge of rim)
Dimensions (WxHxD): approx. 156 x 166 x 31 cm
Weight: approx. 770 g

In the box:
1 ABUS Granit X Plus 6950M NR bike frame lock
2 ABUS reversible keys

Compatible ABUS accessories at ROSE:
ABUS LH adapter strap for flexible mounting (prod. code: 2255967)
ABUS IvyTex plug-in chain (prod. code: 2319511)
ABUS ACH 2.0 adapter plug-in chain (prod. code 2335619)
