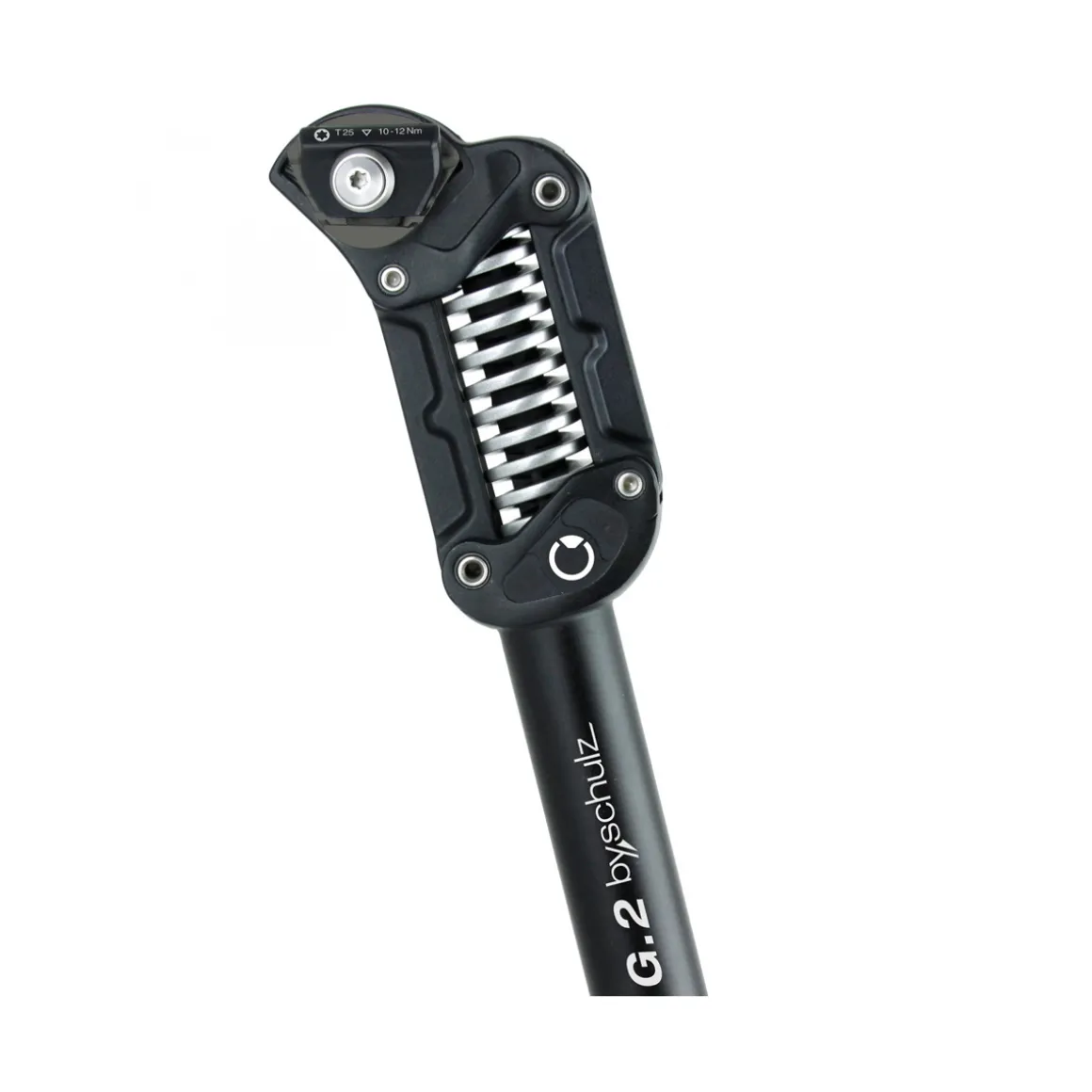

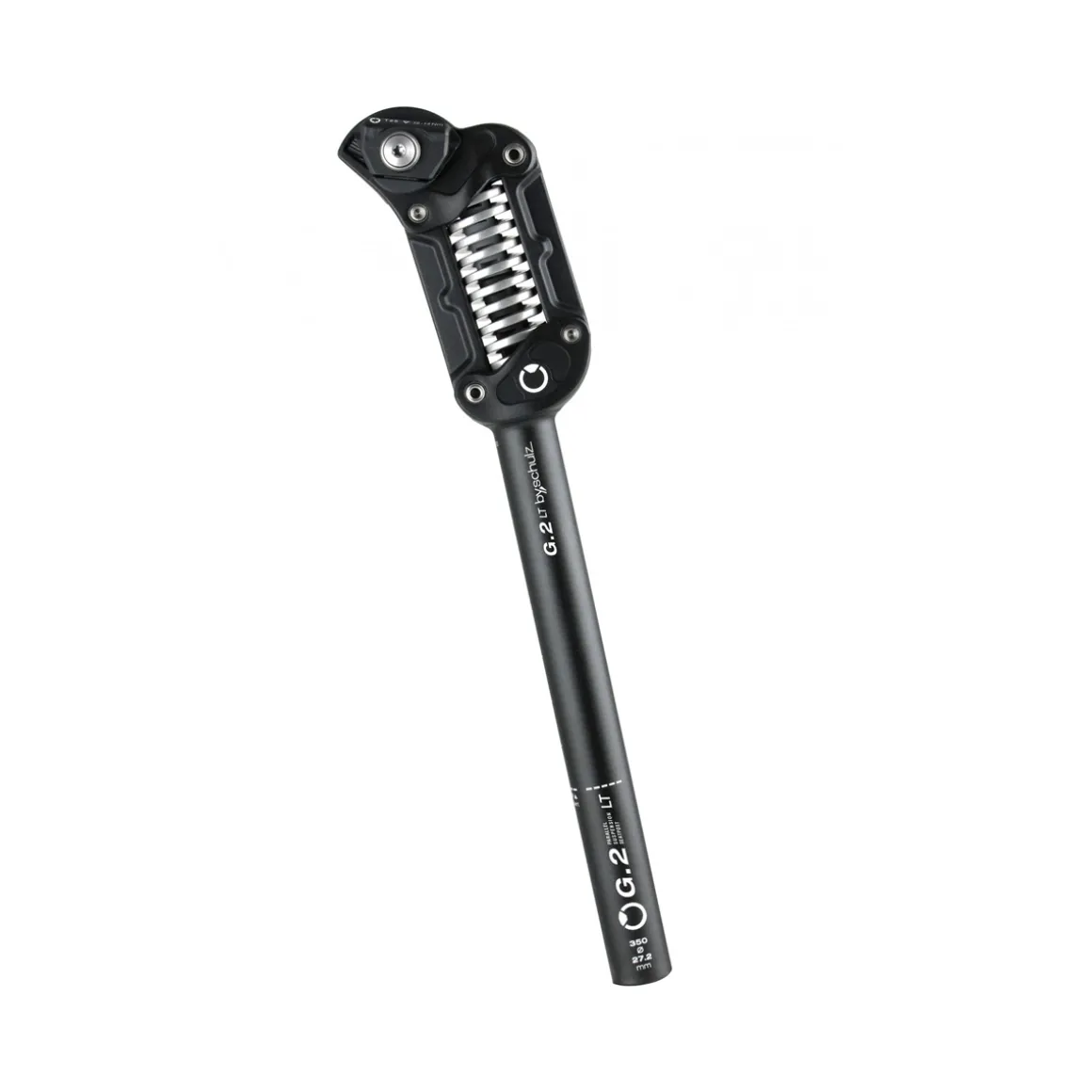

G.2 LT Suspension Seatpost with Parallel Linkage

When riding with your touring or hardtail MTB over rough tracks and rocky trails, the by.Schulz G.2 LT suspension seat post that is precisely adapted to the rider weight offers maximum comfort. With longer progression line for softer damping. Apart from the weight-related basic version, you can choose between various steel springs of different hardness to individually adjust the suspension comfort (sold separately, prod. code: 2200710).

The shock-absorbing parallel linkage mechanism of the seat post with progressive suspension pleasantly absorbs shocks with increasing spring resistance. In combination with the internal elastomer insert, the robust suspension element even prevents bottoming out when riding through deeper potholes. This LT version (long travel) with a longer progression line for soft suspension comes with a longer travel than the short-travel version by.Schulz G.2 (product code: 2269458).

Details:
LT suspension seat post with parallel linkage technology
E-bike ready
Long travel for increased comfort
Sensitive response
Low-friction with low offset
Torsionally stiff
IGUS polymer high-performance plain bearings/stainless steel axles
Suspension elements in different levels of hardness, easy to replace
For saddle rails with 7mm Ø
Saddle clamp with precise adjustment option and robust ratchet mechanism
Defined adjustment range with upper and lower limit
Max. rider weight: 150 kg
Stack height: approx. 130 mm
Travel: approx. 50 mm
Offset: approx. 19,5 mm
Length: 350 – 480 mm (can be cut to size)
Tube Ø: 26,4 – 34,9 mm
Material: Alu AL-6066-T6, 3D forged
Weight: from approx. 640 g (Ø 27,2 / 380 mm)

Tip: If the diameter of the seat post does not fit the seat tube of your frame, you may use the precisely fitting by.Schulz G.Shim adapter (prod. code: 2269466). The by.Schulz Mudcover made of neoprene protects the parallel linkage mechanism of the seat post from dirt and reduces the risk of pinching your fingers (prod. code: 2269465).
