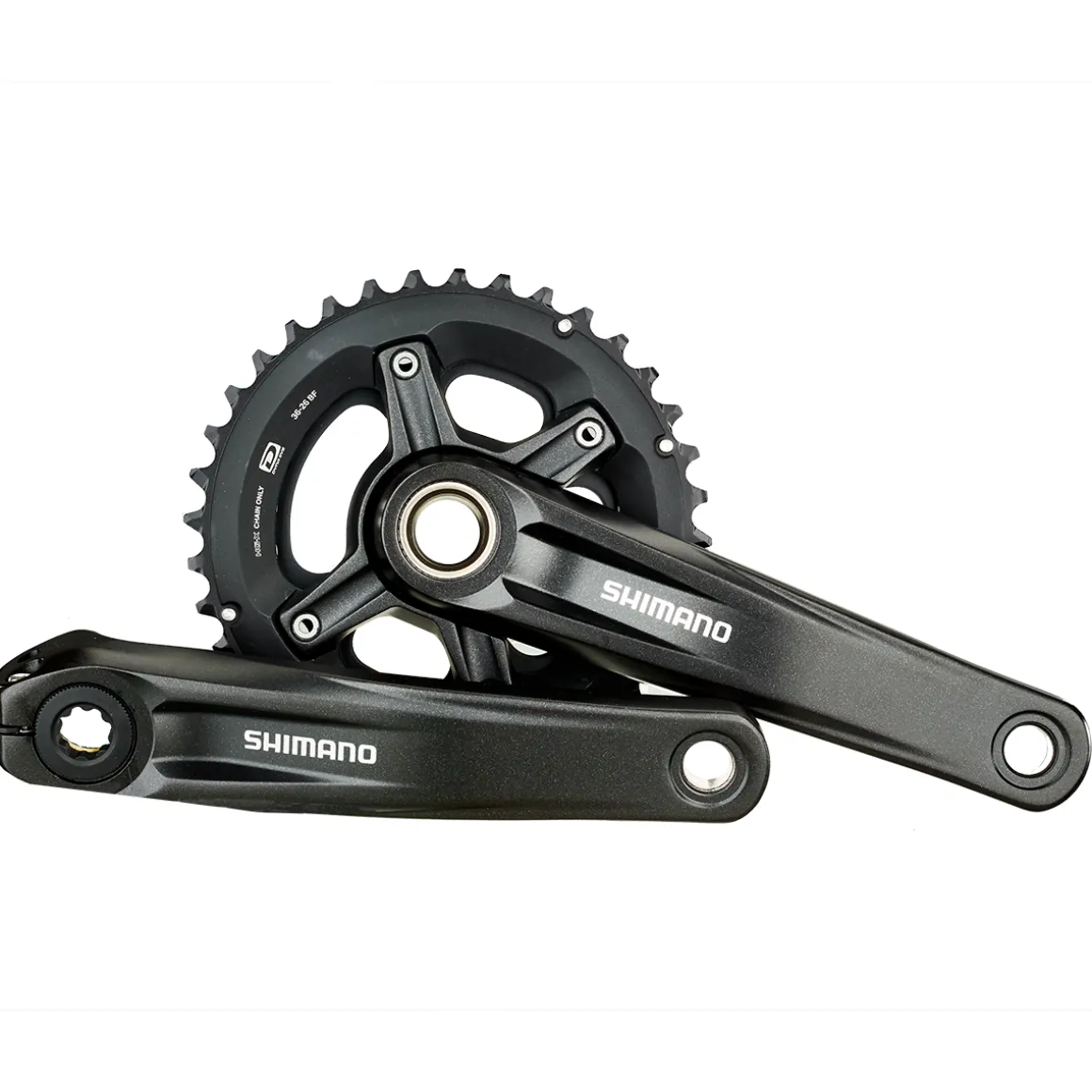

FC-MT500-2295093 Hollowtech II MTB Crankset 2 x 10-Speed

The SHIMANO FC-MT500-2 MTB crankset provides a reliable chainring setup with excellent shifting performance for 2 x 10-speed drivetrains.

Details:
2 x 10-speed crankset with integrated axle (Hollowtech II)
Aluminium crank arms

Technical details:
Intended use: MTB
Series: not linked to a specific group
Model: FC-MT500-2
Type: Hollowtech II
Gear steps front: doublespeed
Gear steps rear: 10-speed
Gear ratio: 26-36 teeth
Bolt circle: 96mm (outside), 64 mm (inside) (4-hole)
Chainline: 48.8 (for 135/142 mm locknut dimensions, BOOST)
Q factor: 177 mm
Compatible chains: SHIMANO 10-speed HG-X

Available in the following versions:
170 mm crank arm length
175 mm crank arm length
Please indicate your choice.

In the box:
1 SHIMANO SLX FC-MT500-2 crank, 2 x 10-speed

Attention: WITHOUT bottom bracket!
