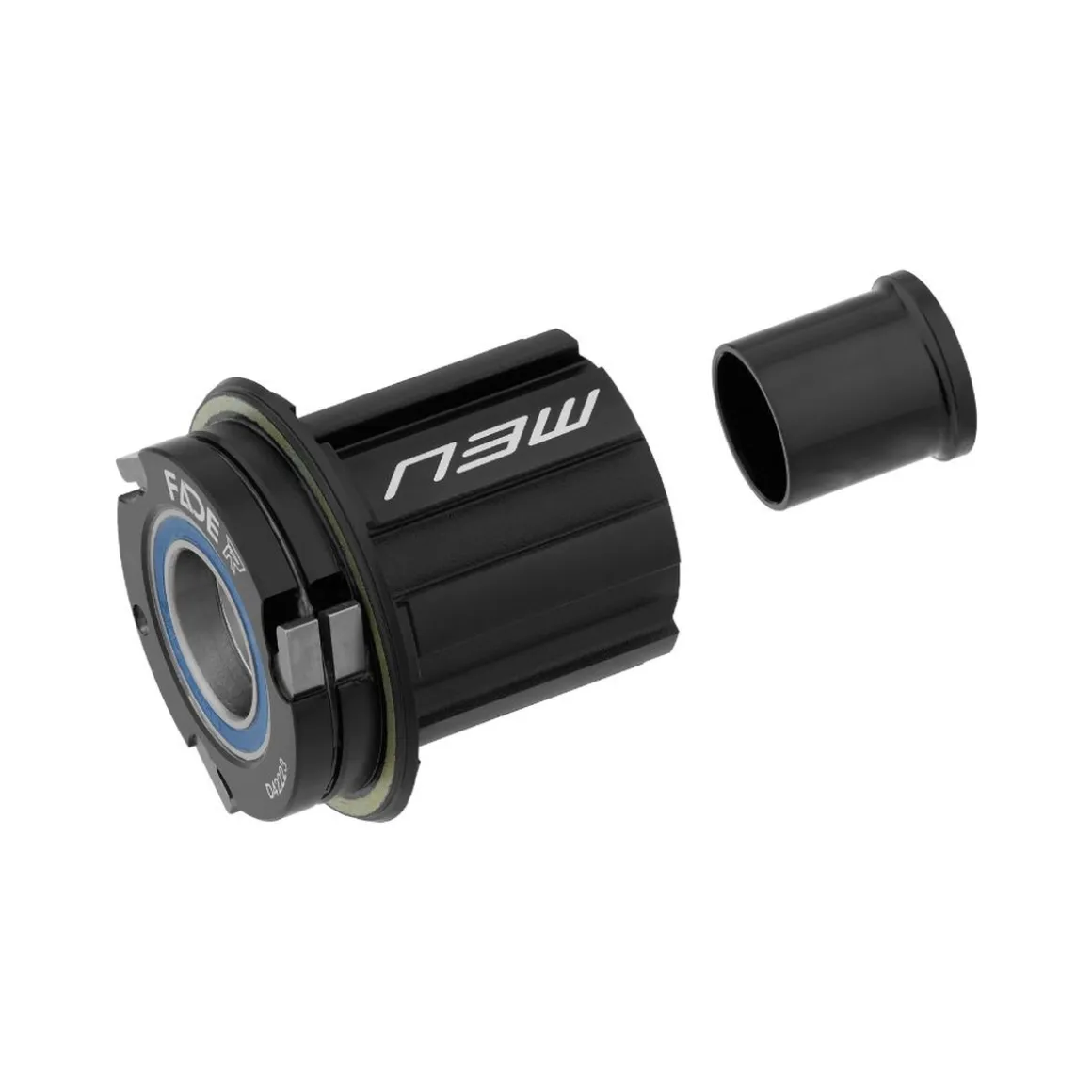

FADE R Freehub Body Campagnolo N3W

The replacement freehub body by Newmen allows you to convert your FADE R hub to the Campagnolo N3W freehub standard or to replace a worn freehub body in just a few simple steps. The two internal cartridge bearings are included.

The Newmen FADE R hubs are among others fitted from the model year 24 of the BACKROAD, XLITE and Reveal. You will find a detailed list below.

Technical details:
Manufacturer: Newmen
Hub system: Newmen FADE R
Freewheel standard: Campagnolo N3W
Pawl system with 3 pawls
Double-sealed cartridge bearings
Material: Aluminium

Cassette compatibility:
Campagnolo N3W 12-/13-speed cassettes with 9 or 10 teeth on the smallest sprocket
Note:
With a suitable adapter, you can also fit the N3W freewheel with Campagnolo ED 10-/11-/12-speed cassettes with 11 teeth on the smallest sprocket.

Hubs among others fitted in the following ROSE bikes (from MY24):
BACKROAD FF
BACKROAD
BACKROAD AL
XLITE 06
XLITE 04
Reveal 06
Reveal 04
Reveal AL

Note:
You can tell whether the FADE or FADE R freewheel is fitted to your hub by the corresponding print on the front of the freehub body (see illustration) and the larger diameter of the freehub housing (FADE R approx. 48 mm, FADE approx. 43 mm).

In the box:
1 Newmen FADE R freehub body Campagnolo N3W incl. ball bearing
1 spacer ring
1 end cap
