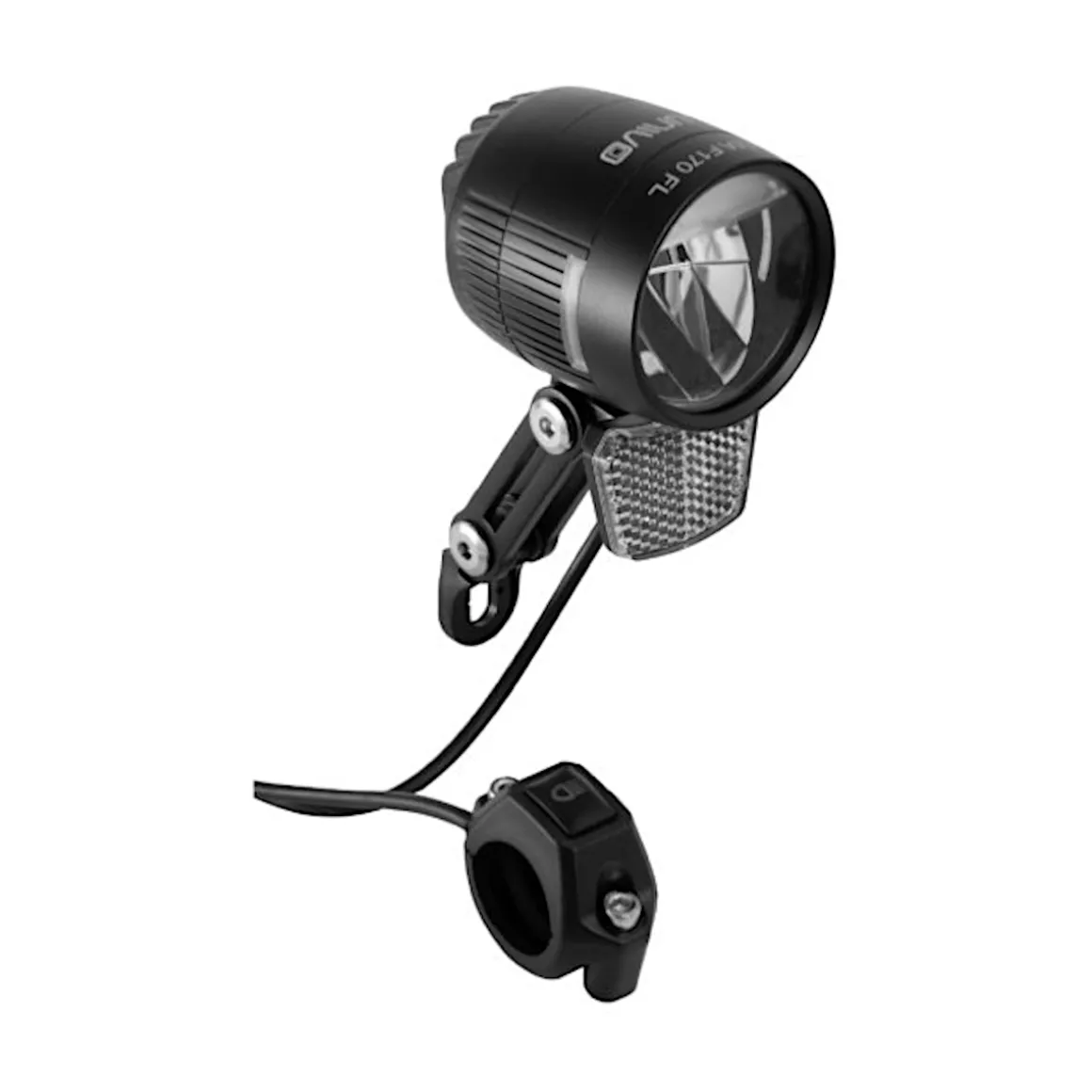

E-DIA F170 E-bike Front Light with High Beam

E-Bike light power with high beam! With the Lunivo E-DIA F170 e-bike front light, you’ll have plenty of light even when travelling overland. When riding at higher speeds with your e-bike, you need improved visibility – especially in the dark. The compact front light with a built-in multi-field reflector provides perfect far and near field illumination as well as best lateral visibility for maximum safety on unlit paths. Using the thumb button on the handlebars, you can switch to high beam to illuminate the route homogeneously for up to 60 metres. This means you can be on the road at high speed with a good feeling.

Thanks to the extremely compact dimensions, the stylish front light can be discreetly integrated into any bike look. When mounting the fork, the alignment can be easily adjusted using the 3-axle bracket. Once connected to the bike electronics, the Lunivo front light is switched on and off at the touch of a button using the e-bike control unit or the high beam switch.
Please note! The Lunivo E-DIA F170 e-bike front light requires at least 14 watts of output power that the electrical system of your e-bike must provide.

Details:
Powerful front light for e-bikes (pedelecs)
With switchable high beam
Up to 120 / 170 lux illumination intensity
Very good illumination of the visible area up to 35 / 60 metres
Projector light through multi-field reflector
Light switching via external thumb button
Indicator light for low beam (green) and high beam (blue)
3-axle bracket for flexible alignment on the fork crown/fork arch
Connection cable with plug-in contacts for the bike’s electrical system
White front reflector included
Approved for all types of bikes according to German StVZO regulations*

Technical details:
Mounting: via fork bracket with mounting hole
Power supply: 8 -48 volts direct current (DC) operating voltage
Rated voltage: 12 volts
Min. rated power: 14 watts
Illuminant: 1 high-performance LED each for low beam and high beam
Illumination intensity: up to 120 lux (low beam), 170 lux (high beam)
Lateral visibility: yes
Daytime lighting: no
Stand light: yes (permanently via e-bike battery)
Light modes: OFF / ON (via e-bike display or high beam switch)
Cable length of the thumb switch: approx. 60 cm
Material: aluminium (body, bracket)

In the box:
1 E-DIA F170 e-bike front light incl. front reflector

*Attention:
Before mounting, make sure that your e-bike drive unit or a connected compatible DC power source for the lighting has sufficient output power. Please check with the respective manufacturer in advance.

Please pay particular attention to the correct alignment of powerful front lights so that you don’t dazzle oncoming traffic. The high beam function must not be switched on when other road users are approaching.

NOT suitable for dynamo!
NOT approved for e-bikes with a speed above 25 km/h or speed pedelecs!
