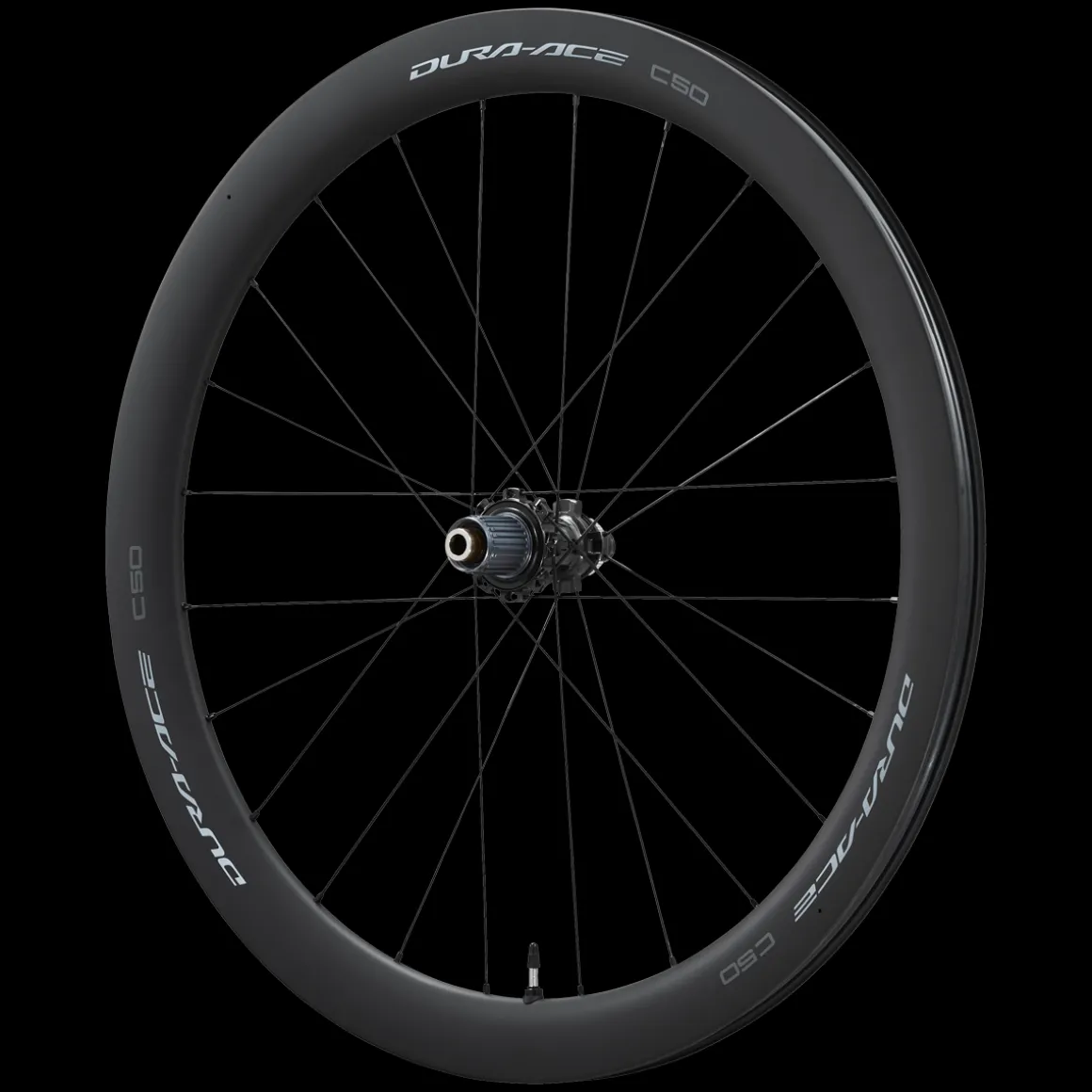

Dura Ace WH-R9270-C50-TL Disc Centerlock Road Rear Wheel 28"/700C

The Dura Ace WH-R9270-C50-TL Disc rear wheel by SHIMANO offers an optimal balance of aerodynamics, stiffness, reliability and weight.

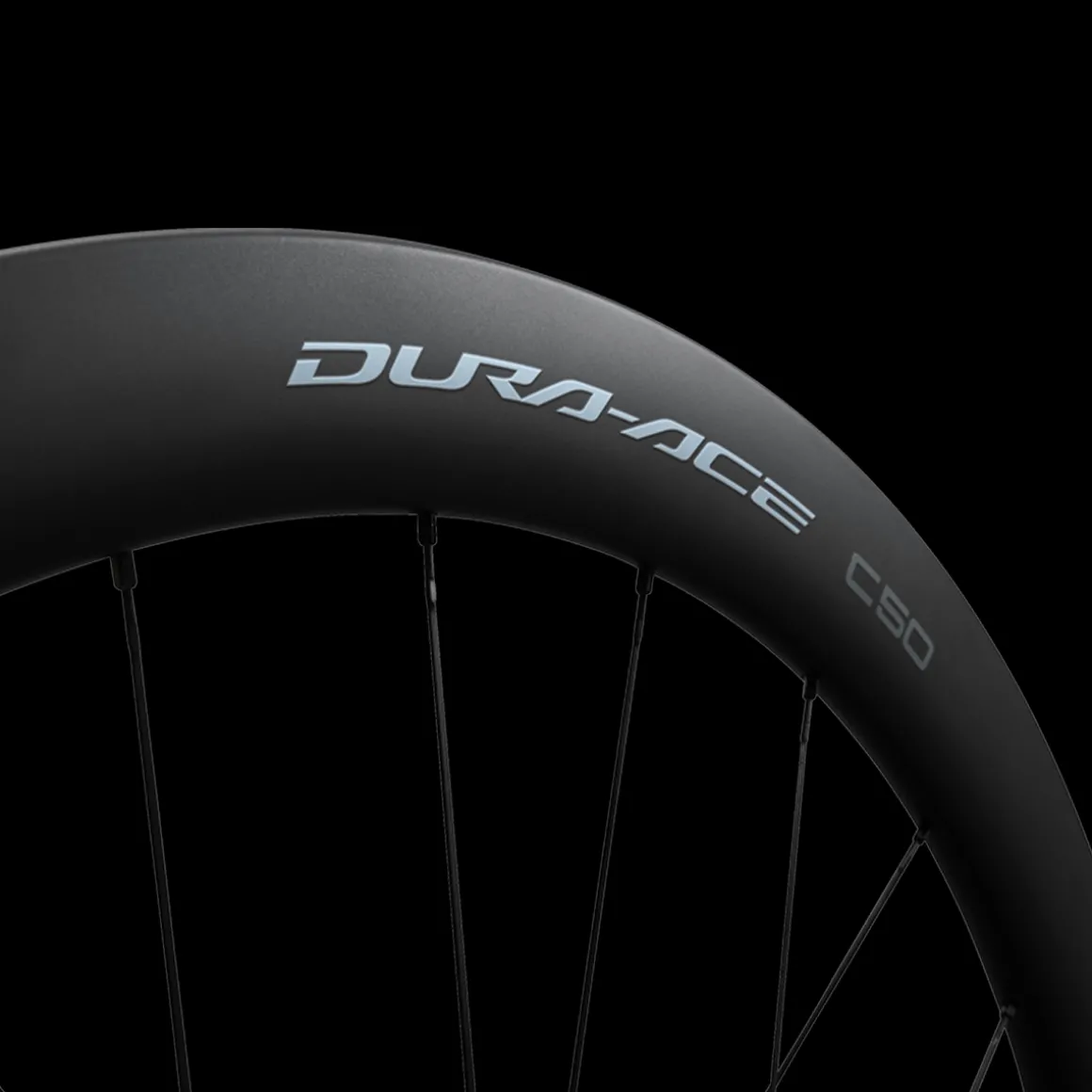

The 50 mm deep carbon rim, aerodynamically optimised bladed spokes and an extremely efficient hub give you plenty of propulsion and let you literally cut through the wind. Being tubeless-ready and having an inner rim width of 21 mm, the WH-R9270-C50-TL Disc by SHIMANO can handle the trend towards wider road bike tyres, while also providing low rolling resistance, increased comfort, and improved grip when riding tubeless. Strong double-butted spokes give the wheel maximum stiffness, which helps efficiently transfer your power into speed.

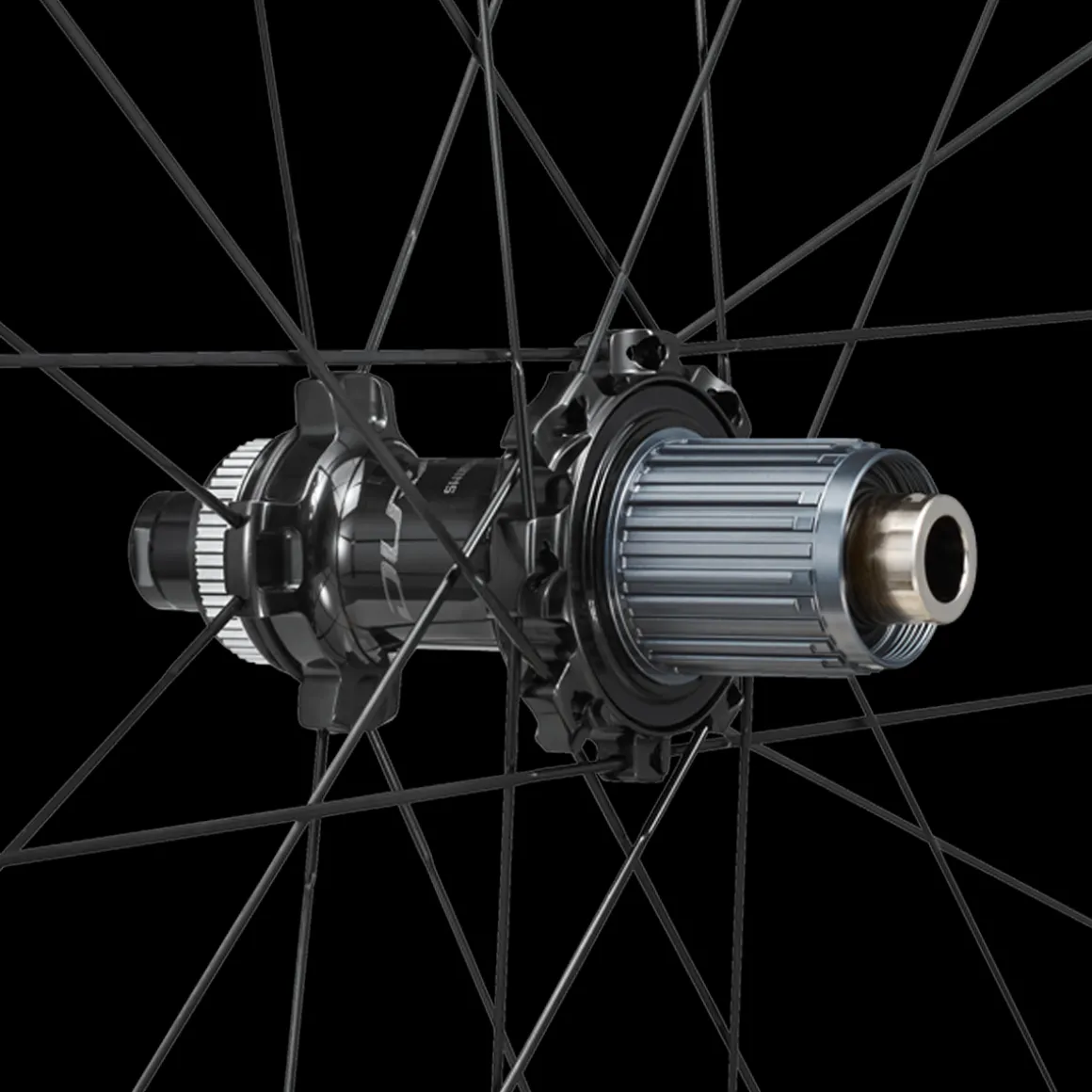

SHIMANO decided to fit the wheel with a 12-speed specific freehub. In addition, the Direct Engagement freehub system scores with up to 30% more stiffness and yet less weight compared to a standard SHIMANO pawl hub system.

Therefore, SHIMANO’s WH-R9270-C50-TL Disc rear wheel is the perfect choice, if you want to compete for the win, set a new best time on your favourite route or just like to use high-end wheel technology.

Details:
Aerodynamically optimised high-end carbon wheel
Single rear wheel for disc brakes
SHIMANO Direct Engagement freehub technology for high efficiency and low weight
Tubeless ready

Technical details:
Intended use: Road bike
Series: Dura Ace
Model: WH-R9270-C50-TL-R
Rim material: carbon

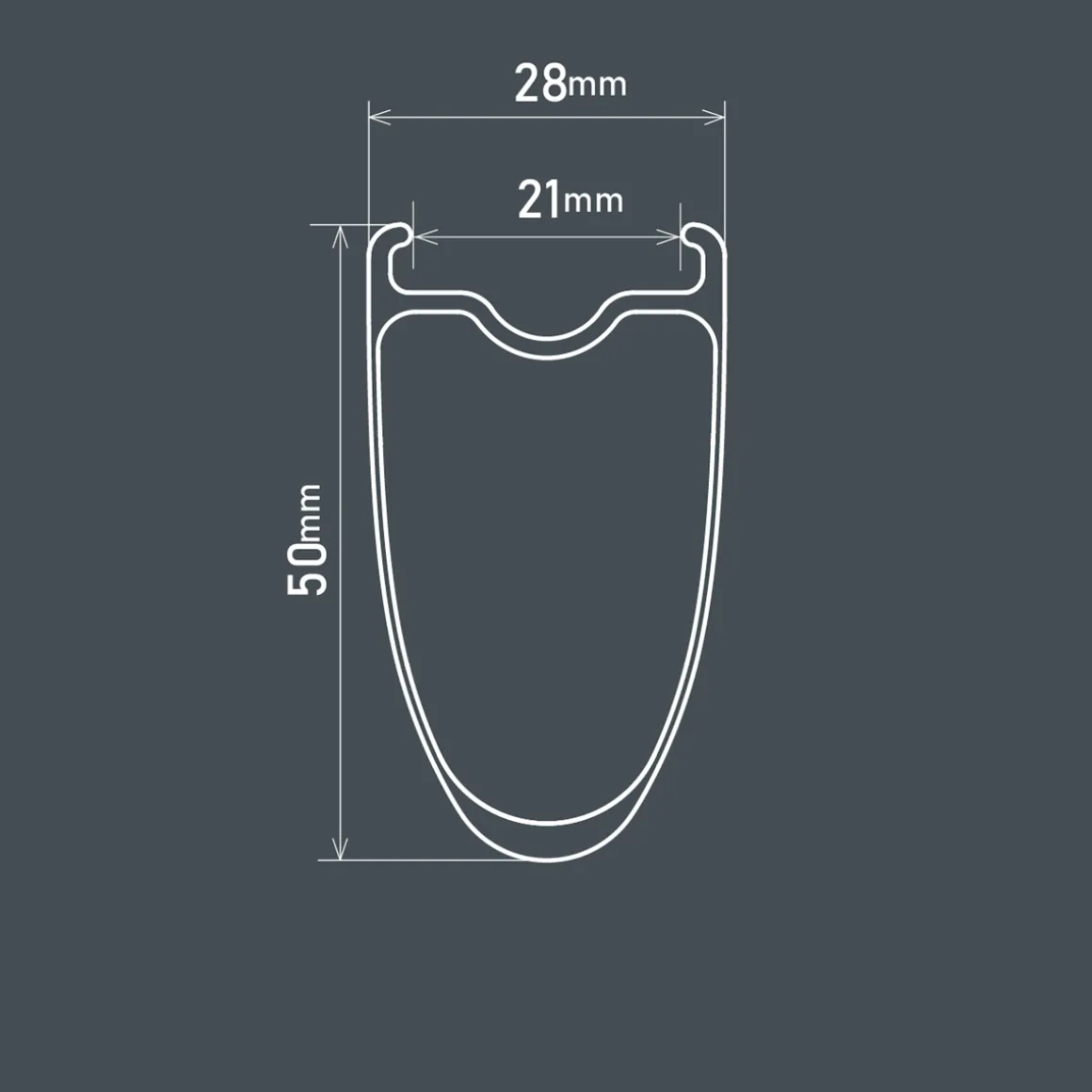

Rim width/depth: 28 mm / 50 mm
Inner rim width: 21 mm
ETRTO: 21-622
Recommended tyre width: 25 mm – 32 mm
Spoke type: butted straight pull aero spokes (2.0 – 1.5 – 2.0)
Number of spokes: 24 pcs
Spoke pattern: 2-cross
Nipples: aluminium
Hub body: aluminium (anodised)
Axle: aluminium (anodised)
Freehub body: SHIMANO HG Spline L2 (aluminium)
Compatible with these cassettes:  12-speed SHIMANO Road (only!)*
Brake disc mount: Center Lock
Front hub spacing: 12 x 142 mm (thru axle)
Weight: approx. 787 g

In the box:
1 SHIMANO Dura Ace WH-R9270-C50-TL rear wheel

*Attention:
The freehub is ONLY compatible with SHIMANO HG 12-speed road cassettes! A SHIMANO 11-speed road cassette or other SHIMANO cassettes are NOT compatible!
