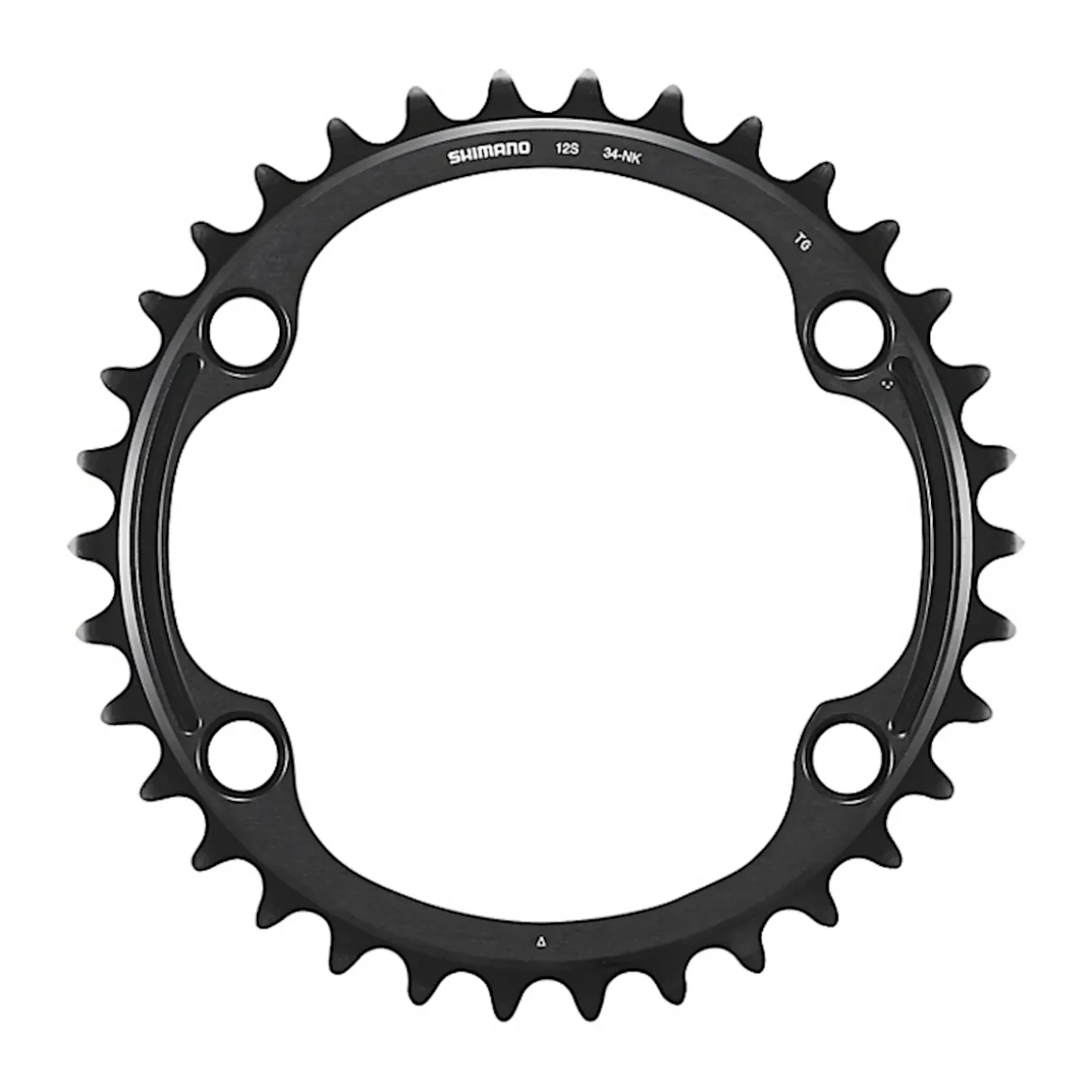

Dura Ace FC-R9200 Chainring

SHIMANO 2/12-speed chainring for Dura Ace FC-R9200 crankset and Dura Ace FC-R9200-P cranks with powermeter. While the inner chainring is made of anodised aluminium, the outer chainring has been hollow-formed (Hollowglide) from anodised aluminium and carbon fibre-reinforced composite to save weight. This results in first-class stiffness values and high durability.

Compatibility (recommended):
SHIMANO Dura Ace FC-R9200 2-/12-speed crank
SHIMANO Dura Ace FC-R9200-P 2/12-speed powermeter crank

Versions:

Number of teeth: 34 teeth (for 50 teeth)
Bolt circle: 110 mm
Type: NK
Material: anodised aluminium

Number of teeth: 36 teeth (for 52 teeth)
Bolt circle: 110 mm
Type: NH
Material: anodised aluminium

Number of teeth: 40 teeth (for 54 teeth)
Bolt circle: 110 mm
Type: NJ
Material: anodised aluminium

Number of teeth: 50 teeth (for 34 teeth)
Chain lifters for optimum shifting performance
Bolt circle: 110 mm
Type: NK
Material: aluminium, carbon fibre-reinforced plastic

Number of teeth: 52 teeth (for 36 teeth)
Chain lifters for optimum shifting performance
Bolt circle: 110 mm
Type: NH
Material: aluminium, carbon fibre-reinforced plastic

Number of teeth: 54 teeth (for 40 teeth)
Chain lifters for optimum shifting performance
Bolt circle: 110 mm
Type: NJ
Material: aluminium, carbon fibre-reinforced plastic

In the box:
1 chainring SHIMANO Dura Ace FC-R9200 in selected version

Attention:
To guarantee best shifting performance, you may only combine chainrings of the same type, e.g. NK!
