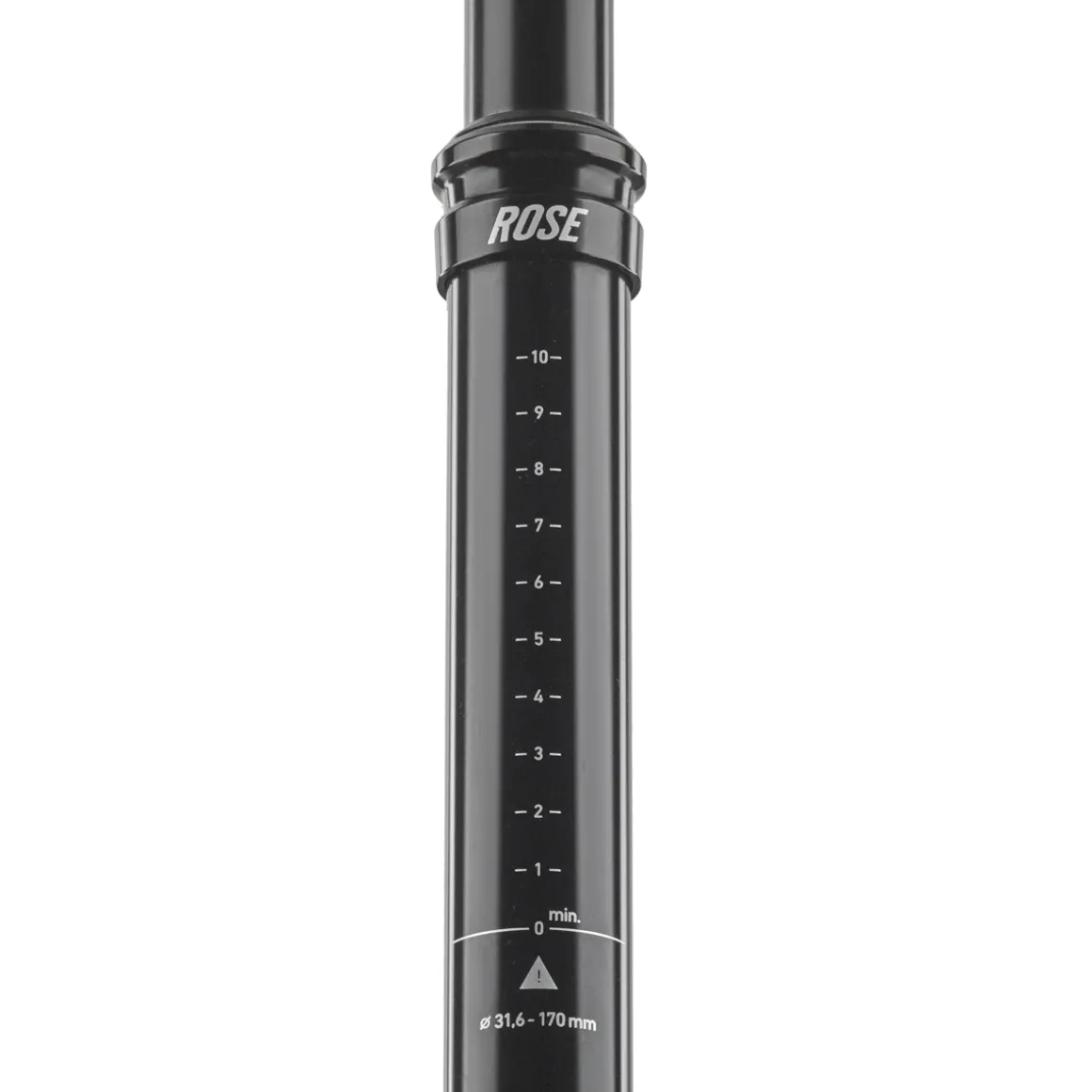

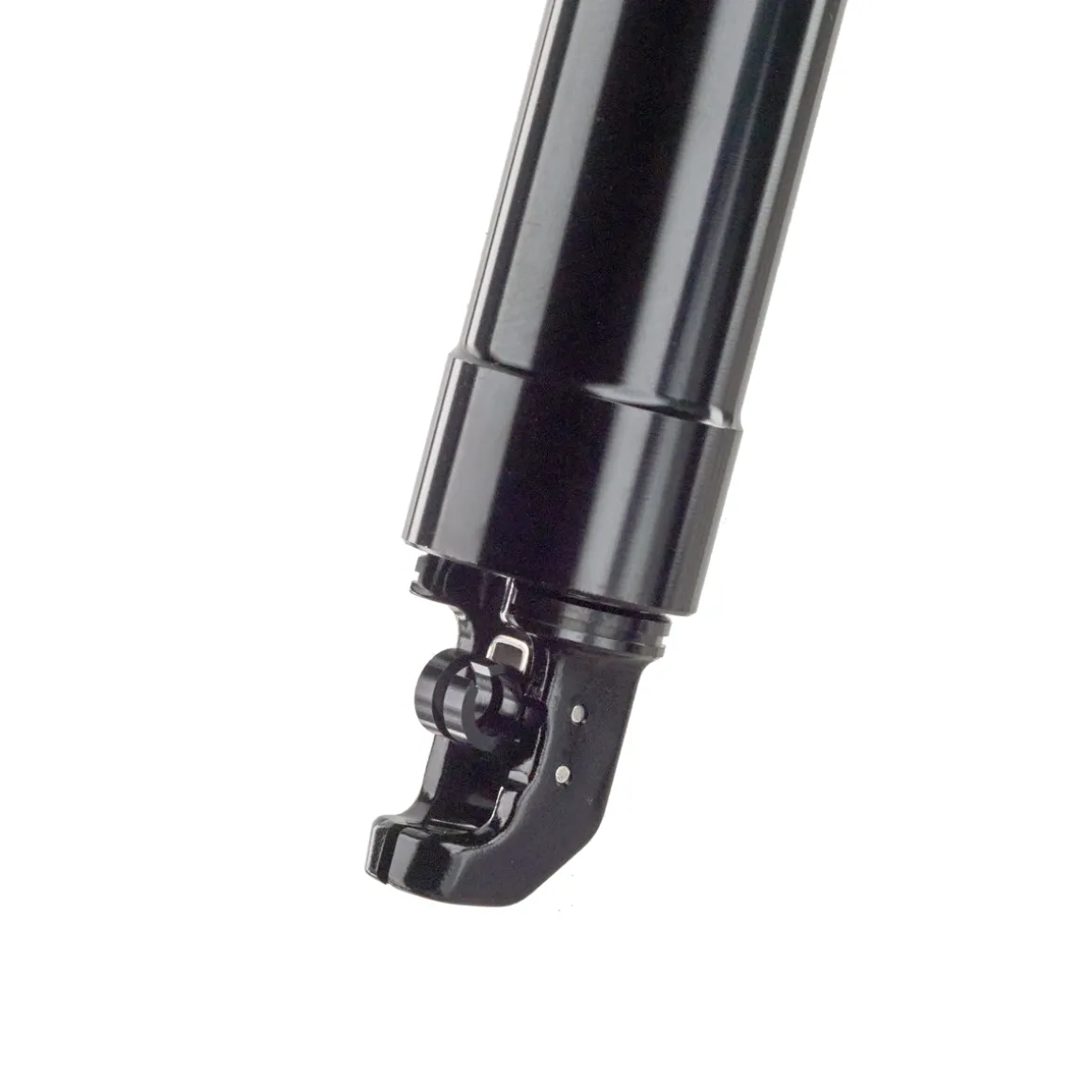

"Dropper" Vario Seat Post with X1 Remote / Internal Routing

The ROSE Dropper Vario seat post offers quick and infinite adjustment of your seat height.
It can be controlled with the easy-grip X1 remote lever, which is mounted on the left-hand side.
This keeps both hands on the handlebar for maximum riding safety.

Details:
Telescopic seat post
Controlled with remote lever on handlebar

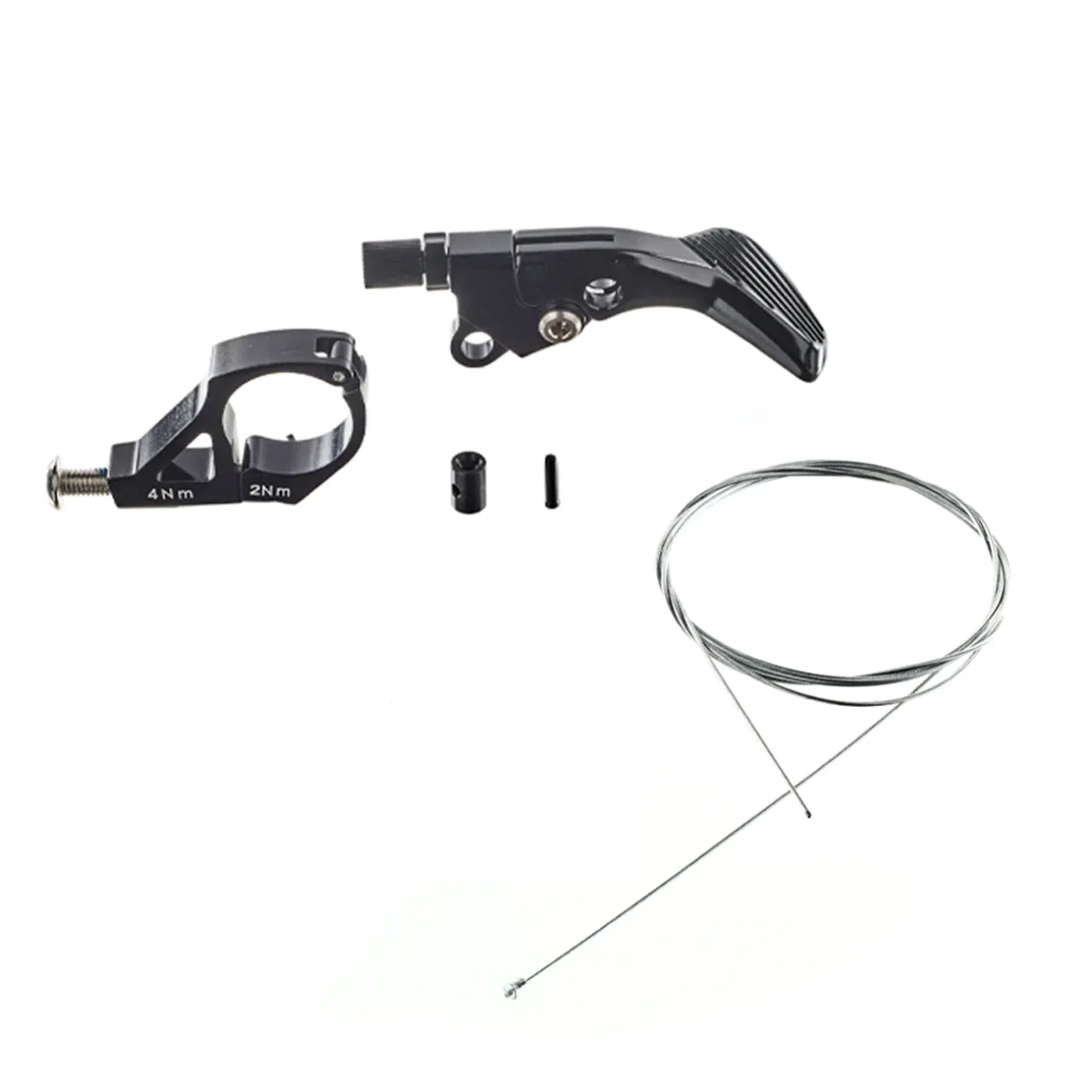

Aluminium remote lever, left mounting, clamp Ø22.2mm
Internal cable routing (the frame must have adequate holes for it)
Ø 31.6 mm
Offset: 0 mm
Stack height: 60 mm (top cap incl. clamping head completely retracted)

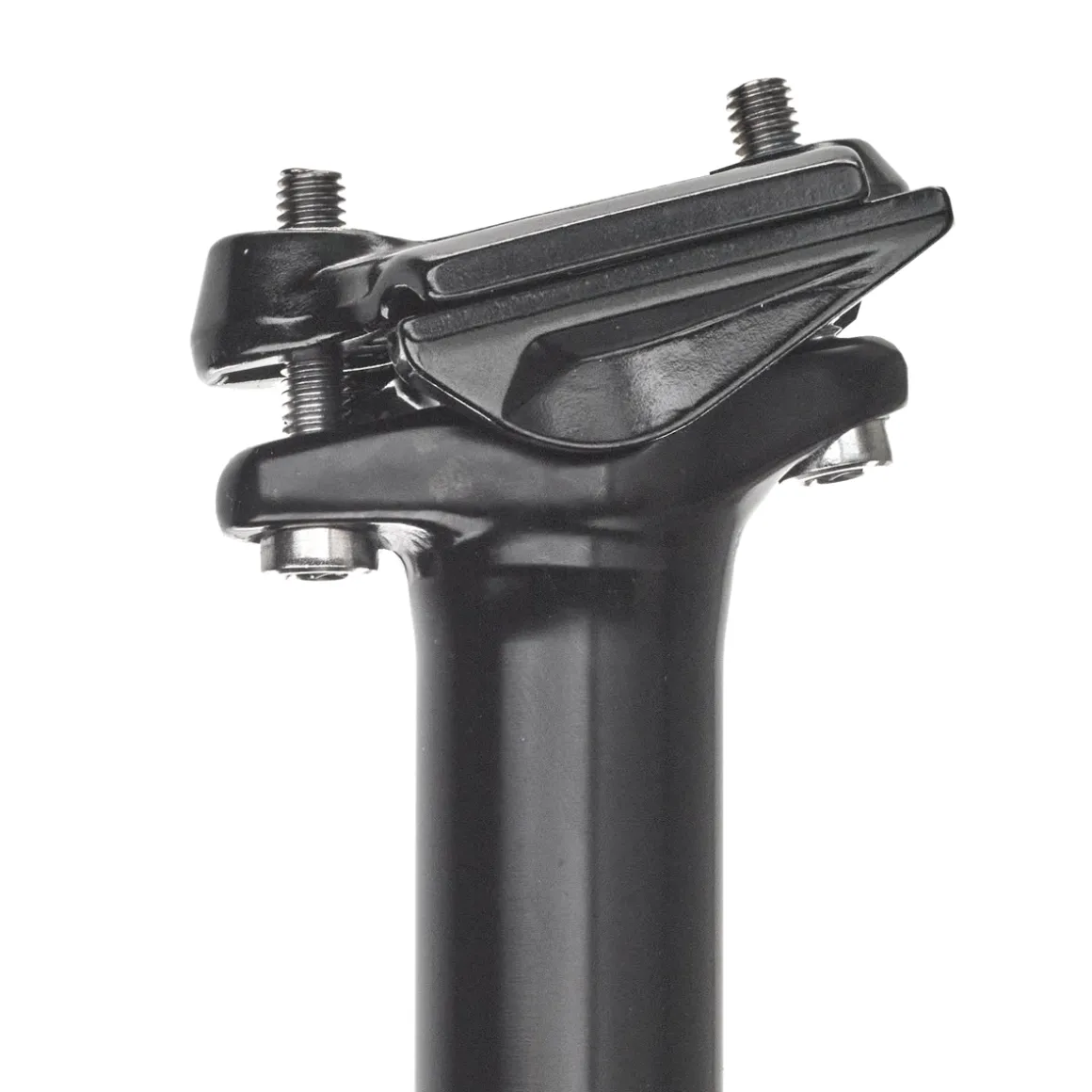

2-bolt clamp
For standard saddle rails Ø 7mm or 7x9mm
Function: air-oil cartridge
Material: aluminium 7075
Weight incl. remote: approx. 690 g (version 31.6/170/499mm)

Travel/stack height:
125mm/ca. 180mm
150mm/ca. 205mm
170mm/ca. 225mm

Travel/minimum insertion depth:
125mm/90mm + 35mm cable control height
150mm/90mm + 35mm cable control height
170mm/120mm + 35mm cable control height

Diameter/travel/complete length (incl. cable control height)
31.6mm/125mm/412mm
31.6mm/150mm/459mm
31.6mm/170mm/499mm

In the box:
ROSE Dropper Vario seat post
ROSE X1 remote lever for left mounting, clamp Ø22.2mm
Inner cable and cable clamps/barrels
Manual
WITHOUT outer cable (standard outer gear cable with Ø 4mm recommended)

Tip:
The values below can be used as a rough guide for correct travel/drop determination.

Travel or drop/frame size:
125mm/S
150mm/M+L
170mm/XL
