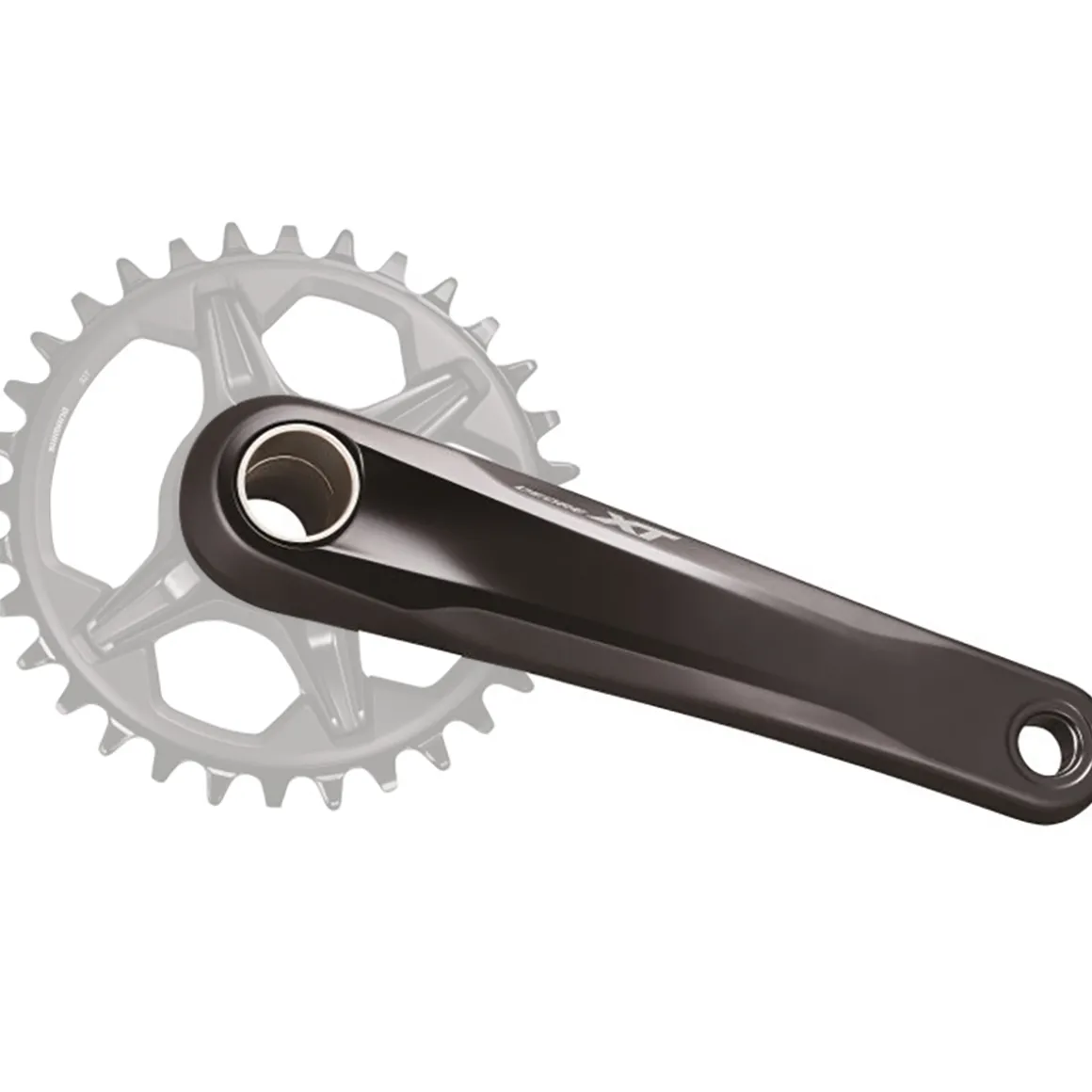

Deore XT FC-M8120 Hollowtech II Crankset Single Speed / 55 mm Chain Line

Deore XT goes 12 speed!
In 2019, the best-selling groupset of the Japanese component manufacturer, Deore XT, follows the example of SHIMANO’s XTR group that was already equipped with 12 sprockets back in 2018. As a high-end groupset for everyone, the XT is becoming increasingly popular.
As is typical for SHIMANO, the crank arms of the XT FC-M8120 Hollowtech II single speed crankset are made from hollow forged aluminium; and just like the XTR crankset, it comes without a spider to offer high stiffness values and low weight. Thus, it is suitable for a wide range of uses – ranging from fast XC rides through to enduro riding at breakneck speed.
To secure the chainrings to the 12-speed XT crankset, SHIMANO uses their own Direct Mount standard with BB lockring. A chain line of 55 mm increases drivetrain performance with BOOST standard (148 mm) and thanks to DYNAMIC CHAIN ENGAGEMENT+ (DCE+) the chain even stays on the rings during jumps and on rough grounds. XC and enduro racers who prefer singlespeed systems can choose from a wide range of chainrings between 28 and 36 teeth.

Details:
Hollowtech II 1 x 12 crankset
Hollow forged aluminium crank arms
Crankset with integrated 24mm axle

Specs:
Compatible with SHIMANO Hyperglide+ 12-speed
Chainline: 55 mm
Q factor: 178 mm
Available chainrings 28-30-32-34-36 (product code: 2286368)
Recommended chain: Deore XT CN-M8100 (product code: 2286358)
For a shell width of 68/73 mm
For rear axle: 148 mm (BOOST)
Weight: approx. 628 g (175 mm / 32T)

Available with crank arm length:
165 mm
170 mm
175 mm
180 mm
Please make your choice.

Bottom bracket cups (optional):
BSA BB-MT800 (product code: 2138176)
Pressfit BB-MT800-PA (product code: 2234221)

In the box:
1 x SHIMANO Deore XT FC-M8120 Kurbel (BOOST)
WITHOUT chainring and WITHOUT bottom bracket cups!

For compatible chainrings see product code: 2286368.

ATTENTION:
NOT compatible with XT M8000 components and other SHIMANO 11-speed groupsets.
