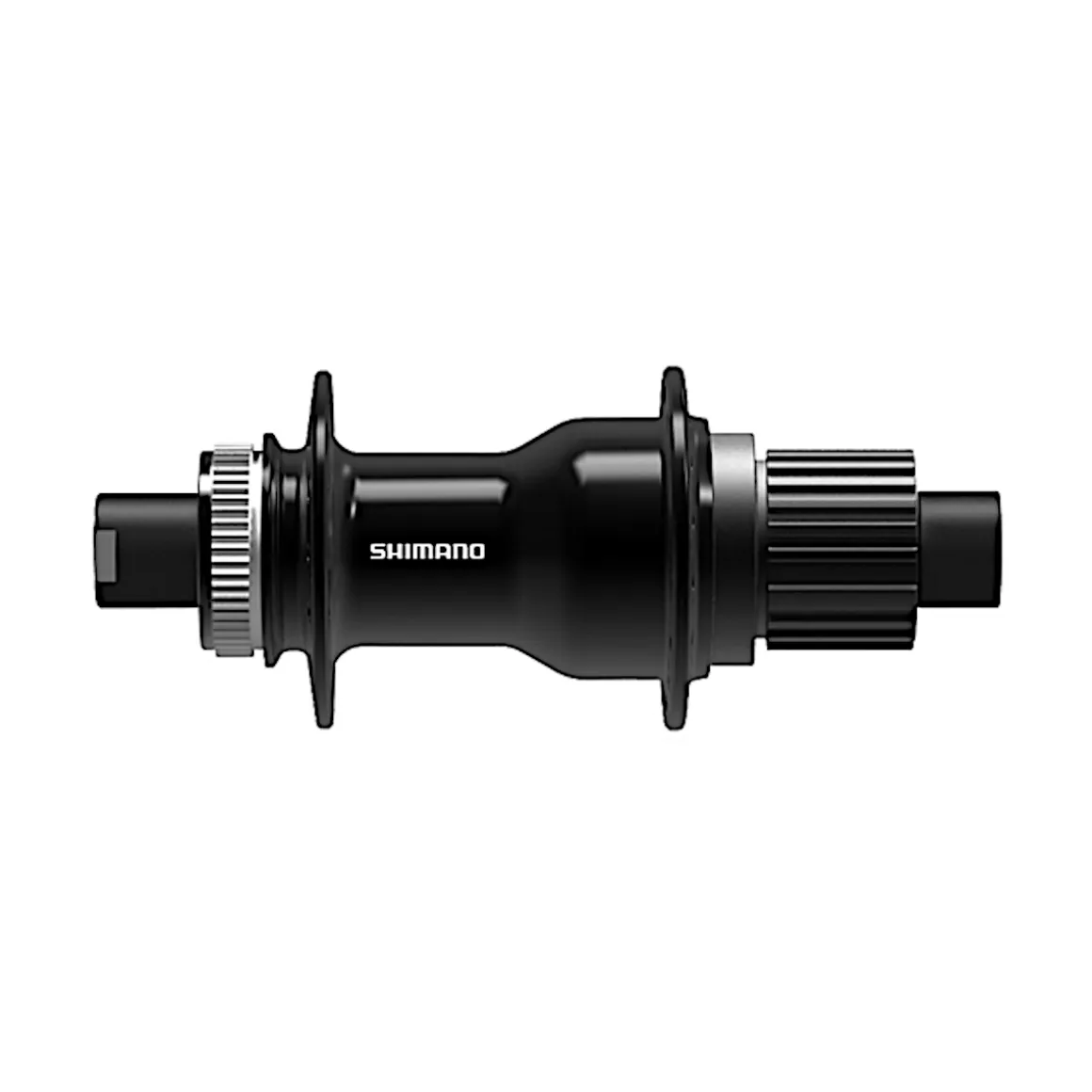

Deore FH-TC500 Disc 12×148 Rear Hub MICRO SPLINE

The Deore FH-TC500 by SHIMANO is a stiff and lightweight freehub rear hub for a reliable performance on the trail. It is suitable for mountain bikes with Centerlock brake discs and Boost standard at the rear. It can be perfectly combined with MICRO SPLINE drivetrains with SLX and Deore quality. This allows you to fit modern SHIMANO 12-speed cassettes that offer an enormous gear range when used with a small 10-tooth sprocket. With regard to freewheel technology, SHIMANO uses the proven and solid pawl system for reliable acceleration even on technically demanding trails.

Details:
Intended use: MTB
SHIMANO DEORE M6100 series
SHIMANO MICRO SPLINE freehub body
For cassettes with smallest sprocket up to 10 teeth
Freewheel technology with pawl system and contact sealing
High-quality sealed cartridge bearings with labyrinth and contact sealing for low rolling friction and high durability
Compatible with 13G and 14G spokes (2.0 mm / 2.3 mm)
Easy brake disc mounting thanks to toothing and lockring (not included)
Also suitable for e-bikes limited to 25 km/h (15.5 mph)

Technical details:
MICRO SPLINE cassette mount for SHIMANO 12-speed cassettes
Brake disc mount: Center Lock
For 12 mm thru axle (E-Thru System)
Hub width: 148 mm (Boost)
Number of bolts: 32
Bearings: sealed with labyrinth and contact sealing
Material hub body: anodised aluminium
Material axle: steel
Material freehub: steel
Flange Ø: 59.3 / 60.3 mm (left / right)
Flange spacing: 61.45 mm
Offset: 7.6 mm
Bolt circle Ø (P.C.D.): 50.5 / 51.5 mm (left / right)
Weight: approx. 475 g
Manufacturer’s ref. EFHTC500MSBB

ATTENTION:
Only compatible with SHIMANO Micro Spline cassettes.

In the box:
1 Deore FH-TC500-MS-B Disc 12×148 rear hub (32 hole)
