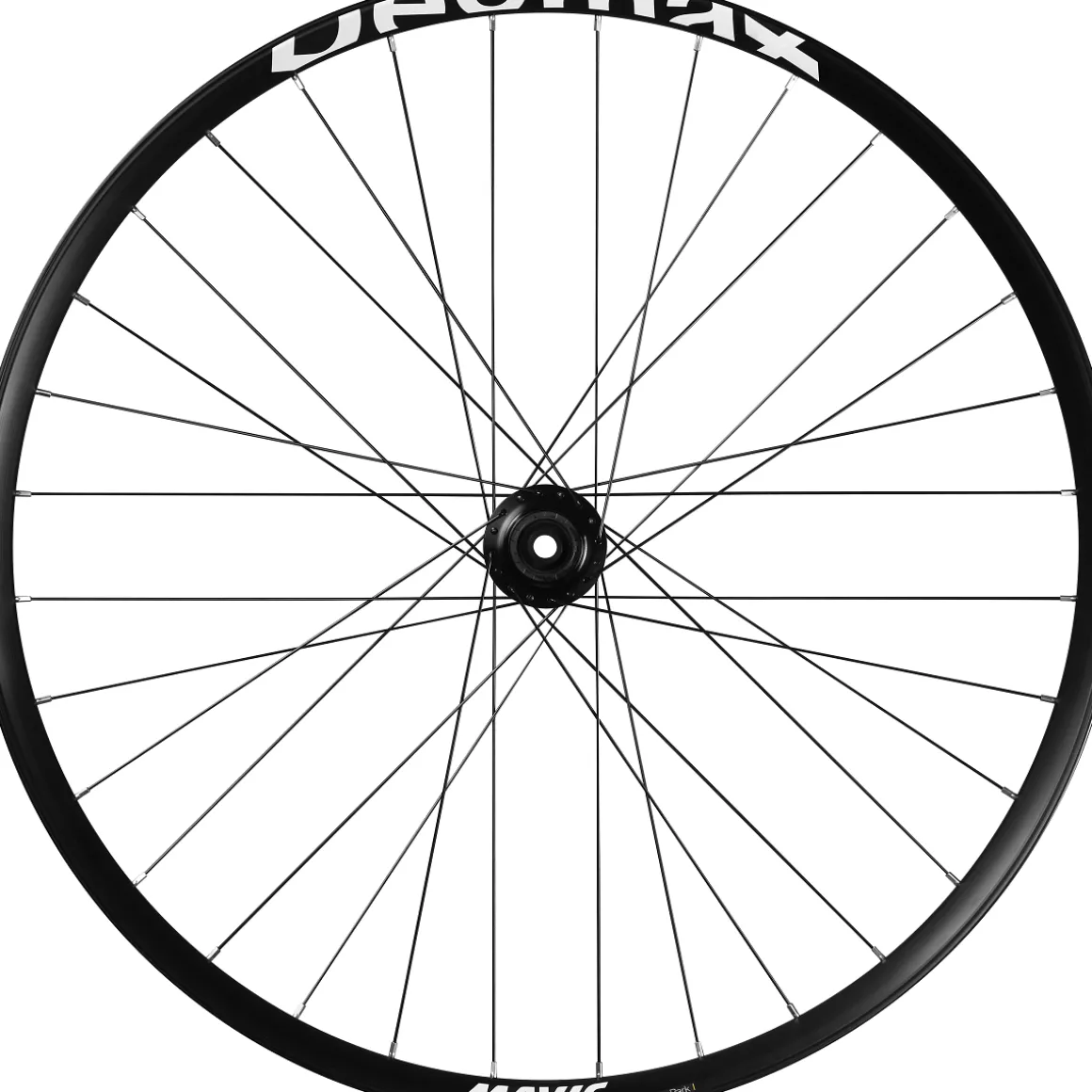

Deemax Park Disc 29“ MTB Rear Wheel BOOST SHIMANO HG 6 Bolt

If you like to put yourself and your equipment to the test in the bike park, on the trail or downhill, you should take a look at the Deemax Park MTB rear wheel from Mavic. After all, riding fun, robustness and easy repairability were at the forefront of the wheel’s development.

To this end, the Deemax Park is equipped with 32 J-bend spokes made of hardened steel, which can be replaced quickly and easily if necessary. In addition, the rim walls of the wheel are equipped with PFP technology (Pinch Flat Protection), in which the support surface of the rim flanges is so large that the risk of sidecuts during punctures is significantly reduced. For more stability, the rims are made from Maxtal aluminium and have an asymmetrical triangular profile that helps absorb hard impacts and shocks – from rough rock passages to hard landings and heavy compressions. Thanks to the 30 mm rim width for up to 3” wide tyres and tubeless-ready compatibility, the Deemax Park can also be ridden with lower tyre pressure to increase traction and control.

No half measures were taken with the hub either: Mavic’s Instant Drive 360 freewheel ensures lightning-fast propulsion with high durability. In addition, the self-aligning industrial bearings optimise the hub’s rigidity and power transmission as well as its ease of maintenance. Plus the wider hub flange spacing of the BOOST standard contributes to the high wheel stability. The best prerequisites to go full throttle in the bike park or on the trail and take every jump without worrying about your equipment. Because that’s exactly what the Mavic Deemax Park rear wheel is made for. Anything else would be a waste of time.

Top technologies:
PFP (Pinch Flat Protection) A specific rim design with a wide overhanging rim flange for more contact surface with the tyre, which is intended to minimise the risk of punctures in the event of punches or side contact.
Maxtal: Light and strong – this special aluminium alloy offers a better strength-to-weight ratio than conventional 6106 alloys.
UST tubeless technology: The Mavic standard for tubeless tyres not only improves traction, comfort and rolling resistance, but also reduces the risk of tyre defects.
SUP (Soudé Usiné Process): Particularly stable, arc-welded rim joint where the weld of the rim joint is perfectly flat milled for a seamless, smooth transition to achieve balanced rotation without brake vibrations.
QRM Auto (Qualité de Roulements Mavic Auto): Smooth-running, double-sealed and maintenance-free industrial bearings with high dimensional accuracy and self-adjusting bearing preload.
ID 360 Instant Drive: A lightweight and low-friction Dual Ratchet freewheel system with a fast 9° engagement angle. Thanks to the modular hub design, it offers high compatibility with common axle types and freewheel standards.

Technical details:

Rim material: Maxtal aluminium
UST tubeless ready
Rim seam: SUP (welded)
Rim profile: hook rim (Hook Type) with asymmetric rim profile
Rim width: 36 mm
Rim depth: 22 mm
Inner rim width: 25 mm
ETRTO: 622 x30 TC (29″)
For Presta valve (Ø 6.5 mm)

Spokes: cranked round spokes
Spoke material: steel
Number of spokes: 32 pieces
Lacing: 3-cross
Nipples: steel, ABS (self-locking)

Hub material: aluminium hub body, aluminium axle
Brake disc mount: IS 6-bolt
Freewheel: robust Instant Drive 360 freewheel system (toothed disc system)
Compatibility: 8-/9-/10-speed SHIMANO/SRAM cassettes as well as SHIMANO 11-speed MTB
Bearings: self-adjusting, sealed cartridge bearings (QRM Auto)
Hub width: 12 x 148 mm (BOOST thru axle)

Weight: approx. 1328 g
Recommended tyre width: 2.35“ – 3.00“ (60 – 76 mm)
Recommended max. system weight: 150 kg (cyclist, bike, gear and luggage)
Intended use – ASTM category 5: for use in extremely steep and rough terrain with very large jumps/steps as well as very high speeds by riders with extremely good riding skills (bike parks, downhill tracks, dirt jump etc.)

In the box:
1 Deemax Park Disc 29″ MTB rear wheel BOOST SHIMANO HG 6 bolt incl. tubeless rim tape
1 Mavic UST valve

Note:
Mavic UST wheels may also be used with inner tubes in the standard version.
Please make sure to fill the tyre with sufficient sealant before using the Mavic UST wheels tubeless!
