Crossride UB MTB Front Wheel 26" Rim Brake QR

With the Crossride UB MTB front wheel, Mavic offers modern technology for high performance and better handling, even for classic 26″ MTBs with rim brakes. And with a real Mavic look. Its UB rim is specially designed for rim brakes. It impresses with a better braking performance and hardened rim drillings for maximum stability and durability. With 20 aero spokes, it rotates on the robust aluminium hub body around the steel axle with sealed cartridge bearings.

The radial lacing at the front wheel ensures the necessary stiffness for controlled agility on winding roads or in technically demanding terrain. This proven system wheel does not need to fear somewhat tougher use. The Mavic Crossride UB MTB front wheel combines quality, efficiency and reliability.

Top technologies:
UB Control (Usiné Brut Control): Subsequently machined rim flanges improve braking efficiency and prevent unpleasant brake judder.

QRM Auto (Qualité de Roulements Mavic Auto): Smooth-running, double-sealed and maintenance-free industrial bearings with high dimensional accuracy and self-adjusting bearing preload.

H2 (Hammer Hardening): Special cold work hardening in the critical spoke hole area where the load is highest.

Technical details:
Rim material: S6000 Aluminium
Wheel size: 26″
Tubeless ready: no
Rim profile: hollow chamber (symmetrical)
Rim seam: pinned
For rim brakes
CNC machined aluminium rim flanges (UB Control)
Rim width: approx. 22 mm
Rim depth: approx. 19 mm
Inner rim width: 17 mm
ETRTO: 17 – 559
For Schrader valve (Ø 8.5 mm)

Spokes: straight, aero profile
Spoke material: steel
Number of spokes: 20 pcs
Spoke pattern: radial
Nipples: steel, self-locking

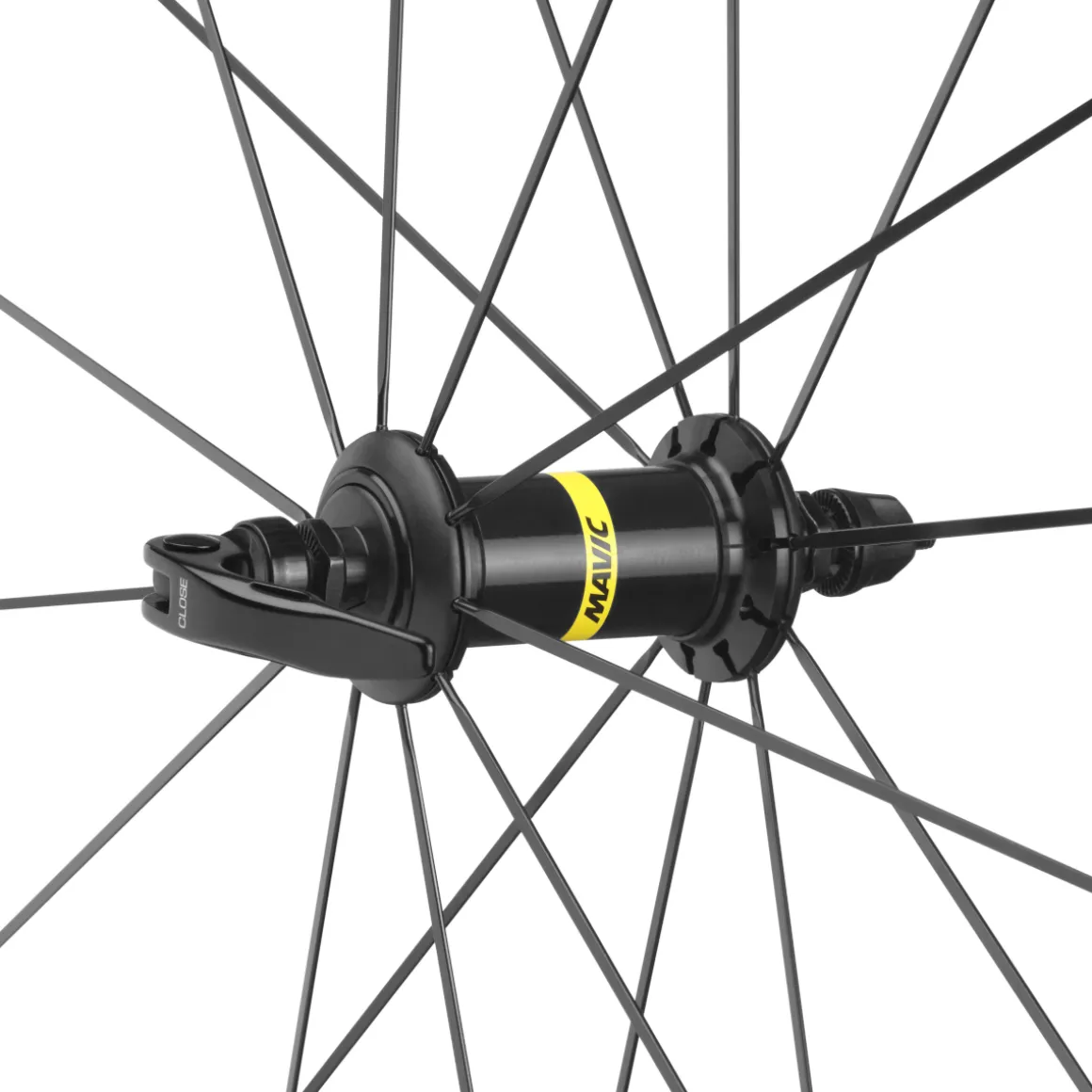

Hub material: aluminium hub body, steel axle
Bearings: self-adjusting, sealed cartridge bearings (QRM Auto)
Hub width: 9 x 100 mm (quick release)

Weight: approx. 780 g
Recommended tyre width: 1.0“- 2.1“ (25-53 mm)
Recommended max. system weight: 120 kg (cyclist, bike, gear and luggage)
Intended use – ASTM Category 3: For off-road use with jumps up to 61 cm

In the box:
1 Mavic Crossride UB MTB front wheel 26″ for rim brake
1 Mavic BR101 quick release

Note:
The Crossride UB front wheel is only suitable for rim brakes.
Only for frames and forks with quick-release dropouts.
