CONE 2.0 for SHOCKBLADE and SHOCKBOARD Front Mudguard

The CONE 2.0 from SKS is required to attach an SKS SHOCKBLADE or SHOCKBOARD front mudguard to the bike fork.

Details:
Expanding cone for mounting SKS SHOCKBLADE or SHOCKBOARD

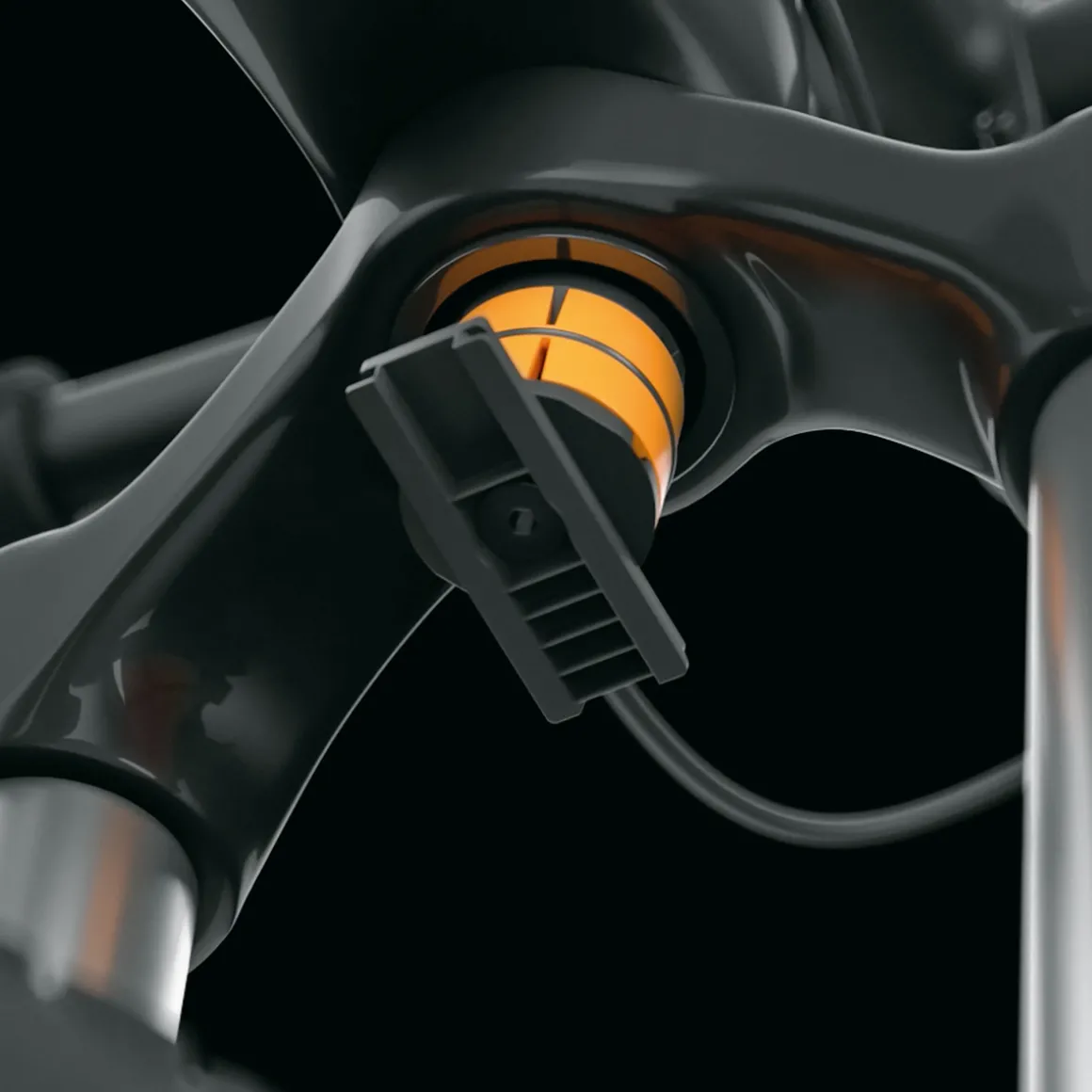

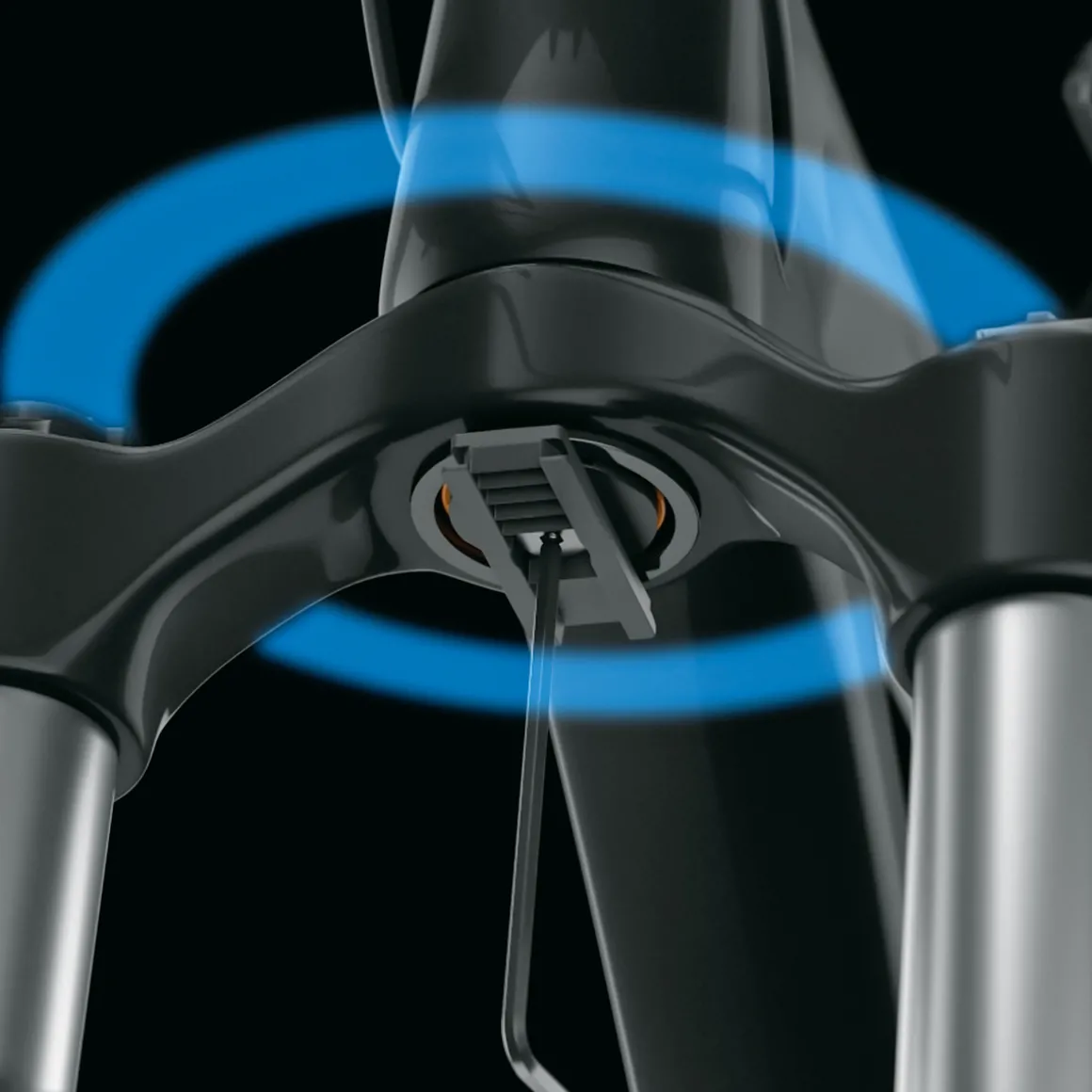

Is clamped in the opening in the lower end of the steerer tube
For steerer tube inner diameter up to 39 mm (1.5”)

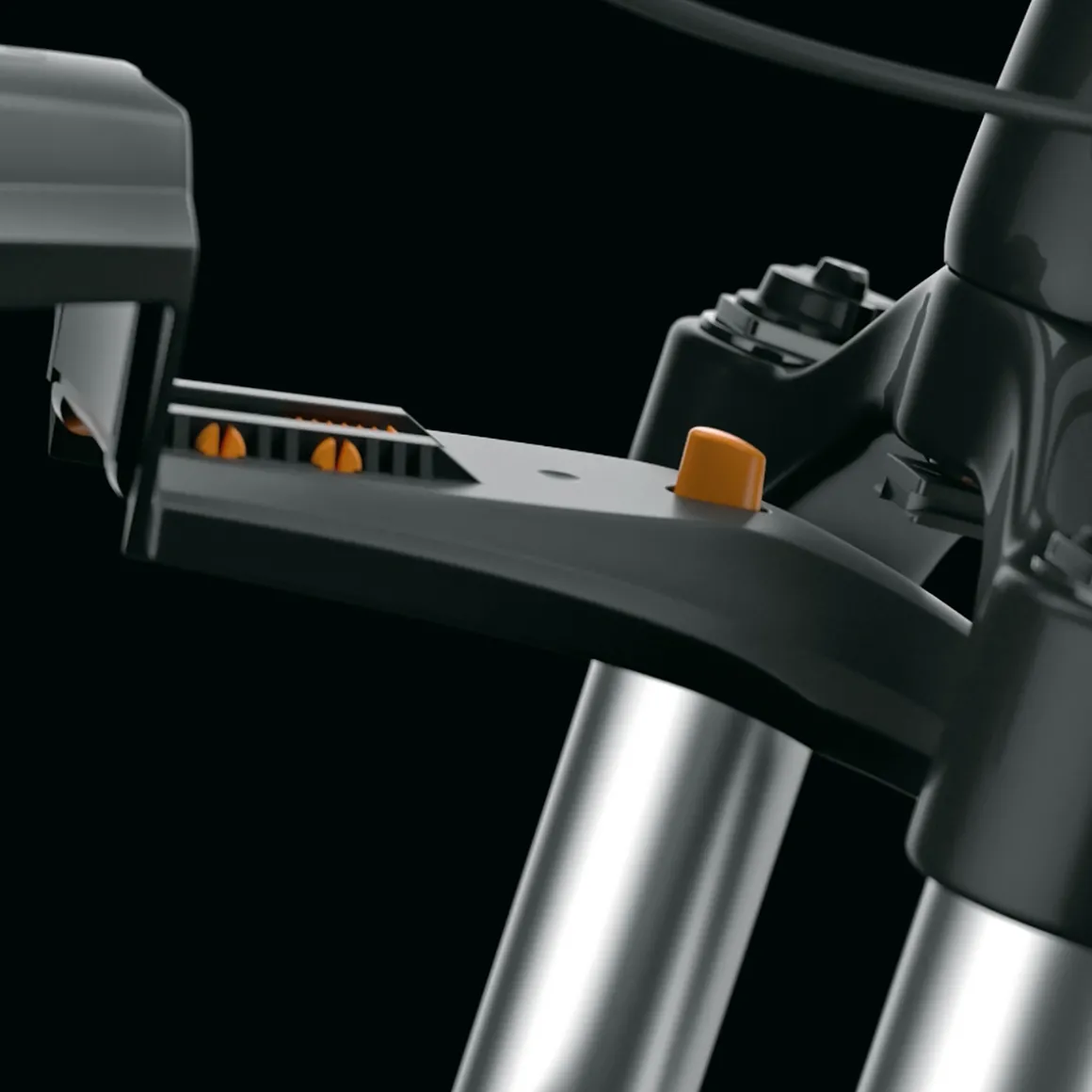

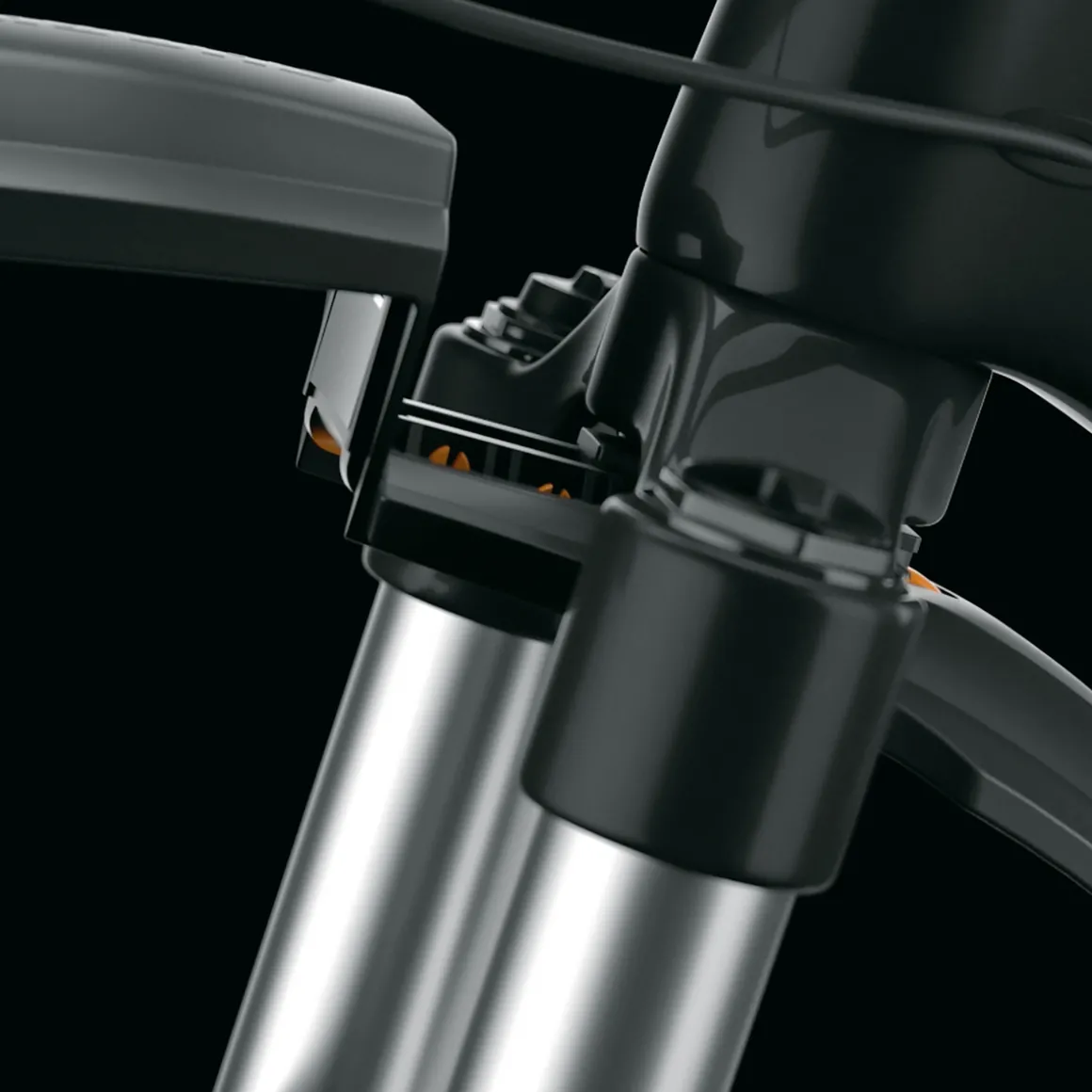

Incl. three adapter rails for mudguard attachment

Technical details:
Material: plastic, rubber, steel
For steerer tube inner diameter: 19 mm-39mm

In the box:
1 large expanding sleeve (29-39 mm inner diameter)
1 small expanding sleeve (19-29 mm inner diameter)
2 large cones
2 small cones
1 large rubber ring
1 small rubber ring
3 adapter rails (short, medium, long)
1 mounting bolt
1 hexagon nut
1 hex wrench

Tip:
Please follow the installation instructions. You will also find an installation video below the item description.

Compatible products in the ROSE product range:
SKS Germany Shockblade front mudguard (prod. code: 2253021)
SKS Germany SHOCKBOARD MTB front mudguard (prod. code: 1819317)
SKS Germany Shockboard XL front mudguard (prod. code: 2080453)
