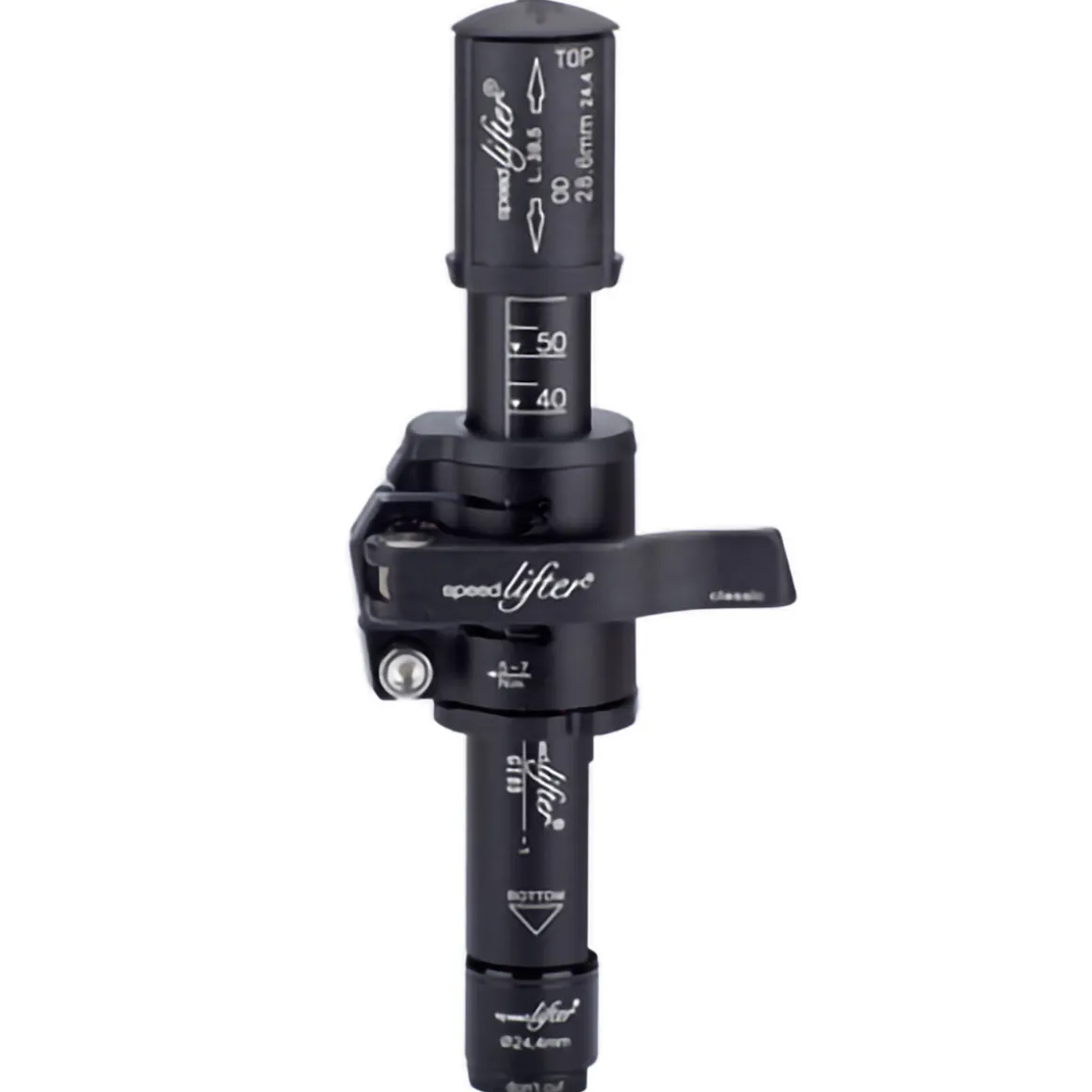

Classic T-6

The Speedlifter Classic from by,schulz is the solution for quick and easy handlebar height adjustment on your bike!
In the T-6 version, the practical handlebar lift comes with an height extension of up to 60 mm. This works within a matter of seconds and without any tools. Simply open the quick-release – pull up – close the quick-release – done!

Details:
Version for threadless aluminium steerer tubes (!)
Precise, tool-free height adjustment of the handlebar in just a few seconds thanks to the quick-release lever
Safe, permanent anti-twist protection for the handlebar unit
Individually adjustable in the stand without tools
E-bike ready

Technical details:
Material: 6061-T6 Aluminium
For steerer tube material: Aluminium (!)
Required steerer tube length: min. 46 mm above top edge of headset
Pull-out height: 60 mm (T-6)
For steerer tube outer Ø: 28.6 mm (1 1/8″)
For steerer tube inner Ø: 24.4 mm
For stems with shaft clamp Ø: 28.6 mm (1 1/8″)
Height of the reduction sleeve (clamping surface for the stem): 39.5 mm
Weight: approx. 283 g

In the box:
1 by,schulz Speedlifter Classic T-6

Note:
The steerer tube must be drilled and slotted for installation!
To mark the slots and holes on the steerer tube, we recommend the optionally available SimpleDraw tool (prod. code: 221689) or the Profi-Cut tool for professional use (prod. code: 199100).
