CF Allroad Pro Carbon Setback Seatpost Leaf Spring

With the innovative CF Allroad Pro Carbon Setback seatpost from ERGON, you can ride comfortably and enjoy a genuine road bike feel, even on rough surfaces. And all this with perfect aesthetics and very low weight. The carbon leaf spring seatpost has a 25 mm offset and combines a slim, maintenance-free mechanism with a highly sensitive response. The design works together with the floating pivot Flip Head to secure the angle of the saddle angle during compression and ensure an even, round movement for optimum performance.
Compared to conventional suspension seatposts, the parallel leaf spring concept of this two-piece VCLS seatpost has an optimum physical interaction between the direction of impact and the direction of compression, as they lie on the same rail. This allows for a defined flex of up to 20 mm. For an optimal fit on the bike, the saddle position can be fine-tuned by turning the Flip Head so that you sit perfectly. With the CF Allroad Pro Carbon Setback seat post by ERGON you get the maximum comfort and performance out of your time in the saddle.

Details:
Lightweight suspension seatpost in modern design
Intended use: Road, Allroad, Gravel
Extra comfort noticeable even on rough terrain
Defined flex due to two VCLS leaf springs made of CFRP
Curved travel in the direction of force application
Sensitive feedback
Parallel construction with double bearing head piece
Maintenance-free and durable

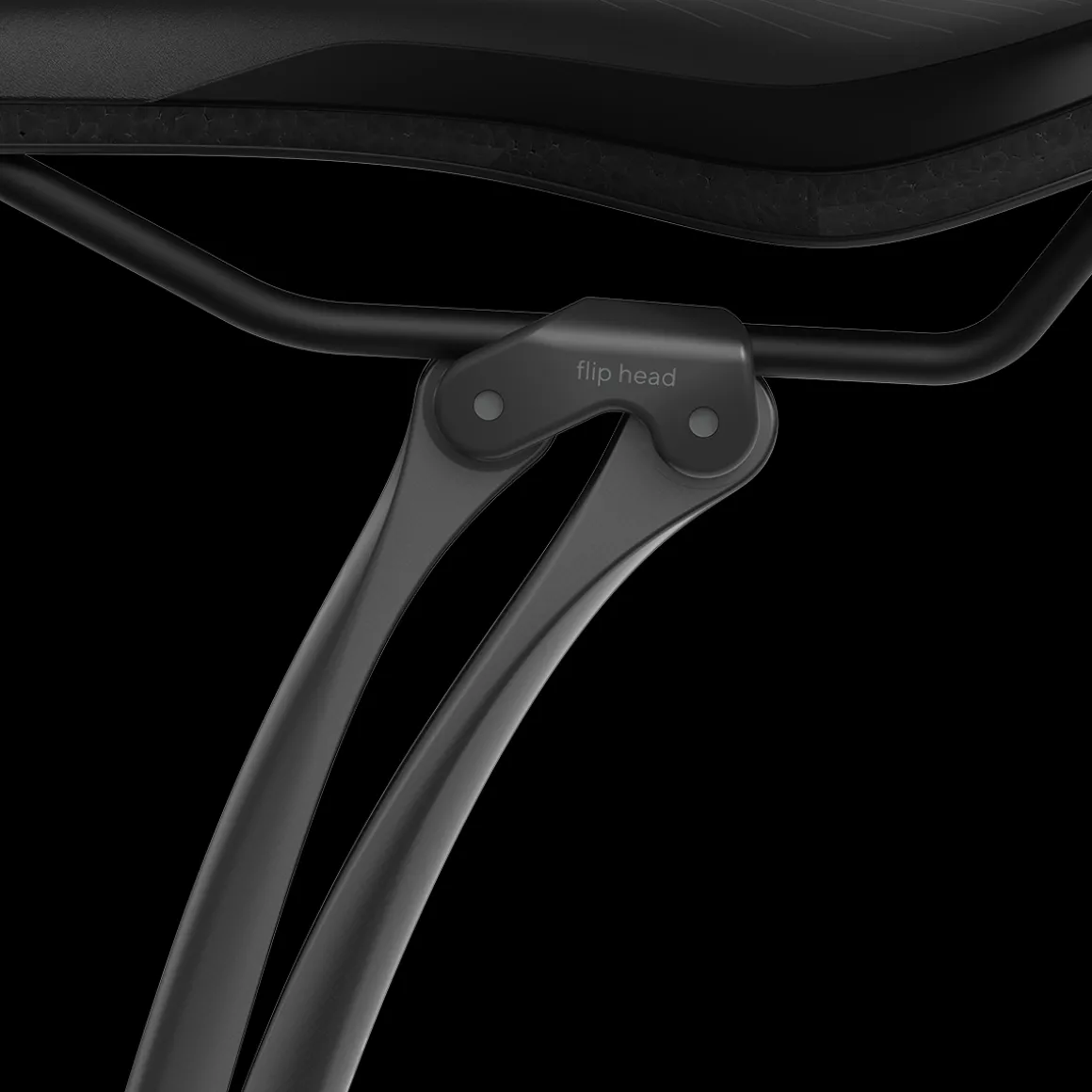

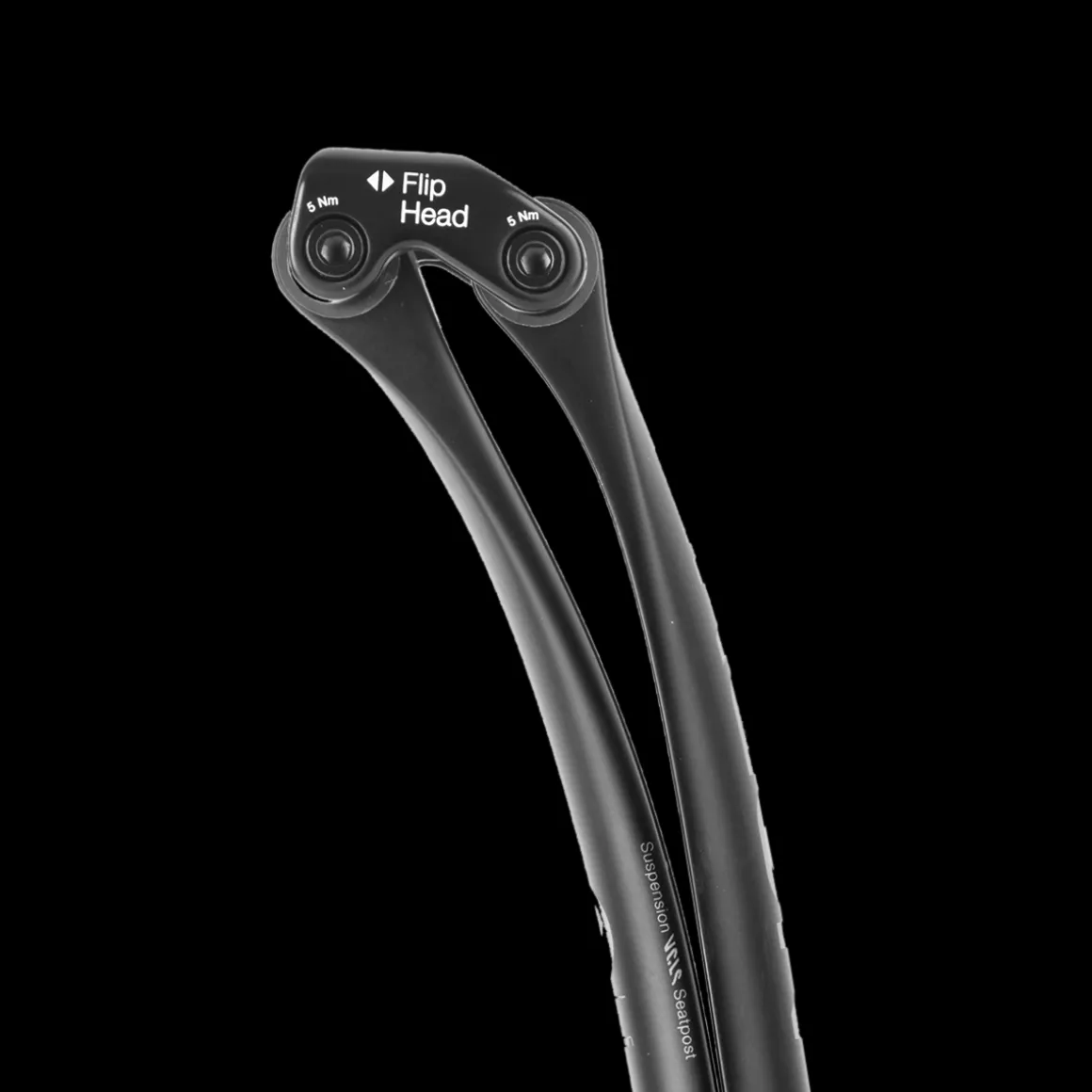

Flip head prevents change of saddle tilt during compression
Extended clamping range by turning the asymmetric flip head

Technical details:
Material: carbon fibre composite
Seatpost Ø: 27.2 mm
Length: approx. 345 mm
Weight: approx. 220 g

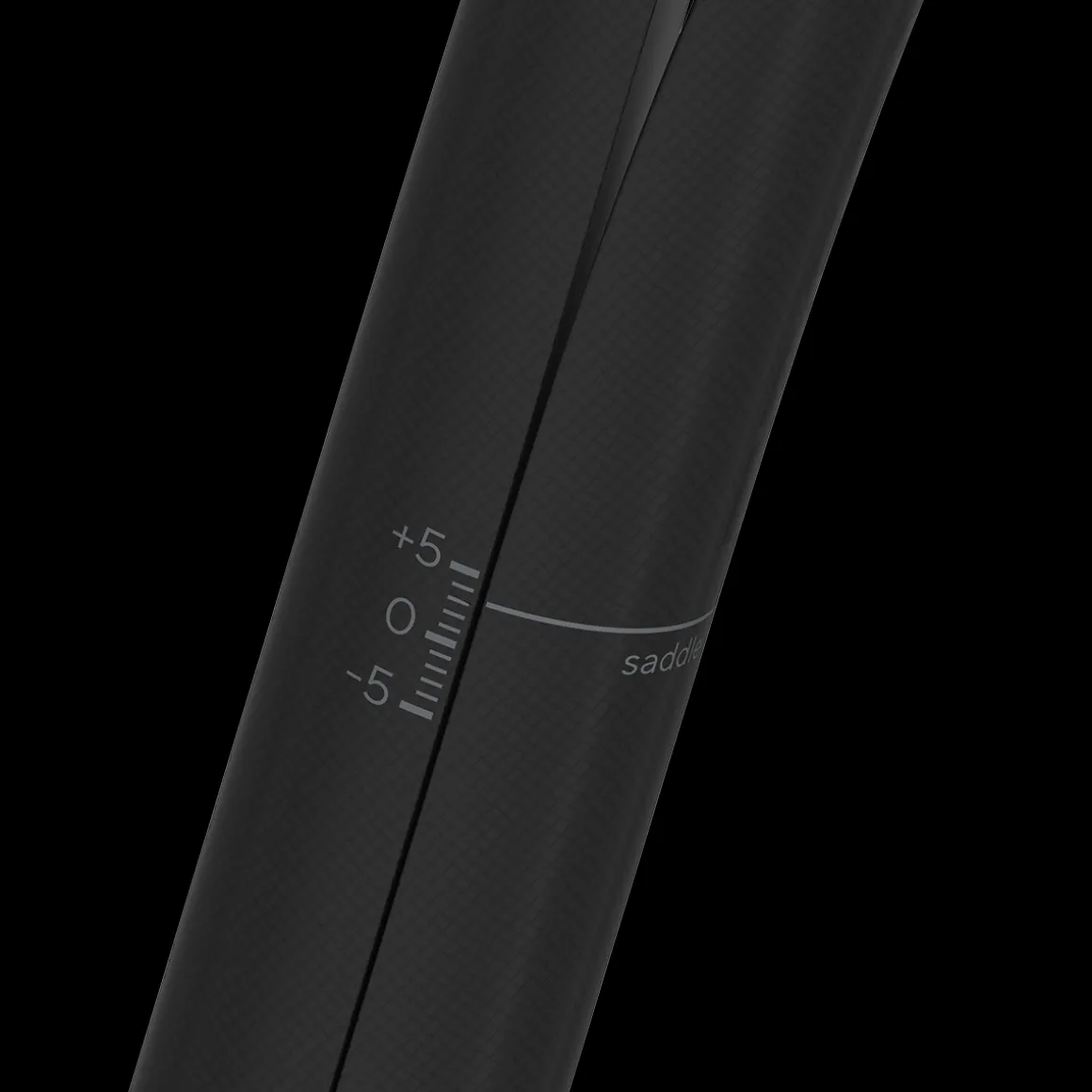

Insertion depth: 110 mm (min.), 210 mm (max.)
Travel: up to 20 mm
Offset (setback): 25 mm
Offset flip head clamping range: 12 mm
Saddle clamp: 7 x 7 patent (standard)
Max. rider’s weight: 100 kg

In the box:
1 ERGON CF Allroad Pro Carbon Setback leaf spring seat post

Attention:
Not suitable for oval carbon saddle rails (7 x 9 mm).
