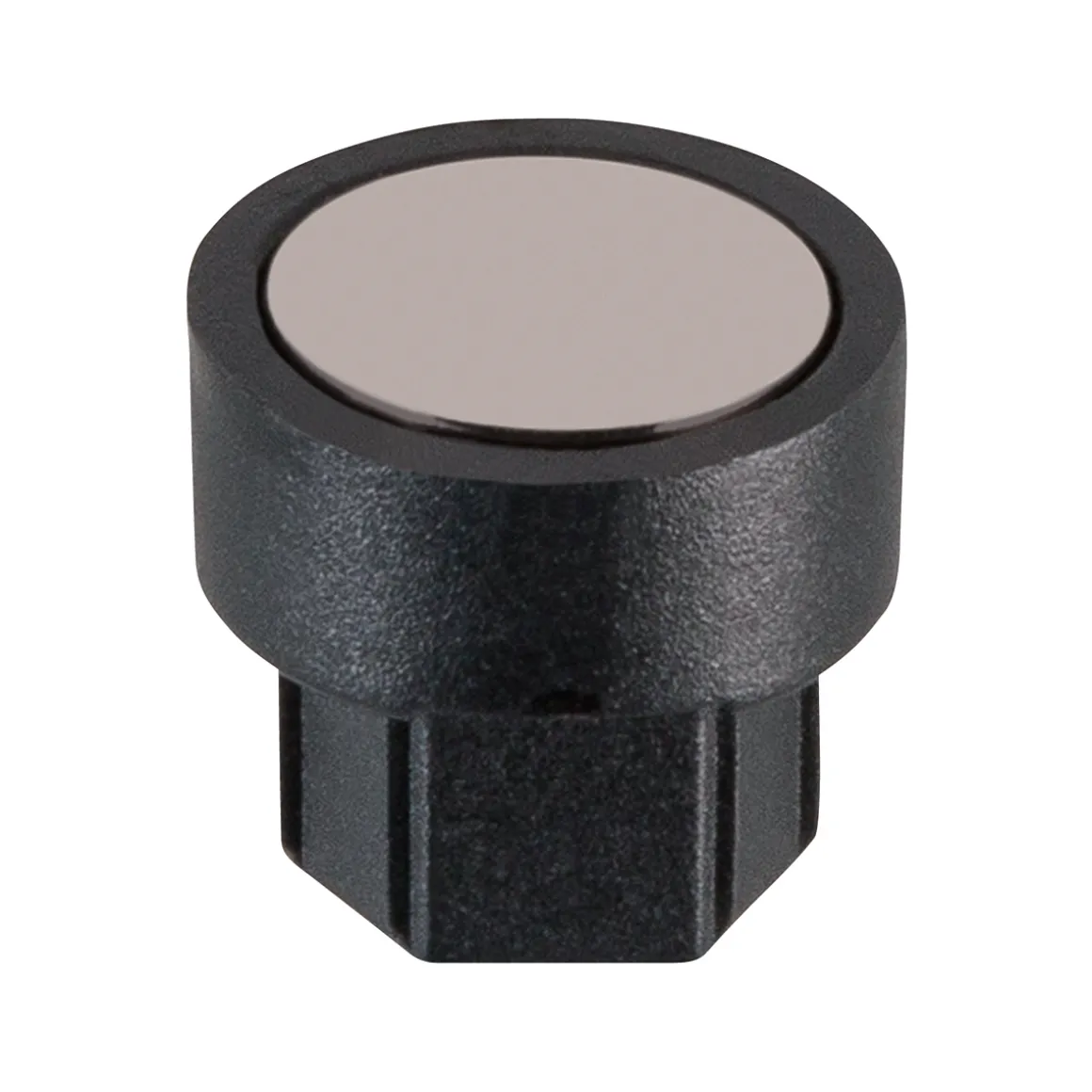

Cadence Magnet for Sigma Originals Series

Original Sigma spare part for ATS wireless bike computers from the Sigma Originals series (BC 5.0/8.0/10.0 WL). The Sigma cadence magnet is inserted into the hexagon socket of the pedal axle and forms the matching counterpart to the Sigma STS cadence transmitter (prod. code 2326354). Two plastic sleeves for 6 mm and 8 mm hexagon socket dimensions are included in the delivery.

Details:
Cadence magnet for Sigma Originals bike computer
Tool-free mounting on the pedal axle
Two mounting sleeves for different hexagon socket dimensions
Can also be used for steel pedal axles without mounting sleeve

Technical details:
Model series: Sigma Originals (2022 model year)
Sigma part number: 00539
For cadence transmitter: Sigma STS MY2022 (prod. code 2326354)
For pedal hexagon socket: 6 mm; 8 mm
Transmitter/magnet spacing: max. 10 mm

Compatibility:
Sigma BC 12.0 WL (prod. code 2323374)
Sigma BC 12.0 WL CAD (prod. code 2323375)
Sigma BC 14.0 WL (prod. code 2323377)
Sigma BC 14.0 WL CAD (prod. code 2323378)

In the box:
1 Sigma Magnet Cadence
2 mounting sleeves
