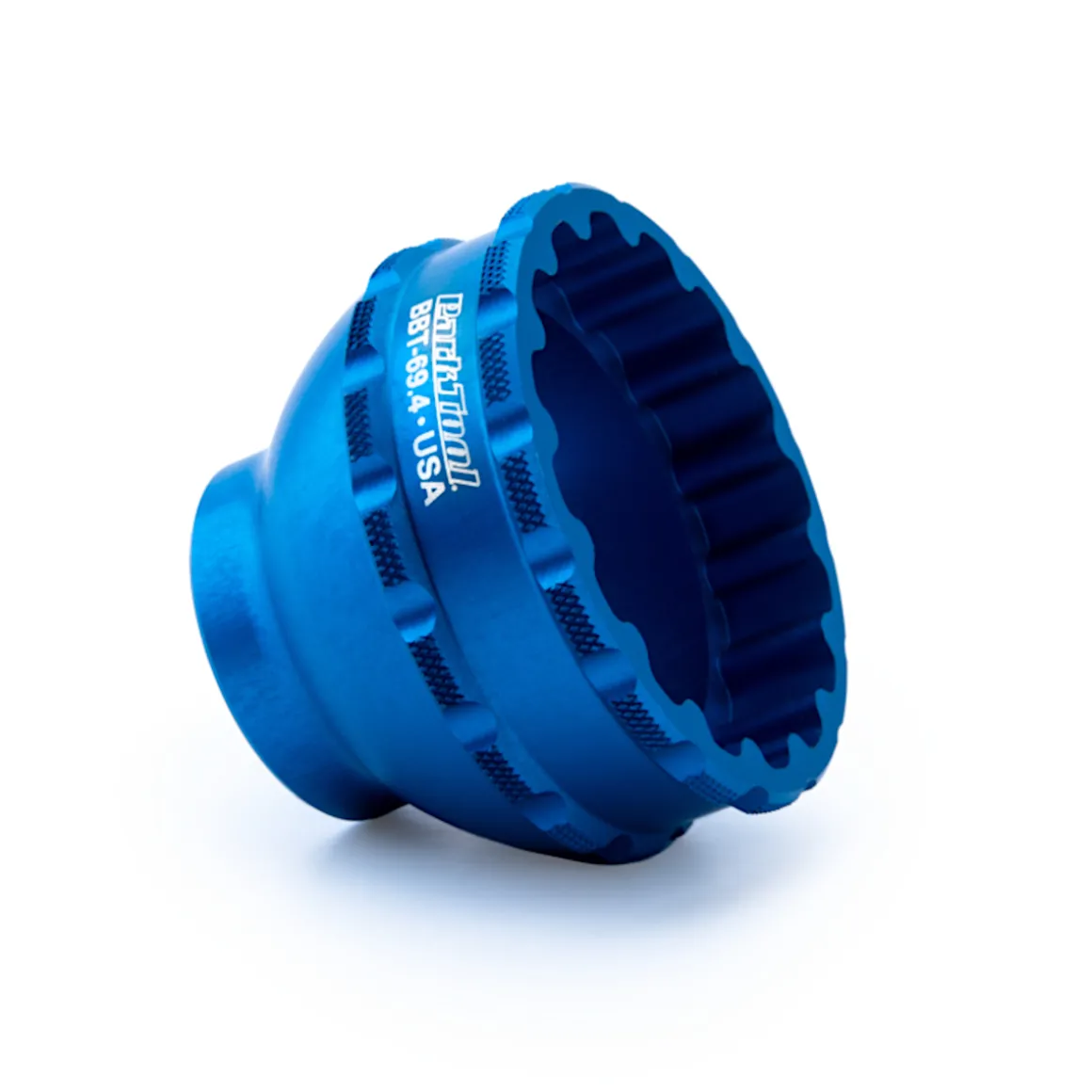

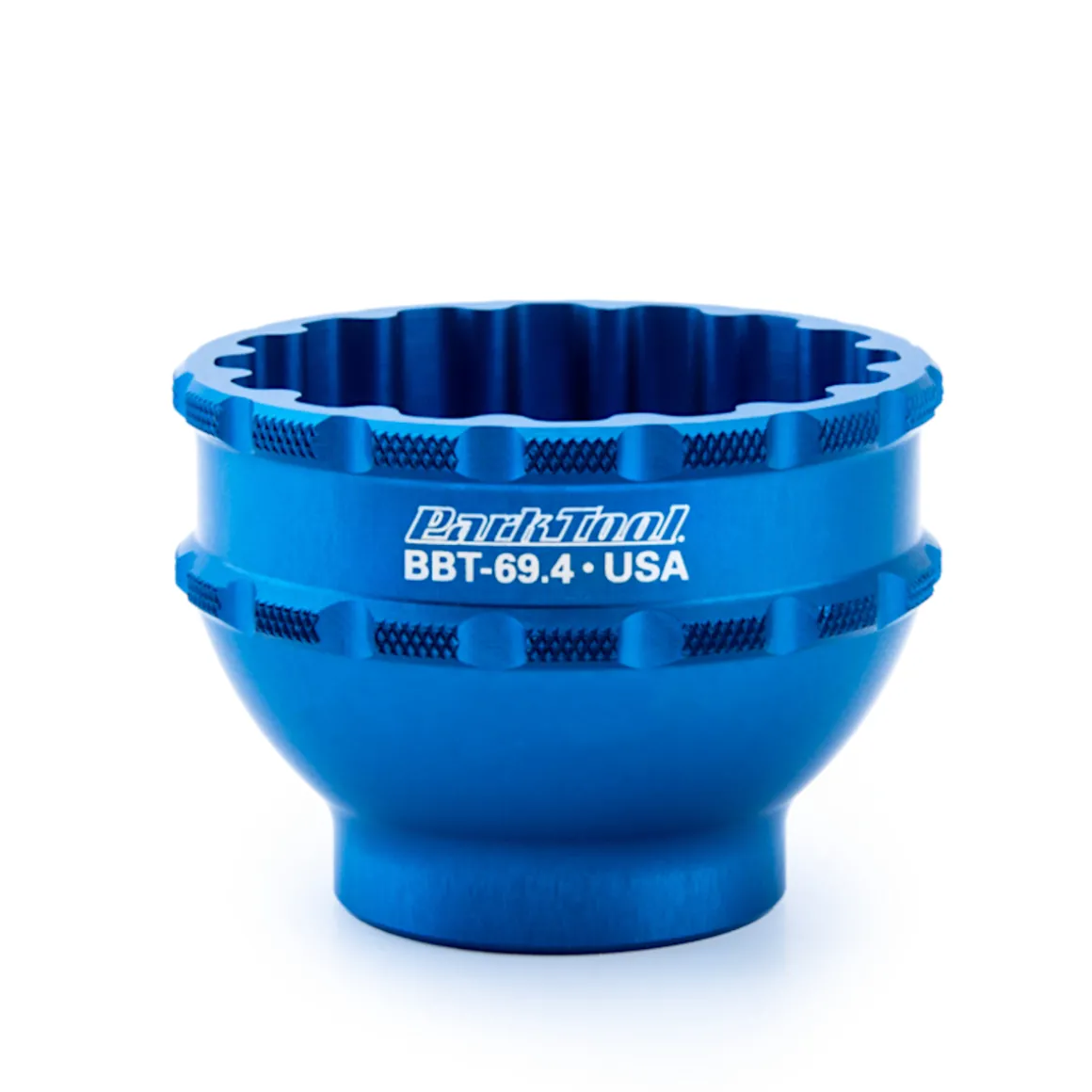

BBT-69.4 Bottom Bracket Tool BB

With Park Tool you will find the right BB tool for every bottom bracket standard. The BBT-69.4 bottom bracket tool fits exactly on compatible bearing cups and impresses with its high-grade material and manufacturing quality.

Compared to the BBT-69.3 tool attachment, the 4th update has a deeper bell and thus an even wider range of applications.  Bearing cups and Centerlock brake discs can now be operated in the same way as mid-drive motor locking rings. Use the square taper ratchet with the 16-toothed aluminium attachment for professional work on your bike’s bottom bracket.

Details:
CNC-milled precision tool with excellent fit
Slip-on spanner for bearing shells with 16 notches

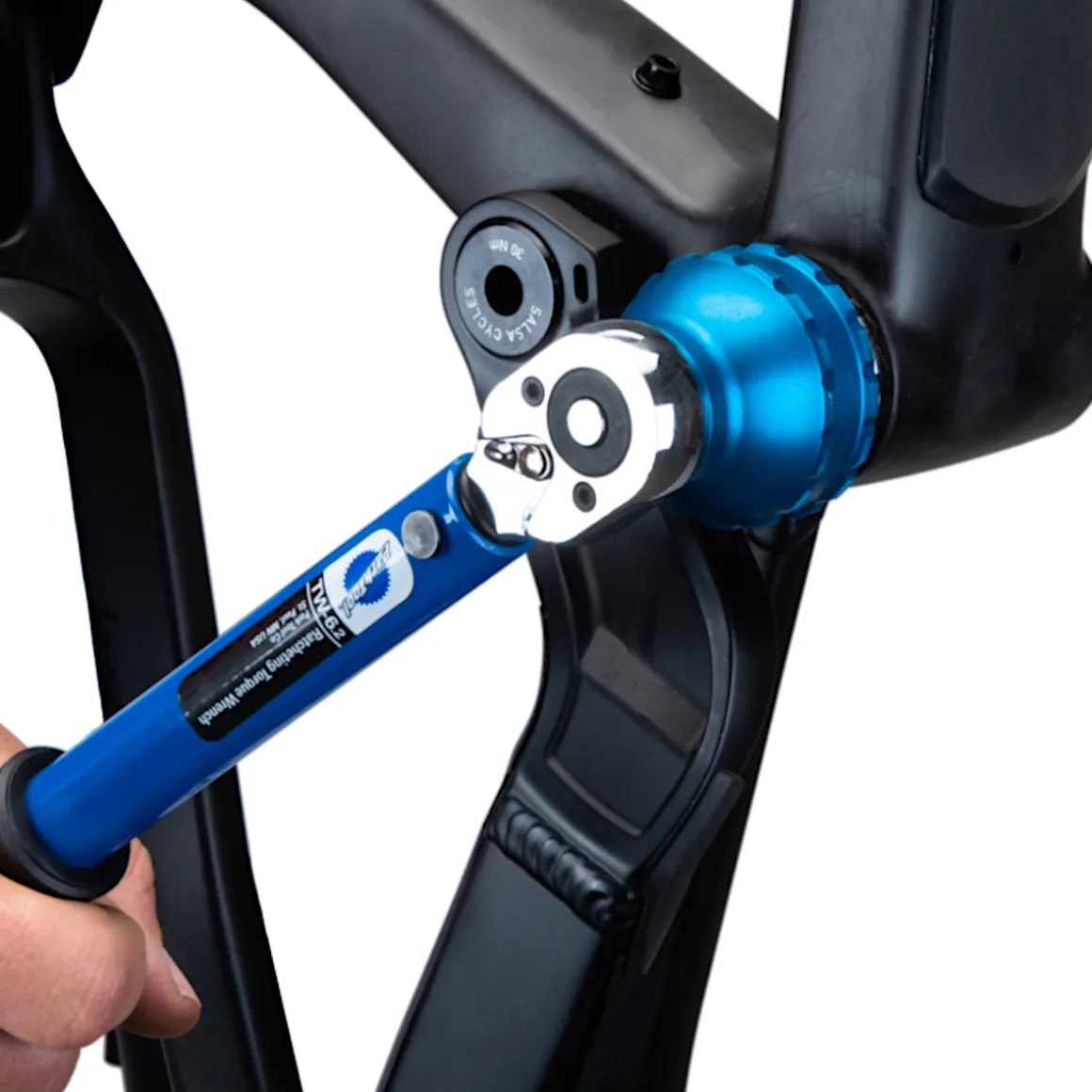

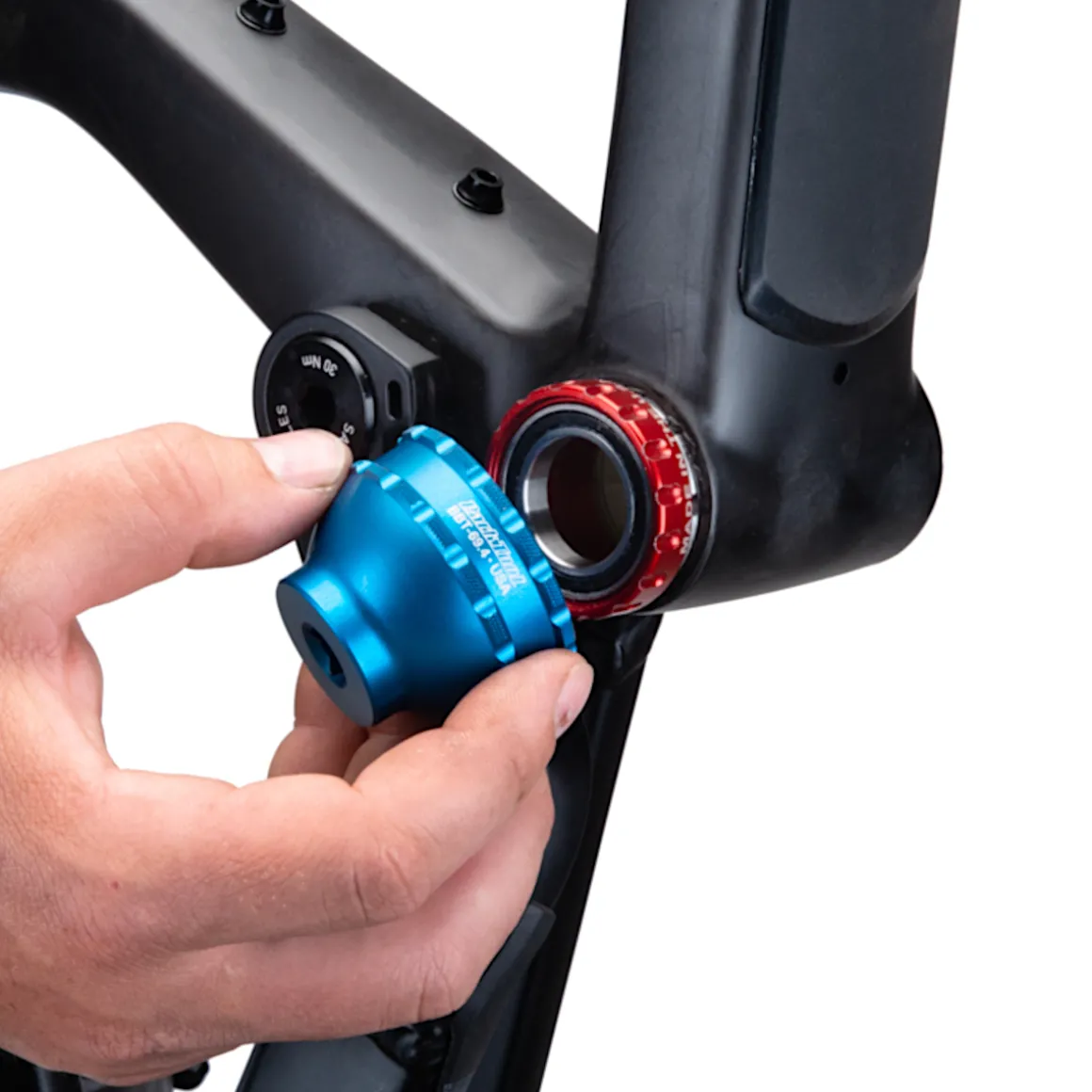

Designed for the installation and removal of BB bottom brackets

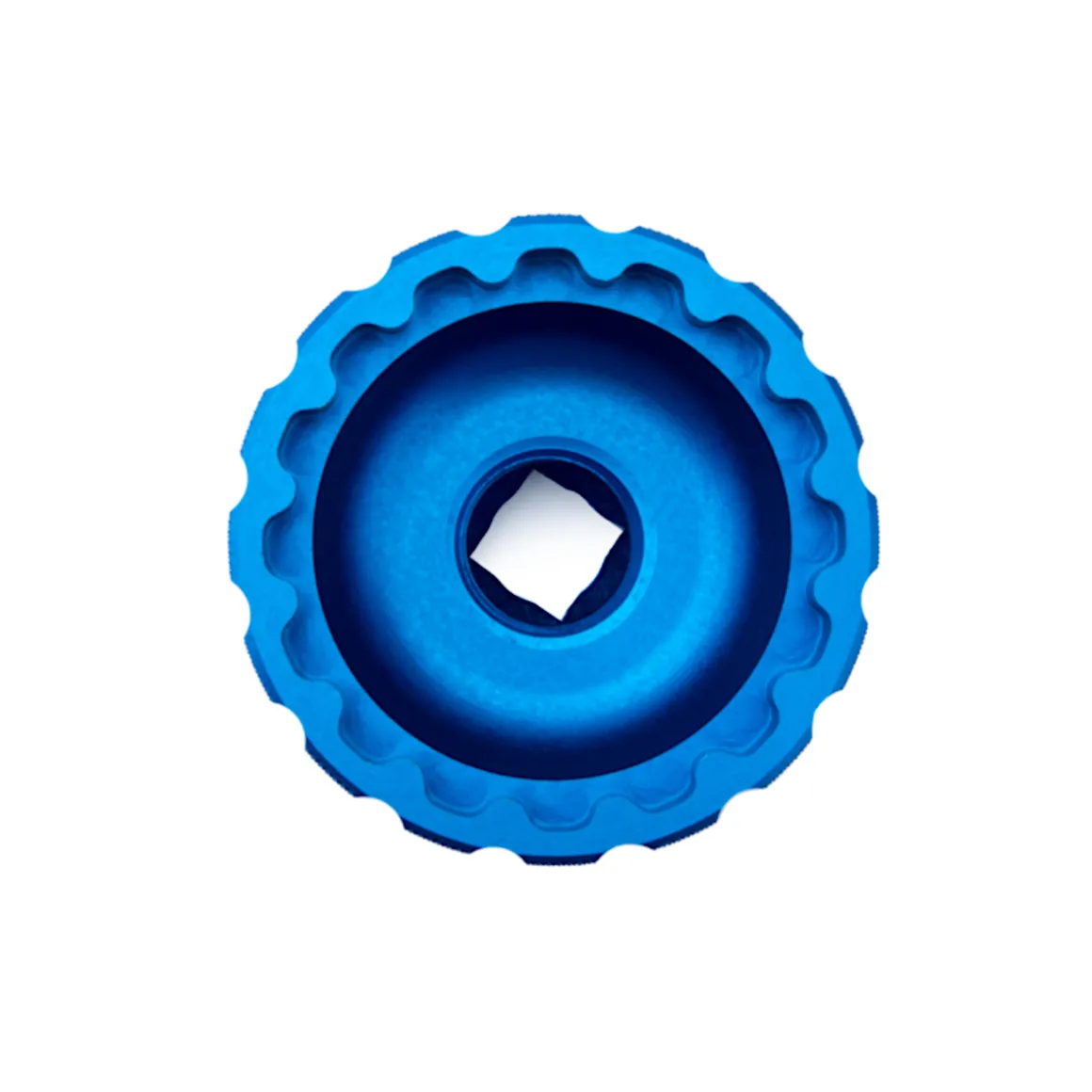

3/8” square driver
Non-slip side ribbing
Abrasion-resistant, white-lined size engraving
Durable workshop quality

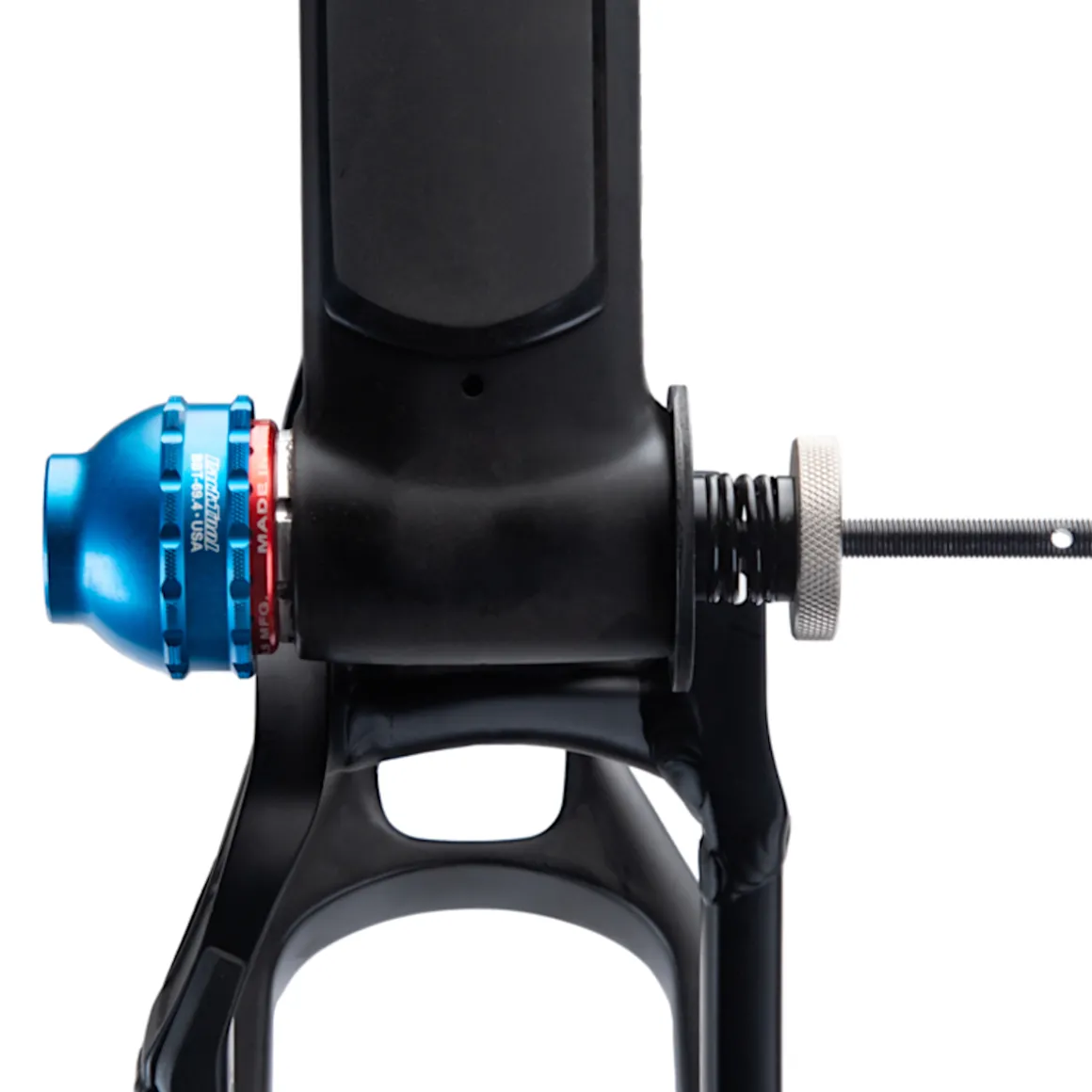

With internal thread suitable for the Park Tool BBT-RS bottom bracket tool holding system (prod. code 2333460)
Suitable for Shimano® BB80, BB5700, XT® BB70, BB51 and earlier bearing cups with external thread
For bottom bracket cups with thread from Campagnolo®, Chris King®, FSA® MegaExo®, Hope™, SRAM®/Truvativ® GXP®, Race Face® X-Type, Surly®, Wheels®, Fulcrum® and others
For lockrings of Bafang BBSH, BBS02 mid-drive motors

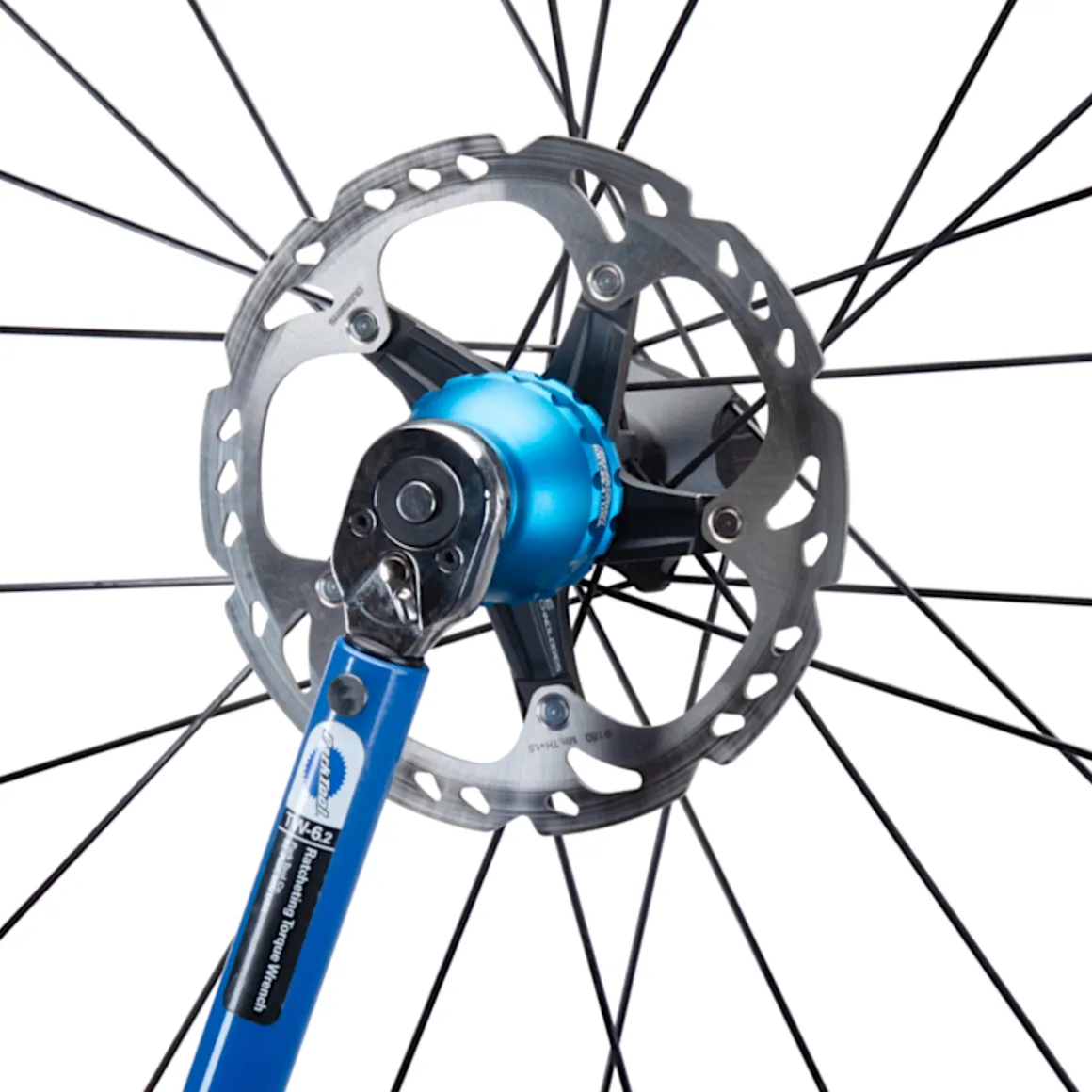

Fits compatible Centerlock brake disc locks

Technical details:
Main inner Ø: for 44 – 45 mm
Small inner Ø: 42.7 mm
Material: aluminium, blue anodised
Dimensions: approx. Ø 49 x 42 mm
Weight: approx. 140 g

In the box:
1 Park Tool BBT-69.4 bottom bracket tool

Compatibility (suitable for, among others):
ACS® Crossfire™
Answer® BMX ceramic
BBInfinite™: BSA thread, Italian thread, T47 (drive side)
Box® Components: Extremum RacePrep™, Two™ 24 mm
Campagnolo®: Ekar Pro-Tech™ BSA and Italian thread, Ekar Pro-Tech™ T47 x 68, Power Torque™, Ultra-Torque®
CeramicSpeed®: BB30 Shimano® and GXP®, Shimano® and GXP® with BSA thread, Campagnolo® Ultra-Torque® T47 with BSA and Italian thread, T47/68 Shimano®, GXP® and Campagnolo® Ultra-Torque®
Chris King® ThreadFit™ 24 mm
Enduro®: BB30/30a TorqTite® GXP® 24 mm and Campagnolo® Ultra-Torque®, BB86/92 TorqTite®, BBright™ TorqTite® (drive side), BSA thread 24 mm, Italian thread 24 mm, T47 GXP® 24 mm, Campagnolo® Ultra-Torque®
FSA® MegaExo®
Fulcrum®
Hambini™ BSA
Hawk Racing™: BSA thread, Italian thread
Hope™ BSA 24 mm
IRD® ScramJet™
Kogel™ BSA GXP®
Origin8® Torqlite™
Phil Wood™ BSA
Praxis Works®: M24, Shimano®
Profile Racing® Euro
Race Face® X-Type BSA 24 mm
Rotor®: BSA GXP®, BSA Shimano®, T47 extern 24 mm
Shimano®: All except Dura-Ace®, XTR®, Ultegra® BBR60, Deore XT® MT800
SRAM® GXP®
SunRace® BB-497
Suntour® BB-BKA008-C
Surly® O.D.
Token®: BB841T-41, BB841T-42, BB841T-42A, BB841T-46, BB841T-46A, BB4124C, BB4129QB, BB4130QB, T47R24, T47RGXP, TK877, TK878
Truvativ® GPX®
Velo Orange® threadless repair bearings
Wheels Mfg™: BB30, BB30A, BSA thread DUB® and 30 mm, BSA thread GXP® and 24 mm, PF30 outer bearing GXP® and 24 mm, T47 outer bearing GXP® and 24 mm
White Industries™: BBE22T47, BBE24BSA, BBE24T47
