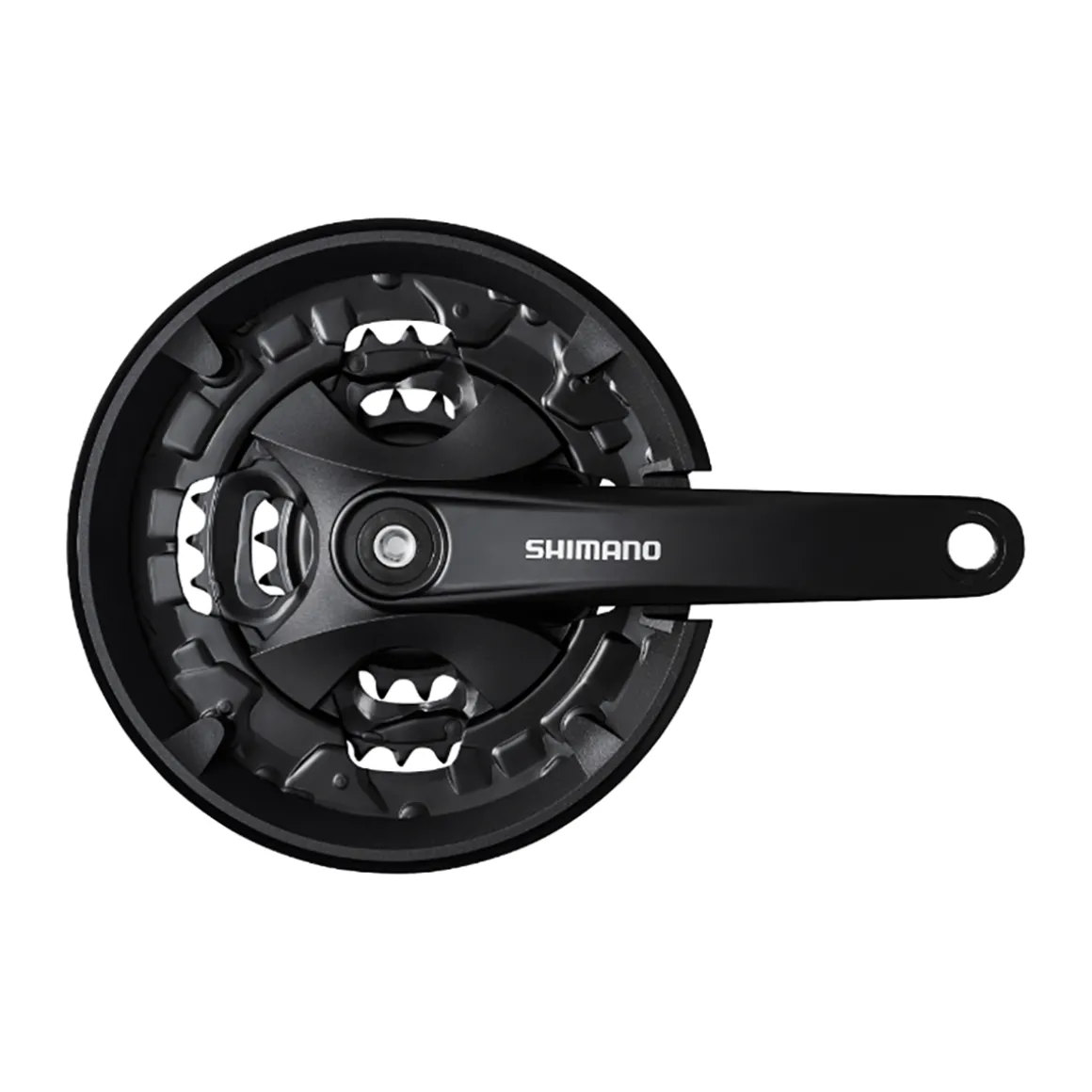

ALTUS FC-MT101 3×9 Speed Crankset

SHIMANO’s ALTUS square taper crankset FC-MT101 is designed for 3×9 drivetrains. The tried and tested HYPERDRIVE technology ensures smooth and precise shifting.

Details:
Version with trouser guard
Smooth and precise shifting at a low price

Technical details:
Intended use: MTB/Hybrid
Series: ALTUS M2000
Model: FC-MT101
Type: JIS square (required axle length 122 mm)
Material: aluminium, plastic, steel
Gear steps front: 9-speed
Gear steps rear: 9-speed
Gear ratio: 40-30-22 teeth (with chain guard)
Bolt circle: riveted
Chainline: 50 mm (for 135/142 mm spacing)
Q factor: 172.9 mm
Compatible chains: SHIMANO 9-speed HG

Available with crank arm length:
170 mm
175 mm
Please indicate your choice.

In the box:
1 SHIMANO ALTUS FC-MT101 crank, square taper, 3×9 speed
WITHOUT bottom bracket!

Tip:
For SHIMANO’s BB-UN300 square taper bottom bracket see prod. code: 2299038.
