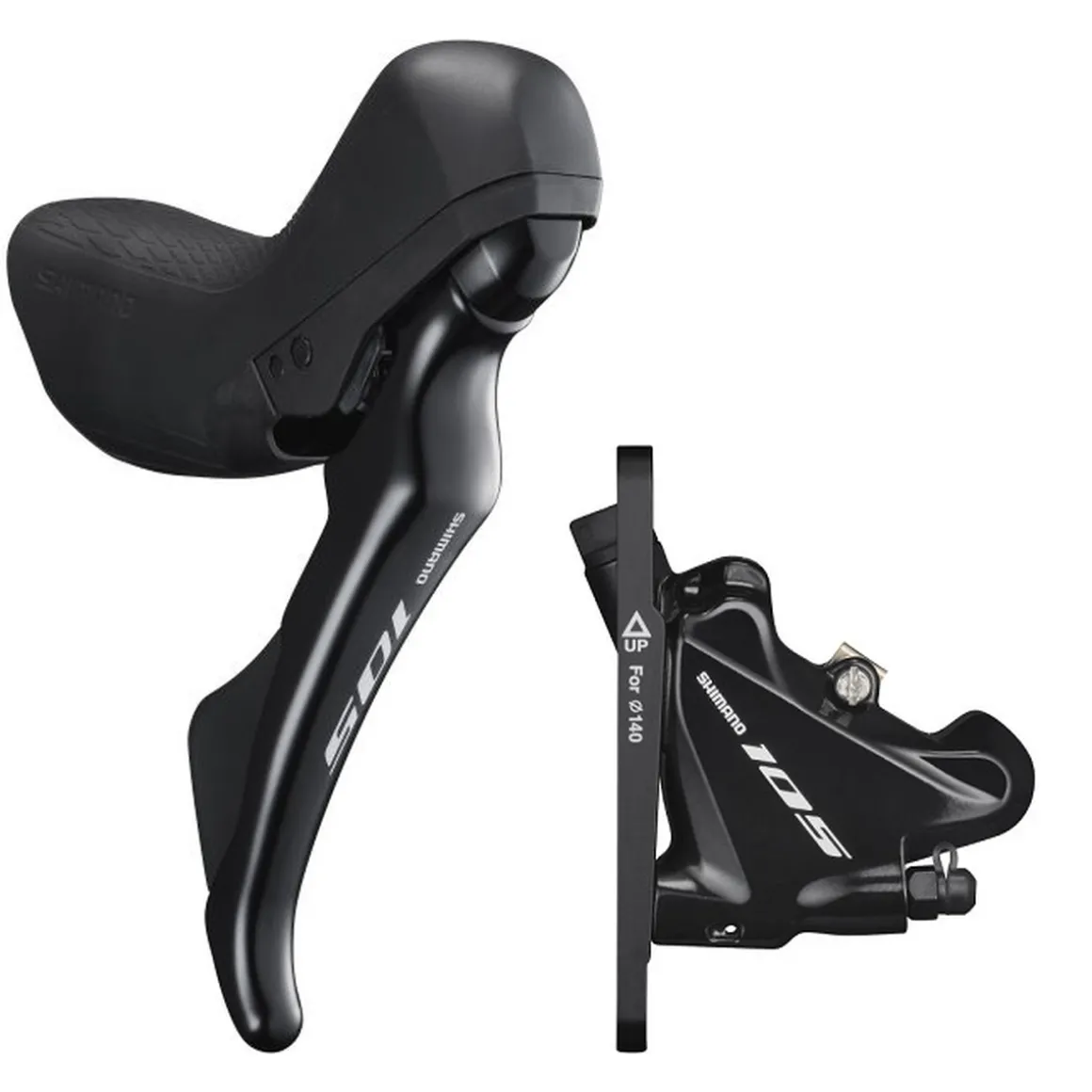

105 ST-R7020 STI Brake/Shift Lever Combination With BR-R7070 Front Disc Brake

The SHIMANO 105 ST-R7020 / BR-R7070 disc brake combination for the front wheel impresses with a revised STI lever. Its ergonomics are similar to that of the high-performance DURA-ACE and ULTEGRA groupsets.

The shifting mechanism was revised to help the Dual-Control shift/brake lever achieve even faster and smoother shifting processes with significantly less lever travel. Compared to the predecessor ST-5800, it was reduced by 24% during upshifting and by 8.6% during downshifting.
In combination with the BR-R7070 flat-mount brake calliper, SHIMANO provides you with a braking system with powerful performance and comfortable modulation. This ensures high safety and pleasure even when riding your road bike in bad weather.
Thanks to intuitive operation and a large range for lever reach adjustment, the SHIMANO 105 ST-R7020 brake/shift lever combination offers professional features and functionality, while still being suitable for more than just competition and training.

Details:
Hydraulic disc brake system for road and cross bikes
Constantly high braking power, even in bad weather
Improved shifting performance and ergonomics
ONE WAY BLEEDING for quick and easy bleeding
REACH ADJUST lever reach adjustment

Technical details:
Intended use: Road, TT, Triathlon, Cross
Series: 105
Model: ST-R7020
Material: aluminium, composite
Compatibility: 11-speed/double
Assembly point: front wheel (ST-R7020-L, left lever, double)
Brake calliper: BR-R7070 (Flatmount, 2-piston system (ceramic), flat design)
Brake hose: SM-BH90-JK-SSR
Hose length: 1000 mm
Brake fluid: SHIMANO mineral oil
Adjustable free stroke: no
SERVO-WAVE: no
Lever reach adjustment: integrated (with tool)
Brake pads: K05S-RX, organic
Recommended disc rotor: SHIMANO SM-RT70, SM-RT66
Weight brake lever: approx. 305 g
Weight brake calliper: approx. 141 g

In the box:
1 SHIMANO 105 ST-R7020 brake/shift lever combination for the front wheel (double)

Filled and bled, ready for installation.

Tip:
For the right 10-speed brake/shift lever combination for the rear wheel see prod. code 2274117.
