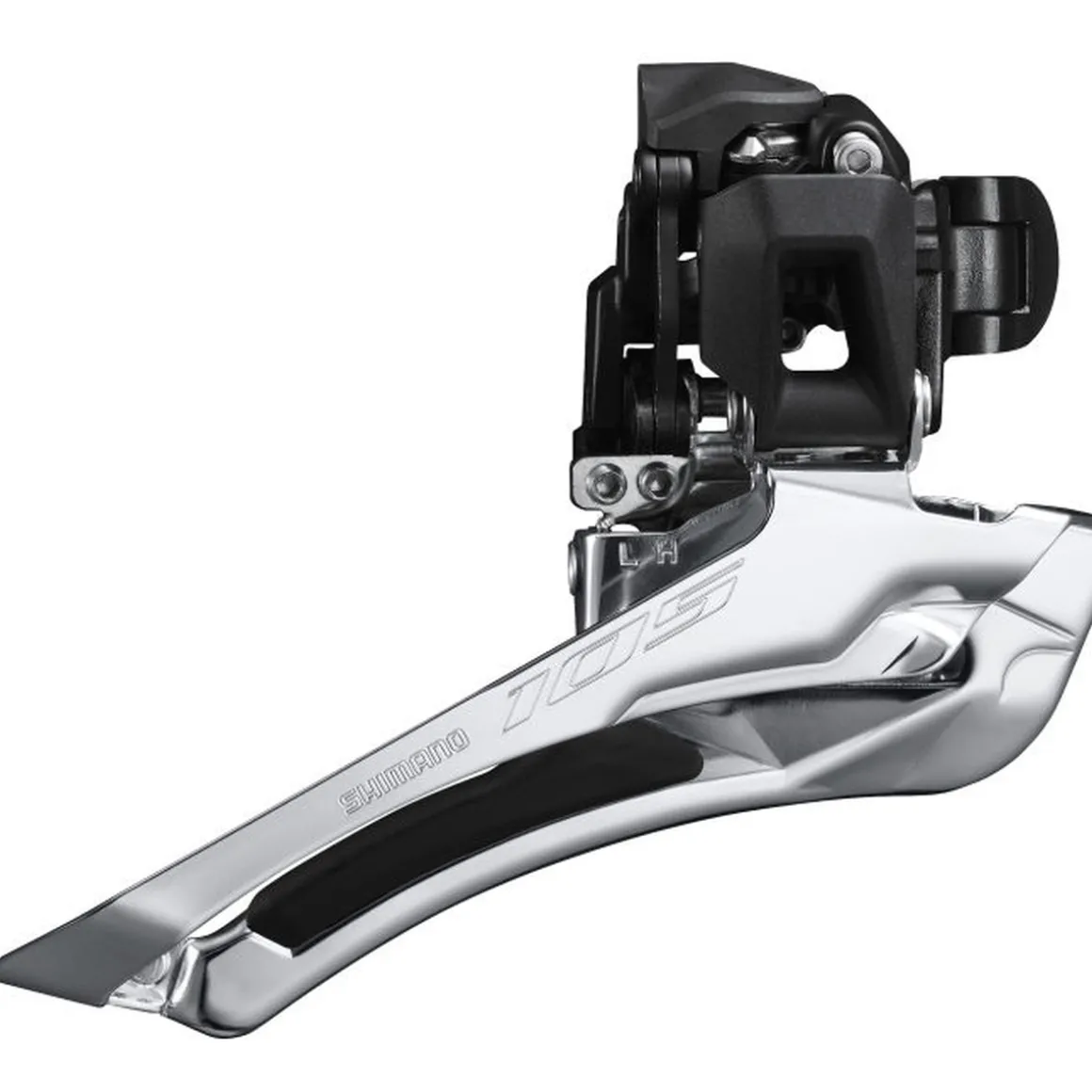

105 FD-R7100-BS 12-Speed Front Derailleur for Clamp Attachment

With the R7100 series, SHIMANO is also giving the 105 groupset its 12th gear and thus taking its best-selling road bike groupset to the next level.

Based on the design and function of the top groupsets ULTEGRA and DURA-ACE, the SHIMANO 105 FD-R7100-B front derailleur is characterised by excellent shifting performance and a generally harmonious and natural shifting feel.

Details:
Harmonious, natural shifting behaviour
Toggle link design offers numerous options for cable routing
Precise and simple adjustment through integrated cable tension adjustment

Technical details:
Intended use: road bike
Series: 105
Model: FD-R7100-BS
Material: aluminium, steel, composite
Compatibility: 12-speed/double
Attachment: clamp attachment (Down-Swing)
For clampØ: 31.8 mm (incl. adapter to Ø 28.6 mm)
Large chainring: 50 – 52 teeth
Capacity: 16 teeth
Chainline: 44.5 mm
Chain stay angle: 61° – 66°
Weight: approx. 111 g

In the box:
1 SHIMANO 105 FD-R7100-BS 12-speed front derailleur
